A DECISION FRAMEWORK FOR SELECTING A SUITABLE

SOFTWARE DEVELOPMENT PROCESS

Itamar Sharon, Michel dos Santos Soares, Joseph Barjis, Jan van den Berg and Jos Vrancken

Delft University of Technology, Jaffalaan 5, 2628 BX Delft, The Netherlands

Keywords: Software development process, Decision making, Large scale organization, Decision support framework.

Abstract: For streamlining the activities of software development, a number of software development processes has

been proposed in the past few decades. Despite the relative maturity in the field, large companies involved

in developing software are still struggling with selecting suitable software processes. This article takes up

the challenge of developing a framework that supports decision makers in choosing an appropriate software

development process for each individual project. After introducing the problem, the software development

processes included in this research are identified. For being able to align software development processes

and software projects, a number of project characteristics is next determined. Based on these two analyses, a

decision framework is proposed that, given the project characteristics, determines the most appropriate

software development process. In a first attempt to validate the framework, it has been applied onto two

case studies where the outcomes of the decision framework are compared to those found by means of a

collection of experts’ opinions. It was found that the framework and the experts yield similar outcomes.

1 INTRODUCTION

Despite all advances of the Software Engineering

discipline in past years, software projects still

present high failure rates. According to Georgiadou

(2003), a review of hundreds of software

development projects in organizations indicated that

around 80% of the projects were considered

unsuccessful (over budget, over schedule,

unreliable) and that around a third of the projects

were cancelled before completion. Similar results

are presented in other studies as well (Johnson,

1994, Charette, 2005) in which detailed data about

the high number of software projects that are

concluded over budget and time are given. Choosing

a software development process is often based on

past experiences. For managers to choose such a

process is becoming increasingly difficult for at least

two reasons. First, software projects are

continuously growing in complexity. Second, the

lack of a framework for suitability matchmaking

forces managers to rely on experience and intuition

and even personal preferences. This increases the

risk of failure since the combination of process

characteristics, the environment, stakeholders,

factors and evolvement of the organization or project

needs actually to be ‘optimal’ (PMI, 2008, Vliet,

2008).

Choosing a software development process that is

known to the organization and familiar for all

employees is often seen to be a suitable decision.

However, the problem is that large organizations

develop all types of projects, from very small to very

large. It is unlikely that the same process can be

applied to all types of projects, considering the

variety of hardware platforms and programming

languages that are used. Although the experience-

based approaches may yield certain results for small

software projects, medium to large size projects

require a more rigorous and profound framework for

the selection of the software development process.

The success of a software process for a given

software project heavily depends on the

characteristics of both the project and the

development process chosen. It is further sometimes

observed that there exists no ‘ideal process’

(Sommerville, 1996), and the question thus is more

how to find a ‘suitable process’

A possibility to cope with the fact that no process

is perfect implies a need to tailor a process according

to the organization and its environment.

Unfortunately, using this approach, project managers

need to monitor, analyze and adjust the process

Sharon I., dos Santos Soares M., Barjis J., van den Berg J. and Vrancken J. (2010).

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages 34-43

DOI: 10.5220/0002873900340043

 SciTePress

tailoring strategies and the project environment

continuously during the project (Xu and Ramesh,

2008). Another solution is to use different processes

for different projects. Then, the most appropriate

process to use depends on the characteristics of the

particular project. However, for finding

characteristics of projects that influence the

suitability of software development processes, the

current literature does not seem to suffice. In fact,

formulation of projects characteristics and properties

of software development processes as a framework

for decision-making is widely overlooked by

researchers. Most sources discuss the characteristics

of software development processes (Pressman, 2010,

Sommerville, 2007), but almost none make the

connection between the suitability of a process with

the characteristics of the particular project at hand.

Moreover, in practice and in literature as well, very

different opinions regarding the characteristics of

software development processes have been evolved.

This article tackles this challenge by identifying

typical characteristics of software projects that

influence the suitability of processes and mapping

both the processes and the characteristics into a

framework. By providing project managers a

framework for choosing the right process, valuable

time and money can be saved as far as decision

making is concerned.

The remainder of this paper is structured as

follows. In Section 2, the software development

processes investigated are shortly described. Section

3 focuses on the characteristics of software projects

that influence the suitability of software develop-

ment processes. The proposed decision making

framework is discussed in Section 4. By using two

case studies, the framework is tested and the results

are presented in Section 5. Finally, in Section 6,

conclusions are drawn and future research directions

indicated.

2 SOFTWARE DEVELOPMENT

PROCESSES

The diligent research and practice of the past few

decades resulted in numerous software development

processes. In this section, we briefly discuss the

software development processes that are selected for

consideration in this article. As a starting point, we

mention the two software development processes as

used in the organization in which this research was

executed (Sharon, 2009). These are the Waterfall

model (Royce, 1970) and the Rational Unified

Process (RUP) (Kruchten, 2004). The Waterfall

model has been a popular process for many

organizations for its simple and linear approach to

development (Pressman, 2010). The RUP is a

detailed, iterative and incremental process, in which

software architecture is emphasized as an important

artefact. Processes similar to these two are the V-

model (Vliet, 2008) and the Spiral model (Boehm,

1988). The V-model is based on the Waterfall model

but has significant differences. The V-model

includes a more thorough way of verification and

validation. The Spiral model intensively uses risk

assessment.

Agile methodologies are also very interesting to

be included in this research. These methodologies

have attracted much attention not only in the

research community, but also in practice. Agile

methodologies are based on an entire different

approach compared to the Waterfall model (Dybå,

2008). They are considered to be light-weighted

approaches, they accept and encourage changes

during development, and they support incremental

development of software. Some of the most

significant processes within this type of

methodology are eXtreme Programming (XP)

(Beck, 2005), Scrum (Rising and Janoff, 2000) and

Feature Driven Development (FDD) (Hunt, 2006).

The last method included is the Dynamic Systems

Development Method (DSDM) (Beynon-Davies et

al., 1999).

3 MAJOR PROJECT

CHARACTERISTICS

Based on the characteristics of the project at hand,

the goal of the decision support framework is to

provide the development process that is most

suitable to it. In order to decide which process fits

the project at hand, an overview of its characteristics

is needed. For each characteristic it is possible to

decide whether or not a certain process is suitable.

Existing literature does not suffice in finding these

characteristics. By interviewing experienced

personnel from a large organization and combining

this with information found in literature (Boehm,

1988, Beck, 2005, Dybå, 2008, Hunt, 2006,

Pressman 2010, Sommerville, 2007, Vliet, 2008), a

set of major characteristics has been identified

(Sharon, 2009). The interviews were conducted with

personnel throughout the organization. A survey was

distributed among personnel to receive organization-

wide information regarding their opinions

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS

concerning these characteristics. Furthermore,

suppliers of the organization were interviewed

regarding their opinion about the application of

various software development processes in practice.

From these interviews and literature study, it

became clear that three factors are of significant

importance for software projects: (a) Project Budget,

and (b) Project Duration, and (c) Requirements. The

selection and application of software development

processes have direct impact on these factors. In

turn, these factors also influence the suitability of a

software development process. Although the

influence works both ways, the influence the factors

have on the software development process is crucial

for the framework, especially the influence they

have on the decision of which process to use.

From the three factors mentioned it is possible to

derive characteristics that influence the suitability of

software development processes. To find these

characteristics, three methods were used: literature

research, analysis of lessons learned documents, and

interviews with professionals. Starting from the

three significant factors mentioned, it was possible

to derive a list of characteristics that are supposed to

influence the suitability of software development

processes (Sharon, 2009): please see Table 1.

3.1 Project Budget

Characteristics that are connected to the factor

Project Budget are risk clearness, scope clearness,

stakeholders’ flexibility, and environmental stability.

If the risk and scope are not clear, the project budget

will not be. A significant amount of over budget and

late projects are caused by uncertain boundaries

(Georgiadou, 2003). Furthermore, these characteris-

tics influence the suitability of processes, e.g., the

Spiral model is considerably better at risk mitigation

in comparison to the Waterfall model (Boehm,

1988). The stability of the development environment

is highly important for the project budget. If the

infrastructure and techniques used are unreliable, the

budget becomes unreliable as well. In addition, if the

stakeholder is inflexible, occurring changes are

difficult to apply and budget can be overrun.

3.2 Project Duration

The characteristics that influence the factor Project

Budget are often related to the factor Project

Duration. In addition, another characteristic was

found that only influences Project Duration. This is

the familiarity the project group has with the

application to be developed. Certain projects are

adaptations of already existing software. However,

some projects concern entire new innovative

software applications. If this is the case, more time is

needed for the project group to get familiar with the

domain.

3.3 Requirements

The final factor mentioned above is that of

Requirements. Five characteristics were found that

have influence on or are influenced by this factor.

The first two characteristics are requirements

maturity and expected changes in requirements. For

many software projects, the stability of requirements

is of the utmost importance. Changes at the end or

during the project could cause enormous problems.

The third characteristic is client’s commitment. For

elicitation and collection of explicit and

unambiguous requirements, clients need to be

committed to the project (Dybå, 2008). Furthermore,

for some software development processes, business

partners need to be on site for the entire duration of

the project (Dybå, 2008, Hunt, 2006). The fourth

characteristic is the method of contracting that is

applied. Agile processes are more suitable for

projects in which time and material (where the final

price depends on the time and material spend) is

applied (Paetsch et al., 2003), and for the Waterfall

model fixed pricing (in which the amount of time

and material are dependent on the agreed price) is

more suitable. This is because the two methods

differ in requirements management. Fixed pricing

causes requirements to be frozen, while time and

material do not. The final characteristic is the

flexibility of stakeholders since requirements

management is dependent on their wishes.

3.4 Additional Characteristics

During this research a number of the characteristics

found did not relate to any of the three factors

mentioned before. The first of these characteristics is

team size. Software projects can differ greatly in the

amount of people working on the project. This does

include the stakeholders, the client, and personnel

from the vendors. For some processes, such as agile

processes, small teams are a necessity. Besides, the

Waterfall model, for example, can cope with large

teams because of its intense use of documentation.

The second characteristic, which relates to the

team size, is how good the team relationship is. This

is important in general, but is crucial for agile

methodologies, in which team communication is a

common, encouraged practice.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

Table 1: Final list of characteristics and their average weights.

Characteristic Description Weight

Requirements Maturity

The maturity of the wishes of the client. Are they likely to change? Are they feasible? 4,4

Development Stability

The stability of the development environment. Is the technique familiar? Will it change during the

project?

4,3

Project Size

The Size of the project. Can be expressed in function points, budget, and project duration. 4,1

Risk Clearness

Are all the possible problems and dangers clear? Will there be no surprises? 3,8

Outsourcing

Is there any outsourcing? Are there any vendors used for writing code? 3,5

Scope Clearness

The clearness of the extent of the project. Is the project clearly demarcated? Or is it likely to

change?

3,3

Client’s Commitment

The availability of the client. Is he/she ready and willing to work for the project? 3

Team Relationship

The relationship among all team members. Is communication going smoothly? 3

Team Size

The size of the entire team. This entails every architect, programmer, account manager, project

manager etc.

2,9

Method of Contracting

Fixed Pricing: Cost agreement is made based on the requirements. Time/Material: Open

contract.

2,9

Stakeholders Flexibility

s the stakeholder open-minded? Does he/she only want to do things the familiar way, or is he/she

open for innovations?

2,8

The third and final characteristic is departmental

influence. In many large organizations different

departments are included in the development. When

these different departments use different software

development processes, integration is a challenge.

For certain processes, this integration factor is of

significant importance.

3.5 Chosen Characteristics

In order to verify and review the characteristics

found in the previous section, a survey was

distributed among personnel from a large

organization (the resulting, preliminary list of

characteristics is given in the Appendix). In the

survey, the appropriateness and weights of each

characteristic were asked. In a next step, the

preliminary list obtained was critically analysed. In

Table 1, the final list of characteristics and their

averaged weights (Sharon, 2009) are presented. The

changes that were made concerning the first list of

characteristics are the deletion of application

familiarity and departmental influence. Application

familiarity is in fact included in the characteristic

Development Stability. The reason that departmental

influence is deleted is because when this occurs,

major benefits of a certain process still exist for a

single department, even if integration benefits are

lost. The characteristic Outsourcing is included in

this final list of characteristics because it currently is

applied for the majority of software projects

developed at the organization. The weights are given

in a range from the scale of 1 to 5, 1 being the

lowest and 5 being the highest weight.

4 DECISION FRAMEWORK

Based on the characteristics of software

development processes and of software projects, a

decision support framework has been developed.

The framework tells what software development

process is most suitable regarding the particular

project currently at hand.

4.1 Mapping Solution

In order to solve the mapping problem of the two

different sets of information, the following solution

was developed. The framework consists of

individual characteristics. The suitability scores of

each process on each individual characteristic are

summed up: this forms the total score. The

suitability score of each process on each

characteristic is found by doing the following. Each

characteristic is divided into five scales. Figure 1

depicts an example. The project size is in this case

divided into five scales, 1 to 5. Scale 1 represents a

project of a very small size. Scale 5 here represents a

very large project. For each scale, it is possible to

analyze how suitable each software development

process is. Three grey grades are used to state the

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS

suitability of a process. Light grey represents high

suitability, medium grey represents medium

suitability, and a high grey grade means minimal

suitability. If a process is not mentioned on a

particular scale, it means that it is not at all suitable

in that particular case. On the first scale, Scrum and

XP are found to be suitable. DSDM and FDD are

presented in medium grey grade. When dealing with

a small project, agile processes are appropriate.

Scrum and XP are suitable in coping with small

teams. The Waterfall model for example, consists of

a high amount of documentation and minimizes

face-to-face time, which is therefore less suitable for

small projects. On the fifth scale of the characteristic

project size, the Waterfall model is presented in

medium grey. In this case, documentation is highly

important.

Scrum FDD RUP RUP Waterfall

XP RUP FDD Waterfall V-Model

DSDM DSDM … V-Model RUP

FDD Scrum … Spiral Spiral

1 2 3 4 5

Figure 1: Mapping development processes on a specific

characteristic of a given software project.

The mapping shown in Figure 1 can be executed for

each characteristic presented in Table 1. Therefore,

all these characteristics are implemented into a

spreadsheet-based application.

Figure 2: Example entry form.

The first element of the decision framework is

the entry form. This entry form consists of the

eleven characteristics presented in Table 1. The

users will define their project by indicating the scale

of each characteristic. The entry form is presented

for a single characteristic in Figure 2. Almost all

characteristics consist of five scales, plus a ‘not

available’ option. The characteristics method of

contracting and outsourcing consist of two scales.

For the method of contracting these are “time &

material” and “fixed pricing”. For outsourcing the

options are “yes” and “no”. The “not available”

option can be selected when no information

regarding this characteristic is available or when it is

not a significant factor for this particular project. If

this is selected, the characteristic is removed from

the calculation. Each characteristic also consists of a

weight determined by employees. However, it is

possible to adjust these weights, namely if clients

and project managers agree that in a particular

project.

4.2 Calculation

In this subsection the calculation of the suitable

software development process(es) is explained. The

calculation depends on the scales given in the entry

form. In Figure 3, the calculation of the

characteristic project size is depicted. In the upper

table in the figure the calculation scores are

presented. When a software development process

scores high suitability on a particular scale, then this

process receives the score 1. If the process is

minimally suitable, the score 0.5 is given. In the

example, project size is given the scale 4 (which can

be found in the blue bar on the far right). This means

that it concerns a large project. When a project is

defined as large, more structured and documentation

oriented processes are suitable (Pressman, 2010,

Sommerville, 2007). On the far right of the

characteristic table the suitable processes based on

the scale given are presented. In this case, when the

project size is defined as large, RUP is most suitable.

The Waterfall model is also considered suitable, but

in a lower degree. The Spiral model and the V-

model are also depicted here meaning that they are

minimally suitable. The other processes are, for this

particular characteristic and its scale, not suitable.

Figure 3: Example calculation.

Figure 3 shows that these processes receive the score

corresponding to their suitability grade. The score is

then multiplied by the weight of the characteristic, in

this case 4.1. This results in higher scores for more

important characteristics. For each characteristic this

calculation is executed and these are finally summed

up. The software development process that receives

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

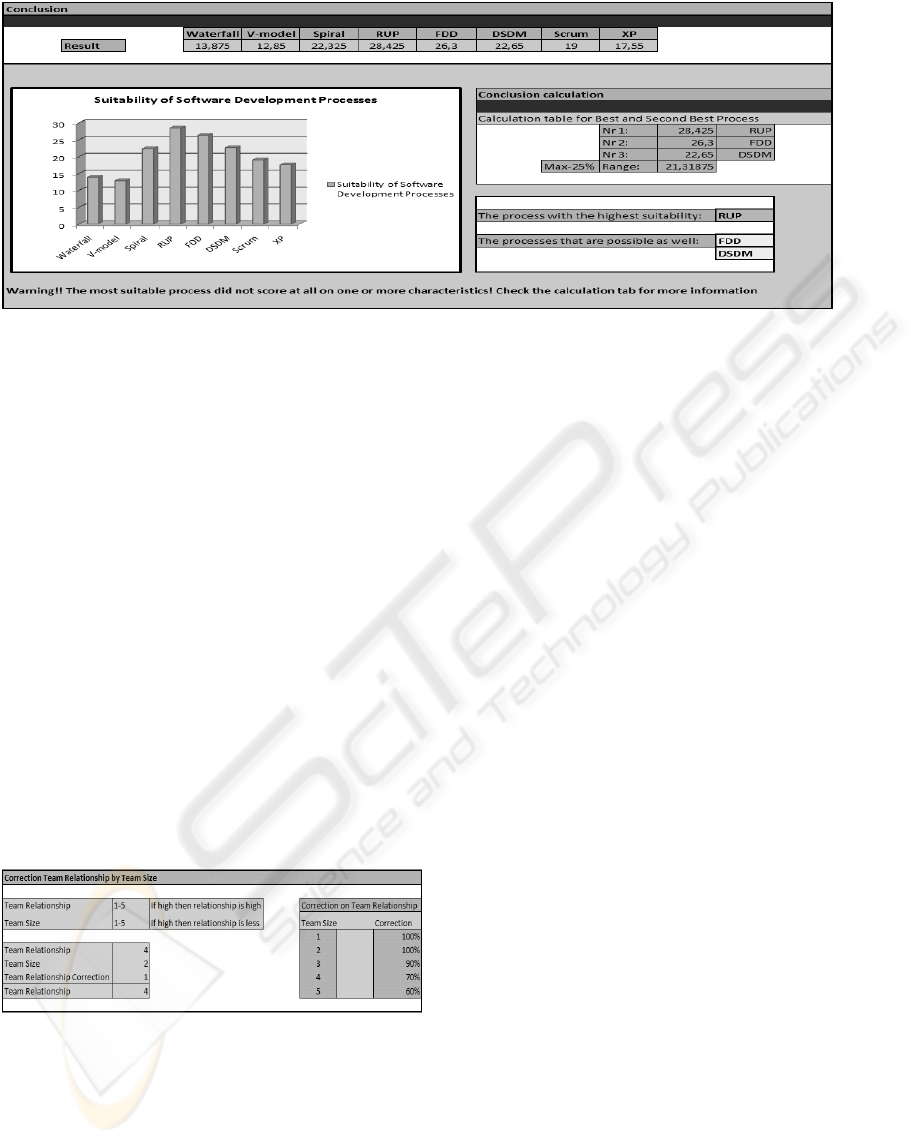

Figure 5: The conclusion frame.

the highest summed up score is most suitable. This

will be explained later.

Most of the characteristics are independent.

However, two characteristics are influenced by

another characteristic. These dependencies are that

of team size on team relationship and requirements

maturity on scope clearness. For these dependencies

a correction is needed. In Figure 4 this is presented

for team relationship.

When the team size becomes big, the

relationship within a team gets compromised.

Geographical boundaries, lack of communication

and opposing values are introduced. This is therefore

corrected in the framework. On the right side of the

figure the correction table is presented. This shows

that when the team size is very big, the team

relationship gets corrected by 60%. In the example

in Figure 4, the original score of the relationship was

3. This is then corrected by 60% and results in a

score of 2. This is similar for the dependency

between requirements maturity and scope clearness.

Figure 4: Correction on team relationship.

4.3 Result

The final element of the decision framework

described in this article is the result. The main

purpose of this framework is to indicate the most

suitable software development process for a

particular project. The conclusion, depicted in

Figure 5, presents this information. In the conclusion

five elements are presented. The first element is the

table with the summed up score of the software

development processes on all the characteristics. The

second element is the graph that represents the same

result as given in the table. The conclusion

calculation is the third element. This calculates the

result given in the fourth element, the final

recommendation. Finally, the fifth element states a

warning when the most suitable process presented in

element four does not at all score on one or more

characteristics. The conclusion table and the graph

basically show the scoring of each software

development process. In this particular example, the

RUP scores highest. However, this does not

necessarily mean that this process should be used.

Other processes, such as FDD and DSDM score

high as well. The decision framework does

recommend using the RUP for this particular

project. The processes FDD and DSDM could be

used. It can be concluded that the Waterfall model

and the V-model should definitely not be used.

The final element of the conclusion of the

decision framework is the warning statement. It is

possible that the framework shows that RUP is the

most suitable process while this process did not at all

score (not even minimally) on one or more

characteristics. If this is the case it is recommended

to analyze the consequences for its suitability. For

example, if the RUP scores on all characteristics

except on requirements maturity, the user should

analyze why this is the case.

If the requirements are very immature, an agile

process is needed and not RUP. The user can

conclude that the activities of requirements

engineering (e.g., elicitation, prioritization) need to

be more mature. If the requirements are more

mature, the suitability of the RUP increases.

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS

The framework also includes information tabs.

The user is given a short basic guide of how to use

the framework and which steps need to be taken.

Furthermore, the framework also has a software

development process page to present the user

information regarding each process used in this

framework. When a user is not familiar with a

certain process this page provides a good overview.

5 CASE STUDIES

5.1 Case Study 1: A RUP Project

The first case study is considered to be a project

very suitable for RUP. An expert regarding RUP

tested this project on the framework to find whether

or not the framework gives RUP as most suitable

solution and to find which other software

development processes might be possible. The

framework is therefore tested on its accuracy. The

project is defined as follows (Table 2).

Table 2: Project for case study 1.

Project Characteristic Scale

Project Size 3

Team Size 3

Requirements Maturity 2

Team Relationship 4

Client’s Commitment 3

Scope Clearness 2

Risk Clearness 2

Development Stability 2

Stakeholders Flexibility 2

Method of Contracting Time/Material

Outsourcing Yes

When this is applied to the framework the

following conclusion is given (Figure 6). Only the

graph of the conclusion is presented regarding the

fact that this is the most clarifying and complete

element.

The conclusion of the framework is similar to

that of the experts’ expectations. The RUP can be

considered to be the most suitable process for this

particular project. However, FDD is also a very

viable process for this project. The scales selected

are very average (no extremes). The RUP and FDD

are both good software development processes to

use when a project finds itself between very

heavy/traditional and very small/uncertain.

Figure 6: Conclusion of case study 1.

5.2 Case Study 2: A Large Uncertain

Project

The second case study consists of a project that was

considered to be very large and had many

uncertainties. During the execution of this project

many difficulties and problems arose. This case

study is interesting for the decision framework.

Many large organizations struggle with oversized

projects in which the risks and scope are difficult to

define. The project characteristics are defined in

Table 3.

Table 3: Project for case study 2.

Project Characteristic Scale

Project Size 5

Team Size 5

Requirements Maturity 1

Team Relationship 2

Client’s Commitment 3

Scope Clearness 1

Risk Clearness 2

Development Stability 1

Stakeholders Flexibility 4

Method of Contracting Time/Material

Outsourcing Yes

The graph of the suitability of the software

development processes is depicted in Figure 7. The

result of the framework is interesting and

complicated. As the graph shows, almost all

software development processes are roughly equal in

suitability for this particular project. This can be

explained by the extreme values of scales given for

this project. A project of such great size and many

uncertainties will most likely fail.

According to the framework, the agile processes

Scrum and XP both score highest on suitability.

However, these processes are considered less

suitable on very large sized projects. This conclusion

should therefore be interpreted as follows: agile

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

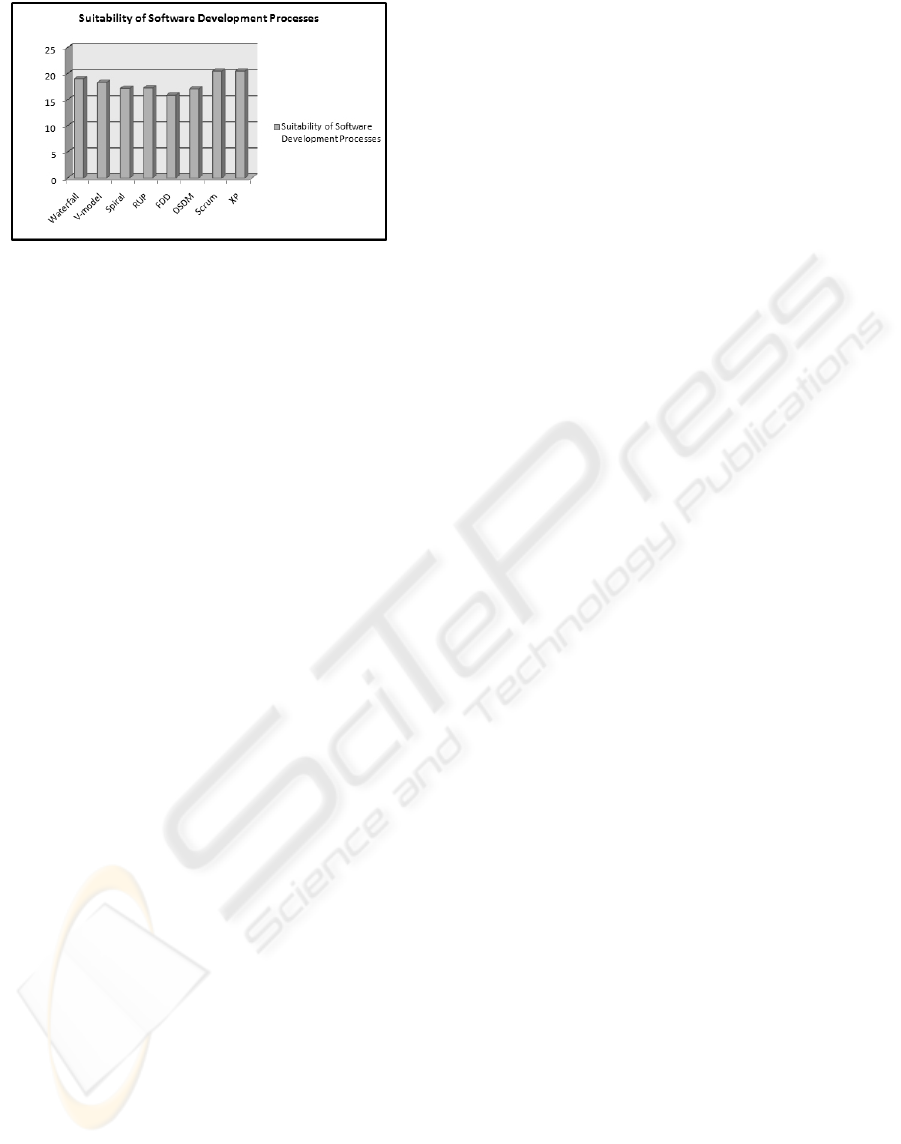

Figure 7: Conclusion of case study 2.

processes are most suitable for this project.

However, taking the size of the project into account,

this project in its current scale is not a feasible

project to be executed. This conclusion indicates that

the project in its current state is not specified

enough, and further activities such as risk evaluation

and requirements analysis are needed. This test

shows that the framework does not only help in

selecting a suitable process, it also helps in finding

and discussing projects in which the specification is

still an issue.

6 CONCLUSIONS

Through an analysis of literature, a lack of success

was found in executing large-scale software

development projects. Especially the over-budget,

over-schedule, and under-functioning are most

recurrent phenomena in software projects. Often,

part of the cause for these issues is the lack of match

between the projects at hand and the software

development process in use. Therefore,

organizations are struggling in selecting an

appropriate process for developing software

projects. In order to find a solution for this lack of

success, a framework was developed to present the

user with the most suitable processes. This is

achieved by taking the characteristics of the software

project at hand into account. An analysis of software

development processes and software projects

resulted in a number of characteristics that influence

the suitability of each software development process.

Furthermore, by performing interviews and

distributing a survey, weights have been attached to

these characteristics.

Based on these results, a framework was created

in which the user is able to indicate how the current

software project is characterized. Based on this

input, a suitability score on each characteristic is

given to each software development process. The

summed up score of these individual suitability

ratings presents the user with the most suitable

process (es). The case studies have been performed

at a large-scale organization involved in software

development, and have yielded correct and accurate

results, that can be considered as a first test and

validation of the proposed framework.

The resulting framework can be considered as a

suitable tool for analyzing software projects and

selecting an appropriate software development

process. Moreover, is also helps in finding and

discussing projects that are not specified thoroughly

enough. This framework triggers the user to actually

consider the project at hand.

Although the framework is discussed and tested

with users and experts, further validation is

necessary. It is recommended to compare projects

conducted while using the framework and projects

conducted without using the framework. In addition,

for this article, only one large-scale organization

involved in developing software was included in the

validation process. To analyze and test the general

applicability of this decision framework, multiple

organizations in different market segments should be

included.

REFERENCES

Boehm, B. W. (1988). A Spiral Model of Software

Development and Enhancement. IEEE Computer, 21

(5), pp. 61-72.

Beck, K., Andres, C. (2005). Extreme Programming

Explained: Embrace Change. (2

Edition). Addison-

Wesley, Boston.

Beynon-Davies, P., Carne, C., Mackay, Tudhope, D.

(1999). Rapid Application Development (RAD): An

Empirical Review. European Journal of Information

Systems 8 (3), 212-223.

Charette, R. N., (2005). Why Software Fails. IEEE

Spectrum 42 (9), 42-49.

Dybå, T., Dingsøyr, T. (2008). Empirical studies of agile

software development: A systematic review.

Information and Software Technology, 50 (9-10), 833-

859.

Erickson, J., Lyytinen, K., Siau, K. (2005). Agile

Modeling, Agile software development, and extreme

programming: the state of research. Journal of

Database Management, 16 (3), 226-237.

Georgiadou, E. (2003). Software Process and Product

Improvement: A Historical Perspective. Cybernetics

and Systems Analyses, 39 (1), 125-142.

Hunt, J. (2006). Agile Software Construction. Springer-

Verlag, London.

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS

Johnson, J. H. (1994). The CHAOS Report. The Standish

Group International, Inc.

Kruchten, P. (2004). The Rational Unified Process: An

Introduction. (3rd Edition). Addison-Wesley

Longman, Inc.

Paetsch, F., Eberlein, A., Maurer, F. (2003). Requirements

Engineering and Agile Software Development.

Proceedings of the Twelfth IEEE International

Workshops on Enabling Technologies: Infrastructure

for Collaborative Enterprises (WETICE’03).

Pressman, R. S. (2010). Software engineering; a

practitioner’s approach. (7th edition). McGraw-Hill,

New York.

PMI - Project Management Institute. (2008). A Guide to

the Project Management Body of Knowledge. (Fourth

Edition).

Rising, L., Janoff, N. S. (2000). The Scrum software

development process for small teams. IEEE Software,

17 (4), 26-32.

Royce, W. (1970). Managing the Development of Large

Software Systems. IEEE WESCON. 1-9.

Sharon, I. (2009), A Decision Framework for Selecting a

Suitable Software Development Process, Master’s

Thesis. Delft University of technoogy, August 2009.

Sommerville, I. (1996). Software Process Models. ACM

Computing Surveys, 28 (1), 269-271.

Sommerville, I. (2007). Software Engineering. (8

Edition) Pearson Education Limited, Harlow, England.

Vliet, van H. (2008). Software Engineering; Principles

and Practice. John Wiley & Sons Ltd, USA.

Xu, P.; Ramesh, B. (2008). Using Process Tailoring to

Manage Software Development Changes. IT Pro,

July/August, 39-45.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

APPENDIX

Table 4: Preliminary list of project characteristics and their weights.

Project characteristics Weights as given by 12 respondents Average weight

Project budget 2 5 1 2 1 5 5 1 2 1 5 5 2.5

Project duration 4 5 4 1 2 3 4 4 3 2 3 5 3.34

Team size 4 4 3 3 2 1 3 3 4 3 3 2 2.92

Requirements maturity 5 5 4 3 4 4 5 5 5 4 4 4 4.42

Expected change in requirements 4 5 5 4 4 4 3 4 5 4 4 4 4.25

Influence of other departments 3 3 0 1 2 3 2 1 3 1 2 5 2.17

Team relationship 4 4 0 3 2 5 5 2 3 1 2 5 3

Experience with application 2 3 0 2 4 3 2 4 3 1 1 4 2.42

Stakeholder flexibility 3 3 2 4 2 4 2 3 4 2 4 3 3

Client commitment 2 5 0 4 0 5 4 4 4 3 4 5 3.34

Scope clearness 3 5 5 1 3 4 5 5 3 1 5 5 3.75

Risk clearness 4 5 5 5 5 5 3 4 3 3 5 5 4.34

Environment stability 4 3 4 1 0 2 5 3 2 1 3 5 2.75

Method of contracting 2 4 0 4 4 3 2 2 4 3 1 5 2.84

In order to verify and review the characteristics

identified in the first sections of chapter 3, a survey

was distributed among personnel from a large

organization. In this survey, the appropriateness and

weights of each characteristic were asked. Table 4

shows an overview of the selected characteristics

and the weights, given by twelve respondents. Each

respondent has expressed its opinion by giving each

characteristic a number from 1 to 5. When the

respondent finds the importance of a characteristic to

be very low, the number 1 is given. When the

characteristic is found very important, the number 5

is given. From these weights, an average value has

been calculated that is shown in the last column.

The survey gave the respondents the possibility

to answer whether or not (s) he found that certain

characteristics should be deleted. It turned out that

four characteristics could be deleted (or changed).

The characteristic “Influence of other departments”

is seen as not important, and was deleted from the

framework. Furthermore, the characteristic

“Experience with the application” was also deleted.

The characteristics “Project Budget” and “Time

Schedule” were combined into the characteristic

“Project Size”. This is based on the opinions given

by the respondents. Another characteristic that was

be added to the framework is “Outsourcing yes or

no”. This characteristic was mentioned by two

respondents.

In the survey, respondents were also asked to

give answers to open questions. Two questions

provided interesting information. The first

interesting question is “Do you think that the

application of software development processes

within this company is going well?”. Nine out of the

eleven respondents answered this to be not the case.

Therefore, this subject is definitely an important

issue and confirms the statements made in the

introduction of this article. The other interesting

question was “Do you want to have multiple

software development processes to be applicable

within the organization for different projects, or do

you rather have one process which is tailored to fit

different projects?”. This question concerns the main

statement made in this research (which is that

multiple processes should be available for different

projects). Five out of ten respondents agreed with

this statement.

A DECISION FRAMEWORK FOR SELECTING A SUITABLE SOFTWARE DEVELOPMENT PROCESS
