COMBINING RUNTIME DIAGNOSIS AND AI-PLANNING IN A

MOBILE AUTONOMOUS ROBOT TO ACHIEVE A GRACEFUL

DEGRADATION AFTER SOFTWARE FAILURES

J¨org Weber and Franz Wotawa

Institute for Software Technology, Graz University of Technology, Inffeldgasse 16b/2, Graz, Austria

Keywords:

Model-based reasoning, Autonomous robots, Diagnosis, Repair, AI planning, Plan monitoring, Capability

model.

Abstract:

Our past work deals with model-based runtime diagnosis in the software system of a mobile autonomous

robot. Unfortunately, as an automated repair of failed software components at runtime is hardly possible, it

may happen that failed components must be removed from the control system. In this case, those capabilities

of the control system which depend on the removed components are lost. This paper focuses on the necessary

adaptions of the high-level decision making in order to achieve a graceful degradation. Assuming that those

decisions are made by an AI-planning system, we propose extensions which enable such a system to generate

only plans which can be executed and monitored despite the lost capabilities. Among others, we propose an

abstract model of software capabilities, and we show how to dynamically determine those capabilities which

are required for monitoring a plan.

1 INTRODUCTION

Enabling mobile robots to operate autonomously in

unknown, unpredictable and often harsh environ-

ments requires that the robots are equipped with on-

board diagnosis and repair/reconﬁguration abilities.

Hardware may be damaged by unexpected interac-

tions with a rough environment, or it may fail due

to internal faults. Complex software systems, on the

other hand, cannot be exhaustively tested and thus

may contain bugs which may lead to runtime failures.

The robot should be able to autonomously detect and

locate failures of hardware or software components,

and it should also be able to properly deal with run-

time failures. This means that the robot should at-

tempt to repair/reconﬁgure the system in order to re-

store the full capabilities of the system. If this is not

possible, then the robot should try to achieve a grace-

ful degradation, i.e., we want the robot to continue its

mission, maybe at a lower performance.

Whereas most of the past research on runtime

diagnosis and repair/reconﬁguration in autonomous

robots has focused on hardware aspects, our work

has tackled the issue of software failures at runtime

(Steinbauer and Wotawa, 2005; Weber, 2009). Typi-

cal failures are software crashes or deadlocks. We as-

This research was partially funded by the Austrian Sci-

ence Fund (FWF) under grant P20199-N15.

sume that the control system is composed of basically

independent components. We proposed to detect fail-

ures by monitoring properties of the control system at

runtime, and we apply model-based diagnosis tech-

niques (Reiter, 1987; de Kleer and Williams, 1987) to

locate the failed components.

We proposed to restart failed software compo-

nents, hoping that they work correctly afterwards.

However, as this is not a real repair which ﬁxes

the root cause of the failure, it may happen that the

restarted component immediately fails again. In this

case, the failed component is aborted and perma-

nently removed from the control system. This leads

to a degradation of the capabilities (functionalities)

of the control system.

In this paper we focus on the adaption of the high-

level decision making after the loss of software ca-

pabilities. Of course, if the lost capabilities are vi-

tal for the operation of the robot, then the robot is no

longer able to do something meaningful. However,

if non-vital components are affected, the robot may

still be able to perform useful tasks, maybe in a de-

graded mode. It may happen that the planning system

can ﬁnd an alternative plan which achieves the same

goal, or that the original goal can no longer be accom-

plished, but there are other (maybe less useful) goals

which can still be achieved.

We assume that the high-level decision making

127

Weber J. and Wotawa F. (2010).

COMBINING RUNTIME DIAGNOSIS AND AI-PLANNING IN A MOBILE AUTONOMOUS ROBOT TO ACHIEVE A GRACEFUL DEGRADATION AFTER

SOFTWARE FAILURES.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 127-134

DOI: 10.5220/0002752101270134

 SciTePress

of the robot is done by a classical AI-planning sys-

tem which performs a closed-loop control of the

robot. The planning is based on a representation

language similar to the well-known STRIPS repre-

sentation (Fikes and Nilsson, 1972). We propose to

augment the planning system with an abstract model

of the control system’s capabilities. This model is

utilized to derive the currently available capabilities,

based on the diagnostic results provided by the run-

time diagnosis and repair system. Moreover, we pro-

pose to enhance the action speciﬁcations with ca-

pability preconditions, stating which capabilities are

required for the low-level execution of the action.

Hence, based on the knowledge about available capa-

bilities, the planning system is now able to generate

plans whose actions can still be executed.

In Sec. 2 we give some background information

concerning our past work on model-based runtime di-

agnosis and repair in a robot control system. We also

outline a control system which serves as running ex-

ample throughout this paper. Thereafter, in Sec. 3

we propose an approach which ensures that the AI-

planning system computes only plans whose actions

are supported by the currently available capabilities.

In Sec. 4 we present a case study, executed on a real

robot control system, which shows that our proposal

can achieve a graceful degradation of the robot’s be-

havior after component failures. Afterwards, in Sec.

5 we discuss the issue that the plan monitoring also

relies on capabilities of the control system. In Sec.

5 and Sec. 6 we propose two alternative solutions to

this problem with the aim that the generated plans are

also monitorable. Sec. 7 contains a discussion of re-

lated research and open issues.

The utilization of diagnostic results in the deliber-

ative layer of mobile autonomous systems has gained

little attention in the past. In particular, we are not

aware of any work from other researchers which ad-

dresses AI-planning with degraded capabilities of the

software system.

2 BACKGROUND: DIAGNOSIS

AND REPAIR IN A ROBOT

CONTROL SYSTEM

In this section we brieﬂy outline our past work on

model-based runtime diagnosis and repair in the soft-

ware system of mobile autonomous robots (Stein-

bauer and Wotawa, 2005; Weber, 2009). The goal of

this work is to detect and locate failed software com-

ponents at runtime without any human intervention.

Our approach mainly aims at severe failures like soft-

ware crashes, ”freezes” (e.g., non-terminating loops

or deadlocks), or major computing errors. We deﬁne

components as (largely) independent binary modules

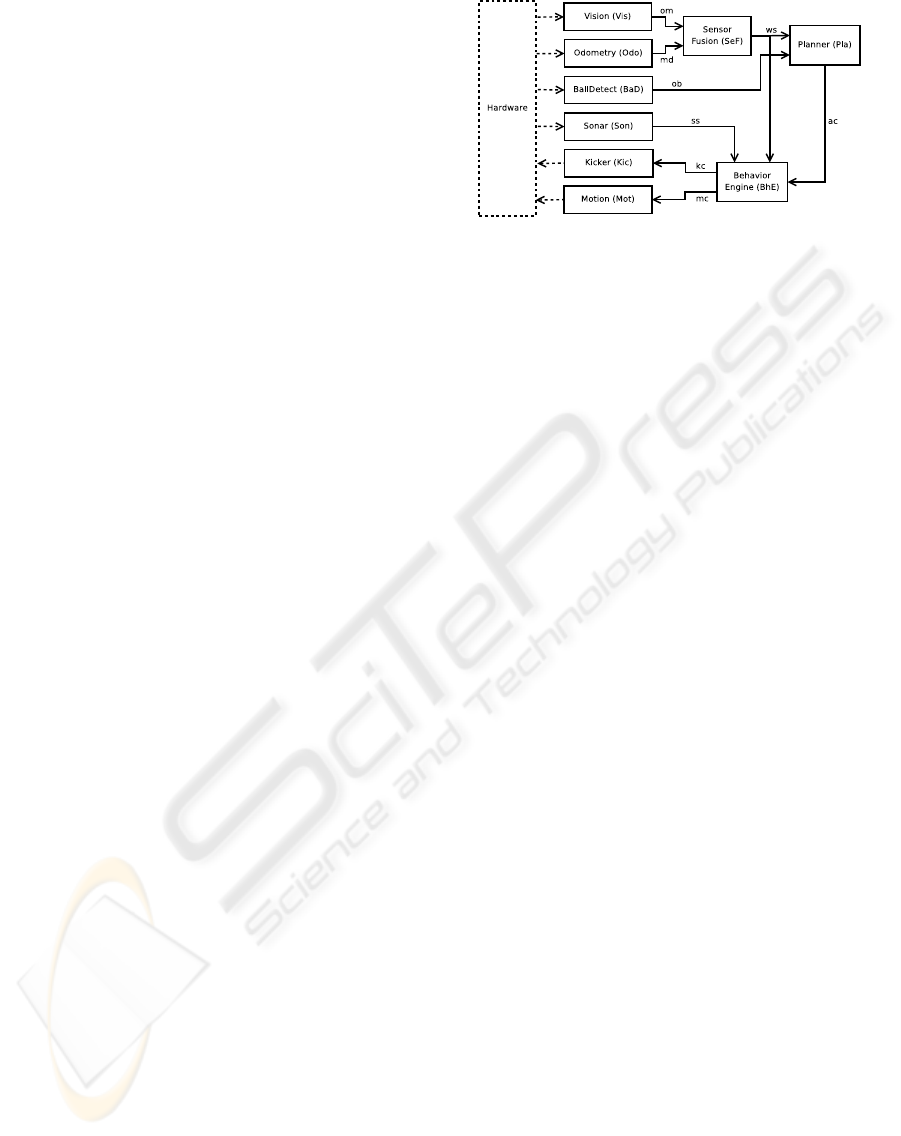

Figure 1: Architecture of a control system for an au-

tonomous soccer robot. Connections depict data ﬂows.

which have no shared memory and which communi-

cate by exchanging events over communication chan-

nels which, in the ideal case, completely decouple the

components.

Figure 1 depicts an architectural view on a sub-

system of a control system of an autonomous soc-

cer robot. This example system will be used

throughout this paper. The components Vision,

Odometry, BallDetect, and Sonar process sensor

data. SensorFusion computes a continuous world

model, containing (among others) the estimated po-

sitions of environment objects. Sonar supplies data

which allows for the detection of obstacles, and

BallDetect, relying on an infrared sensor, states

whether or not the robot possesses the ball (this holds

when the ball is between the grabbers of the robot

s.t. the robot can kick the ball). The Planner is an

AI-planning system which represents the deliberative

layer of the system. It abstracts its continuous inputs

using landmarks, and the resulting qualitative world

state is stored as a set of atomic sentences in an inter-

nal knowledge base. The output of the planning sys-

tem are high-level actions whose low-level execution

is performed by component BehaviorEngine. Finally,

Kicker and Motion directly access the actuators of the

robot, namely the kicking device and the driving unit,

respectively.

For detecting software failures at runtime, we pro-

posed to assign properties to connections. Properties

capture invariant conditions which must hold in the

system. Properties relate to sequences of events on

one or more connections, and at runtime they are con-

tinuously evaluated by executable entities called mon-

itoring rules. Monitoring rules are responsible for de-

tecting property violations.

When a failure is detected by monitoring rules,

we employ the consistency-based diagnosis paradigm

(Reiter, 1987; de Kleer and Williams, 1987) for the

localization of the failed components. I.e., a logical

system description SD, a set of observations OBS, and

a set of componentsCOMP are used for the computa-

tion of diagnoses. SD is a set of ﬁrst-order sentences

which is intended to describe the correct system be-

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

128

havior using the literal ¬AB(c) (with c ∈ COMP)

which denotes ”not abnormal”. We rely on Reiter’s

deﬁnition of a diagnosis (Reiter, 1987):

Deﬁnition 1 A diagnosis ∆ is a set of components

(∆ ⊆ COMP) s.t.

SD∪OBS∪{¬AB(c)|c∈ COMP\∆}∪{AB(c)|c∈ ∆}

is consistent. A diagnosis is (subset-)minimal iff no

proper subset of it is a diagnosis.

In our approach, SD only captures the logical

dependencies between properties, whereas the prop-

erty conditions are not represented in SD. We illus-

trate this in the following intuitive example, which

considers only the subsystem with the components

{Vis, Odo, SeF}:

Both componentsVis and Odo are supposed to pe-

riodically produce new events at their output connec-

tions om and md, respectively, and SeF must produce

a new output for every incoming event. Hence, we in-

troduced the property type ξ.eo, where ξ is a connec-

tion and eo the name of the property (eo..”event oc-

curs”), which means that at least one event must occur

within a certain timespan at ξ. We assigned instances

of this property type to the connections om, md and

ws. SD expresses the dependencies between those

three properties, using the atomic sentence ok(ϕ) to

state that property ϕ holds:

¬AB(Vis) → ok(om.eo)

¬AB(Odo) → ok(md.eo)

¬AB(SeF)∧



ok(om.eo)∨ok(md.eo)



→ ok(ws.eo)

We assume here that only the property ws.eo

can be monitored at runtime. Now suppose that

ws.eo is violated, i.e., the observations are OBS =

{¬ok(ws.eo)}. By applying a diagnosis algorithm

like Reiter’s Hitting Set algorithm (Reiter, 1987) we

obtain two minimal diagnoses: ∆

= {SeF}, ∆

{Vis, Odo}. I.e., either SeF has failed, or both Vis

and Odo have failed (multiple failure).

As a real repair, which ﬁxes the root causes of

failures by correcting the bugs in the source code,

is hardly possible at runtime, we proposed to restart

failed components, hoping that they do not fail again.

In cases when the diagnostic results are not unique,

i.e., when there are several minimal diagnoses, we

restart every component which occurs in one of the

minimal diagnoses. Although this method often

works in practice, it is not always successful: restarted

components may fail immediately again due to the

same root cause which has not been ﬁxed.

When the repair is not successful, our diagnosis

and repair system removes this component from the

control system; i.e., the component is aborted and

not restarted afterwards, but the robot continuous to

operate, if possible. The runtime diagnosis system

then continuous to monitor the system, after certain

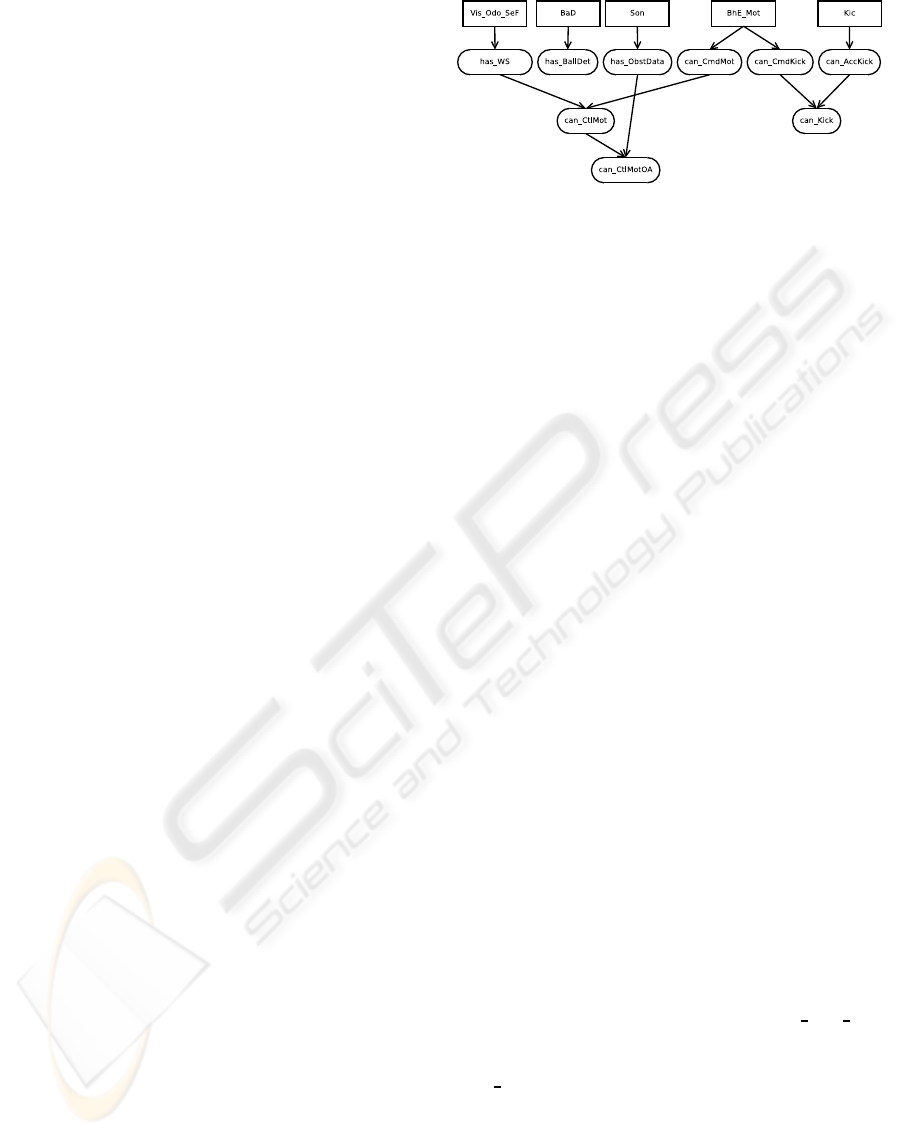

Figure 2: A capability graph. Rectangles are components,

and rounded rectangles are capabilities (6 basic and 3 com-

posed capabilities).

adaptions which we do not discuss here (see (Weber,

2009)). Note that software components can only be

removed if they are loosely coupled with the rest of

the system.

3 DEGRADED CAPABILITIES,

PLANNING

Let COMP

fail

be the set of all those components

which have so far been removed from the original

control system. Then we use

COMP

act

def

= COMP \COMP

fail

to denote those components which are currently ac-

tive (alive) and, according to the diagnosis system,

correctly working. Our approach demands that the di-

agnosis and repair system reports this set to the plan-

ning system at least after each repair session which

has removed components. Note that the handling of

ambiguous diagnoses is done by the diagnosis sys-

tem; i.e., if the diagnosis system is not able to come

up with a unique diagnosis, then it might be possible

that components of multiple diagnoses are removed

from the control system. The planning system always

receives a single set COMP

fail

, which may contain

several components which have been removed.

The planning system then employs a model of the

abstract capabilities of the control system to infer the

remaining capabilities. The proposed model is visu-

alized by the capability graph. A capability graph for

the system in Fig. 1 is depicted in Fig. 2. Note that,

for brevity, we introduced a componentVis Odo SeF

which subsumes the three components Vis, Odo and

SeF in Fig. 2, and the same applies analogously to

BhE Mot. Moreover, the component Pla is not in-

cluded, since we assume that the planning system has

not failed.

A capability graph CG is a directed acyclic graph

(DAG) with the following attributes:

• For each component c ∈ COMP there is exactly

one source node (a node without incoming edges)

in CG. It is called component node.

COMBINING RUNTIME DIAGNOSIS AND AI-PLANNING IN A MOBILE AUTONOMOUS ROBOT TO ACHIEVE

A GRACEFUL DEGRADATION AFTER SOFTWARE FAILURES

129

• All other nodes represent either basic capabilities

or composed capabilities.

• A basic capability has exactly one direct prede-

cessor in CG which must be a component node.

The involved edges indicate which capabilities

are provided by the components. E.g., both

can CmdMot and can CmdKick are provided by

BhE Mot.

• A composed capability has one or more di-

rect predecessors which represent (basic or com-

posed) capabilities. E.g., can CtlMot is com-

posed of has WS and can CmdMot, meaning

that can CtlMot is available if both has WS and

can CmdMot are available.

Note that we distinguish between sensing capa-

bilities (preﬁx has X) and acting capabilities (pre-

ﬁx can X). The component Vis Odo SeF provides a

continuous world state (has WS), BaD provides ball

detection, Son provides obstacle data, BhE Mot pro-

vides the capabilities to command motions as well as

kicks, and Kic can access the kicking device. Capabil-

ity can CtlMot capturesthe followingfact: in order to

control a motion (in the sense of control theory), the

system needs not only to be able to command motions

(can CmdMot), but also to receive sensor feedback

indicating how the world changes (has WS). More-

over, if the system also has obstacle data, then the

motion control is augmented with a reactive obstacle

avoidance (can CtlMotOA).

The semantics of a capability graph CG is cap-

tured by the software capabilities description (SCD).

It is a set of Horn clauses using the predicate active(c)

which states that c ∈ COMP is active and correctly

working, and av(b) indicates that capability b is cur-

rently available. Moreover, let CAP denote the set of

all capabilities used in CG. SCD is automatically gen-

erated from CG as follows:

For every capability b ∈ CAP:

• if b is a basic capability provided by component

c: add active(c) → av(b) to SCD.

• otherwise, b is composed of the capabilities

, . . . , b

(m ≥ 1):

add av(b

)∧ . . . ∧ av(b

) → av(b) to SCD.

In our example, SCD contains the following sen-

tences:

active(Vis Odo SeF)→av(has WS)

active(BhE Mot) → av(can CmdMot)

active(BhE Mot) → av(can CmdKick)

av(has WS)∧av(can CmdMot) → av(can CtlMot)

. . .

With AVCAP we denote the set of currently avail-

able capabilities, and AVCAP comprises those capa-

bilities which are presumably not available. Based on

the set of remaining components COMP

act

, these sets

are computed as follows:

ACTCOMP

def

= {active(c) | c ∈ COMP

act

}

AVCAP

def

= {av(b) | b ∈ CAP and

ACTCOMP∪ SCD |= av(b)}

AVCAP

def

= {¬av(b) | b ∈ CAP and

ACTCOMP∪ SCD 6|= av(b)}

Clearly, AVCAP and AVCAP can be efﬁciently

computed by applying a simple Horn clause forward

chaining algorithm.

The important point is that the robot’s actions have

certain requirements concerning the available capa-

bilities: the low-level behaviors, which correspond to

a speciﬁc high-level action A , can only be executed if

certain sensing and acting capabilities are available.

In STRIPS (Fikes and Nilsson, 1972) and in similar

representation languages for classical AI-planning,

each action A is speciﬁed by a precondition pre(A )

and an effect ef f(A ). Note that we the planner re-

gards actions as deterministic; the handling of unex-

pected action outcomes and environment changes is

left to the plan executor which monitors the plans.

By integrating the required capabilities into the

action precondition we can ensure that a plan com-

prises only actions which are supported by the cur-

rently available capabilities. For this purpose we pro-

pose to split every action precondition into two parts:

pre(A )

def

= pre

(A )∧ pre

(A )

where pre

(A ) is the environment precondition,

which mainly contains conditions related to the phys-

ical environment, and pre

(A ) is the capability pre-

condition which relates to the state of health of the

robot. pre

(A ) is a conjunction of (positive or nega-

tive) literals of the form (¬)av(b).

An action A can only be executed when pre

(A )

is fulﬁlled, i.e., when the following holds:

AVCAP∪ AVCAP |= pre

(A )

Examples are presented in the subsequent section.

Note that if AVCAP ∪ AVCAP is added to the logi-

cal state descriptions, a classical STRIPS-like planner

can be used, as the splitting of the precondition into

two parts is irrelevant for the planning algorithm.

4 CASE STUDY: FINDING

ALTERNATIVE PLANS AFTER

SOFTWARE FAILURES

In this section we present a case study which we con-

ducted on a real robot control system whose (simpli-

ﬁed) architecture was depicted in Fig. 1. The con-

trol system was running on a PC and interacted with a

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

130

Block(obj

, obj

pre

: −

pre

: av(can CtlMotOA)

eff: blocking(obj

, obj

)∧¬possBall

Goto(obj):

pre

: ¬ inReach(obj)

pre

: av(can CtlMotOA)

eff: inReach(obj)∧ ¬possBall

GrabBall:

pre

: ¬possBall ∧inReach(Ball)

pre

: av(can CtlMotOA)

eff: possBall

DribbleTo(obj):

pre

: possBall

pre

: av(can CtlMotOA)

eff: inKickPos(obj)

KickBallTo(obj):

pre

: possBall∧inKickPos(obj)

pre

: av(can CtlMotOA) ∧av(can Kick)

eff: ¬possBall ∧isAt(Ball, obj)

Figure 3: STRIPS-like action schemas. Block(obj

, obj

)

lets the robot move in-between those two objects. The other

actions have the expected meanings.

soccer robot simulator which simulates the hardware

and the physical environment. We implemented the

runtime diagnosis and repair system which we brieﬂy

described in Section 2.

The planning system uses a planning algorithm

which supports a STRIPS-like language. The diag-

nosis system periodically transmits the set COMP

act

to the AI-planning system. Moreover, each time the

diagnosis system detects a failure, it notiﬁes the plan-

ning system, which then aborts the current plan and

the robot becomes idle (i.e., it enters a safe state). Af-

ter the repair is ﬁnished, the planning system is noti-

ﬁed again, and re-planning is performed. The diag-

nosis system continuous to monitor the control sys-

tem after certain adaptions to the system model in SD

which we do not describe here. More details concern-

ing this particular robot control system can be found

in (Weber, 2009).

In this case study we simulated the crashes of

three different components at three different times;

i.e., there were three consecutive single failures, all

of which led to a correct and unique single-fault di-

agnosis. In all of these three cases, the injected fault

also prevented a successful restart of the component,

hence the restarted components failed again during

startup and thus were automatically removed from

the control system. I.e., each failure led to a further

degradation of the control system’s capabilities.

Figure 3 depicts those actions which are relevant

for this case study. An interesting insight is that it

may be desirable to introduce additional actions with

lower capability requirements in order to achieve a

graceful degradation. All actions in Fig. 3 (indirectly)

require the capability has ObstData; i.e., their exe-

cution relies on the existance of an obstacle avoid-

ance (OA). Hence, if the component Son fails, then

none of those actions can be executed anymore. We

tackled this problem by adding new actions which

achieve a similar effect as the already existing ones,

albeit with lower efﬁciency: for each of the actions

in Fig. 3 we introduced corresponding actions which

are performed at a lower motion speed and thus can

be executed without obstacle avoidance, as the likeli-

hood of physical damage in case of a collision is much

smaller. These new actions have the sufﬁx slow, e.g:

Block slow(obj

, obj

pre

: . . . [as in Fig. 3]

pre

: av(can ExecMotBeh)∧ ¬av(can ExecMotBehOA)

eff: . . . [as in Fig. 3]

In this case study, initially all components were

active and thus all capabilities were availble. The

planning system selected the planning goal

= isAt(Ball, OppGoal)

, i.e., the ball should be in the opponent goal. The

following plan was generated:

= hGoto(Ball), GrabBall,

DribbleTo(OppGoal), KickBallTo(OppGoal)i

During the execution of the ﬁrst action

Goto(Ball) we triggered the failure of component

Son. After a failed restart, Son was removed from

the system: COMP

fail

= {Son} and so AVCAP =

{¬av(has ObstData), ¬av(can CtlMotOA)}.

The planning system performed re-planning, and

an alternative plan was found for the same goal G

= hGoto slow(Ball), GrabBall slow,

DribbleTo slow(OppGoal),

KickBallTo slow(OppGoal)i

During the execution of Goto slow(Ball),

component Kic failed, leading to COMP

fail

{Son, Kic} and AVCAP = {¬av(has ObstData),

¬av(can CtlMotOA), ¬av(can AccKick),

¬av(can Kick)}.

Again, the planning system selected the planning

goal G

, but this time no plan was found which

could achieve G

, because the loss of the capability

can Kick prevents that the ball can be kicked into the

opponent goal. Hence, another planning goal (which

has a lower utility) was selected:

= blocking(Ball, OwnGoal)

and the corresponding plan was

= hBlock slow(Ball, OwnGoal)i

I.e., the robot should act as a defender by block-

ing the area between the ball and the own goal.

During the execution of this action, component

COMBINING RUNTIME DIAGNOSIS AND AI-PLANNING IN A MOBILE AUTONOMOUS ROBOT TO ACHIEVE

A GRACEFUL DEGRADATION AFTER SOFTWARE FAILURES

131

SeF failed, and so AVCAP = {. . . , ¬av(can CtlMot),

¬av(can CtlMotOA)}. It can be seen that vital capa-

bilities had been lost, and so none of the predeﬁned

planning goals could be accomplished anymore.

Nevertheless, this case study shows that it may

be possible to achieve the same planning goals de-

spite the loss of capabilities, although the perfor-

mance (e.g., the motion speed) may decline. More-

over, if it is no longer possible to pursue the origi-

nally selected goal, then it can be useful to choose

other goals, which can still be accomplished, in order

to achieve a graceful degradation.

5 PLAN MONITORING

A capability precondition pre

(A ) captures the ca-

pabilities which are required for the execution of the

low-level behaviors which correspond to an action

A . However, an important observation is that even

if pre

(A ) holds, this does not necessarily imply that

this plan can also be monitored by the plan executor,

because the monitoring of an action A may require

sensing capabilities which are not needed for the exe-

cution of the low-level behaviors.

As example we consider action GrabBall (Fig.

3). This action moves the robot to the ball with the

intended effect that the robot possesses the ball af-

terwards (i.e., possBall should become true, which

happens when an infrared sensor detects that the ball

is between the grabbers of the robot). The low-level

execution of this action does not require a ball de-

tection capability (has WS is sufﬁcient); however, the

truth value of the effect possBall can only be evalu-

ated if has BallDet is available. In other words, with-

out this capability the plan executor can never detect

when this action is ﬁnished.

It follows that we should seek plans which can

also be monitored wrt the currently available capa-

bilities. This particularly concerns those predicates

used by the planning system which capture percep-

tions about the physical environmentand whose (truth

value) evaluation thus relies on sensing capabilities.

We introduce a function γ(p) which returns for each

predicate p the (possibly empty) set of those sensing

capabilities which are needed for the evaluation of p

(i.e., γ(p) ⊆ CAP). Furthermore, for any ﬁrst-order

sentence Φ, let P (Φ) denote the set of all predicates

occurring in Φ, and we deﬁne:

Γ(Φ)

def

p∈P (Φ)

b∈γ(p)

av(b)

I.e., Γ(Φ) states all sensing capabilities required for

the evaluation of the predicates in Φ. Our aim to cre-

ate only plans which can also be monitored wrt the

available capabilities can be achieved by augmenting

each action precondition pre(A ) with a monitoring

precondition pre

(A ):

pre(A )

def

= pre

(A )∧ pre

(A )

with: pre

(A )

def

= Γ



pre

(A )



∧ Γ



ef f (A )



For example:

γ(possBall) = {has BallDet}

γ(inReach) = {has WS}

pre

(GrabBall) = av(has BallDet)∧av(has WS)

This approach is simple and also efﬁcient in the

sense that it has a low impact on the planning com-

plexity. However, it also has the severe drawback that

it may be too restrictive, because it takes every effect

of an action into account, although some effects may

be irrelevant in the current context and thus do not

need to be monitored:

E.g., let us consider the action Goto(obj). One

effect of this action is ¬possBall; i.e., even if the

robot possesses the ball when this action is started, the

ball will usually be lost during the movement (in con-

trast to DribbleTo). The monitoring precondition is

pre



Goto(obj)



= av(has BallDet)∧av(has WS).

Now suppose that component BaD fails and so

has BallDet is lost. This means that a planning goal

G = inReach(X) can no longer be achieved, since

pre



Goto(obj)



is not fulﬁlled. Clearly, this is an

undesired result, as Goto(X) does certainly not need

a ball detection to achieve inReach(X), and the action

effect ¬possBall is irrelevant here.

One attempt to resolve this issue would be to de-

ﬁne ¬possBall as a side-effect of Goto(obj), mean-

ing that this part of the effect does not need to be

monitored. However, a static separation into primary-

effects and side-effects is problematic in general, be-

cause the relevance of effects often depends on the

context, i.e., it depends on the plan which contains

the action and on the goal to achieve. E.g., it may

well be the case that a subsequent action in a plan re-

quires that ¬possBall holds. Notice that side-effects

have been used before in AI-planning, but mainly for

reducing the search costs; e.g., see (Fink and Yang,

1993).

In the following section we propose an alternative

approach which relies on a plan execution technique

to ensure the monitorability of created plans.

6 DYNAMICALLY DETERMINE

THE MONITORABILITY OF A

PLAN

We propose to dynamically check the monitorability

of entire plans rather than only considering single ac-

tions regardless of the context. This has the advan-

tage that action effects, which are irrelevant in a given

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

132

Table 1: Kernels for the plan hGoto(X)i which achieves the

planning goal G = inReach(X).

Kernel / Action: Γ(K

¬inReach(X)∧av(can CtlMotOA) av(has WS)

Goto(X)

inReach(X) av(has WS)

plan, are ignored. For this purpose we employ kernel

models, an approved plan execution method that was

introduced for the monitoring of STRIPS plans (Fikes

et al., 1972). In the following we provide a brief in-

troduction to kernels.

For a STRIPS plan hA

, . . . , A

i, the correspond-

ing kernels are K

, . . . , K

n+1

. Table 1 depicts the ker-

nel for a very simple plan containing a single action.

A kernel K

occurs immediately before A

and K

i+1

immediately after A

. A kernel K

is a conjunction

of literals, and it has the property that, if K

holds

in the current world state, then the sequence of ac-

tions hA

, . . . , A

i can be executed and will achieve

the planning goal, provided that the action executions

lead to the desired results as indicated in the effects.

The kernels are usually computed by the plan execu-

tor before the execution of the plan starts. The com-

putation of kernels is done backwards, i.e., it starts

with the last kernel and then moves forward:

1. K

n+1

is equal to the STRIPS goal condition G.

2. For every other kernel K

with 1 ≤ i ≤ n: K

is a

conjunction of those literals which are contained

in the precondition of A

plus those literals in K

i+1

which are not part of the effect of A

The plan execution based on the kernels works as

follows: At each execution step, the plan executor it-

erates backwards through the kernels (i.e., in the or-

der K

n+1

, . . . , K

) and checks for each kernel K

if it is

satisﬁed in the current world state. As soon as such a

kernel K

is found, the action A

is executed. If no ker-

nel is satisﬁed, then replanning is necessary. A plan is

ﬁnished when K

n+1

is true in the current world state.

An important property of this monitoring ap-

proach is that those effects of an action A

which are

required neither for preconditions of subsequent ac-

tions (A

i+1

, . . . , A

) nor for the planning goal G are

not added to the kernels. E.g., in Tbl. 1 we can see

that the effect ¬possBall of Goto(obj) does not oc-

cur in any kernel, but it would be added if a subse-

quent action required ¬possBall in its precondition.

Hence, by relying on kernels we can resolve

the issue that only relevant action effects should be

considered when determining the monitorability of

a plan. For a given plan P = hA

, . . . , A

i, which

achieves a planning goal G, and the corresponding

kernels K

, . . . , K

n+1

, we say that P is monitorable wrt

the available software capabilities iff the following

holds:

AVCAP |=

i=1,..,n+1

Γ(K

)

For example, the plan hGoto(X)i for the goal

G = inReach(X) (Tbl. 1) is monitorable iff has WS

is available.

The monitorability can be checked after the en-

tire plan has been computed. However, if we want

to achieve that only monitorable plans are computed,

then a better approach is to check the monitorability

of (sub-)plans already during the planning. I.e., the

computation of the kernels can be interleaved with

the planning, and plans which are not monitorable

according to our deﬁnition above can already be dis-

carded during planning.

As the generation of kernels is done backwards

(i.e., starting with the planning goal), it will often

be straightforward to efﬁciently integrate the kernel

generation with planning algorithms which perform a

backwards search through the state-space. In fact, it

can be easily shown that the well-known regression

planner as described in (Weld, 1994) already com-

putes the kernels as a by-product of the search.

7 DISCUSSION AND RELATED

RESEARCH

The main goal behind our work is to enable an au-

tonomous robot to perform meaningful tasks despite

the failures of software components which cannot be

repaired. The contribution of this paper is threefold:

First, we proposed an approach which ensures

that the AI-planning system of the robot computes

only plans whose actions can still be executed de-

spite the degraded capabilities of the partly failed

software system. For this purpose we introduced an

abstract model of the capabilities of the control sys-

tem, and we formally described how to derive the

currently available capabilities. This self-awareness

is utilized by enhancing action speciﬁcations with ca-

pability preconditions. The main advantages of our

approach are that the available capabilities can be ef-

ﬁciently computed, and that classical planning algo-

rithms can be applied without modiﬁcations.

Second, we presented a case study which we exe-

cuted on a real robot control system. It shows that our

approach can achieve a graceful degradation of the

robot’s behavior after the loss of capabilities. Some-

times the same planning goals can be accomplished

by alternative actions, which may have a lower per-

formance. In other cases the original goals can no

longer be accomplished, but the robot may continue

to operate after the selection of alternative goals, even

though the new goals may have a lower utility.

Third, we discussed the issue that the plan mon-

itoring also requires the availability of certain ca-

COMBINING RUNTIME DIAGNOSIS AND AI-PLANNING IN A MOBILE AUTONOMOUS ROBOT TO ACHIEVE

A GRACEFUL DEGRADATION AFTER SOFTWARE FAILURES

133

pabilities. We proposed two approaches with the

aim to generate only plans which are also moni-

torable. The ﬁrst approach enhances action speciﬁca-

tions with monitoring preconditions. The second ap-

proach, which provides more ﬂexibility, is to dynam-

ically determine the monitorability of entire plans.

We have also proposed to integrate the monitorabil-

ity checks into the planning algorithm. Such an in-

terleaved approach achieves that plans which are not

monitorable are already discarded at an early stage

during the planning process.

So far, the issue of utilizing diagnostic results

in high-level planning in autonomous systems has

gained little attention among researchers. In par-

ticular, we are not aware of any work from other

researchers which has addressed the issue of AI-

planning with degraded software capabilities in au-

tonomous systems. The Remote Agent architecture

(Williams et al., 1998) employs model-based diag-

nosis methods for the detection and localization of

hardware failures. If such a failure cannot be handled

locally, the degraded capabilities are reported to the

planning system and replanning is performed. How-

ever, the scope of that work is quite different from

ours: it deals with hardware rather than software, and

it does not speciﬁcally address the modelling of capa-

bilities or plan monitoring issues.

Model-based diagnosis techniques can also be em-

ployed for the execution monitoring of plans, see,

e.g., (Roos and Witteveen, 2005). The authors of (Mi-

calizio and Torasso, 2007) use model-based diagno-

sis techniques to monitor the execution of multi-agent

plans. One aim of this work is to provide the global

planner/scheduler with the assessed status of robots

and the explanations of failures. However, a deeper

discussion of the planning and plan monitoring issues

in this context is not provided.

The practical applicability of our approach to ex-

isting robot control systems is limited by the fact that

most components in such systems are vital, i.e., when

a vital component fails, then the robot is not able to

operate anyway. In our examplesystem in Fig. 1, only

3 out of 9 componentsare non-vital, namely BaD, Son

and Kic. This indicates that the architectural design

of robot control systems should accomodate runtime

reconﬁguration; in particular, the number of compo-

nents should be higher, and non-vital functionality

should be encapsulated in separate components in or-

der to achieve that there are many components with

non-vital functionality.

An interesting direction for future research is the

question of how to extend our approach to hard-

ware failures. The modelling of hardware capabilities

could be challenging, in particular because hardware

components may degrade gradually. E.g., the driving

unit may no longer be able to perform speciﬁc move-

ments after the breakdown of a single wheel.

Another assumption behind our work is that the

selected set of leading diagnoses comprises the real

fault, hence removing all components in those diag-

noses switches the system to a safe state where all

remaining components work correctly. This may not

be the case in practice, thus a careful selection of the

leading diagnoses is necessary.

REFERENCES

de Kleer, J. and Williams, B. C. (1987). Diagnosing multi-

ple faults. Artiﬁcial Intelligence, 32(1):97–130.

Fikes, R. E., Hart, P. E., and Nilsson, N. J. (1972). Learn-

ing and executing generalized robot plans. Artiﬁcial

Intelligence, 3(4):251–288.

Fikes, R. E. and Nilsson, N. J. (1972). STRIPS: A New

Approach to the Application of Theorem Proving to

Problem Solving. Artiﬁcial Intelligence, 2(3-4):189–

208.

Fink, E. and Yang, Q. (1993). Characterizing and automat-

ically ﬁnding primary effects in planning. In IJCAI,

pages 1374–1379.

Micalizio, R. and Torasso, P. (2007). On-line monitoring of

plan execution: A distributed approach. Knowledge-

Based Systems, 20(2):134–142.

Reiter, R. (1987). A theory of diagnosis from ﬁrst princi-

ples. Artiﬁcial Intelligence, 32(1):57–95.

Roos, N. and Witteveen, C. (2005). Diagnosis of plans and

agents. In Proceedings of the 4th International Cen-

tral and Eastern European Conference on Multi-Agent

Systems (CEEMAS).

Steinbauer, G. and Wotawa, F. (2005). Detecting and locat-

ing faults in the control software of autonomous mo-

bile robots. In Proc. IJCAI, pages 1742–1743, Edin-

burgh, UK.

Weber, J. (2009). Model-based Runtime Diagnosis of the

Control Software of Mobile Autonomous Robots. PhD

thesis, Institute for Software Technology, Graz Uni-

versity of Technology, Austria.

Weld, D. S. (1994). An introduction to least commitment

planning. AI Magazine, 15(4):27–61.

Williams, B. C., Nayak, P., and Muscettola, N. (1998). Re-

mote agent: To boldly go where no AI system has

gone before. Artiﬁcial Intelligence, 103(1-2):5–48.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

134
