INTERCONNECTED TOOL-ASSISTANCE FOR DEVELOPMENT

OF AGENT-ORIENTED SOFTWARE SYSTEMS

Karl-Heinz Krempels, Andriy Panchenko, Janno von St¨ulpnagel and Christoph Terwelp

Informatik 4, Intelligent Distributed Systems Group, RWTH Aachen University, Aachen, Germany

Keywords:

Agent-oriented software engineering, Tool integration, Ontology design, Problem solving method.

Abstract:

The development of autonomous software systems requires the cooperation of professionals in multiple do-

mains. This involves experts on the domain of discourse (application domain), knowledge engineers, experts

in problem solving methods (PSM), as well as in the chosen deployment technology (e.g. agent technology,

web services, etc.). Tool assistance for the process of developing an agent-based software systems has a direct

impact on the feasibility of the planned system as well as on the acceptance of agent technology by software

developers. In this paper we discuss a general approach for the process of developing agent-based software

and the lack of existing tools that support the entire development process. Thereafter we describe our improve-

ment of the development process realized by interconnected tools for ontology and PSM development, as well

as as an improvement of the intergration of PSMs into a multiagent system. Finally we describe an example

of an enhanced system deployment with the help of this approach.

1 INTRODUCTION

Developing agent-based software systems requires a

deep analysis of the problem in order to choose a suit-

ability software engineering method under the con-

crete circumstances. Agent-based solutions should

be preferred mainly in cases where the application

has obvious advantages in comparison to other ap-

proaches. The Agent Technology (AT) meets many

requirements of problems in dynamic environments

that require a distributed solution with autonomous

components.

The use of AT in a distributed system is favored

by FIPA

-compliant (FIPA, 2009) Multiagent Sys-

tems (MAS). The MAS acts as middleware, provid-

ing the abstraction for agents from the underlying

operating system and facilitating the communication

through the abstract Agent Communication Channel

(ACC) interface in order to allow transparent use of

services and interaction with other agents. Agents

can be physically distributed and can work parallel

on suitable problems.

The application of AT in a dynamic environment

requires that agents continuously adapt to changes in

Foundation for Intelligent Physical Agents

their environment. This is realized by means of adap-

tivity and learning aptitude of autonomous agents.

However, it should be noted that these features are ex-

plicitly realized by developers as they are not present

in agents per se.

The development of software systems with help

of agent technology is a process consisting of phases

ranging from analyzing the domain, through design-

ing and implementing speciﬁc ontologies and PSMs,

up to implementing the agent. The deployment

method can be based either on one speciﬁc tool facil-

itating all these phases or on suitable tools for facili-

tating single phases of the process (Krempels, 2008).

The later requires usage of completely independent

tools which are neither complementary nor interoper-

able.

The advantage of the former approach is the ho-

mogeneity of tool assistance through the whole de-

velopment process. This facilitates consistent repre-

sentation and usability of the model and the outcomes

of the deployment phases. A disadvantage is a mostly

longsome skill adaption training for highly complex

tools. The advantage of the latter approach (using

the generic development method) is the possibility of

using well-known, established tools that are usually

known to the developers and very well suited for sin-

308

Krempels K., Panchenko A., von Stülpnagel J. and Terwelp C. (2009).

INTERCONNECTED TOOL-ASSISTANCE FOR DEVELOPMENT OF AGENT-ORIENTED SOFTWARE SYSTEMS.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 308-314

DOI: 10.5220/0002329903080314

 SciTePress

gle phases.

The lack of interfaces for exchanging data and

outcomes among the different phases, however,

causes problems with its applicability. The ﬁrst chal-

lenge developers are faced with is the transformation

of data representation between the different phases.

Due to the fact that different, often incompatible mod-

els and knowledge representation formats are used, it

is required to transform the data while losing as lit-

tle information as possible. Usually the developers

end up with an iterative process of analysis, modeling

and implementing the problem scenario with the help

of different tools until the desired result is obtained

(Krempels et al., 2003).

In this paper we discuss a general approach for

an agent-based software development process and the

lack of tools supporting the entire development pro-

cess. Thereafter, we focus on our contribution to the

development process assistance in the form of tools

for linking ontology to the development of problem-

solving methods, as well as an integration of the PSM

into a MAS. Finally, we provide a proof for the con-

cept implementation following our approach (Krem-

pels and Panchenko, 2007) (Kirn et al., 2003) (Krem-

pels and Panchenko, 2006). This is in fact the devel-

opment of a planning system with the help of AT.

2 GENERIC TOOLS’

ASSISTANCE

There exists a variety of application domains for soft-

ware systems. Different application domains, how-

ever, raise quite diverse requirements on the model

representation. This leads to the availability of sev-

eral domain-speciﬁc modeling tools that make use of

different representation languages. Therewith, the ex-

port of a model in a form that is suitable for process-

ing it in another tool is often very problematic. Agent-

based software development usually consists of four

phases (Krempels, 2008): domain analysis, ontology

design, PSM implementation, as well as integration

into the implementation of the agent or agent society.

In the following we discuss these phases as well as

current assistance of the modeling process in detail.

2.1 Domain Analysis

The goal on this level is to provide a domain or task

description in form of a model. The design of such a

model is based either on an expert interview, process

ﬂow analysis, or statistical analysis. Usually domain-

speciﬁc modeling tools are applied in order to facil-

itate the process. In domain modeling one of the

most acceptable and widely popular tools are ARIS-

Toolset

and Microsoft Visio

. The former one sup-

ports modeling, optimization as well as simulation of

processes and provides a possibility to adapt an opti-

mized process for the real application. The modeling

language in use is called Event-driven Process Chain

(EPC). It provides a possibility to export/import mod-

eling data to/from the Uniﬁed Modeling Language

(UML). The outcome of the modeling is a process

model that inherits background information. Visio is

a simple modeling tool that provides no support for

analyzing the resulting models by any means. Be-

sides above mentioned modeling languages EPC and

UML, also additional formats can be used. The latter,

however, provides only a graphical layer without any

semantic consideration. Visio is mostly used for fast

deployment of less complex models. The outcome is

a basic graphical representation of the model. The

domain modeling is depicted in Fig. 1 in the ﬁrst

column.

2.2 Ontology Design

The goal of the second step in the design process is to

develop an ontology. An ontology is an explicit spec-

iﬁcation of a conceptualization (Becker et al., 2003a).

It offers the ability to share and reuse knowledge

about a common universe of discourse (Kirn et al.,

2003). The design and deployment of ontologies is

based on the process models from the domain level.

There exists a number of tools that support the ontol-

ogy design process, e.g. Prot´eg´e

, OilEd

, WebOnto

The most suitable and widely used tool in MAS envi-

ronment is Prot´eg´e. It supports a frame-based ontol-

ogy design and it is possible to create instances from

the deployed concepts in order to feed them with the

acquired domain knowledge.

For this purposes it is possible to make use of

automatically generated graphical forms that can be

adapted to the user’s needs in order to simplify knowl-

edge acquirement. The base functionality of Prot´eg´e

may be extended with the help of dynamically load-

able libraries (plugins). At the moment there exist

plugins with interfaces to databases (e.g. through the

Java Database Connectivity (JDBC) to SQL), visu-

alization tools (e.g. in UML), expert systems (e.g.

C Language Integrated Production System (CLIPS))

as well as for an export of ontologies into differ-

IDS Scheer GmbH – http://www.ids-scheer.de/

Microsoft Inc. – http://www.microsoft.com/

The Prot´eg´e Ontology Editor and Knowledge Acquisi-

tion System – http://protege.stanford.edu/

OilEd – http://oiled.man.ac.uk/

WebOnto – http://kmi.open.ac.uk/projects/webonto/

INTERCONNECTED TOOL-ASSISTANCE FOR DEVELOPMENT OF AGENT-ORIENTED SOFTWARE SYSTEMS

309

domain

modeling

tool

domain

description

domain / task

ontology,

PSM

design & impl.

tool

ontology

design & impl.

tool

domain / task

ontology

MAS

framework

required

expert

required

tool support

result

domain

level

knowledge

level

PSM

level

MAS

level

domain

expert

PSM

expert

software

engineer

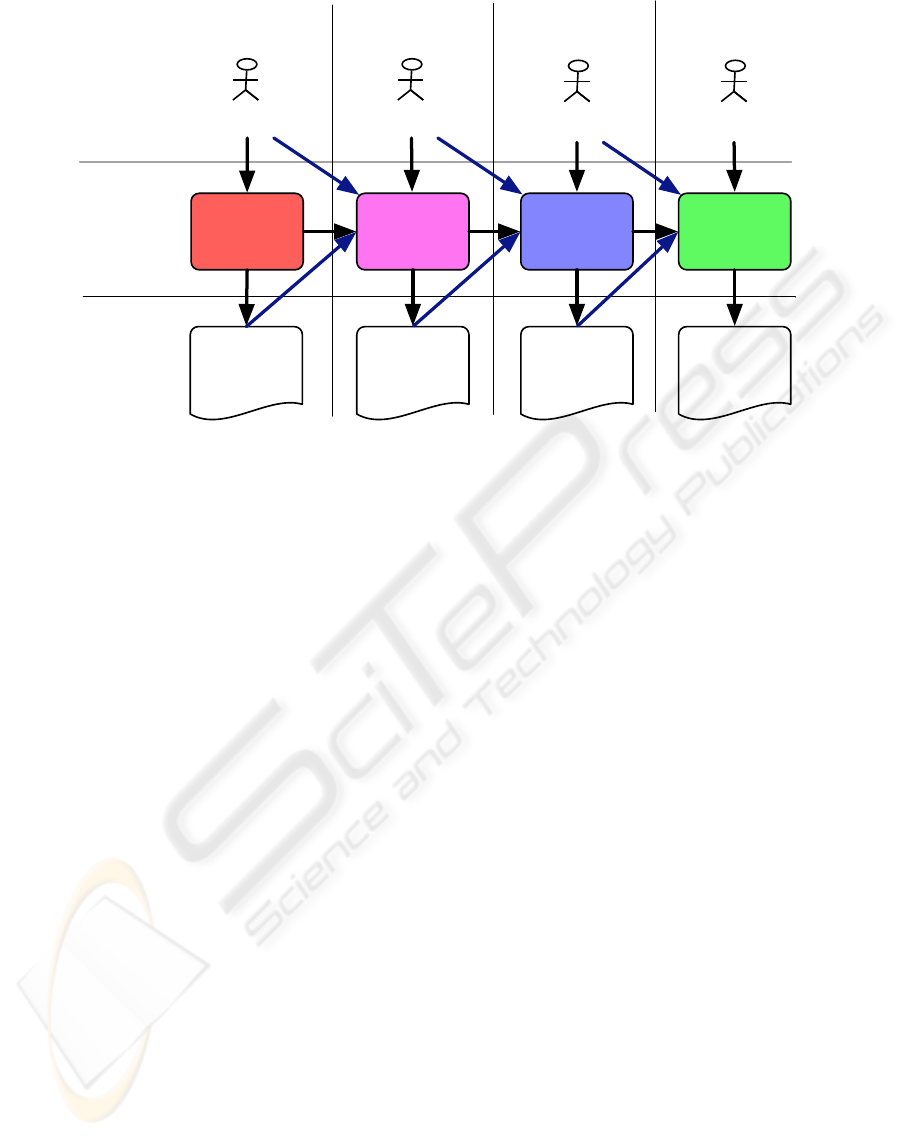

Figure 1: Tools’ Assistance in the Development Process.

ent knowledge-representation formats (e.g. RDF and

XML) or as Java Beans (BeanGenerator, 2007). The

outcome at this stage is an ontology in one of the

above mentioned representation formats and, if the

knowledge acquirement pursued, a knowledge base

with instances of the modeled concepts. These can be

directly used with the ontology described by the sce-

nario for the analysis of PSMs. The ontology model-

ing is depicted in Fig. 1 in the second column.

2.3 PSM Implementation

Problem solving methods describe a solving proce-

dure for a concrete task. This is usually a generic

procedure. Tool assistance for the PSM deployment

depends on the degree of formalization as well as on

the chosen implementation language. Examples are:

rule-based systems (RBS), declarative and procedu-

ral languages. The latter, however, do not provide

support for ontologies. Especially because of the au-

tonomous adaptive behavior which is demanded from

agents, it is very challenging to use a RBS on this

stage. The implementation can be supported by mak-

ing use of the PSM libraries that include several solu-

tion methodologies for the standard class of known

problems, e.g. timetabling, ressource coordination,

scheduling, planning, etc. PSMs are usually devel-

oped by experts on algorithms and artiﬁcial intelli-

gence (AI). The process of PSM development is de-

picted in Figure 1 in the third column.

2.4 Agent Development

On this level the domain description in the form of an

ontology together with the problem-solving methods

is integrated into an agent. Additionally, the interac-

tion capabilities have to be implemented in this phase

in order to be able to communicate with other agents

and act autonomously. There exists a variety of tools

for the deployment of FIPA-compliant MAS. Many

of them partly provide own development methods for

agents and agent societies. At this stage the choice of

a suitable platform for agent-based software develop-

ment has to be made. One of the most popular FIPA-

compliant MAS is JADE (JADE, 2009).

The process of software development as described

in this section is a typical and widely adopted way

of agent-based software engineering. It is supported

by generic, well established tools. This process,

however, is characterized by a conceptual disadvan-

tage because of the problematic usability of outcomes

from the individual phases of the process.

3 TOWARDS INTERCONNECTED

DEVELOPMENT

The poor interconnectivity between the phases in the

state-of-the-art development process described above

causes problems in data exchange between them. This

leads to information loss during the transformation of

models from one phase into the next one. The prob-

lem can be solved either by integrating established

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

310

domain

modeling

tool

domain

description

domain / task

ontology,

PSM

design & impl.

tool

ontology

design & impl.

tool

domain / task

ontology

MAS

framework

required

expert

required

tool support

result

domain

level

knowledge

level

PSM

level

MAS

level

domain

expert

PSM

expert

software

engineer

Figure 2: Integrated Tools’ Assistance in Development Process.

tools that facilitate single phases or by developing a

single tool that would support all the phases of the

process. We follow the ﬁrst approach: we propose

and implement interfaces that support integration of

the results from one tool into the one used in the sub-

sequent phase. Therewith the information ﬂow on the

tool level follows the path as depicted in Figure 2.

To this end we propose an improved assistance

for the development of agent-oriented software sys-

tems which is twofold. The ﬁrst improvement inter-

links ontology with the development of problem solv-

ing methods (JamochaAgent Tab). The second one

is the integration of PSM into MAS (JamocaAgent).

There are two possible approaches to consider here.

The ﬁrst one is to modify the commonly used tools to

support the same data formats. The second one is to

develop an interconnection component that supports

conversion between different formats. We followed

the second approach.

3.1 JamochaAgent Tab

Jamocha (Jamocha Community, 2009) is a rule engine

and scripting environment written entirely in Java.

Jamocha was originally inspired by CLIPS expert sys-

tem shell, but has grown into a complete and distinct

Java-inﬂuenced environment of its own. Written in

the Java programming language, Jamocha offers easy

integration into other Java-based software. Because

most of the MAS are Java-based, Jamocha was pre-

ferred over other rule engines written in other lan-

guages.

In order to facilitate the export of ontologies from

Prot´eg´e into a template-based manner which is un-

derstood by Jamocha, the JamochaAgent Tab was de-

veloped. It is realized as a plug-in for Prot´eg´e. The

JamochaAgent Tab exports ontologies in the follow-

ing forms:

• templates with restricting rules;

• concrete instances;

• deﬁnitions of agent actions.

Templates are representations of class concepts from

Prot´eg´e in the CLIPS language. Abstract classes are

not exported as templates since they can not have di-

rect instances. However, each concrete subclass in-

herits all slots of its parents. There is no possibility

to model class hierarchy in Jamocha directly. That

is why it is modeled artiﬁcially, adding a new multi-

slot is-a to each subclass, where all parents are listed.

Doing so, it is not always possible to reconstruct the

right classes hierarchy (since the ancestor slot is not

ordered), especially when abstract classes are used.

The latter, however, is not a problem for a RBS since

the main use of hierarchy here is to check whether one

fact is an instance of another one. Furthermore, rules

are used in order to check existing slot constraints

(like min- max values, symbols, etc.). If an inserted

fact does not followthe constraints, the corresponding

rule will ﬁre and the fact causing the violation will be

retracted. An example of the date class mapping into

Jamocha is shown below:

(deftemplate date

(slot day (type INTEGER))

INTERCONNECTED TOOL-ASSISTANCE FOR DEVELOPMENT OF AGENT-ORIENTED SOFTWARE SYSTEMS

311

(slot month (type INTEGER))

(slot year (type INTEGER))

(multislot is-a

(default (create$ TemporalConcept))))

It can be seen, that date is a subclass of a Temporal

Concept. For the purpose of having a possibility to

extract names of all the parent classes by a child name

and vice versa, there is also another kind of facts gen-

erated:

(assert (isA

(parent Preference)

(child CoworkerPreference))

)

Further, one of the rules used in order to check the

maximum day value of the date is captured. When-

ever a fact of type date with a slot day is added or

changed and the value of this slot exceeds 365, the

rule ﬁres. As a result the retract function is called,

which deletes the fact that violates the constraint:

(defrule constraint.date.day.max

?fact <- (date (day ?slotvalue))

(test (> ?slotvalue 365))

(retract ?fact)

)

An instance of the template date looks like this:

(assert

(date

(day 15)

(month 3)

(year 2004)

))

AgentAction is a special class, which is used for

communication purposes with other FIPA-compliant

agents. Requesting another agent to perform some

action requires the speciﬁcation of an action expres-

sion that consists of an agent id (the id of the agent

requested to perform the action) and an instance of

an AgentAction (a formal description of the requested

action, e.g. a function name). Since there is no equiv-

alent language element available in the CLIPS lan-

guage the AgentAction is mapped to a function call in

CLIPS. So, wheneveran agent is requested to perform

an action, the corresponding CLIPS function with the

same name as the AgentAction KB is applied to the

the agent’s KB.

All the subclasses of the AgentAction concept are

mapped into those functions. An example of Agen-

tAction addTask that simply adds a received task to

the fact-base is captured below:

(deftemplate addTask

(slot aTask)

(type Task)

)

(deffunction addTask (?jat_arg_fact)

(bind ?aTask

(fact-slot-value ?jat_arg_fact aTask))

...

(retract ?jat_arg_fact)

)

3.2 JamochaAgent

One of the fundamental reasons for using agents is

making use of their ability to reason, communicate,

and act autonomously. Communication is facilitated

by using a MAS, such as JADE – a FIPA-compliant

multi-agent system. The ability to reason and act ra-

tionally is usually programmed in an expert system,

which itself is based on a RBS.

JamochaAgent (Krempels et al., 2009) is a JADE-

agent that has an embedded Jamocha engine and a

user-friendly interface, allowing it to inspect and to

modify the knowledge base, facts, rules, and func-

tions at runtime. The architecture of the JamochaA-

gent is depicted in Fig. 3. This agent inherits

FIPA-compliant communication capabilities from the

agent component provided by the JADE framework

and serves therein only as a communication inter-

face to other agents. The interaction among agents

consisting of consecutive speech acts is described by

FIPA interaction protocols which are mapped onto the

RBS to allow for interaction protocol adaption at run-

time. Incoming speech acts are consumed and out-

going speech acts are produced by the RBS in rule-

based manner. JamochaAgent agent provides support

of most commonly used FIPA interaction protocols

(Request, Query, Contract Net) within Jamocha.

4 APPLICATION EXAMPLE

We have validated our approach while developing

a scheduling system for medical treatments. Plan-

ning medical treatments and scheduling surgical op-

erations are substantial elements of the hospital man-

agement. Operations theater scheduling deals with

assigning limited hospital resources (rooms, doctors,

nurses, etc.) to jobs (patient treatments, surgery, etc.)

over time in order to perform tasks according to their

needs and priorities, and to optimize the usage of hos-

pital resources (Krempels and Panchenko, 2006).

The analyzed application scenario was modeled

in Prot´eg´e. The outcome is the task which formally

deﬁnes objects in the scenario and relations among

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

312

rule-based agent

outgoing

ACL-messages

adaptor

FIPA-SL – CLIPS

incoming

ACL-messages

FIPA agent

adaptor

CLIPS – FIPA-SL

speech act

production

speech act

consumption

rule-based system

user interface

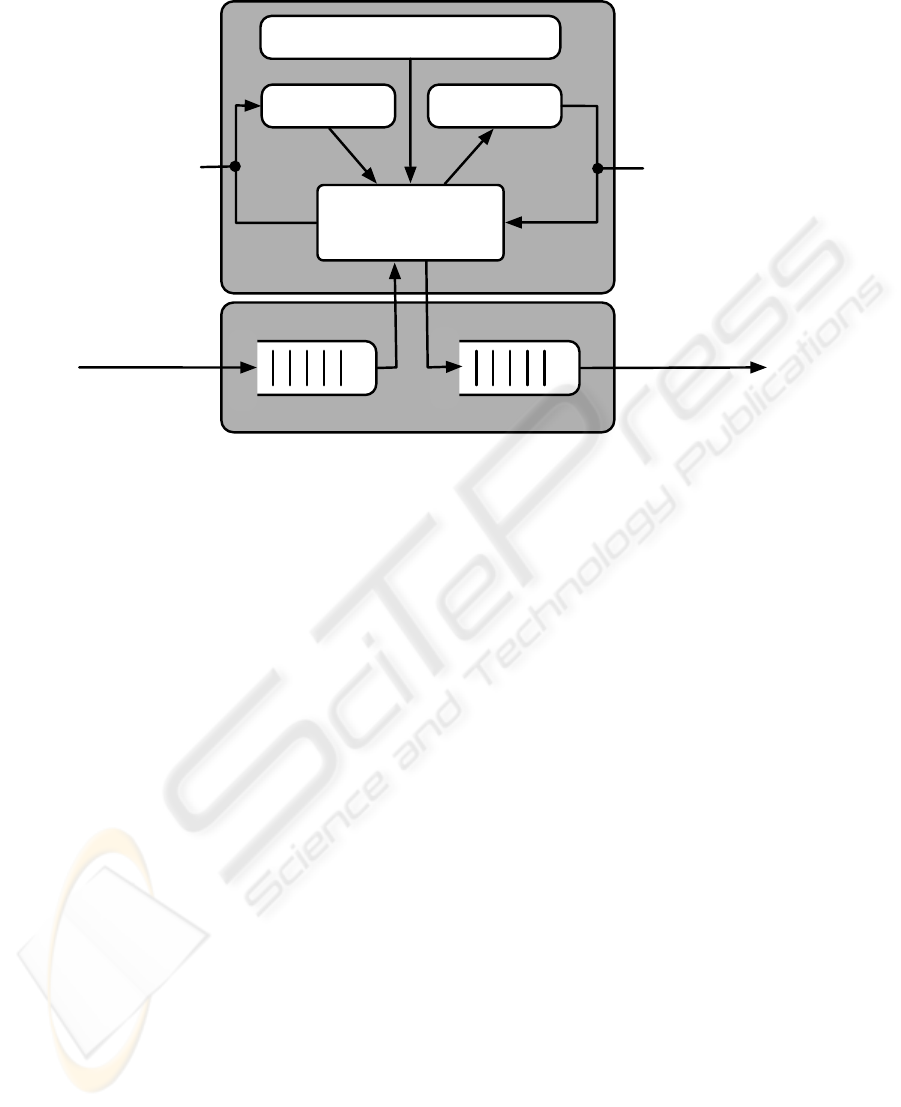

Figure 3: JamochaAgent Architecture.

them. The domain ontology OntHoS (Becker et al.,

2003b) was used as a reference to develop the own

task ontology. The concepts together with their in-

stances are exported as facts and rules into the RBS

Jamocha. The RBS is used as an environment to im-

plement PSM in. These are scheduling heuristics and

conﬂict solving mechanisms.

With the help of the JamochaAgent the developed

heuristics are applied into the MAS JADE, which

is used as a middleware. Further, all the agents

(SchedulingAgent and WardAgent) are started and the

scheduling process is initiated by the SchedulerAgent.

The user interfaces for interacting with the planner as

well as the generated subplans (based on ontological

constraints) are provided by this agent. New schedul-

ing tasks are added to the system by a ward’s repre-

sentatives with the help of WardAgent’s.

The deployed SchedulingAgent is based on

JamochaAgent because of its suitable integration into

the optimized development process. This means that

the PSM and the behavior of the JamochaAgent are

written in a higher programming language which does

not require source code compilation. Task ontologies

and PSM are loaded at runtime as well as the new

fact base reﬂecting a possible change in the consid-

ered scenario.

5 CONCLUSIONS

The process of developing agent-based software suf-

fers from the lack of tools supporting the entire de-

velopment process. Thus, different steps of the pro-

cess are pursued by completely different tools having

incompatible model descriptions and knowledge rep-

resentation formats. This results in a complicated de-

ployment process which is done in an iterative way.

We described an improvement of the development

process realized by interconnected tools for ontology

and PSM development, as well as as an improvement

of the intergration of PSMs into a MAS.Finally we

provided an example of an enhanced system deploy-

ment with the help of this approach.

Single phases of the development process are pur-

sued, depending on skills, by experts from different

domains. Successful and effective cooperation re-

quires their consensus regarding the concepts and so-

lution methods. However, based on our experience,

this causes greater problems than the partial lack of

tool assistance or the limitations of the available tools.

ACKNOWLEDGEMENTS

This research was funded in part by the DFG Cluster

of Excellence on Ultra-high Speed Information and

Communication (UMIC), German Research Founda-

tion grant DFG EXC 89.

INTERCONNECTED TOOL-ASSISTANCE FOR DEVELOPMENT OF AGENT-ORIENTED SOFTWARE SYSTEMS

313

REFERENCES

BeanGenerator (2007). Beangenerator Plug-in.

http://acklin.nl/beangenerator/.

Becker, M., Heine, C., Herrler, R., and Krempels, K.-H.

(2003a). OntHoS - an Ontology for Hospital Scenar-

ios. In First International Workshop on Agent Appli-

cations in Health Care, Barcelona, Spain.

Becker, M., Heine, C., Herrler, R., and Krempels, K.-H.

(2003b). OntHoS - an Ontology for Hospital Scenar-

ios. First International Workshop on Agent Applica-

tions in Health Care, Barcelona, Spain.

FIPA (2009). FIPA - Foundation for Intelligent Physican

Agents, Home Page. http://www.ﬁpa.org/.

JADE (2009). JADE Home Page. http://jade.cselt.it/.

Jamocha Community (2009). Jamocha Home Page.

http://www.jamocha.org/.

Kirn, S., Heine, C., Herrler, R., and Krempels, K.-H.

(2003). Agent.hospital - agent-based open framework

for clinical applications. In WETICE, pages 36–41.

Krempels, K., Christoph, U., and Wilden, A. (2009).

Jamocha – a Rule-based Programmable Agent. In

Proceedings of the International Conference on

Agents and Artiﬁcial Intelligence, Porto, Portugal.

Krempels, K.-H. (2008). Agentenbasierte Ablaufpla-

nung. PhD thesis, RWTH Aachen University, RWTH

Aachen University, Germany.

Krempels, K.-H., Nimis, J., Braubach, L., Pokahr, A., Her-

rler, R., and Scholz, T. (2003). Entwicklung in-

telligenter Multi-Multiagentensysteme - Werkzeugun-

terst¨utzung, L¨osungen und offene Fragen. In Dittrich,

K., K¨onig, W., Oberweis, A., Rannenberg, K., and

Wahlster, W., editors, Informatik 2003 - 33. Jahresta-

gung der GI, pages 31–46. Gesellschaft f¨ur Informatik

e.V., K¨ollen Druck+Verlag GmbH Bonn.

Krempels, K.-H. and Panchenko, A. (2006). An Approach

for Automated Surgery Scheduling. In Burke, E. and

Rudov´a, H., editors, PATAT 2006 - Proceedings of The

6th International Conference on the Practice and The-

ory of Automated Timetabling, Brno, Czech Republic.

Masaryk University.

Krempels, K.-H. and Panchenko, A. (2007). KR-driven De-

velopment Process Integration. In Vendetti, J., Hop-

per, T., and Tudorache, T., editors, Proc. of 10th Intl.

Prot´eg´e Conference, Budapest, Hungary.

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

314
