TOUCHING VIRTUAL REALITY

An Effective Learning Chance for Visually Impaired People

F. De Felice, F. Renna, G. Attolico and A. Distante

Consiglio Nazionale delle Ricerche – Istituto di Studi sui Sistemi Intelligenti per l’Automazione, Italy

Keywords: Learning support, Haptic technology, Multimodal interaction, Virtual reality, Visually impaired people.

Abstract: This paper presents a Virtual Reality (VR) system that allows visual impaired users to explore Virtual

Environments (VEs) by a haptic/acoustic interaction. The system may have many interesting educational

applications: indeed visually impaired people can access and learn informative contents conveyed by

opportunely designed and rendered 3D VEs. Moreover a visual 3D scene editor allows domain experts,

responsible of the learning process, to design the VE even if not well grounded in VR. This tool enables an

easy prototipization and a fast modification of the haptic/acoustic rendering to fit users feedback: therefore

the design of the learning experience arises from the cooperation of the domain expert with the final users.

1 INTRODUCTION

Virtual Reality can help visually impaired users to

learn information expressed as 3D virtual

environments (VE), which can represent objects

shape but also more abstract concepts.

Haptic devices such as PHANToM (Massie,

Salisbury, 1994), gestures inputs such as

CyberGlove (Immersion), TextToSpeech and

Speech Recognition technologies enable more

intuitive and natural Human-Machine interaction.

Force feedback, besides traditional auditory and

visual rendering, allows the tactile manipulation and

exploration of interactive 3D virtual objects.

Haptics and VR have been investigated to

enhance the learning of concepts involving three-

dimensional spatial data by sighted students (Jones,

Bokinsky, 2002). (Magnusson, Rassmus-Gron,

2005; Yu, Brewster, 2002; Jacobson, 2002) present

valid educational haptic/acoustic VR applications for

visual impaired users: they facilitate the

comprehension of information usually conveyed by

physical artefacts, less effective and more expensive.

VE can offer several views of a scene to convey

the information of interest in an ordered and

progressive way. Haptic and acoustic effects make

easier to acquire and comprehend the characteristics

of 3D view, improving their integration into a

meaningful mental schema.

The proposed multimodal system (OMERO)

combines the use of touch, vision and hearing for the

exploration of multiple views of 3D virtual

environments. Blind and seeing people can share

their knowledge by experiencing (each with its own

interaction modality) the same virtual scene.

The VE must be designed by domain experts to

make simple and effective the cognitive process. A

visual editor enables inexpert users to associate the

multimodal description (MD) to a virtual scene. It

also involves in the design process the final users

whose feedbacks drive the customization of the MD.

OMERO has experimentally proved to be an

effective learning tool in several different domains.

2 THE OMERO MULTIMODAL

FEATURES

OMERO has been designed to offer an enhanced

multimodal virtual experience whose aim is not to

mimic the interaction with physical objects by the

exploration of their approximated digital versions.

Its goal is to design a digital representation of reality

whose information contents and characteristics make

easier and more effective (in particular for visually

impaired people) the perception, the comprehension

and the learning of contents that can be expressed as

spatial data.

The user seats in front of the multimodal

workstation (figure 1) and interacts with the virtual

world via the haptic device, the keyboard and the

439

De Felice F., Renna F., Attolico G. and Distante A. (2009).

TOUCHING VIRTUAL REALITY - An Effective Learning Chance for Visually Impaired People.

In Proceedings of the First International Conference on Computer Supported Education, pages 439-442

DOI: 10.5220/0001977504390442

 SciTePress

audio speakers. The PHANToM desktop, a single

point haptic device, allows the user to perceive the

scene as if he\she were touching a physical scaled

model placed on the desk with a pencil-tip.

Multimodal effects (haptic and vocal) enhance the

interaction. Moreover, seeing people can

communicate with blind user: the model is visually

rendered on the screen and a red sphere shows the

current 3D position of the haptic device tip in the

virtual world. The point of view of the visual

rendering can be changed by suitable GUI

commands (thumbwheels or a “bring me to” button)

to appreciate the avatar movements but does not

affect the stability of the haptic reference system.

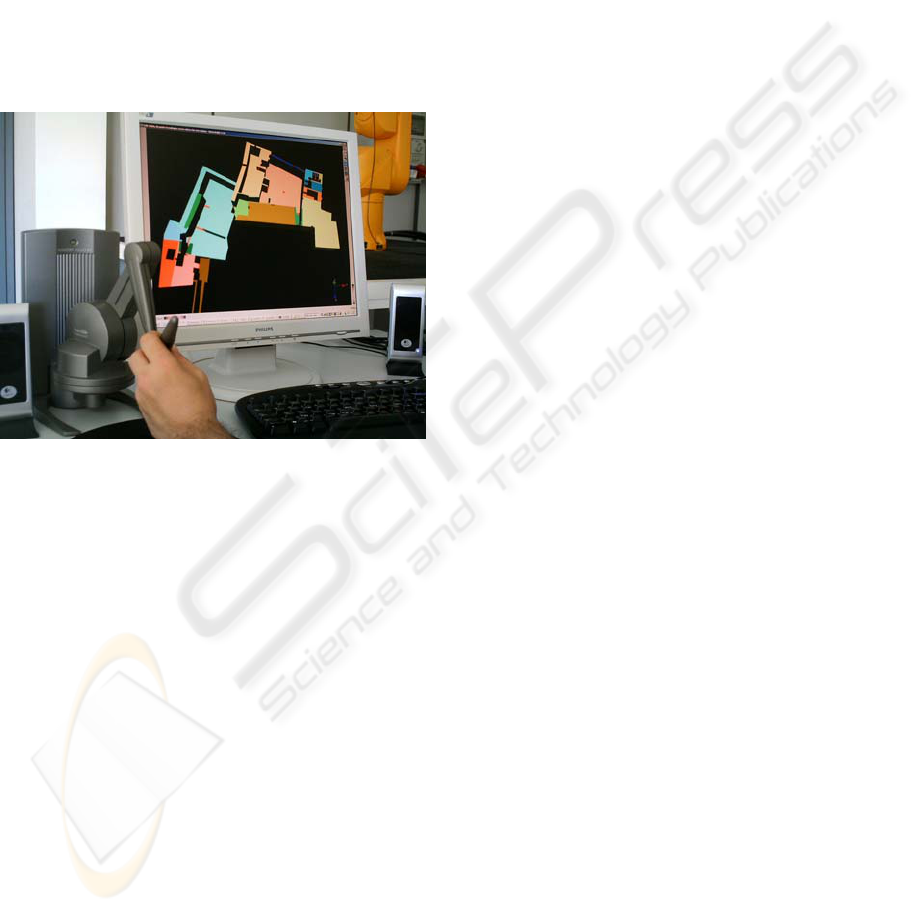

Figure 1: The exploration setup.

The MD of the scene is fundamental for an

effective learning process and influences data

representation and data retrieval.

Data Representation defines type and amount

of information represented by the virtual scene, their

mapping to 3D components of the virtual world,

their organization in several semantic views.

Active Objects are parts of the scene that

activate a specifically defined action when touched

by the user. Haptic interface can generate tactile

effects (such as vibration, viscosity, … ) that can

convey further information beyond shapes. Active

objects can be haptic, acoustic or haptic/acoustic and

can provide data (i.e. historical/ artistic descriptions,

dimensions, material, etc.) by vocal messages.

Active objects can be dynamic; their dynamic

behaviour can be activated either automatically

whenever the user touches them or on demand by

proper commands.

Scenarios try to overcome the serial nature of

touch, which does not provide a quick and unitary

perception of scenes as sight does. A complex

virtual world, rich of details, generates long

sequences of local perceptions that are hard to

integrate into a coherent meaningful mental schema.

Scenarios are sets of active objects representing

semantically consistent and coherent views of the

information content of the scene. When the user

selects a scenario, he\she focuses on the information

associated with its active objects, temporarily

discarding all the other data.

Data Retrieval concerns how the user interacts

with the virtual world: the navigation (how the user

can move inside the scene) and the exploration (how

3D objects transmit their associated information).

The following features support the navigation

task and facilitate the visit of the scene:

Containment box: a virtual box surrounding the

scene to prevent blind users from moving too far

from their goals. It has proved to avoid the waste of

time in useless regions of the workspace. It also

makes easier to find the objects of interest.

Guided path: a sort of guided visit around the

virtual environment. Suitable attractive forces drive

the exploration along predefined paths (De Felice,

2005). It proved to be valuable to become familiar

with the scene and to build complete and effective

mental schemas.

Dragging: can dynamically select which part of

a large model is shown in the workspace. Inside

OMERO the haptic stylus can drag the virtual scene

or the containment box (by pushing on its walls).

Scaling: dynamically changes the relative size of

the model with respect to the user fingertip (that

being fixed in the real world can prevent the

perception of small details). Increasing the size of a

model makes accessible small details and reduces

the dexterity required for their correct perception.

Scaling, if the user is touching an object, is applied

with respect to the contact point to keep a

meaningful reference that prevents the user from

being confused by the environment changes.

Similar dragging and scaling techniques can be

found in (Magnusson, Rassmun-Grohm, 2003).

3 MULTIMODAL DESCRIPTION

Multimodal rendering can provide information

through different sensory channels (redundancy) and

in alternative forms (polymorphism). The MD

(“how” the rendering is done) has been decoupled

by the structural description of the virtual scenes

(“what” is rendered). Thus the same geometrical

representation can be rendered in different ways by

modifying the associated multimodal rendering.

CSEDU 2009 - International Conference on Computer Supported Education

440

The system loads a VRML file containing all the

information about the geometry of the virtual scene

and an XML file, based on a schema called OMDL

(OMERO Multimodal Description Language), that

describes the multimodal appearance of the scene.

Creating complex virtual scenes is a difficult task

(Magnusson, Rassmus-Grohm, 2004). Proper tools

are required to make faster and easier this design

phase. VRML models can be created using several

applications (CAD system, Google SketchUp, etc.).

A visual editor, providing an intuitive and

straightforward authoring of rendering, has been

developed (figure 2).

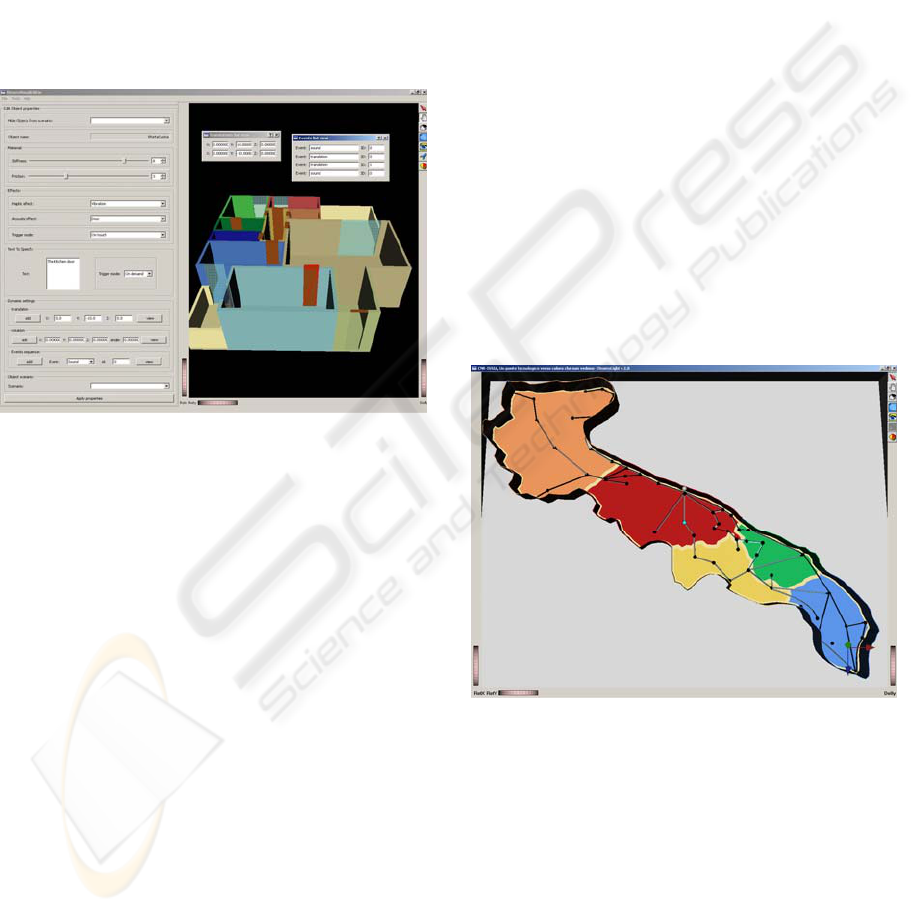

Figure 2: The look and feel Visual Editor.

Contextual menus allow the user, even not well

grounded in VR, to visually edit active objects and

scenarios using the mouse or the haptic tool. People

responsible of the learning process and the final

users cooperate in the design: the former select

solutions fitting their cognitive aims, the latter

provide feedback about the multimodal rendering.

4 OMERO APPLICATIONS

The previously described features of the system have

been implemented and verified in different fruitful

educational applications.

Svevian Castle. A VRML model of the accessible

areas of the ground floor of the Norman-Svevian

Castle, located in Bari (Italy), has been realized

(figure 1). Its complex topology requires a huge

amount of information to be transmitted to the user.

The multimodal application has been tested, using

different protocols, on two different groups each

composed by four visually impaired people that had

never visited the castle before (De Felice et al,

2007). The test sessions were followed by a real visit

of the castle to check both the effectiveness of the

proposed features and their best use to produce an

intuitive and simple multimodal interaction.

The application has been also proposed, during

the ‘International day of people with a disability’, to

twenty blind visitors of the castle. They started with

a basic model representing the whole plan of the

castle with active objects highlighting passages

between different environments and then moved to

an enlarged version of the main environments and of

their internal objects, with the associated historical

and artistic information. More than half of them

experienced a more conscious real visit of the castle

due to the mental schema constructed during the

virtual experience. They easily found real objects

whose presence had been emphasized in the virtual

model by attractive forces and vibrations. The most

curiouses found really interesting and stimulating

the vocal explanations on history, dimensions,

buiding materials and curiosities.

A blind child with psychomotor problems was

able to concentrate, to move correctly in the virtual

environment and to recognize and open doors.

Figure 3: The streets scenario of the Apulia map model.

Geographical Map. The virtual model of the Apulia

region (figure 3), constructed from GIS data, has

been organized in several semantic views

(provinces, rivers and lakes, towns, highways) that

blind users have used to progressively build a

complete mental schema of the territory.

It has been proposed to eight visually impaired

users to check its potentialities (De Felice et all,

2007). Then it has been informally experienced by

eleven visual impaired during a meeting of the

Italian National Blind Association. Ten of them

TOUCHING VIRTUAL REALITY - An Effective Learning Chance for Visually Impaired People

441

came from other Italian regions and had almost no

knowledge of Apulia. The only native user, using

her known contextual cues, found very easy to move

through the map and judged the haptic interaction

realistic and effective. Two users were unable to

complete the exploration of the model: one was very

tired for previous meeting activities while the other

had some hands coordination problems. The other

users moved through the scenarios with a growing

interest, also caused by an increased familiarity with

the haptic device. All the users were able to learn

new information. Also the native users increased her

knowledge discovering new characteristics.

This type of application received great interest

from blind users, which provided many suggestions

to improve the information contents and the

interaction modalities of the VE.

5 CONCLUSIONS

A framework to allow visually impaired people to

access virtual reality by a multimodal interaction

including touch has been presented. The haptic

feedback extends the visual and auditory interaction

and enables the effective and efficient fruition of the

information content of the virtual scenes by blind

users. This multimodal interaction and the

multilayered representation of the real world

strongly help visually impaired people to construct a

mental schema of the scenes.

The OMERO system proposes the use of virtual

reality to generate an augmented experience that

conveys information of different nature (shape,

geometric, abstract concept) in an integrated and

compact way.

The experiences made with blind users suggest

that the multimodal interaction needs to be tailored

to the specific user: the OMDL schema allows a

quick and easy design and implementation of

rendering without affecting the geometrical structure

of the virtual scene. A visual editor allows this

design to be made also by domain expert without

specific preparation about virtual reality.

Almost all the visually impaired users have

found natural the use of the system and have reached

satisfactory results, providing positive feedback

about this new tool. The approach represents a way

to overcome some serious limitations of the direct

exploration of physical objects and opens to the

blind community new active and exciting learning

opportunities.

ACKNOWLEDGEMENTS

The project has been done with the support of the

Italian Union of Blind and of the Regional Direction

for Cultural Heritage and Landscape of Apulia.

REFERENCES

Massie, T.H., Salisbury, J.K., 1994. A device for probing

virtual objects. ASME Winter Annual Meeting,

Symposium on Haptic Interfaces for Virtual

Environment and Teleoperator Systems.

Immersion website:

www.immersion.com/3d/products/cyber_glove.php

Gail Jones, M., Bokinsky, A., et all, 2002.

NanoManipulator Applications in Education: The

Impact of Haptic Experiences on Students’ Attitudes

and Concepts. In HAPTICS.02, 10th Symp. On Haptic

Interfaces For Virtual Environments & Teleoperator

Systems. IEEE Computer Society Press.

Magnusson, C., Rassmus-Gron, K., 2005. Audio haptic

tools for navigation in non visual environments. In

Enactive’05, 2nd Int. Conference on Enactive

Interfaces, Genoa, Italy, November 17th-18th, 2005.

Yu, W. Brewster, S., 2002. Multimodal Virtual Reality

Versus Printed Medium in Visualization for Blind

People. Fifth international ACM conference on

Assistive technologies 2002, Edinburgh, Scotland July

08 – 10, 2002.

Jacobson., R. D., 2002. Representing spatial information

through multimodal interfaces. 6th International

Conference on Information Visualisation, 2002.

De Felice, F. , Gramegna, T., Renna, F., Attolico, G.,

Distante, A.. A Portable System to Build 3D Models

of Culturale Heritage and to Allow Their Explorations

by Blind People. HAVE’05, IEEE International

Workshop on Haptic Audio Visual Environments and

their Applications Ottawa, Ontario, Canada, 1-2

October 2005.

Magnusson, C., Rassmun-Grohm, K., 2003. Non-visual

zoom and scrolling operations in a virtual haptic

environment. 3th International Conference

Eurohaptics 2003, Dublin, Ireland, July 2003.

Magnusson, C., Rassmus-Gron, K., 2004. A Dynamic

Haptic-Audio Traffic Environmet. Eurohaptics 2004,

Munich Germany, June 5-7 2004.

De Felice, F., Renna, F., Attolico, G., Distante, A.. A

Haptic/Acoustic Application to Allow Blind the

Access to Spatial Information. Proc. IEEE World

Haptics 2007, Second Joint EuroHaptics Conference

and Symposium on Haptic Interfaces for Virtual

Environment and Teleoperator Systems, Tsukuba,

Japan, March 22 – 24, 2007, pp. 310-315.

CSEDU 2009 - International Conference on Computer Supported Education

442
