TEXTURE-ENHANCED DIRECT VOLUME RENDERING

Felix Manke and Burkhard W

unsche

Graphics Group, Department of Computer Science, University of Auckland, Private Bag 92019, Auckland, New Zealand

Keywords:

Direct-volume rendering, Transfer Functions, Multi-ﬁeld data, Texture synthesis, Texture morphing.

Abstract:

Direct volume rendering (DVR) is a ﬂexible technique for visualizing and exploring scientiﬁc and biomedical

volumetric data sets. Transfer functions associate ﬁeld values with colors and opacities, however, for complex

data are often not sufﬁcient for encoding all relevant information. We introduce a novel visualization technique

termed texture-enhanced DVR to visualize supplementary data such as material properties and additional data

ﬁelds. Smooth transitions in the underlying data are represented by coherently morphing textures within user

deﬁned regions of interest. The framework seamlessly integrates into the conventional DVR process, can be

executed on the GPU, is extremely powerful and ﬂexible, and enables entirely novel visualizations.

1 INTRODUCTION

Volumetric data is common in science, engineering

and biomedicine. Visualizations help to gain insight

and understanding of the data. A powerful and pop-

ular visualization technique is Direct Volume Render-

ing (DVR), which does not require intermediate rep-

resentation and can display an entire 3D data set in a

2D image. This is achieved by associating data values

with opacities and colors via transfer functions.

Traditionally DVR has only been used for scalar

data. While extensions for higher dimensional data

exist, the fact that only color and opacities can be

used to represent ﬁeld values presents a natural lim-

itation. In this paper we present a novel concept to

enrich DVR visualizations with textures, which are

a separate visual attribute independent of color and

opacity (Landy and Graham, 2004). The technique

facilitates the visualization of higher-dimensional and

multi-ﬁeld data by encoding additional ﬁeld values

by texture attributes. Additionally, the actual appear-

ances of different materials within the data set can

be mimicked resulting in more realistic and intuitive

visualizations. Textures in regions with overlapping

transfer functions are morphed to create a smooth

transition between different textured materials. Our

mathematical framework represents a natural exten-

sion of the traditional DVR process and is consistent

with existing opacity and color transfer functions.

Section 2 surveys previous work on visualizing

complex data with textures and DVR. Section 3 re-

views concepts of traditional DVR. Section 4 for-

mally deﬁnes a mathematical framework for texture-

enhanced DVR. Section 5 discusses the algorithmic

structure of texture-enhanced DVR, gives implemen-

tation details, and discusses techniques to improve

perception of 3D textures. Results and a discussion of

our proposed concept follow in section 6. Section 7

concludes with a summary of our main contributions

and important directions for future research.

2 RELATED WORK

Several modiﬁcations of traditional transfer functions

have been suggested. Feature rich visualizations can

be obtained by using multi-dimensional transfer func-

tions and applying them to scalar or multivariate data

(Kniss et al., 2002). Special manipulation widgets

make the speciﬁcation of transfer functions more in-

tuitive and convenient.

Textures have been used previously in DVR to

display higher-dimensional data. Vector ﬁelds can

be represented with Line Integral Convolution (LIC)

textures and interactive explored with DVR (Rezk-

Salama et al., 1999). 3D Perception can be im-

proved by emphasizing thin thread structures using

limb darkening (Helgeland and Andreassen, 2004) or

visibility-impeding halos which indicate depth dis-

continuities (Wenger et al., 2004).

Tensor ﬁelds can be represented by integrating

streamlines along the principal eigenvector direction.

The resulting textures can be blended with representa-

185

Manke F. and Wünsche B. (2009).

TEXTURE-ENHANCED DIRECT VOLUME RENDERING.

In Proceedings of the Four th International Conference on Computer Graphics Theory and Applications, pages 185-190

DOI: 10.5220/0001772701850190

 SciTePress

tions for different tissue types by using derived tensor

quantities as input for a classiﬁcation function which

encodes the probability that a ﬁeld value corresponds

to a certain tissue type (W

unsche and Lobb, 2004).

Patel et al. (Patel et al., 2007) illustrate volumet-

ric seismic data by mapping 2D textures onto the pla-

nar faces of axis-aligned cutouts. For the rendering,

”Layer texture transfer functions” are used to select

textures, scaling factors, and opacities for the pre-

classiﬁed layers. ”Scalar texture transfer functions”

associate different materials with textures. During

rendering, the opacities are used to linearly blend the

2D textures. A separate conventional color-opacity

transfer function maps data values to RGBα colors,

which can be blended with the textures.

3 MATHEMATICAL MODEL FOR

DVR

Traditional DVR is described by the emission-

absorption model, where scalar values are interpreted

as densities of a gaseous material which emits and ab-

sorbs light (Max, 1995). An image is created by accu-

mulating the total light intensity for each pixel which

in the simplest case is computed as

C =

∞

c(t)e

−

κ(u)du

dt (1)

where t is the parameter of a viewing ray through a

pixel, C is its color, c(t) the color at the ray parameter

t and the integral in the exponent is the total opacity

of the ray segment [0, t] which is computed by inte-

grating densities (opacities) along the ray.

The DVR integral in equation 1 requires transfer

functions which associate values of a volume with op-

tical properties. In the traditional DVR model (Max,

1995) these are three color components (red, green,

and blue) and an opacity component (α). Although

Max assumes scalar volume data sets only, subse-

quent work uses higher dimensional input data such

as vectors and tensors (Helgeland and Andreassen,

2004). Consequently we deﬁne a volume as a more

general function f : R

7→ R

, with n independent

variables, such as position and time, and m dependent

variables, e.g., m = 3 for vector data.

In addition we introduce a data transformation op-

erator B that maps a function f : R

7→ R

(input data

set) to a function g : R

7→ R

(derived data set):

B: f 7→ g. (2)

This operator reﬂects that many applications use de-

rived quantities as input for the DVR process. For

example, multi-dimensional transfer functions using

scalar data and its gradient are useful for detecting

material boundaries (Kniss et al., 2002).

The output of function g is a k-dimensional vector

that serves as input for the transfer function. Using B,

the color-opacity transfer function can be deﬁned as:

Θ : R

7→ R



B ( f )(P)



= Θ



g(P)



= (C, α).

(3)

The transfer functions themselves are weighting

functions for RGBα values and are usually either user-

deﬁned using simple manipulation widgets (Kniss

et al., 2002), or are predeﬁned, e.g., using typical tis-

sue densities for CT data.

4 MATHEMATICAL

FRAMEWORK FOR

TEXTURE-ENHANCED DVR

In order to obtain consistency with the existing DVR

model, texture transfer functions should enable the as-

sociation of data values with different textures anal-

ogous to traditional transfer functions, i.e., by using

weighting functions deﬁned over the domain of the

dependent variables.

The following difﬁculties exist: In contrast to col-

ors and opacities, textures have spatial (and poten-

tially temporal) properties and hence must also de-

pend on the independent variables. Transfer functions

which overlap within the domain of an independent

variable, require a merging of textures. Whereas col-

ors and opacity values can be (linearly) interpolated,

the morphing of textures must maintain the character-

istics of each individual texture used to represent the

underlying data set, e.g., size, color and orientation

of texture components. Since textures are also repre-

sented by color and opacities a mechanism must be

found to combine them with the results of the color

and opacity transfer functions.

The mathematical framework for texture-

enhanced DVR is hence deﬁned as follows:

4.1 Deﬁning Texture Coordinates

Each texture object T(Ω, ς) has its own dimensional-

ity p, domain Ω (where the texture is used in the vi-

sualization), and attribute function ς (usually RGBα,

but other values such as displacements are possible).

Consequently, the texture coordinates Q have to be

deﬁned per texture. For volume rendering the tex-

ture coordinates depend on the spatial locations of the

voxels. This requirement is consistent with existing

texture-based visualization techniques such as LIC:

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

186

the texture generation only effects the attribute func-

tion ς, but not the deﬁnition of texture coordinates or

weighting-curves used for rendering them.

In order to obtain texture coordinates for a texture

T(Ω, ς), we deﬁne a function Γ that maps voxel posi-

tions P ∈ R

to texture coordinates Q ∈ Ω ⊆ R

Γ : R

7→ R

Γ : P 7→ Γ(P) = Q.

(4)

Note that the equation makes no assumptions

about the dimensionality of T. In our examples p = 3

and Ω can be a subset of the input data set as ex-

plained in subsection 5.2. The deﬁnition of Γ allows

spatially varying transformations, e.g. gradual scaling

or rotation of textures and their features.

4.2 Texture Transfer Functions

Instead of returning colors and opacities, the new

transfer function returns a vector of weights (one for

each of the L textures) used for the classiﬁcation:

tex

: R

7→ R

tex



B ( f )(P)



= ω.

(5)

Note that, in contrast to the conventional transfer

function, Θ

tex

does not map into R

(RGBα), but into

an L-dimensional space (R

). This makes it possible

to morph textures and deﬁne texture-dependent shad-

ing and transparency effects to improve perception.

4.3 Morphing of Textures

A morphing operator needs access to the texture trans-

fer function Θ

tex

in order to obtain weights for neigh-

boring pixels. In addition morphing requires for all

L textures the texture attributes at all texels, and not

just their values at a given voxel. Hence, the operator

needs L texture coordinates Q

1···L

and the functions

1···L

as input. In order to further increase ﬂexibility,

it is better not to provide the pre-transformed texture

coordinates, but instead the transformation functions

1···L

together with the current voxel position P. In

this way, a morphing operator is able to access neigh-

boring voxels and texels. Since the transformation

functions Γ

1···L

determine the texture domain the ex-

plicit speciﬁcation of Ω

1···L

is not necessary.

Taken all these considerations into account, the

morphing operator  can be deﬁned as follows:



(C, α)

tex

, Λ



= 



P, Γ

1···L

, ς

1···L

, f , B, Θ

tex



. (6)

where Λ denotes additional channels such as dis-

placement values. Note that for efﬁciency the morph-

ing, even though deﬁned for the entire volume, should

be performed only for the subset of f which, accord-

ing to the transfer functions will be visible and con-

tribute to the ﬁnal image (see subsection 5.2).

We have developed a fast exemplar-based texture

synthesis and morphing algorithm. The technique

provides an excellent trade-off between speed and

quality, is highly ﬂexible, allows the use of arbitrary

channels, can be extended to arbitrary dimensions and

is suitable for a GPU-implementation. Technical de-

tails are given in (Manke and W

unsche, 2009).

4.4 Color Combination Operator

The evaluation of the texture transfer function Θ

tex

and the application of the morphing operator form a

parallel path in the DVR process, which is indepen-

dent of the evaluation of the color and opacity trans-

fer function. In order to integrate texture-enhanced

DVR into the existing process, the binary color com-

bination operator ~ mixes the color-opacity pairs

(C, α)

conv

of the conventional transfer function and

(C, α)

tex

of the texture. Formally, ~ is deﬁned as:

~ : RGBα × RGBα 7→ RGBα

(C, α) = (C, α)

conv

~ (C, α)

tex

(7)

The color combination operator ~ has different

modes implementing simple operations, such as re-

placement of the results of the color transfer func-

tion, and more complex operations combining col-

ors and transparencies. This is consistent with the

OpenGL texture environment modes GL

REPLACE,

GL MODULATE etc. for polygon rendering.

5 IMPLEMENTATION

The volume rendering integral in equation 1 can be ef-

ﬁciently solved on graphics hardware by discretizing

the volume using object or view-aligned slices, com-

puting colors and transparencies for each slice, and

compositing them in back-to-front order:

, α

)

conv

<- evaluate Θ



B( f )(P)



// eval. of conv. transfer function



(C, α)

tex

, Λ



<- 



P, Γ

1···L

, ς

1···L

, f , B, Θ

tex



// morphing of textures

, α

) <- (C

, α

)

conv

~ (C

, α

)

tex

// combination of colors

<- (α

·C

) + (1 − α

) · c

i−1

// volumetric compositing

The extensions can be directly integrated into a

modular GPU-based DVR framework we presented

previously (Manke and W

unsche, 2008). Sampling

TEXTURE-ENHANCED DIRECT VOLUME RENDERING

187

the texture transfer function generates weight maps

which are used in the texture morphing algorithm.

(P) ⇔ Θ

tex



B ( f )(P)



= ω

, 1 ≤ j ≤ L.

More implementation and technical details, and

the source code are available at (Manke, 2008).

5.1 Perceptual Issues

One of the major difﬁculties in using 3D textures for

visualization is perception of their spatial properties.

While the human visual system is well adapted to

perceive textures over surfaces and even uses them

as depth and shape cues, it is very difﬁcult to per-

ceive partially transparent solid textures. The chal-

lenges are similar as for conventional color and opac-

ity transfer functions where the naive approach of just

accumulating colors and opacities results in a fuzzy

image without visible structures. These problems are

overcome by using shading functions which empha-

size material boundaries, e.g., by using the gradient

magnitude of the scalar input data set as pseudo sur-

face normal (Levoy, 1988). Based on experimental

and visual perception research we developed the fol-

lowing guidelines for using texture-enhanced DVR:

For data sets where only recognition of material

types and properties is important, rather than their

exact 3D structure, we use opacity transfer func-

tions which make the region of interest nearly opaque

and the remaining features nearly transparent. Inte-

rior structures can be shown by using cutting planes.

The method results in images similar to Patel et

al.’s approach (Patel et al., 2007), but offers smooth

boundaries between materials using texture morphing

and we can indicate important features or anatomical

landmarks by partial transparent surfaces.

A better perception of the 3D structure of tex-

tures is obtained by using screen-door transparencies.

Here, the alpha channel of the synthesized texture is

used to model different opacities for the texture ele-

ments. For screen-door transparency, selected parts of

the texture are deﬁned to be fully opaque, whereas all

other parts are deﬁned to be (almost) fully transpar-

ent. The color combination operator then multiplies

the opacities α given by (C, α)

conv

and (C, α)

tex

We utilize the synthesis of additional channels for

generating the alpha channel: In addition to the color

input exemplar, an additional 2D texture is deﬁned

that encodes opacities. After the texture morphing

has ﬁnished, the texture coordinates stored in the ﬁ-

nal synthesis pyramids can be used to look up pixels

in this additional texture. Perception of the geometry

of opaque texture elements, rather than the textured

surface, can be improved by using the gradient of the

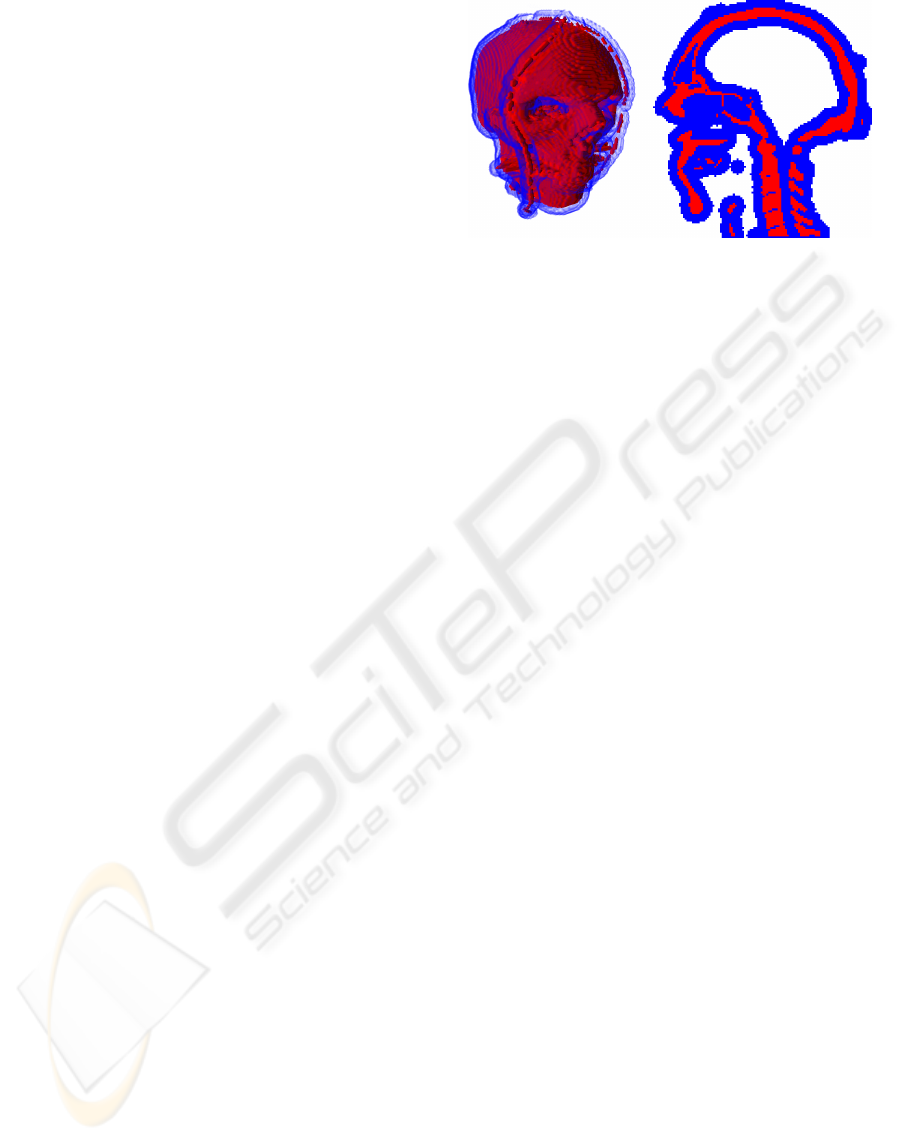

Figure 1: A binary shell mask (blue) with dilation radius

= 5 for a binary object mask (red).

scalar ﬁeld g(P) = f (P) · a(P) as illumination func-

tion. Here f denotes the data set and a is a function

that returns the geometry-deﬁning alpha value of the

solid texture at a sample point P.

5.2 Binary Shell Masks

In DVR the visualized data typically contains large

regions that are of no interest and hence deﬁned by the

transfer function as fully transparent. Since texture

synthesis and morphing is a time consuming process

it is desirable for texture-enhanced DVR to generate

solid textures only where they are required.

We realize partial texture synthesis and morphing

by integrating a binary object mask into the basic 3D

texture morphing algorithm. This binary object mask

B is of the same size as the target texture cube S, and

encodes which voxels of S are textured. Because our

texture synthesis algorithm uses neighborhood match-

ing and a multi-resolution approach, the binary object

mask B is dilated by a user-deﬁned dilation radius r

(ﬁgure 1). In order to compute the shortest Euclidean

distance of each voxel to the binary object mask, we

adopt a C++ implementation by (Coeurjolly, 2003)

that realizes a linear-time algorithm for computing the

3D squared Euclidean Distance Transform (Meijster

et al., 2000). In practice we found that a dilation ra-

dius r

= 10 yields high quality textures while still

resulting in signiﬁcant time savings.

6 RESULTS AND DISCUSSION

We compared conventional transfer functions with

texture transfer functions (ﬁgure 2) and found that for

opaque textured layers, such as the bone layer in the

ﬁgure, texture transfer functions enable similar per-

ception of features. The geometry of semi-transparent

layers, such as the skin layer of the nose, is harder

to perceive than for conventional transfer functions.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

188

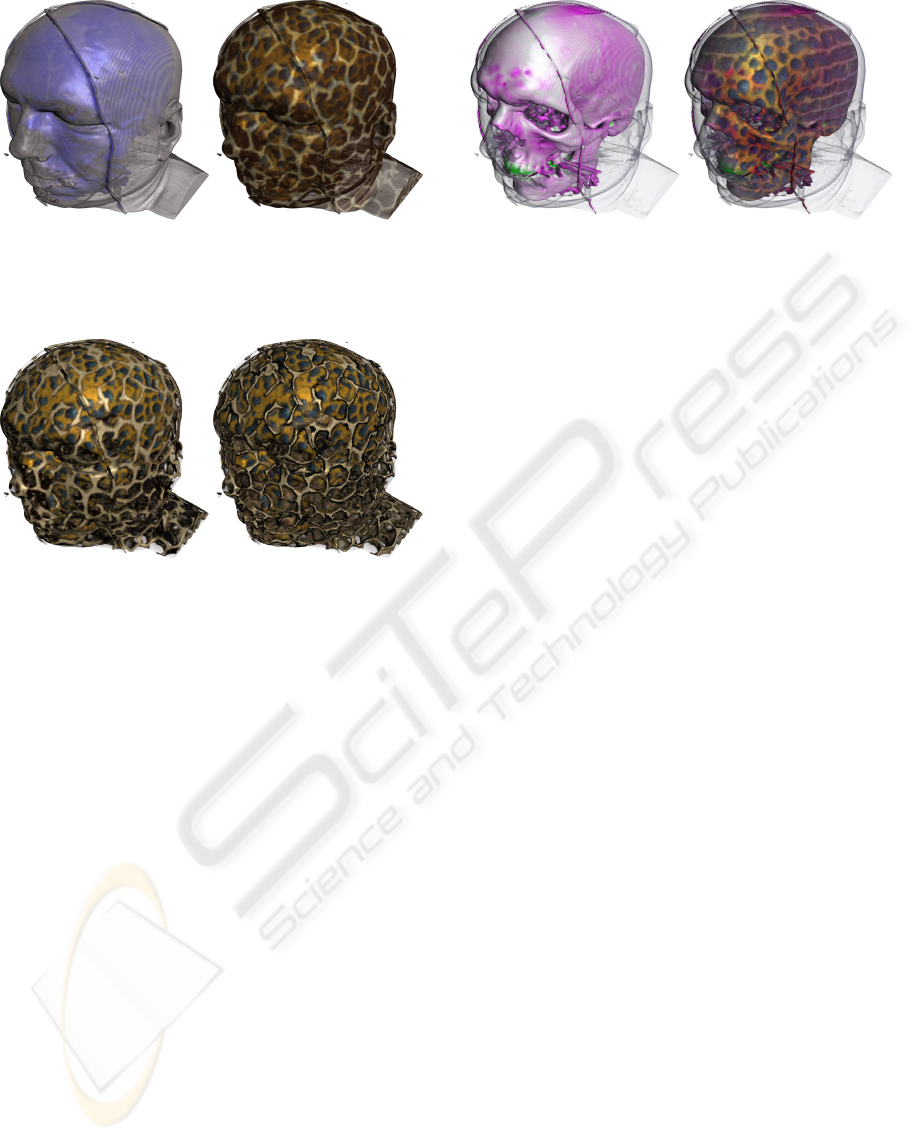

Figure 2: Comparison of renderings using the color of a

conventional color-opacity transfer function (left) and of a

texture transfer function (right). The gradient magnitude of

the data serves as threshold for the opacity.

Figure 3: Screen-door transparency effects for overlapping

layers. The mesh structure of the skin texture is fully

opaque, whereas the regions in between are almost com-

pletely transparent. Left: Conventional illumination func-

tion using the gradient vectors for the object geometry only.

Right: Improved illumination function taking the geometry

of texture features into account.

However, the texture properties can now encode ad-

ditional information such as ﬁber direction, cellular

abnormalities etc. Similar as for color transfer func-

tions gradient based shading is required for material

boundaries. Since textures are heterogeneous in 3D

we found it useful to additionally threshold the opac-

ity with the gradient magnitude.

Perception of nested textured regions is difﬁcult.

Figure 3 demonstrates that perception can be im-

proved by using screen-door transparency effects.

The mesh structure of the texture used for the skin

layer is deﬁned to be fully opaque, whereas the re-

gions in between are almost completely transparent.

As a result, the features of the outer texture are not

blended with the underlying texture of the bone. Note

how the perception of texture features improves when

the illumination function takes into account the geom-

etry of texture features.

Figure 4 extends the previous visualization by ad-

ditionally encoding the magnitude of the scalar gra-

dient in colors. The left image shows a conventional

rendering using only the color-opacity transfer func-

tion. On the right, texture-enhanced DVR is used to

Figure 4: Using color and texture transfer functions together

for encoding different information. The example encodes

the magnitude of the scalar gradient in color, ranging from

magenta (zero magnitude) over white to green (maximal

magnitude) using color (left) and texture combined with

colors using a multiplication operator (right).

encode the imaginary materials as before (using tex-

tures) as well as the gradient magnitude. The two

colors are combined using a multiplication operator:

(C, α) = (C, α)

conv

⊗ (C, α)

tex

Note that such a morphing of two textures within

one material layer is common for multi-ﬁeld data. For

example, a cardiac MRI data set could be used to dif-

ferentiate different tissues such as the heart muscle,

blood and surrounding fat tissue. A PET or fMRI data

set could then provide additional functional informa-

tion such as myocardial strain (W

unsche and Young,

2003) or viable, stunned, hibernating and dead my-

ocardium represented by (morphed) textures.

6.1 Comparison with Previous Work

In section 2 we discussed Patel et al.’s scalar tex-

ture transfer functions which are similar to our texture

transfer functions. However, there are fundamental

differences in the two concepts:

Patel et al. use 2D textures and map them onto cut-

ting planes through pre-classiﬁed layers. In contrast,

texture-enhanced DVR provides texture information

throughout the volume in three dimensions. Also Pa-

tel et al. only employ simple alpha-blending in or-

der to place textures on top of each other, which does

not preserve coherence of texture features. In con-

trast, texture-enhanced DVR provides a sophisticated

morphing operator that creates smooth transitions be-

tween texture features. Arbitrary texture channels in

addition to color and opacity can be deﬁned.

In order to compute 2D texture coordinates and to

ensure a correct texture mapping, Patel et al. need a

separate volume to store information for parameteriz-

ing the cutout planes. In our framework, the transfor-

mation functions Γ

1···L

guarantee a correct conversion

from sample point positions to texture coordinates.

Note that the functions can also be used for deﬁning

TEXTURE-ENHANCED DIRECT VOLUME RENDERING

189

texture scaling, which is explicitly deﬁned by Patel et

al.’s texture transfer functions.

Finally, Patel et al.’s framework only allows to

linearly blend between the textured visualization and

the standard visualization with color-opacity transfer

functions. In contrast, the color combination operator

supports arbitrary mixtures.

Besides the conceptual differences, Patel et al. do

not present any formalism for texture transfer func-

tions in contrast to our mathematical framework for

texture-enhanced DVR.

7 CONCLUSION AND FUTURE

WORK

We have presented a new methodology for direct vol-

ume rendering termed texture-enhanced DVR. The re-

search was motivated by the limited capabilities of

color and opacity to convey multiple variables and

attributes of a volumetric data set. Conventional

DVR techniques rely on color-opacity transfer func-

tions that map input data to an RGBα tuple. Texture-

enhanced DVR extends this process by enabling the

use of textures for encoding additional information.

The new technique seamlessly integrates into the ex-

isting DVR process, yet is extremely powerful and

ﬂexible.

We introduced a mathematical framework which

extends the existing DVR framework and is consis-

tent with the use of textures for polygon rendering and

previous applications of textures for DVR. In order to

represent smooth transitions between different mate-

rials we use a new GPU-compatible 3D texture syn-

thesis and morphing technique. Additional efﬁciency

is gained by deﬁning binary shell masks from the tex-

ture transfer functions and only synthesizing / morph-

ing the textures where they are required. We inves-

tigated techniques to improve the perception of mul-

tiple and partially transparent textures and presented

guidelines for their application.

In future work we want to further improve the per-

ception of nested textured layers and we want to in-

clude procedural texture generation methods to bet-

ter represent directional properties. Most importantly

we want to use real medical multi-dimensional and

multi-ﬁeld data sets to demonstrate the usefulness of

this new methodology in practice.

REFERENCES

Coeurjolly, D. (2003). 3D squared Euclidean distance

transform. http://www.cb.uu.se/˜tc18/code data set/

Code/SEDT/index.html.

Helgeland, A. and Andreassen, O. (2004). Visualization

of vector ﬁelds using seed LIC and volume render-

ing. IEEE Transactions on Visualization and Com-

puter Graphics, 10(6):673–682.

Kniss, J., Kindlmann, G., and Hansen, C. (2002). Multi-

dimensional transfer functions for interactive volume

rendering. IEEE Transactions on Visualization and

Computer Graphics, 8(3):270–285.

Landy, M. S. and Graham, N. (2004). The Visual Neuro-

sciences, chapter Visual Perception of Texture, pages

1106–1118. MIT Press, Cambridge, MA, USA.

Levoy, M. (1988). Display of surfaces from volume data.

IEEE Computer Graphics & Applications, 8(3):29–

37.

Manke, F. (2008). Texture-enhanced direct volume ren-

dering. MSc thesis, University of Auckland, New

Zealand.

Manke, F. and W

unsche, B. C. (2008). A direct volume

rendering framework for the interactive exploration of

higher-order and multiﬁeld data. In Proceedings of

GRAPP 2008, pages 199–206.

Manke, F. and W

unsche, B. C. (2009). Fast spatially con-

trollable 2D/3D texture synthesis and morphing for

multiple input textures. In Proceedings of GRAPP

2009. (accepted for publication).

Max, N. (1995). Optical models for direct volume render-

ing. IEEE Transactions on Visualization and Com-

puter Graphics, 1(2):99–108.

Meijster, A., Roerdink, J. B., and Hesselink, W. H. (2000).

A general algorithm for computing distance trans-

forms in linear time. In Proc. of the International Sym-

posium on Mathematical Morphology and its Applica-

tions to Image and Signal Processing, pages 331–340.

Patel, D., Giertsen, C., Thurmond, J., and Gr

oller, M. E.

(2007). Illustrative rendering of seismic data. In Pro-

ceedings of Vision Modeling and Visualization 2007,

pages 13–22.

Rezk-Salama, C., Hastreiter, P., Teitzel, C., and Ertl, T.

(1999). Interactive exploration of volume line integral

convolution based on 3D-texture mapping. In Proc. of

Visualization ’99, pages 233–240. IEEE Press.

Wenger, A., Keefe, D. F., Zhang, S., and Laidlaw, D. H.

(2004). Volume rendering of thin thread structures

within multivalued scientiﬁc data sets. IEEE Trans-

actions on Visualization and Computer Graphics,

10(6):664–672.

unsche, B. C. and Lobb, R. (2004). The 3D visualiza-

tion of brain anatomy from diffusion-weighted mag-

netic resonance imaging data. In Proceedings of

GRAPHITE 2004, pages 74–83. ACM Press.

unsche, B. C. and Young, A. A. (2003). The visualization

and measurement of left ventricular deformation using

ﬁnite element models. Journal of Visual Languages

and Computing, 14(4):299–326.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

190
