1 INTRODUCTION

In order to improve software project practice, a num-

ber of software process models have been suggested

in literature and tested in practice. According to ISO

15504 (ISO/IEC, 1998) a software process is ”the pro-

cess or a set of processes used by an organisation or

project to plan, manage, execute, monitor, control and

improve its software related activities”. Many organ-

isations choose one established model (e.g. the V-

Model (BMI, 2004)) as their internal standard or even

develop and deﬁne their own process.

Today’s software development projects are highly

individual and in order to apply processes to a spec-

trum of projects they are described in a generic way.

To use them in a particular project they have to be

adapted to the individual needs of a project in turn.

This instantiation comprises tailoring of the process

and resource allocation. The former is ”the act of

adjusting the deﬁnitions and/or of particularising the

terms of a general process description to derive a new

process applicable to an alternative (and probably less

general) environment” (Ginsberg and Quinn, 1995).

The latter is the assignment of resources to activities

to carry them out (Aalst and Hee, 2004). Recent stud-

ies show that this is still a wide open ﬁeld for research

(Pedreira et al., 2007).

Siemens’ software developing business units de-

ﬁne their processes according to their needs within a

general corporate wide process framework. The ap-

plication of processes in projects, including the in-

stantiation for individual projects, is rarely standard-

ised and thus differs widely within Siemens. Siemens

Corporate Technology, the University of South Aus-

tralia and the University of Applied Sciences -

unchen are collaborating to improve Siemens’ cur-

rent practice and to develop a general approach.

The goal of this paper is to introduce to Siemens’

Software Processes, identify shortcomings of the cur-

rent practice of instantiation and application and to

123

Killisperger P., Stumptner M., Peters G. and Stückl T. (2008).

CHALLENGES IN SOFTWARE DESIGN IN LARGE CORPORATIONS - A Case Study at Siemens AG.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 123-128

DOI: 10.5220/0001683301230128

 SciTePress

provide an approach to overcome these issues. Our

work follows the long stipulated research in real-life

situations (Boehm, 1976)(Zmud, 1997).

The paper is structured as follows. Section 2 intro-

duces into Siemens’ Software Processes by describ-

ing Siemens’ practice in modelling and applying soft-

ware processes and shortcomings of the current prac-

tice are revealed. In Section 3 a New Software En-

gineering Framework (NSEF) is proposed aiming to

improve the current practice and to identify design is-

sues. Relevant existing approaches are analysed in

section 4.

2 SIEMENS’ SOFTWARE

PROCESSES

Siemens’ software developing business units model

their software processes within a company-wide

framework according to their individual needs. The

processes have several levels with the higher levels

being more abstract. Figure 1 shows a simpliﬁed ex-

ample of a low level process modelled as an Event-

Driven-Process-Chain (EPC) (Scheer, 2000). The

process is started when the state ”Implementation de-

cided (Component)” in the sub process ”Implement

Product (Subsystem)” is active. After reaching the

state ”Component Implemented”, work will continue

in the sub process ”Implement Product (Subsystem)”

as indicated in Figure 1. Sub processes can be ex-

ecuted several times within a project, even in paral-

lel, and dependencies can exist between them. For

every activity, a Function-Allocation-Diagram (FAD)

(Scheer, 2000) is deﬁned. It contains a description of

the activity, the roles involved, input and output doc-

uments and links to further information such as docu-

ment templates.

2.1 Current Instantiation and

Application

A reference process of a particular Siemens organ-

isation can comprise several thousand elements. It

functions as a guideline for any software project

within that organisation, but still cannot be applied in

projects without modiﬁcations. Instead, it is intended

to be a sample or framework from which the actual

process, in the form of project speciﬁc plans such as

project plan, quality assurance plan or test plan, is de-

rived.

In addition, the reference process provides a

knowledge base for project management and mem-

bers. In order to use the reference process, project

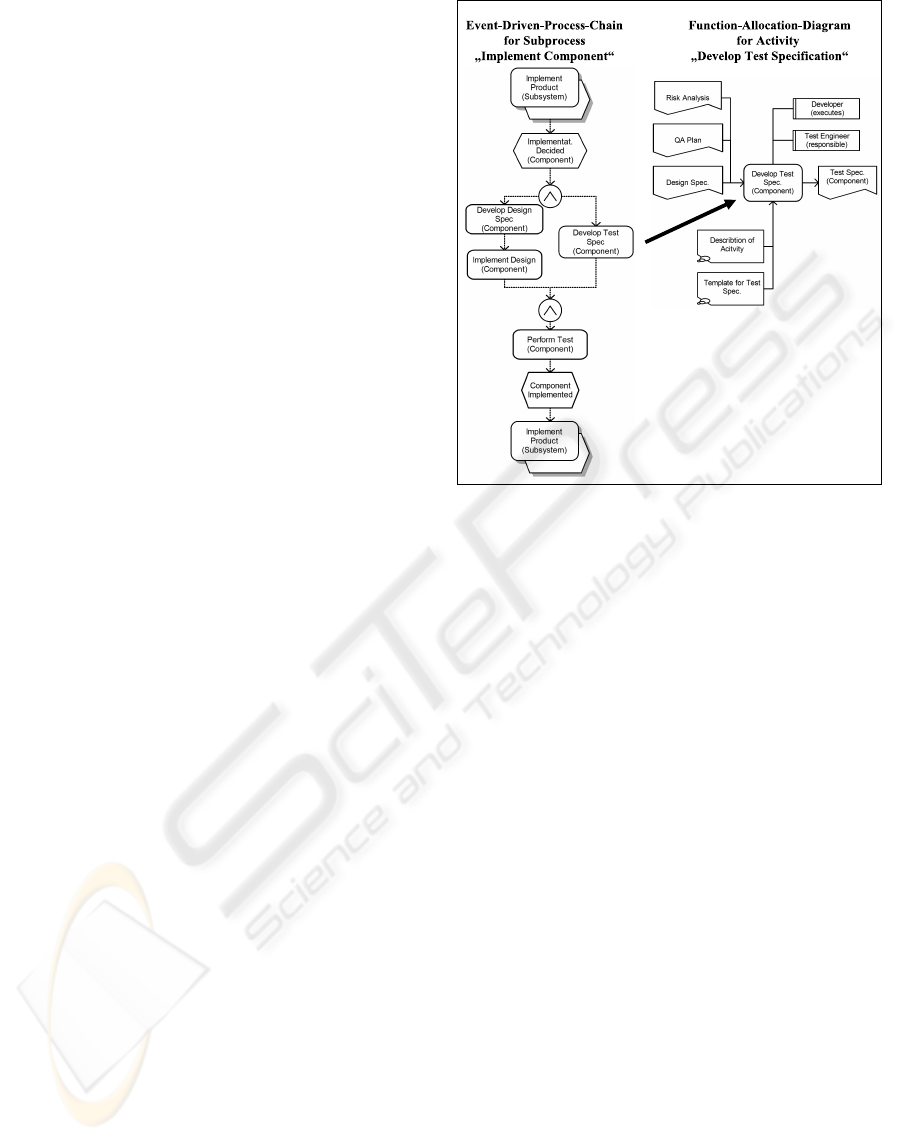

Figure 1: Example of a Low Level Process.

members have to interpret its information for the

project at hand. A project speciﬁc process visuali-

sation is not available.

The purpose of the established reference processes

is to be used by humans and not to be supported

or automated by any kind of information technology.

Therefore they are designed to be easily read and un-

derstood by humans.

2.2 Issues of Current Approach

There is essentially no standardisation of the manual

transformation process from the reference process to

project-speciﬁc plans, or for the way in which ref-

erence processes are currently applied. Siemens has

identiﬁed the following signiﬁcant disadvantages of

their current approach:

• Since the adaptation process for creating the

project-speciﬁc plans is not standardised, the

adaptation and the resulting plans depend largely

on the experience and preference of the perform-

ing expert. This leads to non-standardised plans

and can implicate poor process adherence.

• Manual adaptation is time consuming and expen-

sive.

• Due to missing a visualisation of the instantiated

software process, interpretations of the reference

process by project members are necessary. From

this follows that the perception and application of

ICEIS 2008 - International Conference on Enterprise Information Systems

124

the process varies widely. This can reduce effec-

tiveness and efﬁciency of software projects.

• Missing support of information technology in the

application of processes can result in cumbersome

and inefﬁcient project management.

• Decisions made during setup of the plans and in-

terpretations of the reference process by project

members are not documented and thus unrepro-

ducible.

• Due to missing standardisation, improvement of

the reference process as well as the adaptation

process is difﬁcult to achieve.

Standardisation and support by information tech-

nology are desired for the instantiation of software

processes and their application in projects.

3 NEW SOFTWARE

ENGINEERING FRAMEWORK

A survey with practitioners, namely project members

and consultants, was conducted at Siemens, in order

to ﬁnd out how processes can be better applied in

daily work and how the issues described above can

be addressed.

In our project, we asked them how (from their

point of view) the application of processes in projects

can be better supported and how the reference process

has to be transformed to support their desired applica-

tion of processes.

Because of the complex domain and diverse per-

ceptions of ”perfect support in application of pro-

cesses”, we decided to use unstructured interviews

(Fontana and Frey, 1994) for questioning of individ-

uals and groups. They provide a good means to un-

derstand complex context without the limitation of a

predeﬁned categorisation (Fontana and Frey, 1994) by

providing some structure through predeﬁned areas to

be covered (Simmons, 2002).

On the basis of the information collected in the

interviews a New Software Engineering Framework

(NSEF) for improving the instantiation and applica-

tion of processes at Siemens is proposed (see Figure

2).

Starting with a reference process, ﬁrst a high level

instantiation is conducted, followed by a gradual de-

tailed instantiation. The result is a project speciﬁc

process which is implemented as process visualisa-

tion, project plan, workﬂow support and management

of project documents. The arrows leading back to the

instantiation indicate the iterative character of our ap-

proach. Iterative instantiation is proposed because it

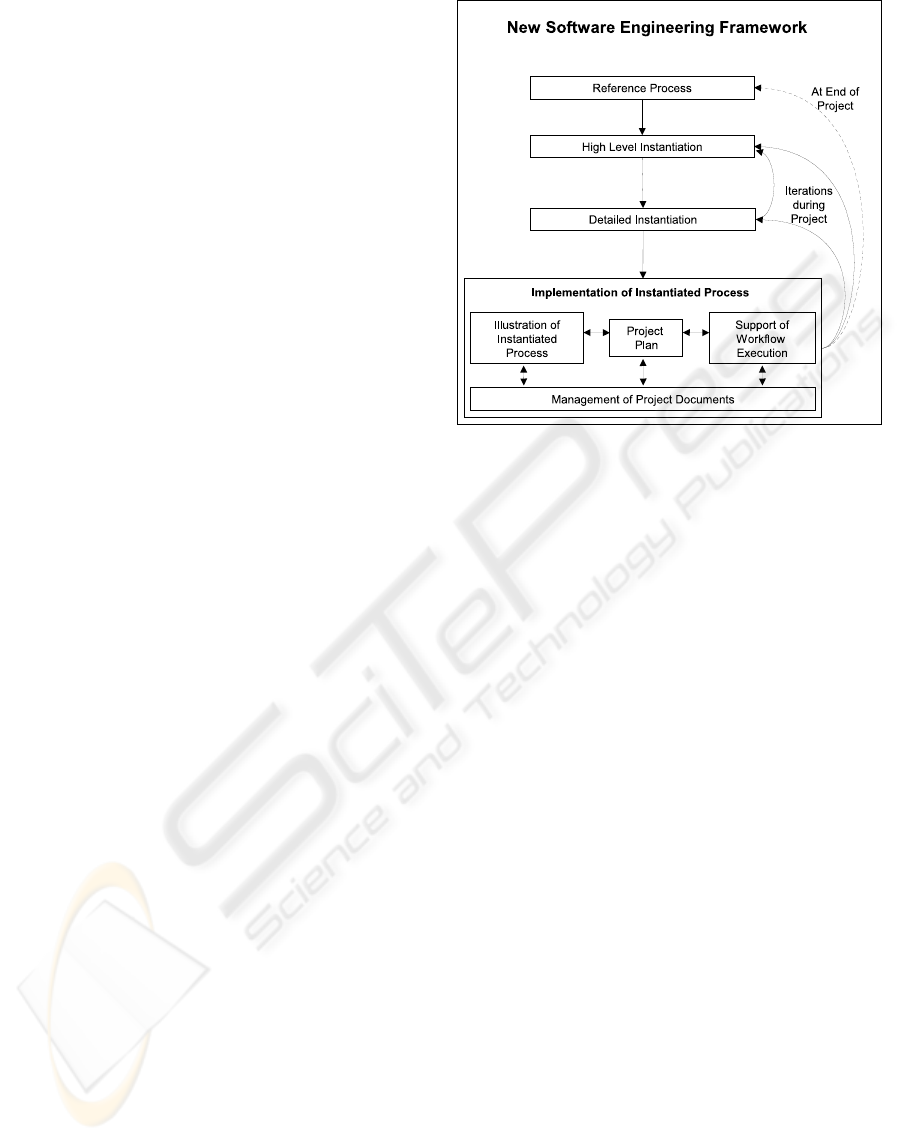

Figure 2: NSEF - New Software Engineering Framework.

is hardly possible to completely deﬁne a project spe-

ciﬁc process already at the start of a project (Becker

et al., 1997). A main reason is the volatile nature of

software development. It may also be necessary to

adjust the process during projects to achieve optimal

performance (Williams and Cockburn, 2003). The ar-

row leading from the implementation to the reference

process symbolises the continuous improvement of

the reference process on the basis of lessons learned.

In the paragraphs below the components of the NSEF

are examined in more detail.

3.1 Reference Process

A reference process of Siemens will be used as the

main input for the instantiation stages of the NSEF.

Processes are modelled by using EPCs, extended by

associated FADs (Scheer, 2000).

3.2 Instantiation

High Level Instantiation. High level instantiation is

a ﬁrst step towards a project speciﬁc software process.

It bases on project characteristics and information that

can already be deﬁned at the start of a project and are

unlikely to change. Such characteristics can be e.g.

the size of a project (a small project will only use a

subset of the process) or required high reliability of

the software product which requires certain activities

to be added to the process. In other words, high level

instantiation is a ﬁrst adaptation of the structure of the

process by e.g. cutting away unneeded parts, the se-

lection of pathways, the addition of objects or the du-

CHALLENGES IN SOFTWARE DESIGN IN LARGE CORPORATIONS - A Case Study at Siemens AG

125

plication of sub processes. The latter is required if e.g.

the system to be developed is split up into the develop-

ment of subsystems. For every subsystem, instances

of sub processes are required. High Level Instantia-

tion can be rerun during the project in case charac-

teristics of the project change severely. Because the

adaptation decisions are predeﬁned, they can be ap-

proved by Quality Assurance (QA) when they are de-

ﬁned and can be applied without any further approval.

Tool support for their execution includes maintenance

of the consistency of the resulting process.

Detailed Instantiation. Detailed instantiation is

run frequently during the project for the upcoming

process activities. It comprises operations which can-

not be decided at the beginning of the project. The

number of activities which can be instantiated in de-

tail is restricted by the time span for which accurate

estimations of the future can be made and has to be

adjusted if unforeseen changes occur. Detailed instan-

tiation includes detailed resource allocation including

the assignment of persons to activities. Instantiation

decisions have to be supported by tools, documented

and approved by QA. Required tool support includes

ensuring consistency of the resulting process due to

the complexity and dependencies in processes.

3.3 Implementation of Instantiated

Process

As already mentioned, the instantiated process is im-

plemented by a process visualisation, project plan,

workﬂow support and management of project doc-

uments. These components depend highly on each

other. Interaction can be accomplished by an inte-

grated solution or by a framework of tools. A ma-

jor requirement for an implementation is ensuring the

consistency of data.

Visualisation of the Instantiated Process. The

visualisation has to offer all information required by

project members for executing activities. This in-

cludes a description of activities, project members in-

volved in execution, links to documents and their sta-

tus as well as links to further information. The current

status of the project has to be tracked and displayed in

terms of executed activities which enables monitor-

ing of progress and easy navigation to the next activ-

ities to be executed. Links to the project documents,

project plan and to the workﬂow support have to be

provided.

Basic Project Plan. A project plan including ac-

tivities and associated work products has to be gener-

ated on the basis of the instantiated process. Links

from the project plan to the corresponding project

documents, activities in the process visualization and

workﬂow support have to be provided.

Support for Workﬂow Execution. Support can

be implemented by workﬂow-management-systems

(WFMS) for particular sub processes. They are ben-

eﬁcial when several people are involved in a pro-

cess and the responsibility of execution of activities

is transferred frequently between them. These kinds

of sub processes are generally executed several times

during a project and often triggered by events. Exam-

ples are processes for defect and change management,

creation of speciﬁcations or reviews for milestones,

documents or quality gates. Users are informed what

they have to do and when. Links from the WFMS to

project documents, project plan and process visuali-

sation have to be available.

Management of Project Documents. The man-

agement of documents has to provide additional fea-

tures in comparison to common document manage-

ment systems. This includes manual access to project

documents which is necessary in e.g. follow-up

projects where a great deal of documents can be

adopted from the previous project.

3.4 Design Issues

The framework above describes the target situation.

Below we detail and reason which parts of the frame-

work have to be addressed.

Reference Process. The current form of the given

reference process has to be maintained and major

changes have to be avoided due to Siemens’s corpo-

rate policy and in order to enable portability of the

instantiation approach.

Instantiation. Concepts implementing the stipu-

lated high level and detailed instantiation have to be

developed and tool support implemented. Although

instantiation in our approach is split up in two distinct

stages, it is advantageous if both base upon the same

principles. The idea is to deﬁne high level instantia-

tion as an aggregation of detailed instantiation (i.e. it

is batch processing of basic operations that are exe-

cuted individually in detailed instantiation). The only

difference is that process adaptations in high level in-

stantiation are predeﬁned, depend on the existence

of particular project characteristics and are only ex-

ecuted at the beginning of a project or when major

project characteristics change. The basic instantiation

operations comprise all operations which are neces-

sary to adapt a process to project speciﬁc needs. Ex-

amples are the deletion of activities, the selection of

pathways, the duplication of sub processes or the as-

sociation of process documents with ﬁles implement-

ing them. The approach of using the same principles

for both instantiation stages improves ﬂexibility. If

ICEIS 2008 - International Conference on Enterprise Information Systems

126

for instance a particular adaptation operation is not to

be executed in high level instantiation any more, the

operation can be easily shifted to detailed instantia-

tion or vice versa. Because of the inherent complex-

ity, tool support for executing these basic operations is

essential. For instance the deletion of an activity has

an impact on other activities if an artefact is created

in the activity to be deleted and used in others.

Implementation of the Instantiated Process.

Commercial implementations supporting process vi-

sualisation, project plan, automation of workﬂows

and management of project documents exist. Selec-

tion of tools depends highly on personal preferences

of users and organisational policies. Therefore it is

not reasonable to develop implementations of the in-

stantiated process but rather let users and organisa-

tions choose tools fulﬁlling their personal require-

ments.

In conclusion, our work focuses on the develop-

ment of a two-staged instantiation process fulﬁlling

requirements derived from interviews with practition-

ers as described in section 3.2. Both instantiation

stages base upon the same principles to allow ﬂexi-

ble handling of operations. Input for the instantiation

approach is a Siemens Reference Process in its cur-

rent form as described in section 2 and 3.1. The im-

plementation of the instantiated process is only con-

sidered if necessary for developing the instantiation

approach. Desired output of the instantiation is a pro-

cess with its structure adapted to project needs and

containing all information required for its application.

It can be used for the generation of a process visuali-

sation, a project plan, workﬂow support and for man-

agement of project documents.

4 RELATED WORK

Research in the ﬁeld of instantiation and application

of software processes in projects is not new. In early

software process approaches it was thought that a per-

fect process can be developed which ﬁts all software

developing organisations and all types of projects

(Boehm and Belz, 1990). In the eighties and early

nineties it was already recognised that no such pro-

cess exists (Osterweil, 1987) (Basili and Rombach,

1991). Instead, every project has individual needs

which have to be accommodated. Therefore, the de-

scription of the general solution (i.e. the software pro-

cess model) has to be adapted in order to be applica-

ble to individual problems. Early approaches to tackle

this issue followed in subsequent years. For instance,

Boehm and Belz (1990) used the Spiral Model to de-

velop project speciﬁc software processes. Alexander

and Davis (1991) described 20 criteria upon which

the best suiting process model for a project can be

selected. Since then many different adaptation ap-

proaches have been proposed and the need for adap-

tation of processes is recognised in industry shown

by publications about tailoring approaches in practice.

For instance, Bowers et al. (2002) describe a case of

project-speciﬁc adaptation of the agile software pro-

cess XP. Fitzgerald et al. (2000) detail tailoring a

generic process derived from the IEEE 1074 software

standard (IEEE, 1992) and from the V software life-

cycle model (Sommerville, 1992) at Motorola.

Although so many different approaches have been

developed for adaptation, none has become a de facto

standard so far. A reason for this is certainly the di-

versity of software development and the different un-

derstandings of the term software process. There-

fore a variety of concepts and technologies is used

in practice. Instantiation approaches depend on the

concepts and technologies which form the basis of

the software process. Even when the same tech-

nology is used, models can be based upon different

concepts. Therefore none of the existing instantia-

tion approaches can be directly used for instantiat-

ing Siemens’ reference processes. Nevertheless, ap-

proaches which deﬁne software processes similarly

(i.e. as a kind of workﬂow with tightly coupled ac-

tivities and artefacts) might contain techniques and

concepts which can be adopted and we now discuss

some.

The Emergent Process Acquisition method (Jauf-

man and M

unch, 2005) creates a project speciﬁc pro-

cess by choosing the most suitable model from a

database and by adapting it further. The latter is done

by adapting the Meta model of the process by adding

and deleting attributes. The remaining attributes of

the process are instantiated. The focus is on mile-

stones and on activities and artefacts which have to

be executed and created for the milestone. Tool sup-

port focuses on the adjustment of the prescript to the

actually executed process by tracking the actually ex-

ecuted activities and by showing the delta between the

reference, the instantiated and the executed processes.

The instantiation approach of Yoon et al. (2001)

uses processes in the form of Activity-Artefact-

Graphs. Activities are connected by artefacts. Semi-

automated addition and deletion of activities and arte-

facts is possible as well as split and merge of activi-

ties. Furthermore, syntax checks are available helping

process designers maintain consistency when adapt-

ing a process. The approach cannot be directly used

for the instantiation of the given Siemens process, be-

cause the structure of the process used by Yoon et al.

is much simpler.

CHALLENGES IN SOFTWARE DESIGN IN LARGE CORPORATIONS - A Case Study at Siemens AG

127

Due to the fact that the given software process

has many of the characteristics of workﬂows, work-

ﬂow related techniques may also be used for instan-

tiation. Rinderle et al. (2004) compare approaches

supporting structural changes of running workﬂow in-

stances and developed their own approach (Reichert

and Dadam, 1998). Although these approaches differ

from the given model, considerations regarding main-

tenance of structural correctness and consistency can

be partly applied. This includes control, data and tem-

poral dependencies.

5 CONCLUSIONS

A project to improve Siemens’ current approach in in-

stantiating and applying software processes has been

put forward. Siemens’ software processes were in-

troduced and the current practice of instantiation and

application was described. Issues of the current ap-

proach were identiﬁed and a New Software Engineer-

ing Framework (NSEF) for improving the adaptation

and application of processes was proposed. Particu-

lar goal is the development of a gradual approach of

instantiating software processes. The approach distin-

guishes between high level and detailed instantiation

depending on the nature of the operation.

REFERENCES

Aalst, W. and Hee, K. (2004). Workﬂow Management -

Models, Methods, and Systems. The MIT Press.

Alexander, L. and Davis, A. (1991). Criteria for Selecting

Software Process Models. In Proceedings of the Fif-

teenth Annual International Computer Software and

Applications Conference, pages 521–528.

Basili, V. and Rombach, H. (1991). Support for comprehen-

sive reuse. Software Engineering Journal, 6(5):303–

316.

Becker, U., Hamann, D., and Verlage, M. (1997). Descrip-

tive Modeling of Software Processes. In Proceedings

of the Third Conference on Software Process Improve-

ment (SPI ’97).

BMI (2004). The new V-Modell XT - Development Stan-

dard for IT Systems of the Federal Republic of Ger-

many. URL: http://www.v-modell-xt.de (accessed

08.04.2007).

Boehm, B. (1976). Software Engineering. IEEE Transac-

tions on Computers, 25(12):1226–1241.

Boehm, B. and Belz, F. (1990). Experiences With The Spi-

ral Model As A Process Model Generator. In Pro-

ceedings of the 5th International Software Process

Workshop ’Experience with Software Process Mod-

els’, pages 43–45.

Bowers, J., May, J., Melander, E., and Baarman, M. (2002).

Tailoring XP for Large System Mission Critical Soft-

ware Development. In Wells, D. and Williams, L.,

editors, Extreme Programming and Agile Methods -

XP/Agile Universe 2002, Second XP Universe Confer-

ence Chicago, volume 2418 of LNCS, pages 100–111.

Fitzgerald, B., Russo, N., and O’Kane, T. (2000). An em-

pirical study of system development method tailoring

in practice. In Proceedings of the Eighth European

Conference on Information Systems, pages 187–194.

Fontana, A. and Frey, J. (1994). Handbook of Qualitative

Research, chapter Interviewing: The Art of Science,

pages 361–376. Sage Publications.

Ginsberg, M. and Quinn, L. (1995). Process tailoring and

the software Capability Maturity Model. Technical

report, Software Engineering Institute (SEI).

IEEE (1992). 1074-1991 IEEE Standard for Developing

Software Life Cycle Processes. Software Engineering

Standards Subcommittee of the Technical Committee

on Software Engineering of the IEEE Computer Soci-

ety.

ISO/IEC (1998). ISO/IEC 15504-9 Technology Software

Process Assessment Part 9: Vocabulary.

Jaufman, O. and M

unch, J. (2005). Acquisition of a Project-

Speciﬁc Process. In PROFES, pages 328–342.

Osterweil, L. J. (1987). Software Processes Are Software

Too. In ICSE, pages 2–13.

Pedreira, O., Piattini, M., Luaces, M., and Brisaboa, N.

(2007). A Systematic Review of Software Process Tai-

loring. ACM SIGSOFT Software Engineering Notes,

32(3):1–6.

Reichert, M. and Dadam, P. (1998). ADEPT

ﬂex

Supporting Dynamic Changes of Workﬂows Without

Losing Control. J. Intell. Inf. Syst., 10(2):93–129.

Rinderle, S., Reichert, M., and Dadam, P. (2004). Correct-

ness criteria for dynamic changes in workﬂow systems

- a survey. Data Knowl. Eng., 50(1):9–34.

Scheer, A.-W. (2000). ARIS - Business Process Modeling.

Springer, 3rd edition.

Simmons, R. (2002). Researching Social Life, chapter

Questioinaires, pages 85–104. Sage Publications, 2nd

edition.

Sommerville, I. (1992). Software Engineering. Addison-

Wesley.

Williams, L. and Cockburn, A. (2003). Agile Software De-

velopment: It’s about Feedback and Change. IEEE

computer, 36(6):39–43.

Yoon, I.-C., Min, S.-Y., and Bae, D.-H. (2001). Tailoring

and Verifying Software Process. In APSEC, pages

202–209.

Zmud, R. W. (1997). Remarks from MIS Quarterly Editor.

MIS Quarterly, 21(1):V–VII.

ICEIS 2008 - International Conference on Enterprise Information Systems

128
