A GENERIC SOLUTION FOR THE CONSTRUCTION OF

DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT LINES

Ma Eugenia Cabello Espinosa and Isidro Ramos Salavert

Polytechnic University of Valencia,Camino de Vera s/n, 46022 Valencia, Spain

Keywords: Expert Systems, Medical Diagnosis, Software Architectures, Reusability of Software, Software Product

Lines, Variability, Domain Engineering, Domain Application Engineering, Conceptual Models.

Abstract: This paper presents a generic solution for the construction of diagnostic expert systems using aspect-

oriented-software architectures and product line techniques. The approach is shown by specifying a case

study using CIMs, and automatically generating a PIM. The case study presented is a medical diagnosis

system for the detection of infantile infectious diseases. PRISMA models are used as PIMs. We follow the

Model Driven Architecture (MDA) initiative of the Object Management Group (OMG) for building domain

models (CIMs), which are automatically transformed into PIMs and are then compiled to a .NET executable

application (PSM). The Software Product Line techniques have been used to capture the variability of

systems of this kind.

1 INTRODUCTION

In the last few years, there has been an increase in

interest in expert systems that perform diagnostic

tasks. The main objective of systems of this kind is

to capture the state of an entity from a series of data

(observation variables) and produce a diagnosis. The

domain of expert systems for diagnosis includes

systems for medical and education diagnoses, among

others. Since systems for medical diagnosis have

become more relevant, the need of techniques for

their development has also become more important.

Additionally, expert systems introduce a difference

in the decision making process: they store expert

knowledge in a Knowledge Base.

In order to capture complex software

requirements, it is also necessy to increase the PIM

abstraction level. The PRISMA framework (Pérez,

2006) provides expresivity for specifying software

architectures with aspects at a design level. It offers

properties and advantages in the construction of

complex, distributed, evolutionary, and re-usable

architectural models that can be used in the domain

of expert systems for medical diagnosis.

Furthermore, the development of these complex

systems is becoming more elaborate due to a series

of factors. These factors are the emergence of new

technologies (Internet and intranet), the

interconnection of the different systems and

platforms, and to integrate Legacy Systems that are

still valid. Also, the need to develop custom

software for each type of user complicates the

specific aspects of systems in different

implementation platforms. This state of affairs

requires having multiple versions of the same

application in order to deal with all of this

variability.

In order to cope with this variability problem,

Software Product Lines (SPL) (Clements et al.,

2002) have emerged in an effort to control and

minimize the high costs of the software development

process and to reduce the time to market of these

new products. This approach is based on having a

base design that is shared by all the product family

members. Thus, a specific product can benefit from

the common parts of the software. The base design

can be re-used in different products by adding

different features that caracterize them.

We have built BOM (Base-Line Oriented

Modeling), wich is a framework that automatically

generates diagnostic systems based on software

product lines, to achieve the following goals:

 to create new diagnostic systems in different

domains,

 to decrease production costs by reusing

software packages or assets,

 to generate automatic code to increase the

productivity and quality of software and to

decrease the time to market,

237

Eugenia Cabello Espinosa M. and Ramos Salavert I. (2008).

A GENERIC SOLUTION FOR THE CONSTRUCTION OF DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT LINES.

In Proceedings of the First International Conference on Health Informatics, pages 237-246

 SciTePress

 to construct systems in a simpler way by using

the ontologies of the diagnosis and the

application domains. The models will be

closer to the problem domain, which will

facilitate user interaction,

 to develop platform independent systems from

the problem perspective and not the solution

perspective, which will provide generality in

the development approach and applicability in

different domains.

The products of our Diagnostic Software Product

Line (DSPL) have been designed using the PRISMA

model and include the architecture and operations of

a rule-based expert system.

In this paper the development process of our

Diagnostic Software Product Line is presented using

a case study of infantile infectious diseases.

The structure of the paper is the following:

Section 2 introduces the relevant concepts of Expert

Systems, Model Driven Development, the PRISMA

Model, and Software Product Lines. Section 3

introduces the variability dimensions of our domain.

Section 4 provides an in-depth description of our

approach. Section 5 presents a brief summary of the

case study. Section 6 presents related works. Section

7 presents our conclusions and provides some ideas

for future work.

2 FOUNDATIONS

Our work integrates different technological spaces in

order to cope with the complexity of the problem.

These are the following:

2.1 Expert Systems

Expert systems capture the knowledge of experts

and try to imitate their reasoning processes when the

experts solve problems in a certain domain.

These systems usually have a basic architecture

that includes a knowledge base, an inference motor,

a working memory or facts base, and the user

interface. These are the four main components of the

architecture of a rule-based expert system.

These components are independent and are

composed of separates units. The data are grouped

into the working memory (temporary storage of

dynamic information). The representation of the

knowledge is captured by means of rules of the type:

IF <antecedent > THEN <conclusion>, which make

up the knowledge base. The control aspect is

independent and is performed by the inference motor

during the inference processes using different

reasoning strategies. The input and output of the

information of the systems are done through the user

interface.

2.2 Model Driven Development

The Model Driven Development approach (MDD)

for software system development is based on the

separation of the functionality of the system from its

implementation on specific software platforms.

MDD increases the abstraction level of the software

production process by emphasizing the importance

of the conceptual models - Computer Independent

Models (CIM) or Platform Independent Models

(PIM) - and their role in the software development

process.

There are currently two main initiatives in MDD.

One of them, which is promoted by the Object

Management Group (OMG) is called Model Driven

Architecture (MDA) (http://www.org.mda). The

other one, promoted by Microsoft, is called Software

Factories (SF) and Domain Specific Languages

(DSL) (Greenfield et al., 2004).

The key idea of MDA is to focus on the models

as first class citizens in the software development

process. MDA proposes defining and using models

at different abstraction levels. These models can

automatically generate code by means of mappings

or by applying transformation rules to executable

Platform Specific Models (PSM).

2.3 The PRISMA Model

The PRISMA architectural model integrates two

approaches: Component-Based Software

Development (CBSD) (Szyperski, 1998), and

Aspect-Oriented Software Development (AOSD).

(http://aosd.net) This integration is obtained by

defining the architectural elements through their

aspects.

The PRISMA model consists of three types of

architectural elements: components, connectors, and

systems. A component captures the functionality of

the system, whereas a connector acts as a

coordinator among other architectural elements. A

system is an architectural element of great

granularity that allows the encapsulation of a set of

components, connectors, and other systems. This, in

turn, allows the system to correctly connect them.

PRISMA defines the architectures in two

abstraction levels: the type level and the

configuration level. In the type level, the types of the

architectural artifacts are defined (all of which can

be reused): interfaces, aspects, components,

HEALTHINF 2008 - International Conference on Health Informatics

238

connectors, and systems. In the configuration level,

the types are instantiated and the topology of the

model (its configuration) is specified.

2.4 Software Product Lines

The Software Product Line (SPL) approach, from a

practical point of view, is one of the most successful

since it combines systematic development and the

reuse of reusable components or assets; i.e., the

products are different in some features but share a

basic architecture. SPL provides an industrial

approach to the software development process.

In the SPL approach, rather than a single

application, the development process produce a

series or family of them. This implies changing the

existing engineering process by introducing a

distinction between the domain engineering process

and application engineering process. In general, the

domain engineering process defines the shared

architecture and the variability of the SPL. More

than creating products, it is a question of putting

assets together in a Base-Line warehouse. For each

SPL there is a well defined production plan that

specifies the process to obtain each of the individual

products. The construction of the assets and their

variability (domain engineering process) is separate

from the application production (application

engineering process).

One of the most important points (or perhaps the

most important) of a SPL is the definition of the

basic architecture of the Products Line (also called

domain architecture). This is due to the fact that this

architecture determines the scope of the SPL and the

features of the products that can be developed.

One of the key elements for a SPL is how to

represent and manage variability. In the context of

BOM variability appears in the construction of the

domain model (which is represented as a decision

tree with different variation points). The base assets

are selected by the decision tree. These assets are

enriched by the specific features (given in the

application model) by a process that results in

PRISMA architectural model types. In BOM, the

assets are automatically transformed by inserting the

instances of the Feature Model (Batory et al., 2006),

which gives one executable application.

2.5 Feature Oriented Programming

Feature Oriented Programming (FOP) is the study of

the modularity of the features of a domain and their

use. The features are considered as first-class

citizens in the design process. FOP is an approach to

SPL where the programs are built by means of

feature composition. These features are considered

as building blocks of the programs. They are units

that increase monotonically the functionally of the

application by providing different products. Each

one of the features can be included in the different

software artifacts. In general, a SPL is characterized

by the set of features being used, which is called the

feature model of the SPL.

3 THE VARIABILITY

3.1 Variability in the Diagnostic

Domain

After a field analysis of different systems in the

diagnostic domain, we can conclude that a diagnosis

consists of an interpretation of the involved entity

states (as a set of properties ), which is followed by

the identification of the problem or disfunction by

means of its properties. We have detected seven

features (or variability sources) that are present in

these systems. They are the following:

 a) property views: an entity can have the same

properties (the same view), or have different

properties (different views) during the

diagnostic process,

 b) property levels: the properties of the entities

can have n different abstraction levels. The

rules that relate the proprieties of the entities

have n-1 levels, where n is the level of the

proprieties of the entities.

 c) number of hypotheses: the goal of the

diagnosis is a single validated hypothesis.

There can be one or several candidate

diagnostic hypotheses which must all be

validated in order to select the appropriate

one.

 d) reasoning types: reasoning shows the way in

which the rules are applied by the inference

motor in order to infer a final diagnosis. The

reasoning types can be: deductive reasoning

(driven by data), inductive reasoning (driven

by goals), and differential reasoning

(establishing the difference between two or

more diagnostical possibilities),

 e) use case numbers: a use case indicates the

division of the system based on its

functionality; i.e., the different operations of

the systems and how the system interacts with

the environment (final users),

 f) number of actors: represents the number of

final users of the system,

A GENERIC SOLUTION FOR THE CONSTRUCTION OF DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT

LINES

239

 g) use cases per actor: a final user can access

different use cases.

The variability shown in the use cases, actors,

and use cases per actor is reflected in the

construction of the architectural elements assets

(skeleton) and in the final PRISMA architecture in

the following way:

 there is one connector that connects all the

architectural component assets for each use

case,

 the number of ports of the Inference Motor

component is the number of use cases,

 the number of ports of the Knowledge Base is

the number of use cases,

 the number of User Interfaces is the number of

actors of the use cases,

 the number of ports of the User Interface is the

number of use cases that can be accessed by

an actor.

The variability of the diagnostic domain is

expressed by means of an explicit Features Model.

3.2 Variability in the Application

Domain

The features selected from the Features Model must

be defined following the case study in which the

application is developed. These features are:

 a) name and type of the properties by

abstraction level,

 b) rules by abstraction levels: the rules relate

the entity properties (name and type) with the

properties that are used in the head part and

the body part of each one of these rules,

 c) name and type of the hypothesis (and the

pre-hypothesis) that are used in the diagnostic

process.

4 THE BOM APPROACH

Our work is based in the Software Product Lines

approach, on two OMG standards: the Reusable

Asset Specification (RAS), which identifies,

describes and packs assets in an standard way; and

the Software Process Engineering Metamodel

(SPEM) (http://www.omg.org/docs/ad/06-06-

02.pdf), which defines the standard language for

modeling the software process.

In BOM a clear separation is made between the

domain engineering and application engineering.

This partition is the basis for the reuse and the

automation of the software process (Czarnecki et al,

2000). In domain engineering phase, a set of assets

and processes are created. In the application

engineering phase, these assets are used to produce

software products of high quality with a minimal

cost and time by executing the stored processes.

4.1 1

Phase: Domain Engineering

In this first phase, the following software artifacts

are created by the diagnostic domain engineer.

These artifacts are necessary to generate the product

plan of our software product line: the artifacts a and

b are Computation Independent Models (CIMs), and

the artifacts c, d, e, f, g, h, i, j, and k are Platform

Independent Models (PIM).

 a) The (CIM) Features Model- the Features

Model identifies the DSPL in terms of the

variability in the domain.

DIAGNOSIS

Properties

Reasonings

Hypothesis

same

change

Views

Levels

1 2

deductive diferential

Use Cases

Actors

1 2

Use Cases

by Actor

1 2

NOMENCLATURE:

and

(select 1)

mandatory

optional

4 14

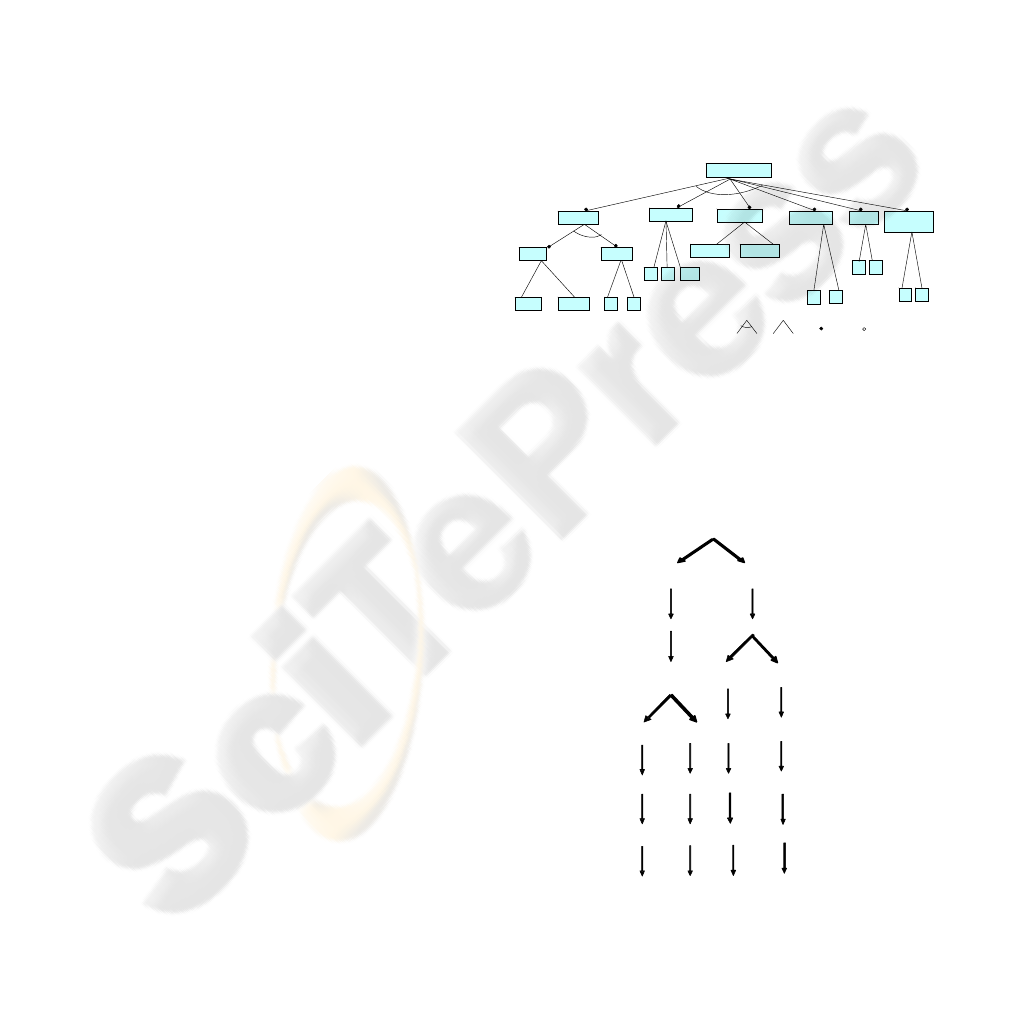

Figure 1: The diagnosis features model.

 b) The (CIM) Decision Tree- the sources of

variability observed in the Features Model are

shown in the variation points of the Diagnostic

Decision Tree.

change

Reasonings

diferencial

deductiv e

Prop erty Levels

221

Use Cases

Actors

Use Cases by Actor

Hypothesis

113

same

1, 2

Property Views

Figure 2: The diagnostic decision tree.

 c) The (PIM) Domain Conceptual Model-

this model captures the variability of the

diagnostic domain.

HEALTHINF 2008 - International Conference on Health Informatics

240

Reasoning

Type: {deductive,

diferential, inductive}

Use Cases

Number : nat

Actors

Number : nat

Use Cases

by Actor

Number : nat

Hypothesis

Number: nat

Entity properties

Type: {same, change}

Levels: nat

is_require

to_perform

is_result

1..* 1

1..*

to_obtain

to_related

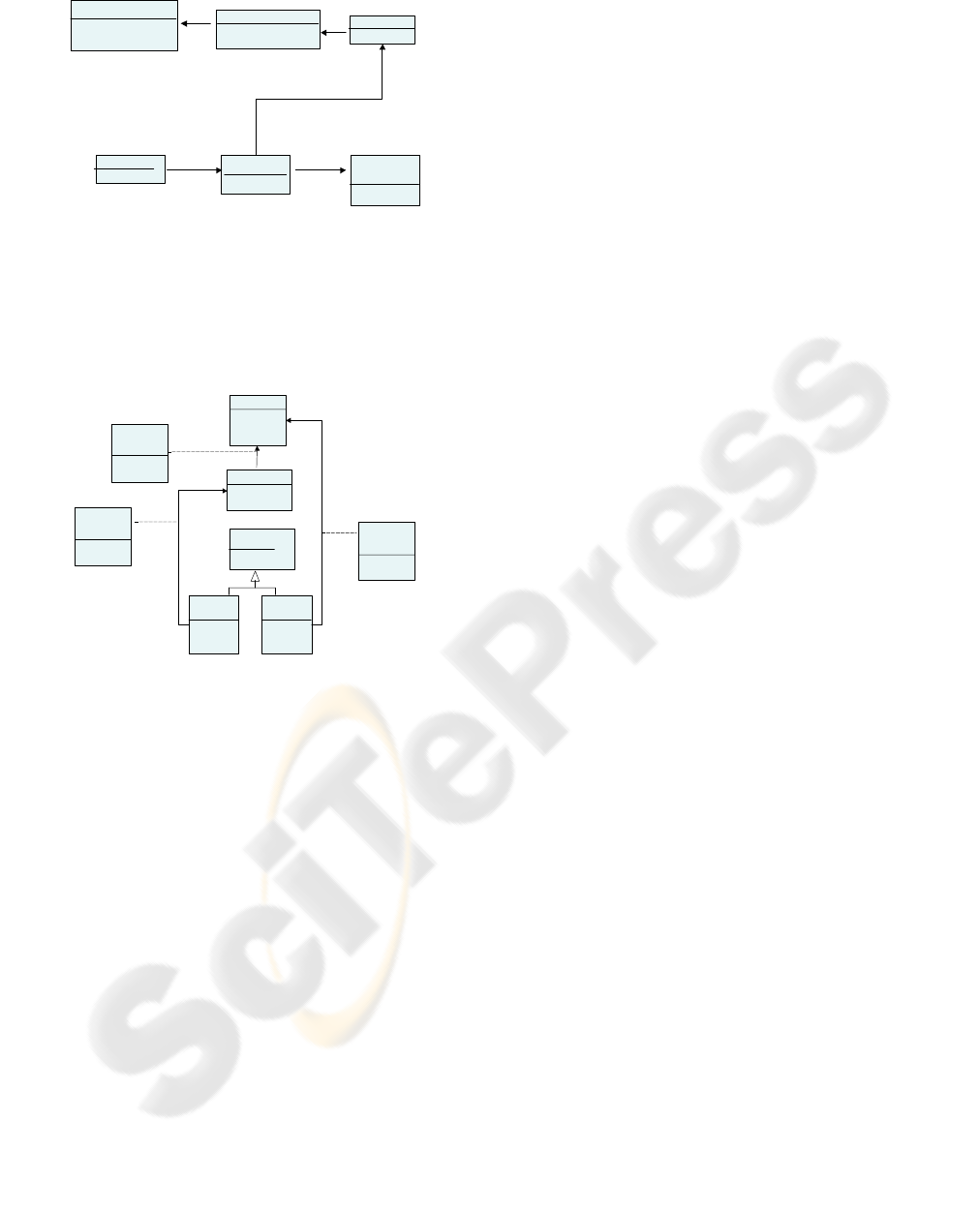

Figure 3: The domain conceptual model.

 d) The (PIM) Application Domain

Conceptual Model- this model captures the

variability of the application domain. (Figure

4 shows the case study of the medical

diagnosis).

Entity properties

Name: string

Type: bool

Level 3

Inductive

Rules

Clause: string

2..*

Level 0

Properties

Name:

string

Type: bool

Level 1

Properties

Name:

string

Type: bool

Pre-hypothesis

Name: string

Type: string

Hypothesis

Name: string

Type: string

to_generate

to_validate

to_generate

Level 1

Deductive

Rules

Clause: string

Level 2

Deductive

Rules

Clause: string

2..*

Figure 4: An application domain conceptual model.

 e) The (PIM) Skeletons or Template Assets-

there are different classes of skeletons or

templates for: components, connectors,

aspects, and interfaces; they follow the

PRISMA Model. The aspects that are

necessary for the definition of these

architectural elements are: the functional

aspects of each one of the components, and

the coordination aspect of the connector.

These aspects use interface services. These

architectural elements are:

• The Inference Motor Component- it

establishes the system’s control and

makes decisions. In addition, the

Inference Motor Component provides the

general resolution strategy to obtain the

diagnosis. It is independent of the system

knowledge. This component has a

functional aspect that defines the

inference process of the system.

• The Knowledge Base Component- it

contains the domain knowledge of the

case study in rules of inference (Horn

clauses) and facts (information that

remains unchanged). This component is a

temporary warehouse of dynamic

information, since the number of facts can

be increased as they relate to the

inference rules of the domain. When a

diagnosis process has concluded, the

contents of the work memory is cleared

so that the memory is empty before

initiating a new diagnosis. The

Knowledge Base Component has a

functional aspect that defines the domain

rules.

• The User Component- it establishes

man-machine interaction by allowing

communication between the users and the

system. Through it, the user offers initial

data to the system or answers questions

formulated by it. This component has a

functional aspect.

• The Diagnostic Connector- this

connector synchronizes or requests

component’s services that are

sent/received through its ports. It has a

coordination aspect. This diagnostic

connector choreographs the diagnostic

process.

 f) The (PIM) Features Insertion Process- this

process inserts the features into the software

artefacts. These artefacts represented as XML

documents are transformed using XSLT

templates.

 g) The (PIM) RAS Models of the Assets- its

goal is to store information from each one of

the assets: ID asset identifier, asset

classification, description of the different asset

artifacts, variability points of the asset

artifacts.

 h) The (PIM) Assets- an asset is composed by

a skeleton, its RAS Model, and its

corresponding insertion process (to be

executed in the application construction

phase).

 i) The (PIM) Base-Line- the Base-Line is the

repository that contains all the assets and all

the application domain conceptual models,

which are used to capture the specific

application features.

 j) The (PIM) Process for selecting the assets

and the application domain conceptual

models- This process computes the paths of

the decision tree, which is used to select the

software artifacts.

A GENERIC SOLUTION FOR THE CONSTRUCTION OF DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT

LINES

241

change

Reasonings

diferencial

deducti v e

Prop erty Levels

221

Use Cases

Actors

Use Cases by Actor

Hypothesis

113

same

1, 2

Property Views

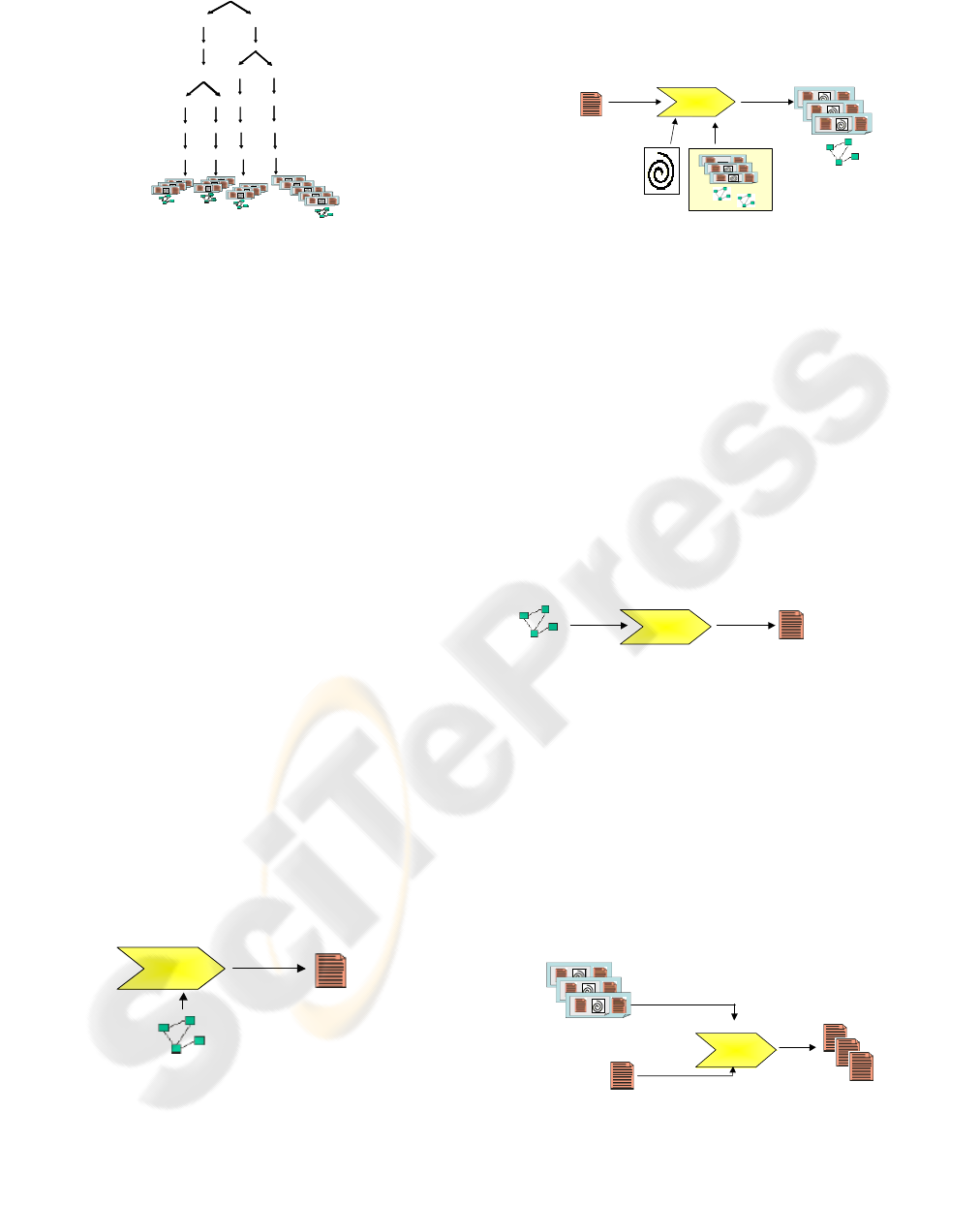

Figure 5: Process for selecting the assets and the

application domain conceptual models.

 k) The (PIM) Process of the production plan

of our DSPL- this process is described using

the SPEM.

4.2 2

Phase: Application Engineering

The production plan of our Software Product Line is

described using SPEM. The SPEM Metamodel

allows several aspects and problems of the

development process to be modeled. In this work,

we focus on modeling the tasks, using the SPEM

sequence relations without priority. The tasks

performed by the application engineer consume

input artifacts and produce output artifacts. A task

can have associated elements that guide and help in

the task execution.

Each one of these tasks is described below:

 Task 1: To create a configuration of the

domain features- The engineer introduces the

domain information of the case study. BOM

captures the variability information by means

of the domain features detailed in the Domain

Conceptual Model. This model allows the

engineer (by means of a GUI) to introduce the

information of the Model by selecting the

product’s features using check boxes and pull-

down menus.

Create configuration

of the domain features

Configuration of the

domain features

(XML)

<<out>>

PIMPIM

<<in>>

Domain Conceptual Model

(UML)

Figure 6: Create a configuration of the domain features.

 Task 2: To select Assets and the Application

Domain Conceptual Model.- BOM selects

the assets and the Application Domain

Conceptual Model from the Base-Line (by

means of the decision tree).

PIMPIM

Select assets+MCDA

<<out>>

Base-Line

(XML)

PIMPIM

<<in>>

Process for selecting

Assets+ MCDA

(XML)

<<in>>

Assets (XML)

MCDA (UML)

selected

Configuration of the

domain features

(XML)

Figure 7: Select assets and application domain conceptual

model.

 Task 3: To create a configuration of the

application domain features.- The engineer

introduces the application domain information

of the case study. BOM captures the

variability information by means of the

application domain features contained in the

Application Domain Conceptual Model. This

model allows the engineer (by means of a

GUI) to introduce the information present in

that Model using check boxes and pull-down

menus.

PIMPIM

Configuration of the

application domain features

(XML)

Create configuration of

application domain features

<<out>>

<<in>>

MCDA selected

(UML)

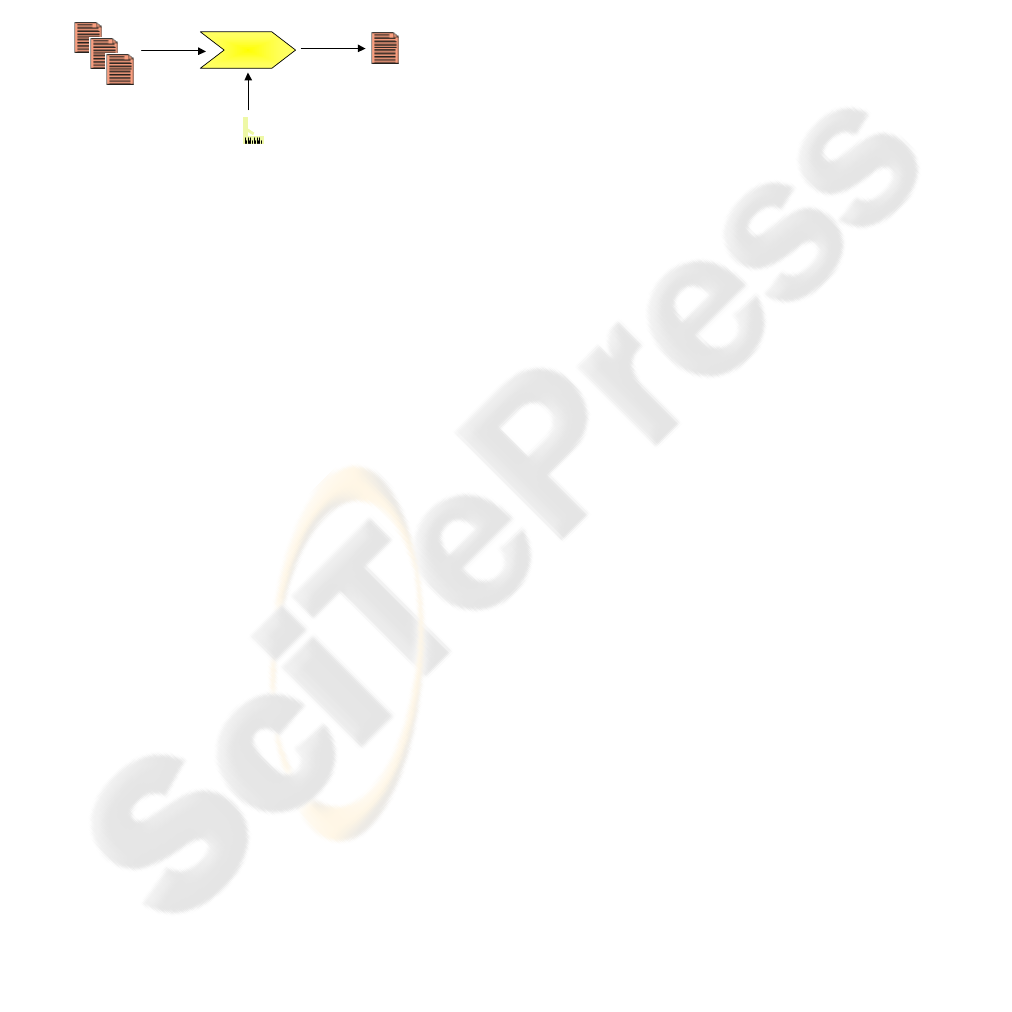

Figure 8: Create a configuration of the application domain

features.

 Task 4: To create PRISMA software artifact

types.- BOM fills the selected skeletons with

the data of the specific features of the case

study that were defined by the engineer,

thereby creating the PRISMA software artifact

types. The transformation is represented as

XSLT documents to apply on the XML pages

representing the software artifacts.

PIMPIM

<<in>>

Types

(XML)

PIMPIM

<<out>>

Create types

<<in>>

Configuration of the

application domain features

(XML)

Assets selected

(XML)

Figure 9: Create PRISMA software artifacts types.

HEALTHINF 2008 - International Conference on Health Informatics

242

 Task 5: To configure the Architectural

Model- BOM produces the configuration

program, that is used by the PRISMA-CASE

tool (Cabedo et al., 2005) in order to configure

the PRISMA software architecture by

instancing the PRISMA types. These instances

will configure the software architectures of

our Product Line. Therefore our DSPL are the

diagnosis systems of each one of the specific

domains.

Types

(XML)

<<in>>

Configure architecture

Process to creat

PRISMA architectures

<<in>>

<<out>>

PIMPIM

Architectural

Model (System

Architecture)

(XML)

Figure 10: Configure the architectural model.

BOM uses the PRISMA-MODEL-COMPILER tool

(Cabedo et al., 2005) to automatically generate the

code (in .NET, C#) of the software architecture of

the preceding task. The final diagnostic system, i.e.

an instance of the DSPL, is executed on top of the

PRISMANET middleware (Costa et al., 2005).

5 THE CASE STUDY

We have selected the field of infantile infectious

diseases as an application domain from the field of

medical diagnosis in order to know the requirements

necessary to obtain the final software product in our

Product Line.

The software system of infantile infectious

diseases contains knowledge that uses a set of rules

made of the signs and symptoms of diseases of the

patient. These signs, symptoms and diseases have

been provided by a paediatrician. The system

proposed in this work, makes the medical diagnosis

by introducing patient data into the system. This data

is made up of sign and symptom values and is input

by the final users of the system. As a result, the

system obtains a diagnosis of the patient’s disease.

The final diagnosis is made from two types of

diagnoses: clinical and laboratory. The objective of

this is to provide a highly accurate diagnosis.

Medical diagnosis is understood as the process

of the identification or recognition of a disease on

the basis of the signs and symptoms (including

laboratory studies) of the patient. The medical

diagnosis represents the research process performed

on the patient, and the diagnosis is based on the

observations and reasoning of the doctor.

In medical diagnosis, the entity to be diagnosed

is the patient, and the result is the disease that a

patient has. The properties are signs and symptoms.

These are classified in two abstraction levels: coarse

grain and fine grain.

The process of medical diagnosis is the

following: A syndrome is inferred from sign and

symptom values of coarse grain. Two or more

possible diseases are inferred from the syndrome.

Deductive reasoning is applied in this part of the

process. These hypotheses must be validated. A

disease (validated hypothesis) is inferred from sign

and symptom values of fine grain. Inductive

reasoning is applied in this part of the process.

We present examples of the properties, rules,

pre-hypotheses and hypotheses of the case study.

properties of level 0: cough, fever

properties of level 1: dry_cough,

constant_fever

pre-hypotheses: warth, parotiditis

hypotheses: pneumonia, bronchitis

rules:

IF (cough=true and fever=true and

respiratory_dificulty=tue)

THEN syndrome=warth

The variability sources or points in the

diagnostic domain of our Product Line for this case

study are the following.

 The hypotheses are inferred by means of

different properties of the entities.

 The system exhibits a type of behaviour or

reasoning strategy: differential reasoning. This

reasoning strategy is the most widely used in

solving medical diagnostic problems because

it is suited to this kind of task.

 The entity properties of level 0 are the signs

and symptoms of coarse grain (e.g. cough and

fever). The entity properties of level 1 are the

signs and symptoms of fine grain (e.g. dry

cough and constant fever).

 The pre-hypotheses are syndromes (e.g.

parotiditis) that are inferred by means of rules

of level 1. The hypotheses are the diseases

(e.g. pneumonia) that are inferred by means of

rules of level 2. The diagnostic result is

inferred by means of rules of level 3.

 In this case study, several hypotheses are

generated. These must be validated in order to

obtain only one validated hypothesis, which is

the diagnostic result.

 The system offers the user the following

functionalities (use cases): clinical diagnosis,

A GENERIC SOLUTION FOR THE CONSTRUCTION OF DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT

LINES

243

laboratory diagnosis, and the visualization of

the results of the final diagnosis.

 The use cases are used by two final users

(actors from the use case diagram): doctors or

members of the laboratory. Two use cases can

be invoked by the doctor, and only one use

case can be invoked by a member of the

laboratory. In this case study, there are three

use cases and two actors, where one actor (the

doctor) is associated to two use cases, and the

other actor (the member of the laboratory) is

associated to only one use case. Figure 11

shows the case use diagram for the medical

diagnosis.

Doctor

Member

Laboratory

Get Therapy

Get

Clinical

Diagnostic

Get

Laboratory

Diagnostic

include

Get Diagnostic

Figure 11: Use case diagram for a medical diagnosis.

The skeletons of the architectural elements are:

Inference Motor (with three ports), Knowledge Base

(with three ports), User Interface 1, i.e., the doctor

(with two ports), User Interface 2, i.e., the member

of laboratory (with one port), Diagnostic Connector

1 (with three ports), Diagnostic Connector 2 (with

three ports), and Diagnostic Connector 3 (with three

ports). The architectural model represents a product

of our DSLP and is shown in Figure 12

CONNEC TOR 2

INFERENC E

MOTOR

IN TER F AC E

US ER 2

CONNEC TOR 1

INTERFACE

US ER 1

CONN ECTO R 3

KNOWLEDGE

BASE

Figure 12: Visual metaphor of the architectural model of

the medical diagnosis system.

We present the (partial) code that is

automatically generated by the PRISMA-CASE tool.

This code corresponds to the Knowledge Base

Component of the case study.

namespace KBMD

{ [Serializable]

public class

KnowledgeBaseMedicalDiagnosis:

ComponentBase

{ public class

KnowledgeBaseMedicalDiagnosis

string name: base (name)

{ AddAspect (new FBaseMD ());

InPorts.Add

(“KnowledgeClinicalPort”,

“IDomainMD”, “KNOWLEDGE_CLIN”);

OutPorts.Add

(“KnowledgeClinicalPort”,

“IDomainMD”, “KNOWLEDGE_CLIN”);

InPorts.Add

(“KnowledgeLaboratoryPort”,

“IDomainMD”, “KNOWLEDGE_LAB”);

OutPorts.Add

(“KnowledgeLaboratoryPort”,

“IDomainMD”, “KNOWLEDGE_LAB”);

InPorts.Add

(“KnowledgeResultsPort”,

“IDomainMD”, “KNOWLEDGE_RES”);

OutPorts.Add

(“KnowledgeResultsPort”,

“IDomainMD”, “KNOWLEDGE_RES”);

} }}

6 RELATED WORKS

There are a great number of works that are related to

our approach. The methodologies and applications

on this subject have produced a wide variety of

research products, offering suggestions and solutions

in specific domains.

A study made by (Liao, 2005) examines the

methodologies of expert systems and classifies them

into eleven categories. Two of these categories

correspond to the systems based on rules and the

systems based on knowledge. These categories have

been taken into account in our work when using

knowledge represented in the form of rules (Horn

clauses) and facts (observable variables). Likewise,

(Liao, 2005) mentions that the applications of the

expert systems are built as specific domain problem

oriented systems. In our work we present a case

study in the medical diagnostic domain.

(Liao, 2005) also mentions that the development

of expert systems has been characterized by the

separation of knowledge and processes as

independent units. In our architectural model, the

elements in the type level are defined taking into

account this concept, specifically when there is a

component that contains the domain knowledge and

another component that executes the inference

process of the diagnosis.

(Giarratano et al., 2004) and other authors in the

field of expert systems considered that the

architectures of these systems are based only on

components. The architecture of our system has

integrated two approaches combining both

HEALTHINF 2008 - International Conference on Health Informatics

244

components and aspects. This increases the

reusability and the maintenance of the system.

Expert systems have also been implemented in

the development of different programming

paradigms such as structured, logic, and object-

oriented paradigms. These paradigms are oriented

toward fourth-generation languages and visual

programming methods to provide user-friendly

communication. PRISMA provides an Architecture

Description Language to define an architectural

model that follows the MDA approach

(http://omg.org.mda), which allows the automatic

generation of code.

The integration of the DSBC and DSOA

approaches are introduced by (Constantinides et al,

2000). The concerns and requirements described in

this work are contemplated in our architectural

model. The advantages of each one of these

approaches are used to define the architectural

elements with their aspects.

MDA proposes the definition of models at high

abstraction level, which are independent of the

technology (PIM). In our work, we have considered

this line of research focusing on experts systems that

are based on product lines.

Our work also applies the detection of the

components based on the functional decomposition

of the problem, which is compatible with the

Architecture Based Design Method (ABD)

methodology (Bachman, 2000). In ABD software

architectures of the application domain are designed.

This methodology has been applied in the building

of our architectural model for medical diagnosis.

The work by (Garlan, 2001) is a very important

reference in establishing the elements of a complex

software system. In his work, he introduces the

component, connector, system, input port, and

output port concepts. These concepts have been

included in our model.

Another work that is related to our approach is

based on the contract concept of (Andrade et al.,

1999). We have defined the connectors of the

architectural models of the DSPL, incorporating the

choreography concept in the connectors, which are

specified by the protocol of the coordination aspect

of the connectors.

There are many Architectural Definition

Languages (ADL), which have advantages and

disadvantages. This study has been done by

(Medvidovic et al., 2000). The language proposed

by (Loques et al., 2000) in their model R-RIO is the

one that is the closed to the PRISMA-ADL. Their

model has re-configuration capabilities like

PRISMA; however their work does not incorporate

the notion of aspect.

Software Product Lines have been an important

discussion topic in the last decade. There are many

works on this subject. Our research is related to the

following works:

 (Batory et al., 2006) express the domain

features in the Features Model, and they use

Feature Oriented Programming as a technique

for inserting the features.

 (González et al, 2006) applied the MDA

proposal and Requirements Engineering for

Product Lines.

 (Clements et al, 2002) use the SPL

development approach, considering a division

between domain engineering and application

engineering for the reuse and the automation

of the software processes.

 (Trujillo, 2007) has developed the XAK tool to

insert features into XML documents by means

of XSLT templates.

 (Ávila-García et al, 2006) has developed a

MDA tool with functionalities of

metamodeling over MOF and the

transformations in ATC. The authors integrate

the functionalities of the process modeling in

SPEM, and RAS to package reusable assets .

 (Santos, 2007) proposes the development of a

technique based on MDA for variability

management in Software Product Lines.

 In (ACM, 2006) several works, related with to

the Software Product Line Engineering have

been published.

7 CONCLUSIONS

This paper presents BOM (Base-Line Oriented

Modeling), wich is a framework that automatically

generates diagnostic systems based on software

product lines.

BOM has been designed to improve the

development of diagnostic systems in following

ways:

 To use the advantages of Expert Systems:

incorporate several reasoning strategies in

order to solve a problem by applying the most

efficient one, and separate the inference

process of the knowledge information from

the application domain.

 To apply techniques from the field Software

Product Lines by building a design that shares

all the members of a program family. In this

way, a specific design can be used in different

products. Since we obtain a specific product

from a series of previous models, the costs,

time, effort, and complexity can be reduced.

A GENERIC SOLUTION FOR THE CONSTRUCTION OF DIAGNOSTIC EXPERT SYSTEMS BASED ON PRODUCT

LINES

245

 To construct Product Line Architectures in the

PRISMA framework, is order to have the

advantages of distributed systems, which will

facilitate the management of complexity.

 To create an integrated and flexible approach to

describe (medical) diagnosis architectural

models that are complex, distributed, and re-

usable by improving the development of

expert systems for (medical) diagnosis

following the PRISMA model (Pérez, 2006) to

integrate the components and aspects.

 To apply MDA techniques to implement the

systems on different platforms, and to

automatically transform them and incorporate

the features of the Features Model instances to

obtain an executable application.

In the future, we want to extended the analysis of

the diagnostic field in other application domains in

order to increase variability and our Base-Line. Our

Products Line will be able to offer more products. In

addition, we plan to validate our approach in other

case studies, and compare the performances of the

generated Expert Systems with other obtained using

other approaches.

ACKNOWLEDGEMENTS

This work has been funded under the Models,

Environments, Transformations, and Applications:

META project TIN20006-15175-605-01.

REFERENCES

Andrade L. and Fiadeiro J., 1999. Interconnecting Objects

via Contracts. OOPSLA´99.

Ávila-García O., García A. E., Rebull V. S., y García J. L.

R., 2006. Integrando modelos de procesos y activos

reutilizables en una herramienta MDA, en XI Jornadas

de Ingeniería de Software y Bases de Datos

JISBD’2006, Barcelona, España.

Bachman F., Bass L., Chastek G., Donohoe P. and

Peruzzi F., 2000. The Architecture Based Design

Method. Technical Report CMU/SEI-2000-TR-001,

Carnegie Mellon University, USA.

Batory D., Benavides D., and Ruiz-Cortés A., 2006.

Automated Analyses of Feature Models: Challenges

Ahead. ACM on Software Product Lines.

Cabedo R., Pérez J., Carsí J.A. y Ramos I., 2005.

“Modelado y Generación de Arquitecturas PRISMA

con DSL Tools”, en Actas del IV Workshop

DYNAMICA, Archena, Murcia, España.

Clements P. and Northrop L.M., 2002. Software Product

Lines: Practices and Patterns. SEI Series in Software

Engineering, Addison Wesley.

Constantinides C.A., and Errad T., 2000. On the

Requeriments for Concurrent Software Architectures

to Support Advanced Separation of Concerns. In

Proceedings of The OOPSLA 2000, Workshop on

Advanced Separation of Concerns in Object-Oriented

Systems.

Costa C., Pérez J., Ali N., Carsí J.A. y Ramos I., 2005.

“PRISMANET: Middleware: Soporte a la Evolución

Dinámica de Arquitecturas Software Orientadas a

Aspectos”, en Actas de las X Jornadas de Ingeniería

del Software y Bases de Datos, Granada, España.

Czarnecki K., and Eisenecker U., 2000. Generative

Programming: Methods, Tools, and Applications.

Addisson-Wesley. ISBN 0-201-30977-7.

Garlan D., Cheng S. and Kompanek A. J., 2001.

Reconciling the Needs of Architectural Description

with Object Modeling Notations. Science of Computer

Programming Journal, Special UML Edition, Elsevier

Science.

Giarratano, J., and Riley, G., 2004. Expert Systems:

Principles and Programming. Fourth Edition:

(Hardcover), ISBN: 0534384471.

González-Baixauli B. y Laguna M. A., 2005. MDA e

Ingeniería de Requisitos para Líneas de Producto.

Taller sobre Desarrollo Dirigido por Modelos. MDA y

Aplicaciones. (DSDM´05), Granada, España.

Greenfield J., Short K., Cook S, Kent S., and Crupi J.,

20004. Software Factories: Assembling Applications

with Patterns, Models, Frameworks, and Tools. Wiley.

Liao S.-H., 20005. “Expert Systems Methodologies and

Applications- a Decade Review from 1995-2004”, in

Expert Systems with Applications, Vol. 28, Issue 1.

Loques O., Sztajnberg A., Leite J., and Lobosco M., 2000.

On the Integration of Meta-level Programming and

Configuration Programming. In Reflextion and

Software Engineering (special edition), Lectures

Notes in Computer Science, Springer-Verlag,

Heidelberg, Germany

Medvidovic N., and Taylor R.N., 2002. A Classification

and Comparison Framework for Software

Architecture, in Proceedings of IDEAS, Cuba.

Pérez J., 2006. PRISMA: Aspect-Oriented Software

Architectures. PhD. Thesis of Philosophy in Computer

Science, Polytechnic University of Valencia, Spain.

Santos A.L., Koskimies K., and Lopes A., 2005. Using

Model-Driven Architecture for Variability

Management in Software Product Lines. Ph Thesis

Proposal Facultade de Ciencias de la Universidade de

Lisboa, Portugal.

Software Product Line Engineering Communications of

the ACM. 2006, Vol 49, Number 12, pp 28-88.

Szyperski C., 1998. “Component software: beyond object-

oriented programming”, ACM Press and Addison

Wesley, New York, USA.

Trujillo S., 2007. Feature Oriented Model Driven Product

Lines. PhD. Thesis, The University of the Basque

Country, San Sebastian, Spain.

HEALTHINF 2008 - International Conference on Health Informatics

246
