Removal of Unwanted Hand Gestures using Motion

Analysis

Khurram Khurshid and Nicole Vincent

Laboratoire CRIP5 – SIP, Université René Descartes – Paris 5, 45 rue des Saints-Pères

75270, Paris Cedex 06

Abstract. This work presents an effective method for hand gesture recognition

under non-static background conditions and removal of certain unwanted ges-

tures from the video. For this purpose, we have developed a new approach

which mainly focuses on the motion analysis of hand. For the detection and

tracking of hand, we have made some small innovations in the existing meth-

ods, while for recognition, the local and the global motion of the detected hand

region is analyzed by using optical flow. The system is initially trained for a

gesture and the motion pattern of the hand for that gesture is identified. This

pattern is associated with this gesture and is searched for in the test videos. The

system thoroughly trained and tested on 20 videos, filmed on 4 different peo-

ple, reported a success rate of 90%.

1 Introduction

The detection and tracking of hand in a video sequence has many potential applica-

tions such as sign language recognition, gesture identification and interpretation etc.

But the aimed application here is to remove certain hand movements in video se-

quences that are undesired in the case of a video conference. For example influenza,

or scratching, are needed to be removed from video, as they are insignificant to the

actual video sequence.

Our work is basically focused around the analysis of hand motion and the identifi-

cation of some specific hand movements in a video. These specific unwanted portions

are subsequently removed from the video. In our case, we have tested our system for

the ‘scratching’ gesture which is scratching on face by the hand (see fig 3c for the

scratching sequence). All these scratching intervals are traced and removed from the

video. The method that we propose is robust and it works fine in a complex back-

ground. Overall the work can be divided into 3 stages namely detection, tracking and

lastly gesture recognition.

2 Related Work

A lot of research has already been done in the domain of gesture recognition and

there already exist various methods which are employed for that. For example, for the

Khurshid K. and Vincent N. (2007).

Removal of Unwanted Hand Gestures using Motion Analysis.

In Proceedings of the 7th International Workshop on Pattern Recognition in Information Systems, pages 231-237

DOI: 10.5220/0002435402310237

 SciTePress

detection of the hand, the methods like skin color segmentation, edge detection [2],

and motion difference residue [1], are used. Using only skin color segmentation for

the detection of hand has a limitation, that the background cannot be complex and

cluttered. The method of motion residue detects all moving things in the video and

assumes that the object that moves the most is the hand. If something else moves the

most, then it will be wrongly identified as hand [1]. The main drawback of this

method is that if the hand does not move, it will not be detected. In our application

though, static hand has no significance.

For tracking of the hand, the frequently employed methods are Kalman filters[11],

particle filters and the condensation algorithm[5]. These methods use the prediction-

update framework. However, they need manual initialization and also they are unable

to indicate when the tracker is lost. Tracking is also done by the algorithm of Lukas

Kanade[7] but it is not preferred for the real-time applications due to its computa-

tional complexities[6]. Other methods include magnetic trackers[8,9] and glove-based

trackers but they need specialized equipment for tracking which is highly undesirable

in our application.

Hidden Markov Models [3] are mostly employed for the identification and recog-

nition of gestures. There is a separate model for each gesture. This approach is very

useful whenever the exact shape of the hand is required [4]. Else, this method is too

complicated. Neural networks [10] are also employed for the identification of ges-

tures.

3 Our Approach

We have divided the work into 3 broad stages. The first stage is the detection of hand

in a frame. It is done by employing a combination of skin color detection, edge detec-

tion, and the detection of movement in the video. In the second stage, the hand is then

tracked throughout the video using the trajectory justification algorithm. The last

stage is to analyze the movement of hand and classify this movement as either normal

or unwanted. This analysis is carried out using Optical flow. Motion vectors and

dominant phase are determined for the probabilistic hand area in each frame. This

dominant phase is coded and analyzed for each frame and the hand gesture is identi-

fied on the basis of this analysis.

3.1 Hand Detection

We insist on good detection of hand because if the detection of hand is good, tracking

becomes easier. Thus for this purpose, we employ a combination of methods namely

motion difference residue, skin color segmentation and edge detection. We find the

motion residue image, the edge image and the skin image and then do a logical AND

of the three to get an AND image. After that we label and identify the largest region

in the AND image.

232

Residue Image. In our system, the movement of the hands provides useful informa-

tion for their localization and extraction[2]. The motion detector can follow the mo-

bile objects by examining the gray level changes in the video sequence. Let F

(x,y) be

the ith frame of the sequence, then the residue image D

(x,y) is a binary image formed

by the difference of ith and (i+1)th frame to which a threshold is applied (figure 1a

and1b).

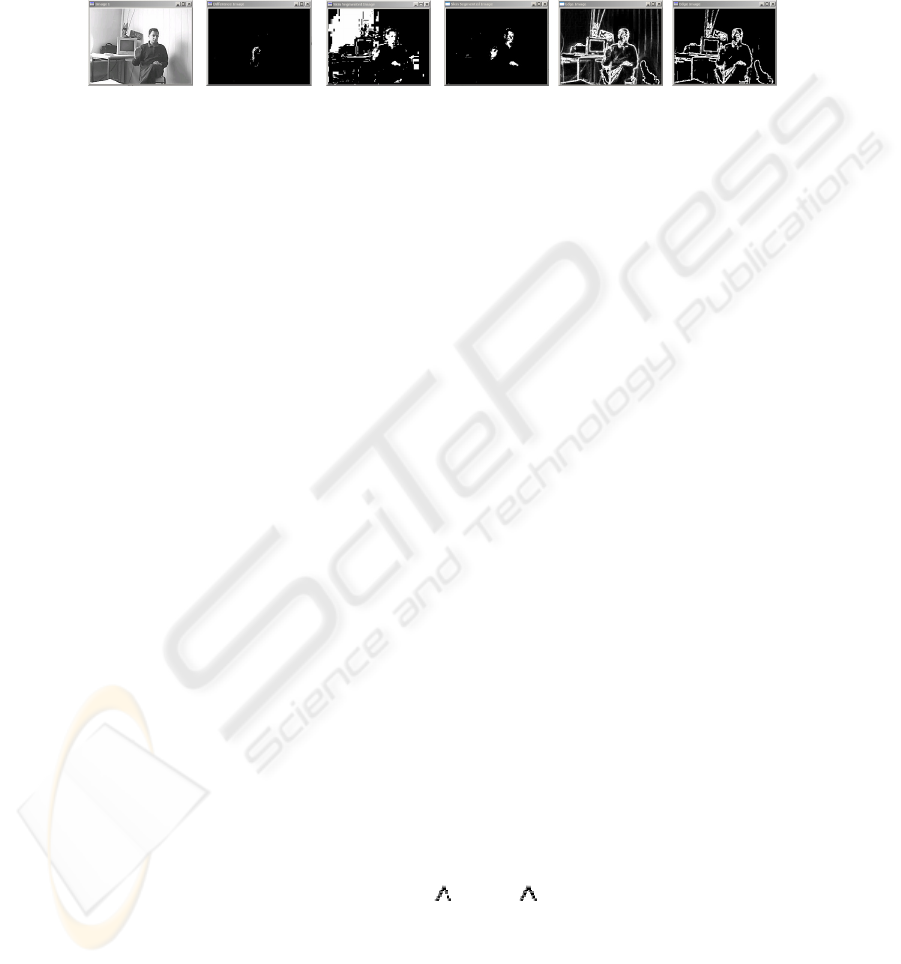

Fig. 1. a) Frame F

b) Residue image D

c) Skin image S

with R>G>B d) S

using skin model

e) Edge image using Sobel f) E

after threshold.

Threshold is applied to get the mobile regions in front of complex background.

The threshold for the detection of movement is 0.2μ, where μ is the average luminous

of the captured image F

(x,y). We chose the factor weight = 0.2 as in [2] because we

do not need highly precise segmented image.

Skin Color Image. Skin can be identified using the color information in the frame.

Initially we used the simple constraint of R > G > B for skin detection, but it detects

many other colors apart from the skin as shown in figure 1c. So we devised another

approach for skin detection which is based on skin color modeling. The skin points

were manually obtained from training videos. Using these points, the mean skin value

and the skin covariance matrix were computed. We calculate Mahalanobis distance D

between the trained mean value “m” and each pixel x

, of the current frame that satis-

fies the condition of R > G >B.

= (x

-m)

COV

-1

-m)

We apply a threshold to this distance to get the skin region in the binary skin im-

age S

of frame Fi as shown in figure 1d. A threshold value of 3 was found to be ap-

propriate for our system. This approach shows a considerable improvement in the

results.

Edge Image. As the arm region generally has less edges as compared to the palm

region, so edge detection becomes pretty useful for separating hand from the arm. We

apply Sobel edge detection [12] to find the edge image E

for the frame F

(figure 1e).

As we are not interested in very thin edges, we apply a threshold to remove those

extra edges (fig 1f). After experimentation, we found that 200 is an optimal threshold

value for this application.

AND Image & Region Identification. We find the logical AND of the 3 binary

images, i.e. the motion residue image, skin image and the edge image, and get a com-

bination image C (figure 4a).

(x,y) = D

(x,y) S

(x,y) E

(x,y)

This combination image consists of a large region in the palm area and some small

regions in the arm area. Now to identify the palm region, we use connected compo-

233

nents. We find the largest contour area and its center of gravity and then draw a

bounding box of fixed width and length which represents the hand region we were

looking for.

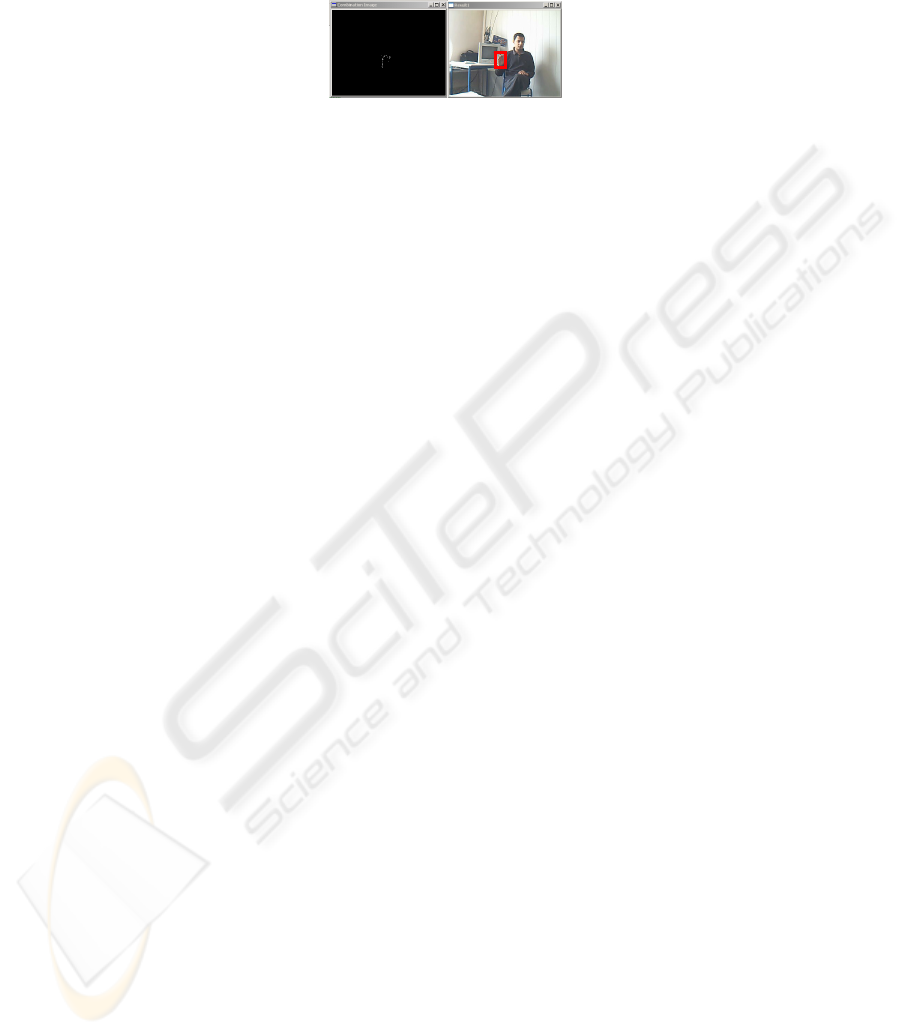

Fig. 2. a) AND image C

b) Largest Region identified.

As we don’t have any limitation oh a fixed background, we can allow small mov-

ing objects in the background. But if there is another object, of a similar color as that

of skin, and that moves more quickly, then the detection of hand can fail. Thus we

apply a motion smoothness constraint of hand for trajectory justification, to keep a

track of the hand area.

3.2 Hand Tracking

For tracking, we employ the Trajectory Justification Algorithm [2] in which the varia-

tions in the center of the hand in the video sequence are noted. We assume that the

hand moves at a smooth and somewhat constant pace. This allows us to set a Tracker

Limit for the center of hand, and this limit is checked at each frame. If the center of

the detected hand in the second frame is out of this limit (with respect to the center in

first frame) the tracking is stopped and the largest area within this tracker limit is

again identified in the second frame. If no candidate area is found within the limit,

then the center of the hand for the previous frame is maintained for this second frame.

Sometimes, there is some small error in the position of the detected hand and

thus, this identified region is not the exact true area of the hand. This is because the

position of the hand was initially found by employing the information of movement,

skin and edge. The extracted information is located on the border of the mobile ob-

ject. So, we need to make these small error corrections and position adjustments of

the detected region. For this, we obtain an AND image of skin and edge images. Now

close to the center of region already detected, we find a new center of the regions in

this image. We draw a bounding box of around this center and keep this new center

as a feature of hand for each frame.

4 Gesture Recognition

After the detection and tracking stages, we have a well defined hand region in each

frame. We also have the center of the hand as a primitive feature. Now we carry out

the motion analysis of this hand region (the core of this research) to identify certain

other features which characterize the gesture. These features include magnitudes of

motion vectors, phase histogram of the motion vectors and the dominant phase for

each frame. After that, we classify the motion of the hand using these features as

either being wanted or unwanted.

234

4.1 Motion Analysis

In the video, the most important thing for us is the movement of the hand. There are

two types of movements. Firstly, there is an overall movement of the hand in the

video and secondly there is some flexible movement of the fingers. We need to esti-

mate the motion field between two consecutive frames. The motion estimation is

based on the space-temporal intensity gradients of the image. This is known as optical

flow. We calculate the optical flow using Horn and Shunck algorithm [13].

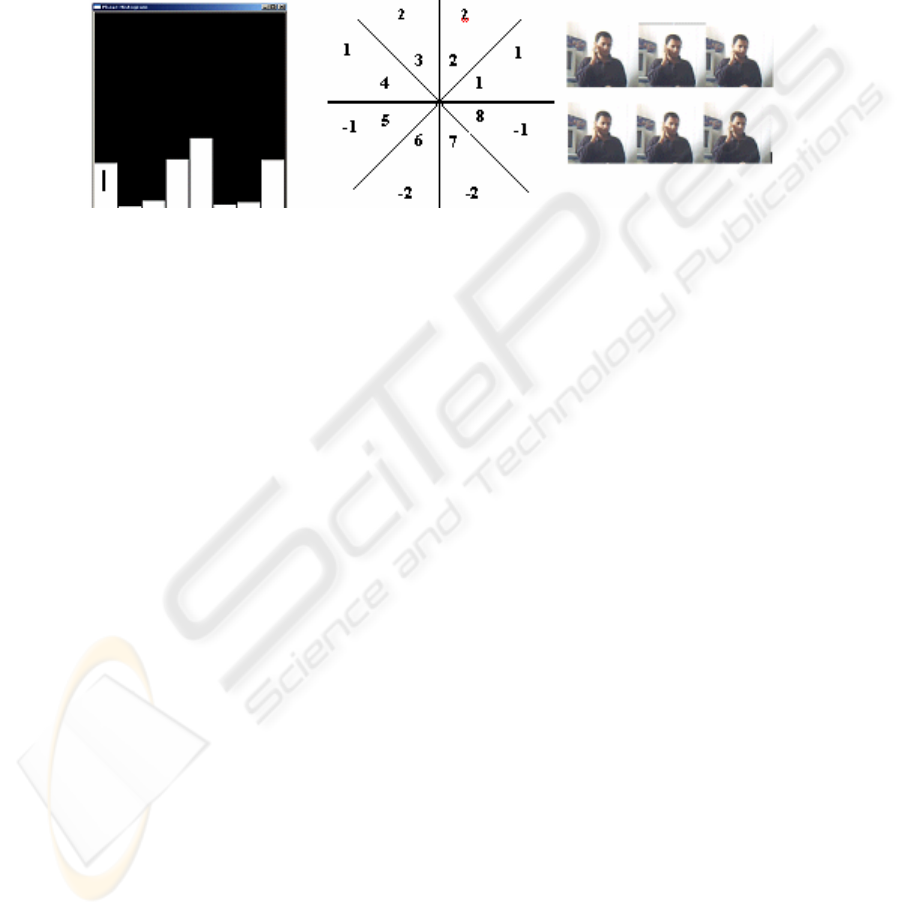

Fig. 3. a) Phase histogram of frame Fi b) Phase coding compass c) Scratching sequence.

We analyse the phases of motion vectors of the region confined within the bound-

ing box. We find the phase distribution in 8 intervals starting from the first quadrant.

It gives us better chances of analysing the motion for gesture recognition. The phase

histogram (see figure 3a) is found for each frame. Because different fingers move

flexibly and independently, we get vectors in various directions. So for each frame,

we find a dominant phase. Dominant phase for a frame is the direction where most

number of vectors are directed. We have devised our coding scheme for the dominant

phase in which we have assigned each interval a code as shown in figure 3b.

We name this code as the dominant phase identifier and keep it as a feature of

hand for each frame. When a person scratches his face (figure 3c), the motion vectors

pass from 2nd and 3rd interval to 6th and 7th interval along with the motion of the

fingers. Thus these intervals are the principal focus of interest for us. We look for the

sequence of frames in which the dominant phase changes quickly from 2nd or 3rd to

the 6th and 7th interval.

4.2 Motion Classification

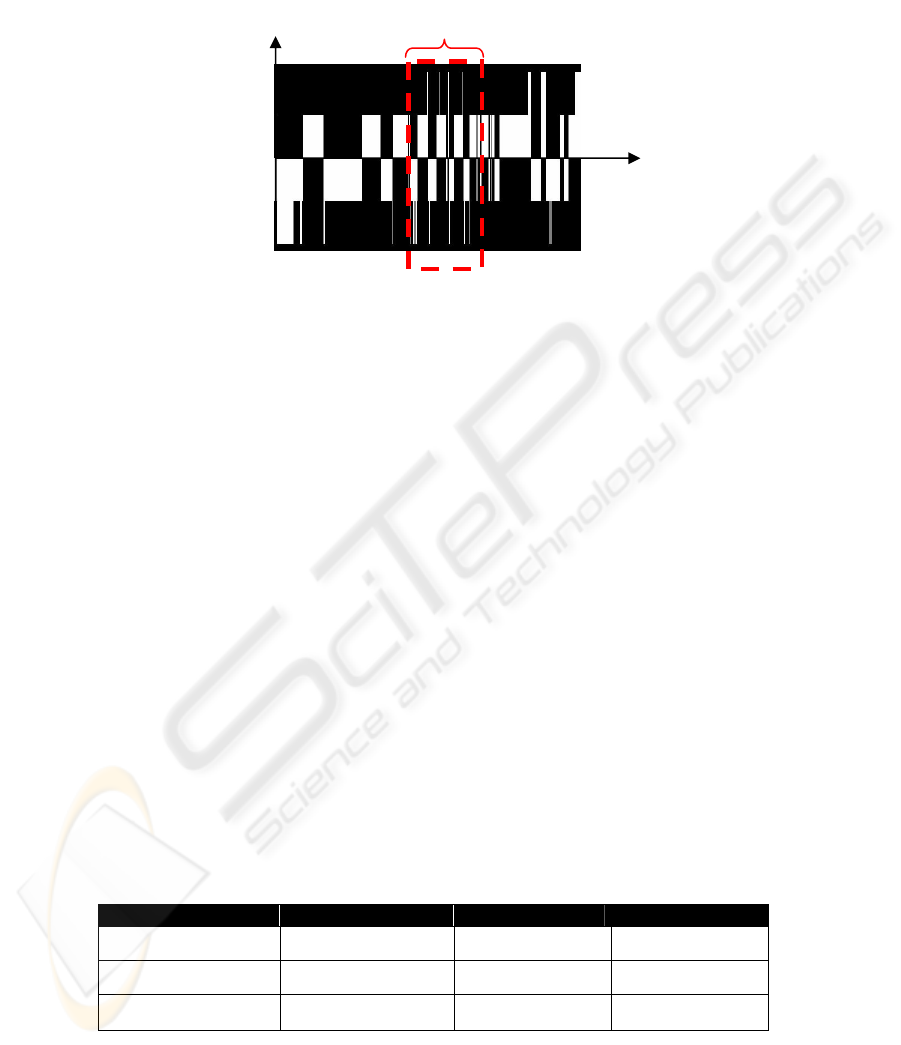

To find the sequence of the frames where the dominant phase changes quickly from

2nd and 3rd interval to the 6th and 7th interval, we make a plot of dominant phase

identifiers of each frame (figure 4). In this plot, we seek the areas where there are

sudden variations of the identifier from 2 to -2. We apply a condition that this interval

of scratching should be long enough for the person to scratch at least twice in one go.

After experimentation, we discovered that there are at least 8 to 10 frames between

the movement of the fingers from top to the bottom during normal scratching. Thus

we seek the area in the graph where this top-bottom identifier change model is fol-

lowed at least 4 times. This area represents the gesture which we seek. To check if

this movement is near the face, we obtain the location of face by using the basic skin

235

image and finding the largest component in that. When this identified movement of

hand is in front of the face, this is the required gesture.

Fig. 4. Identification of frames where the specific phase pattern of the gesture is found.

5 Experimental Results

During experiments, the subject is held under normal lighting conditions with non-

simple background. We can allow some small objects moving in the background that

will not be segmented as hand. For the results, videos were filmed on 4 different

individuals, 5 times each thus giving a total of 20 different videos to work with. Vid-

eos were filmed at a resolution of 320 x 240 using a normal webcam. The frame rate

was fixed at 20 frames/sec. Of these 20 videos, 4 (one of each person) were employed

for the training of the skin color model and also for the modeling of the movement of

hand. There are slight variations in the gestures because of different sizes of hands,

and also because each person makes the gesture in a slightly different way and at

different speed.

The results obtained using this approach are very encouraging (Tab1). 90% of the

times, the gesture was correctly identified in the video. This percentage for the

method of residue [1] is only 60%. Using skin color modeling also proved to be vital

as without it, the success percentage drops down to 75% showing that the method that

we employed for detection and tracking of the hand considerably improved the results

Analysis of the results reveal that the videos where the gesture was not correctly

identified were those in which the person did not make the gesture in a “correct” way

or made the gesture for extremely short duration.

Table 1. Success percentages of different approaches.

Experiment Correct identification Partially correct Success Percentage

Residue method

6 6 60%

Our Method

3 90%

Without skin model 9 6 75%

Region of interest

-1

- 2

time

Phase identifier

236

6 Conclusion

We have discussed a method for the identification of an input hand gesture by em-

ploying a model based on the analysis of the hand motion. The detection and follow-

up of hand region is done using a combination of different existing methods to make

the system more robust. Analysis of the hand movement is done using the optical

flow. There is no limitation on the background to be fixed and noncomplex. We ap-

plied the system to identify the gesture of scratching on the face by the hand . The

training was made using a small sample of data and the results obtained were ex-

tremely satisfactory and encouraging. Currently it is tested only for this one gesture

but if we want to add new gesture to the system, we only have to add a new coding

model of dominant phase for that gesture.

References

1. Quan Yuan, Stan Sclaroff, Vassilis Athitsos, “Automatic 2D hand tracking in video se-

quences”, IEEE workshop on applications of computer vision, 2005.

2. Feng-Sheng Chen, Chih-Ming Fu, Chung-Lin Huang, “Hand gesture recognition using a

real-time tracking method and hidden Markov models”, Image and Video Computing, Au-

gust 2003, 21(8):745—758.

3. Gerhard Rigoll, Andreas Kosmala, Stephan Eickeler, “High performance real time gesture

recognition using hidden Markov models”, Workshop 1997 : 69-80: 6: EE.

4. Jie Yang, Yangshen Xu, “Hidden Markov Model for Gesture Recognition”, CMU-RI-TR-

94-10, 1995.

5. Isard M., Blake A., “A mixed-state condensation tracker with automatic model-switching”,

International conference on computer vision, Jan 1998, 107-112.

6. C. Tomasi, J. Shi, “Good features to track”, CVPR94, 1994.

7. C. Tomasi, T. Kanade, “Detection and tracking of Point features”, CMU-CS-91-132, April

1991.

8. T. Baudel, M. Baudouin-Lafon, Charade, “Remote control of objects using free hand ges-

tures”, Communications of the ACM, July 1993, 36(7):28-35.

9. D.J. Sturman, D. Zeltzer, “A survey of glove based input”, IEEE Computer Graphics and

Applications, 14 (1), 1994, 30-39.

10. C. L. Huang, W. Y. Huang, “Sign Language Recognition using model based tracking and

3D Hopfield neural network”, MVA(10) , 1998, pp. 292-307.

11. R. E. Kalman, “A new approach to linear filtering and prediction problems”, Trans. of the

ASME-J of basic engineering, Vol 82, series D, 1960, pp 35-45.

12. E.P. Lyvers and O.R. Mitchell, “Precision Edge Contrast and Orientation Estimation”,

IEEE transaction on pattern analysis and machine intelligence, 1998, 10(6):927-937.

13. B.K.P. Horn and B.G. Schunk, “Determining optical flow”. Artificial Intelligence, 1981,

17:185–203.

237
