New Primitives to AOP Weaving Capabilities for

Security Hardening Concerns

Azzam Mourad, Marc-Andr

e Laverdi

ere and Mourad Debbabi

Computer Security Laboratory

Concordia Institute for Information Systems Engineering

Concordia University, Montreal (QC), Canada

Abstract. In this paper, we present two new primitives to Aspect-Oriented Pro-

gramming (AOP) languages that are needed for systematic hardening of security

concerns. These primitives are called exportParameter and importParameter and

are used to pass parameters between two pointcuts. They allow to analyze a pro-

gram’s call graph in order to determine how to change function signatures for

the passing of parameters associated with a given security hardening. We ﬁnd

this feature necessary in order to implement security hardening solutions that are

infeasible or impractical using the current AOP proposals. Moreover, we show

the viability and correctness of our proposed primitives by elaborating their algo-

rithms and presenting experimental results.

1 Motivations & Background

In today’s computing world, security takes an increasingly predominant role. The in-

dustry is facing challenges in public conﬁdence at the discovery of vulnerabilities, and

customers are expecting security to be delivered out of the box, even for programs that

were not designed with security in mind. The challenge is even greater when legacy

systems must be adapted to networked/web environments, while they are not originally

designed to ﬁt into such high-risk environments. Tools and guidelines have been avail-

able for developers for a few years already, but their practical adoption is limited so far.

Software maintainers must face the challenge to improve programs security and are of-

ten under-equipped to do so. In some cases, little can be done to improve the situation,

especially for Commercial-Off-The-Shelf (COTS) software products that are no longer

supported, or their source code is lost. However, whenever the source code is available,

as it is the case for Free and Open-Source Software (FOSS), a wide range of security

improvements could be applied once a focus on security is decided.

Very few concepts and approaches emerged in the literature to help and guide devel-

opers to harden security into software. In this context, AOP appears to be a promising

paradigm for software security hardening. It is based on the idea that computer systems

are better programmed by separately specifying the various concerns, and then relying

⋆

This research is the result of a fruitful collaboration between CSL (Computer Security Labora-

tory) of Concordia University, DRDC (Defense Research and Development Canada) Valcartier

and Bell Canada under the NSERC DND Research Partnership Program.

Mourad A., Laverdière M. and Debbabi M. (2007).

New Primitives to AOP Weaving Capabilities for Security Hardening Concerns.

In Proceedings of the 5th International Workshop on Security in Information Systems, pages 123-130

DOI: 10.5220/0002422001230130

 SciTePress

on underlying infrastructure to compose them together. Aspects allow to precisely and

selectively deﬁne and integrate security objects, methods and events within application,

which make them interesting solutions for many security issues [1–5]. However, AOP

was not initially designed to address security issues, which resulted in many short-

comings in the current technologies [6, 7]. We were not able to apply some security

hardening activities due to missing features. Such limitations forced us, when applying

security hardening practices, to perform programming gymnastics, resulting in addi-

tional modules that must be integrated within the application, at a deﬁnitive runtime,

memory and development cost.

As a result, the speciﬁcation of new security related AOP primitives is becoming

a very challenging and interesting domain of research. In this context, we propose in

this paper AOP primitives that are needed for security hardening concerns, named ex-

portParameter and importParameter. They allow to pass parameters from one pointcut

to the other through the programs’ context-insensitive call graph. We ﬁnd this feature

necessary because it is needed to perform many security hardening practices and none

of the existing AOP features can provide this functionality.

This paper is organized as follows: We ﬁrst cast a quick glance at security harden-

ing and the problem that we address in Section 2. Afterwards, in Section 3, we deﬁne

parameter passing and show how parameter passing can be speciﬁed by an extension of

the existing AOP syntax for advices. Then, in Section 4, we present the methodology

of implementing the proposed primitives, as well as experimental results. We move on

to the related work in Section 5, and then conclude in Section 6.

2 Security Hardening

Software security hardening is any process, methodology, product or combination thereof

that is used to add security functionalities and/or remove vulnerabilities or prevent their

exploitation in existing software. Security hardening practices are usually applied man-

ually by injecting security code into the software. This task requires from the security

architects to have a deep knowledge of the code inner working of the software, which

is not available all the time. In this context, we elaborated in [8] an approach based on

aspect orientation to perform security hardening in a systematic way. The primary ob-

jective of this approach is to allow the security architects to perform security hardening

of software by applying proven solutions so far and without the need to have expertise

in the security solution domain. At the same time, the security hardening is applied in

an organized and systematic way in order not to alter the original functionalities of the

software. This is done by providing an abstraction over the actions required to improve

the security of the program and adopting AOP to build our solutions. The result of our

experimental results explored the usefulness of AOP to reach the objective of having

systematic security hardening. During our work, we have developed security harden-

ing solutions to secure connections in client-server applications, added access control

features to a program, encrypted memory contents for protection and corrected some

low-level security vulnerabilities in C programs. On the other hand, we have also con-

cluded the shortcomings of the available AOP technologies for security and the need to

124

elaborate new pointcuts. In this context, we proposed in [9] new pointcuts needed for

security hardening concerns.

2.1 Security Hardening Example: Securing a Connection

Securing channels between two communicating parties is the main security solution

applied to avoid eavesdropping, tampering with the transmission or session hijacking.

The Transport Layer Security (TLS) protocol is a widely used protocols for this task.

We thus present in this Section a part of a case study, in which we implemented an As-

pectC++ aspect that secures a connection using TLS and weaved it with client/Server

applications to secure their connections. To generalize our solution and make it appli-

cable on wide range of applications, we assume that not all the connections are secured,

since many programs have different local interprocess communications via sockets. In

this case, all the functions responsible of sending receiving data on the secure channels

are replaced by the ones provided by TLS. On the other hand, the other functions that

operate on the non-secure channels are kept untouched. Moreover, we addressed also

the case where the connection processes and the functions that send and receive the

data are implemented in different components (i.e different classes, functions, etc.). In

Listing 1.1, we see an excerpt of AspectC++ code allowing to harden a connection.

2.2 Need to Pass Parameters

Our study of the literature and our previous work [8, 9] showed that it is often necessary

to pass state information from one part to another of the program in order to perform

security hardening. For instance, in the example provided in Listing 1.1, we need to

pass the gnutls

session t data structure from the advice around connect to

the advice around send, receive and/or close in order to properly harden the

connection. The current AOP models do not allow to perform such operations.

2.3 Solution with the Current AOP Technology

In Listing 1.1, the reader will notice the appearance of hardening

sockinfo t as

well as some other related functions, which are underlined for the sake of convenience.

These are the data structure and functions that we developed to distinguish between

secure and insecure channels and export the parameter between the application’s com-

ponents at runtime. We found that one major problem was the passing of parameters

between functions that initialize the connection and those that use it for sending and re-

ceiving data. In order to avoid using shared memory directly, we opted for a hash table

that uses the Berkeley socket number as a key to store and retrieve all the needed infor-

mation (in our own deﬁned data structure). One additional information that we store is

whether the socket is secured or not. In this manner, all calls to a send() or recv()

are modiﬁed for a runtime check that uses the proper sending/receiving function. This

effort of sharing the parameter has both development and runtime overhead that could

be avoided by the use of a primitive automating the transfer of concern-speciﬁc data

within advices without increasing software complexity. Further, other experiments with

another security feature (encrypting sensitive memory) showed that the use of hash table

could not be easily generalized.

125

Listing 1.1. Excerpt of an AspectC++ Aspect Hardening Connections Using GnuTLS.

aspect SecureConnection {

advice call("% connect(...)") : around () {

//variables declared

hardening_sockinfo_t socketInfo;

const int cert_type_priority[3] = { GNUTLS_CRT_X509, GNUTLS_CRT_OPENPGP, 0};

//initialize TLS session info

gnutls_init (&socketInfo.session, GNUTLS_CLIENT);

gnutls_set_default_priority (socketInfo.session);

gnutls_certificate_type_set_priority (socketInfo.session, cert_type_priority);

gnutls_certificate_allocate_credentials (&socketInfo.xcred);

gnutls_credentials_set (socketInfo.session, GNUTLS_CRD_CERTIFICATE,

socketInfo.xcred);

//Connect

tjp->proceed();

if(

tjp->result()<0) {perror("cannot connect "); exit(1);}

//Save the needed parameters and the information that distinguishes between

secure and non-secure channels

socketInfo.isSecure = true;

socketInfo.socketDescriptor=

(int

)tjp->arg(0);

hardening_storeSocketInfo(

(int

)tjp->arg(0), socketInfo);

//TLS handshake

gnutls_transport_set_ptr(socketInfo.session, (gnutls_transport_ptr)(

(int

)

tjp->arg(0)));

tjp->result() = gnutls_handshake (socketInfo

.session);

}

//replacing send() by gnutls_record_send() on a secured socket

advice call("% send(...)") : around () {

//Retrieve the needed parameters and the information that distinguishes

between secure and non-secure channels

hardening_sockinfo_t socketInfo;

socketInfo = hardening_getSocketInfo(

(int

)tjp->arg(0));

//Check if the channel, on which the send function operates, is secured or not

if (socketInfo.isSecure)

//if the channel is secured, replace the send by gnutls_send

(tjp->result()) = gnutls_record_send(socketInfo

.session,

(char

) tjp->

arg(1),

(int

)tjp->arg(2));

else

tjp->proceed(); }}

3 Parameter Passing for Security Hardening

In this section, we deﬁne the syntax and realization of the proposed primitives. Their

syntax is derived from AspectC++, as an optional program transformation section in an

advice declaration as follows:

parameter ::= <type> <identifier>

paramList ::= parameter [,paramList]

e ::= exportParameter(<paramList>)

i::= importParameter(<paramList>)

advice <target-pointcut> : (before|after|around)

(<arguments>) [: e | i | e,i] {<advice-body>}

126

where e and i are respectively the new exportParameter and importparameter. The

arguments of exportParameter are the parameters to pass, while the arguments of im-

portParameter are the parameters to receive. The two primitives should always be com-

bined and used together in order to provide the information needed for parameter pass-

ing from one joint point to another.

Our proposed approach for parameter passing operates on the context-insensitive

call graph of a program [10], with each node representing a function and each arrow

representing call site. It exports the parameter over all the possible paths going from the

origin to the destination nodes. This is achieved by performing the following three steps:

(1) Calculating the closest guaranteed ancestor (GAFlow) of the origin and destination

join points, (2) passing the parameter from the origin to the aforementioned GAFLow

and then (3) from this GAFlow to the destination. The AOP primitives that are re-

sponsible of passing the parameters are the exportParameter and importparameter. The

exportParameter is used in the advice of the origin pointcut to make the parameters

available, while the importparameter is used in the advice of the destination pointcut to

import the needed parameters.

The GAFlow, as presented in [9], constitutes (1) the closet common parent node

of all the selected nodes (2) and through which passes all the possible paths that reach

them. In the worst case, the GAFlow will be the starting point in the program. By

passing the parameter from the origin to GAFlow and then to the destination, we ensure

that the parameter will be effectively passed through all the possible execution paths

between the two join points. Otherwise, the parameter could not be passed or passed

without initialization, which would create software errors and affect the correctness of

the solution. Figure 1 illustrates our approach. For instance, to pass the parameter from

h to g, their GAFlow, which is b in the this case, is ﬁrst identiﬁed. Afterwards, the

parameter is passed over all the paths from h to b, then from b to g again over all the

paths.

d e f

g h

origin

destination

gaflow

13 2

1: Identify GAFlow 2: Origin → GAFlow 3: GAFlow → destination

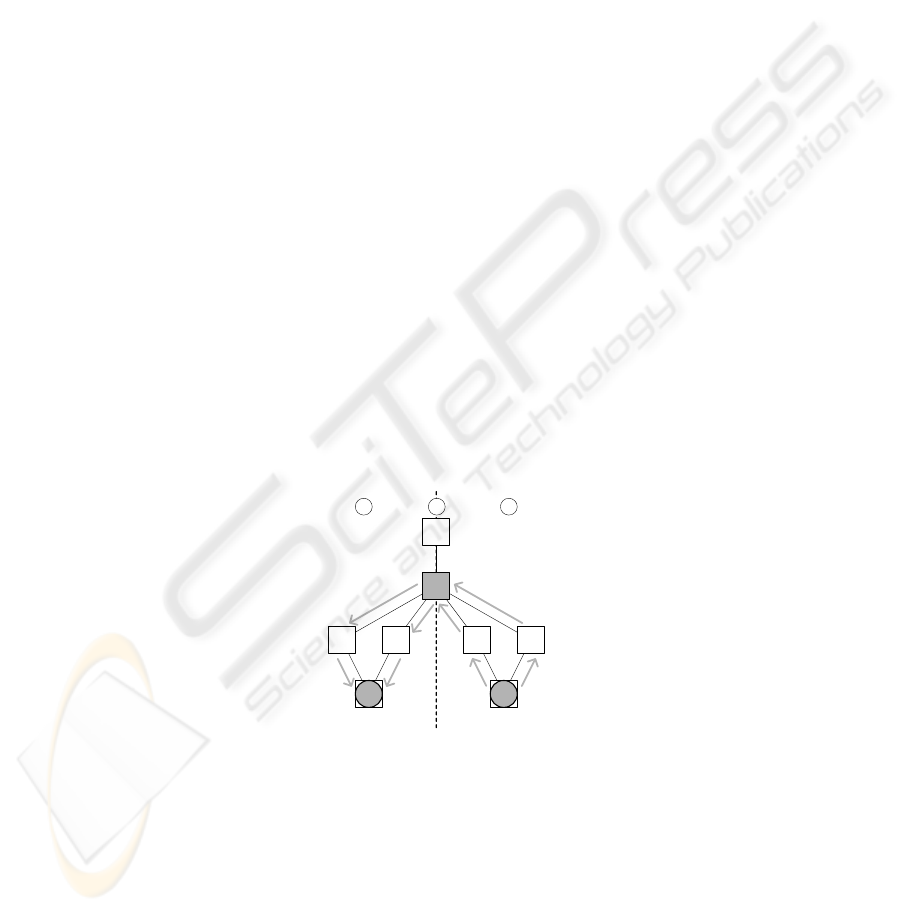

Fig.1. Parameter Passing in a Call Graph.

The parameter passing capability that we propose changes the function signatures

and the relevant call sites in order to propagate useful security hardening variables via

inout function parameters. It changes the signatures of all the functions involved in

the call graph between the exporting and importing join points. All calls to these func-

127

tions are modiﬁed to pass the parameter as is, in the case of the functions involved in

this transmission path (e.g. nodes b, c,d,e,f).

3.1 Securing a Connection using Parameter Passing

We modiﬁed the example of Listing 1.1 by using our proposed approach for param-

eter passing. Listing 1.2 present excerpt of the new code. All the data structure and

algorithms (underlined in Listing 1.1) are removed and replaced by the primitives for

exporting and importing. An exportParameter for the parameters session and xcred is

added on the declaration of the advice of the pointcut that identiﬁes the function con-

nect. Moreover, an importParameter for the parameter session is added on the declara-

tion of the advice of the pointcut that identiﬁes the function send.

Listing 1.2. Hardening of Connections using Parameter Passing GnuTLS.

aspect SecureConnection {

advice call("% connect(...)") : around () : exportParameter(gnutls_session

session, gnutls_certificate_credentials xcred){

//variables declared

static const int cert_type_priority[3] = { GNUTLS_CRT_X509, GNUTLS_CRT_OPENPGP

, 0};

//initialize TLS session info

gnutls_init (&session, GNUTLS_CLIENT);

gnutls_set_default_priority (session);

gnutls_certificate_type_set_priority (session, cert_type_priority);

gnutls_certificate_allocate_credentials (&xcred);

gnutls_credentials_set (session, GNUTLS_CRD_CERTIFICATE, xcred);

//Connect

tjp->proceed();

if(

tjp->result()<0) {perror("cannot connect "); exit(1);}

//TLS handshake

gnutls_transport_set_ptr (session, (gnutls_transport_ptr) (

(int

)tjp->arg(0)

));

tjp->result() = gnutls_handshake (session);

}

//replacing send() by gnutls_record_send() on a secured socket

advice call("% send(...)") : around () : importParameter(gnutls_session session)

{

//Check if the channel, on which the send function operates, is secured or not

if (session != NULL)

//if the channel is secured, replace the send by gnutls_send

(tjp->result()) = gnutls_record_send(

session,

(char

) tjp->arg(1),

(

int

)tjp->arg(2));

else

tjp->proceed(); }}

4 Implementation and Experimental Results

In this Section, we present the implementation methodology of the proposed primitives

together with experimental results exploring their correctness.

The elaborated algorithms for the implementation of parameter passing operate on

a program’s call graph. The origin node is the poincut where the exportParameter is

called, while the destination node is the pointcut where importParameter is called. After

128

calculating the closest guaranteed ancestor of the two pointcuts speciﬁed by the two

primitives, the elaborated algorithm is performed ﬁrst in order to pass the parameter

from the origin to the closest guaranteed ancestor, then executed another time to pass the

parameter from the closest guaranteed ancestor to the destination. This algorithm, which

is not presented in this paper due to space limitation, is a building block that allows

to modify the function signatures and calls in a way that would keep the program’s

syntactical correctness and intent (i.e. would still compile and behave the same). It

ﬁnds all the paths between an origin node and a destination node in a call graph. For

each path, it propagates the parameter from the called function to the callee, starting

from the end of the path. In order to be optimal, it modiﬁes all the callers only one time

and keeps track of the modiﬁed nodes.

We implemented a program that represents the scenario of the call graph illustrated

in Figure 1. This program is essentially a client application that establishes a connection,

sends a request and receive a response from the server. We applied the aspects presented

in Listings 1.1 and 1.2 on this application in order to secure its communication channels.

We successfully tested the hardened applications with SSL enabled web server and

veriﬁed the correctness of the solution.

5 Related Work

The shortcomings of AOP for security concerns have been documented and some im-

provements have been suggested so far. In the sequel, we present the most noteworthy.

Masuhara and Kawauchi [6] deﬁned a dataﬂow pointcut (dflow) for security pur-

poses that can be used to identify join points based on the origin of values.

In [7], Harbulot and Gurd proposed a model of a loop pointcut that explores the

need to a loop joint point that predicts whether a code will ever halt or run for ever (i.e.

inﬁnite loops).

Another approach, that discusses local variables set and get poincut, has been pro-

posed by Myers [11]. He introduced a pointcut allowing to track the values of local

variables inside a method, which could be used to protect the conﬁdentiality of local

variables.

In [12], Bonr discussed a poincut that is needed to detect the beginning of a syn-

chronized block and add some security code that limits the CPU usage or the number

of instructions executed. He also explored in his paper the usefulness of capturing syn-

chronized block in calculating the time acquired by a lock and thread management.

A pcflow pointcut was introduced by Kiczales in a keynote address [13], but was

neither deﬁned nor integrated in any AOP language. Such pointcut may allow to select

points within the control ﬂow of a join point starting from the root of the execution to

the parameter join point.

6 Conclusion

AOP appears to be a very promising paradigm for software security hardening. How-

ever, this technology was not initially designed to address security issues and many

129

research work showed its limitations in such domain. Similarly, we explored in this pa-

per the shortcomings of the AOP in applying many security hardening practices and the

need to extend this technology with new pointcuts and primitives. In this context, we

proposed two new primitives to AOP weaving capabilities for security hardening con-

cerns: exportParameter and importParameter. They pass parameters from one advice

to the other through the programs’ context-insensitive call graph. We ﬁrst showed the

limitations of the current AOP languages for many security issues. Then, we presented

a motivating example that explores the need for parameter passing. Afterwards, we de-

ﬁned the new primitives and presented their implementation methodology together with

the experimental results.

References

1. Bodkin, R.: Enterprise security aspects (2004) http://citeseer.ist.psu.edu/

702193.html (accessed 2007/04/19).

2. DeWin, B.: Engineering application level security through aspect oriented soft-

ware development (2004) http://www.cs.kuleuven.ac.be/cwis/research/

distrinet/resources/publications/41140.pdf.

3. Huang, M., Wang, C., Zhang, L.: Toward a reusable and generic security aspect library. In:

AOSD:AOSDSEC 04: AOSD Technology for Application level Security, March. (2004)

4. Cigital Labs: An aspect-oriented security assurance solution. Technical Report AFRL-IF-

RS-TR-2003-254 (2003)

5. Slowikowski, P., Zielinski, K.: Comparison study of aspect-oriented and container managed

security (2003)

6. Masuhara, H., Kawauchi, K.: Dataﬂow pointcut in aspect-oriented programming. In:

APLAS. (2003) 105–121

7. harbulot, B., Gurd, J.: A join point for loops in AspectJ. In: Proceedings of the 4th workshop

on Foundations of Aspect-Oriented Languages (FOAL 2005), March. (2005)

8. Mourad, A., Laverdi

ere, M.A., Debbabi, M.: Towards an aspect oriented approach for the

security hardening of code. (To appear in the Proceedings of the 21st IEEE International

Conference AINA, AINA-SSNDS 2007, IEEE)

9. Laverdi

ere, M.A., Mourad, A., Soeanu, A., Debbabi, M.: Control ﬂow based pointcuts for

security hardening concerns. (To appear in the Proceedings of the IFIPTM 2007 Conference,

Springer)

10. Grove, D., Chambers, C.: A framework for call graph construction algorithms. ACM Trans.

Program. Lang. Syst. 23 (2001) 685–746

11. Myers, A.: Jﬂow: Practical mostly-static information ﬂow control. In: Symposium on Prin-

ciples of Programming Languages. (1999) 228–241

12. Bonr, J.: Semantics for a synchronized block join

point (2005) http://jonasboner.com/2005/07/18/

semantics-for-a-synchronized-block-joint-point/ (accessed

2007/04/19.

13. Kiczales, G.: The fun has just begun, keynote talk at AOSD 2003 (2003)

http://www.cs.ubc.ca/

gregor/papers/kiczales-aosd-2003.ppt (ac-

cessed 2007/04/19).

130
