VISU

ALIZING THE PROCESS

A Graph-Based Approach to Enhancing System-User Knowledge Sharing

Tamara Babaian, Wendy Lucas and Heikki Topi

CIS Department, Bentley College, Waltham, MA 02452, USA

Keywords:

User interface design methodologies, enterprise-wide systems, enterprise resource planning, usability.

Abstract:

Our research is concerned with developing design guidelines aimed at improving the usability of enterprise-

wide information systems by employing collaborative problem solving as a model for user-system interaction.

In this paper, we present our approach to addressing a critical design issue that we identiﬁed through our ﬁeld

research: namely, system-to-user communication involving components of a complex process ﬂow. This ap-

proach uses a dynamic process graph and a set of related task links that are displayed alongside the traditional

ERP task interfaces. We outline the collaborative framework and position our solution within it. This solution

can beneﬁt other application areas, especially those that involve protracted processes that are not familiar to

the user.

1 INTRODUCTION

Enterprise Resource Planning systems (ERPs) are or-

ganizational management systems that integrate busi-

ness processes throughout the entire enterprise. These

processes typically span multiple functional areas,

from manufacturing to accounting to customer ser-

vice and so forth. Such integration provides the key

beneﬁt of using an ERP system by ensuring consistent

automation of different business functions as well as

a comprehensive view of an enterprise’s resources.

The beneﬁts of using an ERP system, however,

can come at a great cost. Implementation of such a

system in an organization often involves realignment

of the business processes to ﬁt the system’s model.

Extensive training of personnel to use a multi-module,

multi-functional system for their daily operations is

also required. The costs of system implementation

and training typically far exceed the price of the soft-

ware. Yet, despite the magnitude of the investments

in both dollars and time allocated to these activities,

ERP projects sometimes fail to deliver their promised

beneﬁts. This is at least partly attributable to the poor

usability characteristics of the systems’ interfaces, as

reported in (Gilbert, 2003; Topi et al., 2005).

Our long-term goal is to demonstrate how the us-

ability of organizational systems can be improved by

developing design guidelines that are based on a col-

laborative model of user-system interactions. In this

paper, we describe a key portion of this effort. A

ﬁeld study (Topi et al., 2005) indicated that one of

the major obstacles to the effective use of an ERP

system is the user’s lack of understanding of the re-

lationships between the individual subtasks within a

business process. To address this problem, we have

developed a method for improving the transparency

of the system’s process model and the accessibility of

its components. This method consists of augmenting

the user interface with:

1. an interactive process graph, which visualizes the

steps of the process and enables easy navigation

and progress monitoring, and

2. a readily accessible list of links to related pro-

cesses.

The purpose of the process graph is to com-

municate the critical process ﬂow information that

is largely hidden from the users, thus improving

their understanding of the process and its individ-

ual components. The graph is always displayed and

is updated dynamically to reﬂect the user’s progress

through the process. It is also useful as a navigation

123

Babaian T., Lucas W. and Topi H. (2007).

VISUALIZING THE PROCESS - A Graph-Based Approach to Enhancing System-User Knowledge Sharing.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - HCI, pages 123-128

DOI: 10.5220/0002352401230128

 SciTePress

tool for previewing the steps following the current

task or reviewing previously completed steps. The

latter feature is important for recall and diagnostic

purposes, considering that the business processes are

typically completed by several people over a course

of days or even weeks.

Related links are displayed for simplifying navi-

gation to those subtasks that are most commonly rel-

evant to the current process. Although these sub-

tasks are typically accessible via menus in standard

ERP systems, menu items are hidden until the user

chooses to explore a particular option; by contrast, re-

lated links in our design are always on display and are

therefore more noticeable and easier to access.

The key contribution of this paper is a method for

improving the user’s understanding of a business pro-

cess implemented by a system via a graphical repre-

sentation of that process. The novelty of our approach

comes from embedding the process visualization as

an active component within the interface. Compared

to other work linking the importance of process un-

derstanding to usability, e.g. (Basu and Blanning,

2000; Lieberman and Wagner, 2003; Kobti and Sun-

daravadanam, 2006; Schmid and Rossi, 2004), our

solution supports time-extended processes involving

multiple users of a multi-module enterprise system.

Following is a discussion of our use of collabora-

tion as an informing design paradigm within the ERP

system context. In Section 3, we present the ﬁndings

from our ﬁeld work that describes the problem and

motivates our solution. We then position that solution

within the collaborative design framework. Section 4

presents our solution, i.e., a process graph and related

tasks links that have been incorporated into our pro-

totype implementation of an ERP interface. An initial

evaluation of this prototype is described in Section 5.

Section 6 reviews the related work, while conclusions

and future work are discussed in Section 7.

2 COLLABORATION AS A

MODEL FOR USER

INTERFACE DESIGN

An approach to interface design that is inspired by

collaboration theory (Bratman, 1992) has been artic-

ulated in (Grosz, 2005; Shieber, 1996) and applied

to the design of applications in several domains, e.g.

(Rich et al., 2001; Babaian et al., 2002). This ap-

proach views the process of using a system as a col-

laboration between humans and computers involved

in a problem solving effort. Compared to a more tra-

ditional view, this implies a realignment of the role

that the computer system plays to being a collabo-

rative partner with its users rather than just being a

repository of data and tools that can be accessed and

utilized. Such a realignment can potentially lead to

the design of a system that provides superior support

for effective problem solving.

In general terms, a collaborative approach to inter-

face design implies, ﬁrst of all, that the allocation of

responsibilities between a human and a computer sys-

tem must be done according to each party’s strengths.

Furthermore, the parties need to be able to communi-

cate effectively regarding their plans for the task and

share any knowledge that is relevant to each other’s

part in the process. The parties must also be aware of

the context for such communication in order for it to

be effective. Last but not least is the requirement to

assist a partner in need of help.

While this paradigm is appropriate for any infor-

mation system design, it is particularly vital for ERP

systems. These system possess a wealth of knowledge

in the form of data, processes, reporting capabilities,

and analysis methods that are designed to meet the

needs of all of their users, thereby placing a tremen-

dous burden upon the individual to ﬁnd and utilize the

subset that is relevant to her purposes. By realigning

the role of the system to that of a helpful and respon-

sive partner, it can interact with the user in a far more

productive manner. In particular, it should make the

user aware of the interdependencies between the data

and the processes and between the different processes

themselves. This is essential knowledge for becoming

a competent and conﬁdent system user who can nav-

igate the system, successfully utilize the components

required for a task, and make the most of the avail-

able resources. As reported in (Topi et al., 2005) ex-

perience shows that even with extensive training and

readily available documentation, a small minority of

users actually achieve this level of competence in uti-

lizing ERP systems.

3 FINDINGS FROM THE FIELD

To gain some insight into the everyday experiences of

ERP users, we carried out a ﬁeld study in a division of

a Fortune 500 company that had been using an ERP

system for a little more than two years at the time.

Semi-structured interviews were conducted with ten

employees who ranged from production ﬂoor work-

ers to middle and high level managers. Our analysis

of those interviews revealed multiple categories of us-

ability problems, which have been reported in (Topi

et al., 2005).

For this paper, we would like to focus on one of

ICEIS 2007 - International Conference on Enterprise Information Systems

124

the critical ﬂaws we observed in the design of the

ERP system, which has to do with the lack of infor-

mation transparency and of information sharing be-

tween the system and the user. Each comprehensive

business process consists of a series of smaller sub-

tasks/transactions, and each user is typically involved

in only a part of the overall process. To use the sys-

tem most effectively, the users must understand the

overall process ﬂow and the semantic relationship be-

tween the different components, namely transactions

and data items. The critical ﬂaw is that the ERP in-

terface presents only a fragmented view of a speciﬁc

transaction or a portion of the data. Even with ini-

tial and continued training, very few users are able to

reconstruct the system’s process model and use it to

their advantage. What is unique about these users is

that they “understand the inner workings of what’s go-

ing on.” This understanding is achieved with a great

deal of effort on their part, primarily in the areas of

problem resolution and system exploration.

The lack of transparency of the data and pro-

cess models employed by the system is responsible

for multiple hardships for its users. The resulting

usability problems include difﬁculty in determininig

the next step following a transaction, inability to di-

agnose a system error and problems ﬁnding the in-

formation being sought. Some employees have cre-

ated informal notes documenting different aspects of

using the system. These notes, or “cheat-sheets,”

were typically shared within groups, and some were

even laminated for distribution across the organiza-

tion. Users described the help screens provided by

the system as ineffective and based on “programmer’s

language” rather than language that is relevant to the

business process. Our analysis of the content of these

notes (Topi et al., 2006) provides compelling evidence

about the importance of understanding the relation-

ship between the different components of a business

process and how those components are utilized by the

system.

As the repository of all data and processes, it is the

responsibility of the system to inform the user. The

lack of a capability for this type of information shar-

ing clearly impedes users in their ability to make the

most productive use of the ERP system in performing

their job tasks. Furthermore, in order to cope with this

deﬁciency, the users have taken upon themselves the

process of creating documentation that focuses on the

model employed by the system. This model is typ-

ically based on what they have been able to discern

from their use of the system, including the seman-

tics of transactional components and their composi-

tion and context within a larger business process. In

our solution, which we present in the next section, we

address this gap by placing the burden of providing

system-related information where it belongs - on the

system.

4 SHARING PROCESS

KNOWLEDGE WITH THE

USER

In this section, we describe our approach for address-

ing the gap between the information held by the sys-

tem and what is conveyed to the user. This approach

has been implemented in a prototype that will be used

in laboratory experiments.

4.1 The Process Graph

To improve information sharing regarding the process

ﬂow, we have augmented the typical Graphical User

Interface (GUI) of an ERP system with a component

that we call a process graph. Displayed alongside

the standard interface, this directed graph depicts the

steps involved for completing part of or an entire busi-

ness process using the system. There are two types of

nodes in the graph: step and conditional. Each step-

node in the graph corresponds to roughly one ERP

screen within a process. The color of the steps in

the graph changes to reﬂect the progress of the task.

At each point in time, only one step in the graph is

designated as active, and that is the one whose form

appears in the transaction window on the right. The

active node is designated with a dark border.

By visualizing the process steps and their precon-

ditions, the graph informs the user of the overall pro-

cess sequence and the context and purpose of each

step. In addition, it implements the following func-

tionality:

1. Keeps track of the status of each task by marking

steps according to their status: completed (green),

in progress (yellow), or not yet started (red).

2. Allows a preview of any step that follows the cur-

rent one without requiring the completion of all

preceding steps. To preview a step, the user clicks

on the appropriate graph node. The information

in the current screen is then saved, and the form

associated with the designated step is displayed.

3. Allows recall of any previous step, including in-

termediate ones, such as a step that provides de-

fault values. This feature is useful for diagnos-

tic purposes: when things go wrong, it is often

beneﬁcial to revisit the history of the interaction

with the system. To enable this kind of recall of

VISUALIZING THE PROCESS - A Graph-Based Approach to Enhancing System-User Knowledge Sharing

125

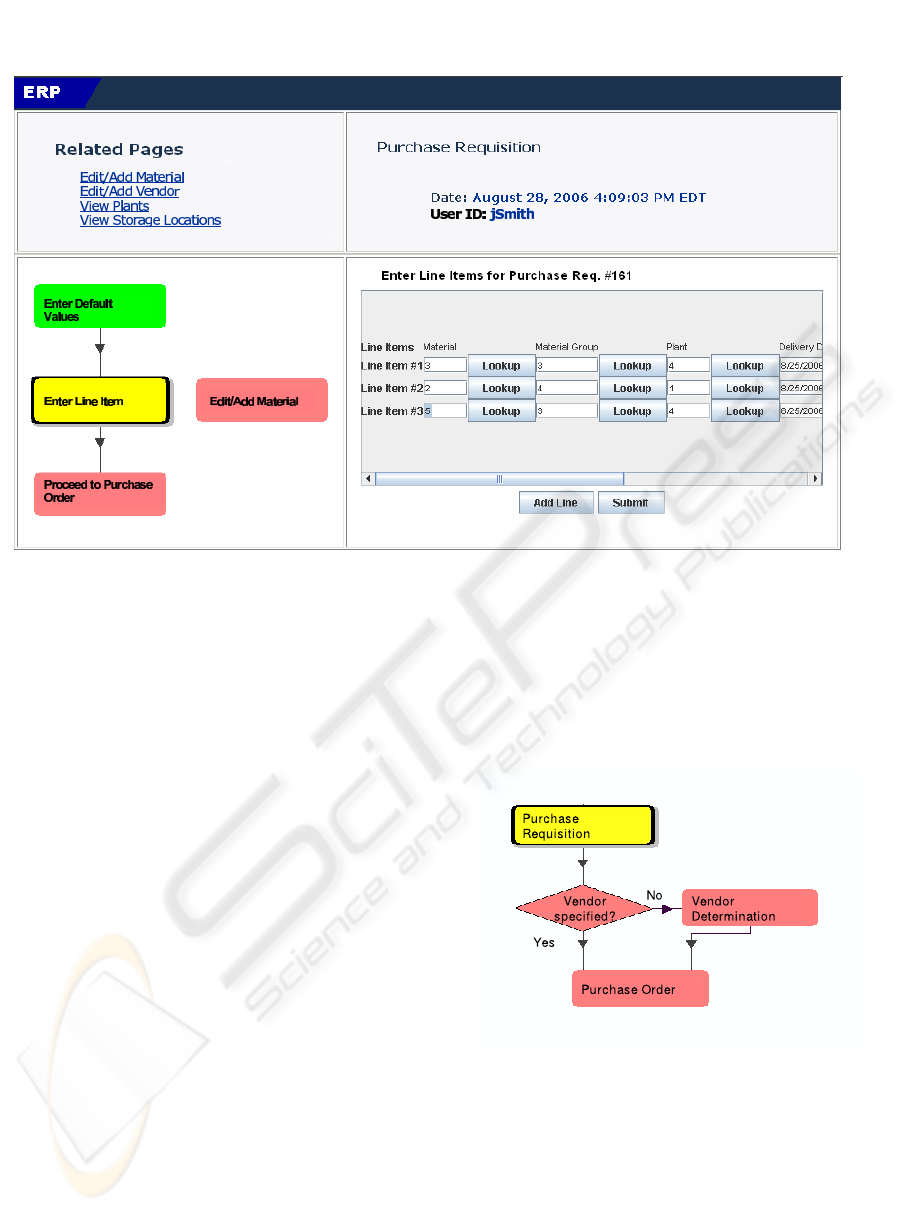

Figure 1: This screen shot of part of the Purchase Requisition transaction shows the set of related links and the process graph

on the left side and the purchase requisition form on the right side. The form, which consists of purchase requisition items,

must be ﬁlled in by the user. The step in the graph corresponding to the currently displayed part of the process, entitled Enter

Line Item, is shown in yellow and outlined with a black border. The already completed ﬁrst step of the process appears in

green. The color red designates the steps that have not yet been started. Whenever the user is entering data to the Material

ﬁeld, the Edit/Add Material. step is displayed. The Related Pages window provides access to the most commonly co-occurring

tasks.

previously completed steps, the system logs the

interaction data associated with a particular trans-

action. Permitting the review of previously en-

tered data that is not being altered can always be

allowed, but careful consideration must be given

to determining if any change to a previously com-

pleted step should be allowed and propagated for-

ward.

The steps in a graph can be shown or hidden as

needed for purposes of clarity. For example, the graph

in Figure 1 shows the Add/Edit Material step only

when the cursor is positioned within a Material ﬁeld

in the form on the right hand side of the screen. This

is useful because adding or editing a material is not a

required step but may sometimes be necessary. While

the user is in the process of entering the material, the

step is displayed to remind him that if he needs to add

a new material to the master in order for it to be listed

in the purchase requisition, this can be accomplished

by launching the interface for that step without having

to exit from the purchase requisition process.

The process graphs for the entire system form a hi-

erarchy, where some graphs are expansions of a step

in another process. This is illustrated in Figures 2 and

Figure 2: Purchase Order graph showing Purchase Requisi-

tion process as a component step.

1: the Purchase Order graph depicted in Figure 2 con-

tains the Purchase Requisition step. When that step

is opened, the graph from Figure 1 shows the Pur-

chase Requisition process expanded into its compo-

nent steps. Note that when the interface for the com-

ponent step is invoked, both screens are displayed and

are accessible to the user from different windows so

ICEIS 2007 - International Conference on Enterprise Information Systems

126

that they can be reviewed concurrently. To visualize

the hierarchical relationship of the tasks depicted by

the graphs, each screen is annotated with a title that

corresponds to the one for the step.

4.2 Related Tasks Links

To allow for quick navigation to the tasks that are

most closely related to the current activity and may

be necessary for its successful completion, we have

added a Related Pages window with a set of direct

links to those tasks (see Figure 1). Clicking on such

a link causes the interface for the related task to ap-

pear in another window, which is displayed simul-

taneously with the current task. In traditional ERP

systems, related tasks are usually available via menu

items. Given the generic titles of these menus, how-

ever, users may be unaware of the existence of these

tasks or unsure of whether or not a particular task is

appropriate for use in a given situation.

Displaying relevant related links directly on the

screen alleviates these concerns by guaranteeing that

the user is aware of them and that they are relevant

to the current task. This should promote greater efﬁ-

ciency in the use of the interface.

5 INITIAL EVALUATION

We have conducted a preliminary evaluation of the

process graph component of our prototype implemen-

tation. The purpose of this evaluation was to conﬁrm

the full functionality of this component and get initial

feedback on differences in the user experience when

the component was present versus when it was not.

For this purpose, we prepared two versions of the pro-

totype for creating a purchase requisition. Both ver-

sions included the same interface for data entry and

implemented three tasks: Add Vendor, Add Material,

and Create Purchase Requisition. Both versions al-

lowed navigation to a task interface via a selection

box of available options on the initial page. The dif-

ference between the two versions was that only one

included the process graph. The set of related links

was not included in either version.

Four people participated in this evaluation. Two

of them used the version of the interface that included

the process graph, and the other two used the in-

terface without it. All users were given a detailed,

version-speciﬁc document describing how the inter-

face should be used to create a purchase requisition.

All users were able to complete their tasks, and those

who were given the version of the interface with the

graph were observed using it to navigate to the related

processes. Overall, the four users had positive ex-

periences with the interfaces. While no deﬁnite con-

clusions can be drawn from this limited evaluation, it

provides preliminary feedback that will be helpful in

designing an experimental laboratory study.

6 RELATED WORK

Several authors have identiﬁed the need for busi-

ness process visualizations from the perspective of

improving process understanding. Sch

onhage et al.

(2000) demonstrate the importance and usefulness of

such visualizations and compare the characteristics of

2D and 3D visualizations in a real business context.

Turetken and Schuff (2002) evaluate the effects of

varying and integrating process representation levels

on the ability of data ﬂow diagrams to communicate

process characteristics to business users. Neither one

of these studies suggests a direct link between visual-

ization and usability support.

Others have discussed the importance of process

understanding in the context of usability. Lieber-

man and Wagner (2003) present the idea of an “E-

Commerce Debugging Tool” with which consumers

can evaluate the history of actions that they have taken

during an e-commerce transaction to resolve their er-

rors. They identify a visualization of the process as a

necessary component of the system but do not present

a prototype demonstrating the idea. Kobti and Sun-

daravadanam (2006) recognize the importance of pro-

viding process support for the users of e-commerce

systems. They stress the importance of separating

representations of business processes (expressed with

UML Activity Diagrams and WS-CDL) from the user

interface representation, as advocated by Schmid and

Rossi (2004). Our approach goes one step further by

explicitly representing business processes graphically

within the enterprise system context.

It is important to recognize that a great deal of at-

tention has been paid to various systems built to sup-

port cooperative work (such as research presented at

the ACM CSCW conference). This research, how-

ever, typically focuses on supporting collaboration

between humans; it pays little if any attention to

providing support for users who are interacting with

complex system processes, even in those cases where

it refers to business processes, as in (Haake and Wang,

1997).

Finally, we want to recognize the connection be-

tween our work and research on workﬂow manage-

ment and analysis presented in (Basu and Blanning,

2000). That stream of research provides an excellent

foundation for the modeling of processes and the for-

VISUALIZING THE PROCESS - A Graph-Based Approach to Enhancing System-User Knowledge Sharing

127

malization of their internal representation, but it has

not, thus far, been linked to system usability.

7 CONCLUSIONS AND FUTURE

WORK

Our ﬁeld study with users of ERP systems conﬁrmed

that users ranging from novice to expert could beneﬁt

from design methods that support, assist, and inform

them in their interactions with these system. By ap-

plying a collaborative approach to the design of the

interface, we have sought to address the major short-

coming identiﬁed through our ﬁeld study: namely,

the lack of communication from the system to its

users about the data and processes required to com-

plete their tasks and how the different processes in-

teract. Our solution is twofold: (1) providing a di-

rected process graph that informs the user about tasks

required for completion, the user’s progress through

these tasks, and how these tasks are related to other

processes in the system, and (2) providing direct ac-

cess to relevant tasks the user may need for complet-

ing a process.

In addition to the potential beneﬁts of increased

efﬁciency and effectiveness resulting from improved

interaction with the system, the type of information

sharing we have implemented also has implications

for more effective training. For new users, they will

be led through the steps required to complete a pro-

cess and given visual cues concerning their progress.

Experienced users will also beneﬁt, as the current lack

of transparency in existing systems often hinders their

understanding of complex processes involving multi-

ple users. Our process graphs provide these users with

the same types of information they hitherto recorded

in their cheat-sheets.

We are planning on conducting user studies to

evaluate the usability of an interface that includes a

process graph and links to related tasks versus that of

an interface that does not include these components.

While our focus here is on the ERP domain, the pro-

posed approach is equally well-suited for application

to any large-scale system requiring the user’s involve-

ment in complex processes. Future research will be

aimed at extending our approach to other such do-

mains and measuring the impact on user performance

and system usability.

ACKNOWLEDGEMENTS

We gratefully acknowledge the ﬁnancial support of

Bentley College, which provided a grant to fund this

work, and the students who were involved in the im-

plementation of the prototype.

REFERENCES

Babaian, T., Grosz, B. J., and Shieber, S. M. (2002). A

writer’s collaborative assistant. In Proceedings of In-

telligent User Interfaces Conference (IUI-02), pages

7–14. ACM Press.

Basu, A. and Blanning, R. (2000). A formal approach to

workﬂow analysis. Information Systems Research,

11(1):17–36.

Bratman, M. E. (1992). Shared cooperative activity. Philo-

sophical Review, 101(2):327–341.

Gilbert, A. (2003). Business apps get bad marks in us-

ability. CNET News.com, http://news.com.com/2100-

1017-980648.html (current 9/7/2006).

Grosz, B. G. (2005). Beyond mice and menus. In Proceed-

ings of the American Philosophical Society, pages

529–523.

Haake, J. M. and Wang, W. (1997). Flexible support for

business processes: extending cooperative hyperme-

dia with process support. In GROUP ’97: Proceed-

ings of the international ACM SIGGROUP conference

on Supporting group work, pages 341–350, New York,

NY, USA. ACM Press.

Kobti, Z. and Sundaravadanam, M. (2006). An enhanced

conceptual framework to better handle business rules

in process oriented applications. In Proceedings of

ICWE’06, pages 273–280.

Lieberman, H. and Wagner, E. (2003). End-user debugging

for e-commerce. In Proceedings of Inteligent User

Interfaces Conference (IUI’03), pages 257–259, New

York, NY, USA. ACM Press.

Rich, C., Sidner, C. L., and Lesh, N. (2001). Collagen:

applying collaborative discourse theory to human-

computer interaction. AI Magazine, 22(4):15–25.

Schmid, H. A. and Rossi, G. (2004). Modeling and design-

ing processes in e-commerce applications. Internet

Computing, IEEE, 8(1):19–27.

Shieber, S. (1996). A call for collaborative interfaces. ACM

Computing Surveys, 28A (electronic).

Topi, H., Lucas, W., and Babaian, T. (2005). Identifying

usability issues with an ERP implementation. In Pro-

ceedings of the International Conference on Enter-

prise Information Systems (ICEIS-2005), pages 128–

133.

Topi, H., Lucas, W., and Babaian, T. (2006). Using informal

notes for sharing corporate technology know-how. Eu-

ropean Journal of Information Systems, 15(5):486–

499.

ICEIS 2007 - International Conference on Enterprise Information Systems

128
