MINING THE WEB FOR LEARNING THE ONTOLOGY

Bassam M. Aoun and Marie Khair

Department of Computer Sciences, Notre Dame University, Louaize, Lebanon

Keywords: Semantic Web, Ontology, Web Mining, Text Mining, Apriori Algorithm.

Abstract: The Semantic Web is a network of information linked up in such a way as to be easily processed by

machines, on a global scale. To reach semantic web, current web resources should be automatically

translated into semantic web resources. This is usually performed through semantic web mining, which aims

at combining the two fast-developing research areas, the Semantic Web and Web Mining. A major step to

be performed is the ontology-learning phase, where rules are mined from unstructured text and used later on

to fill the ontology. Making sure that all rules are found and no additional and inaccurate rules are inserted,

remains a critical issue since it constitutes the basis for building the semantic web. The mostly used

algorithm for this task is the Apriori algorithm, which is inherited from classical data mining. However, due

to the nature of the semantic web, some important rules can be dropped. This paper presents an enhanced

version of the Apriori algorithm, En_Apriori, which uses the Apriori algorithm in combination with the

maximal association and the X2 test to generate association rules from web/textual documents. This

provides a major refinement to the classical ontology learning approach.

1 INTRODUCTION

Mining association rules is an important task in data

mining, which aims at extracting potential

relationships among data items in databases. The

main idea was proposed first by (Agrawal et Al.,

1993), shortly after that it was known by the

“Apriori algorithm” (Agrawal et Al., 1994), which is

an influential algorithm for mining frequent itemsets

for Boolean association rules. Usually most data

mining algorithms are based on the Apriori

algorithm where association rules are mined based

on two criteria: support and confidence where the

support of an association pattern is the percentage of

task-relevant data transactions for which the pattern

is true and Confidence is defined as the measure of

certainty associated with each discovered pattern.

In this paper we will introduce an enhancement

to the Apriori algorithm “En_Apriori” algorithm

which is implemented by introducing and integrating

the Maximal Association Rule Algorithm and the

Chi-squared Test method with the Apriori algorithm.

This resulted that the discovery of the association

rules is more accurate and refined, in such a way that

no faulty rules will be discovered and introduced

into the ontology, also so that no rules would be

omitted by using the classical Apriori algorithm. At

the same time, the additional time needed to

implement these algorithms can be considered

negligible in comparison with the benefits obtained.

This paper is organized as follows: we start by

giving an overview of the semantic web and data

mining technologies; we then introduce the new and

enhanced Apriori Algorithm, En_Apriori, by

presenting previous and related work along with a

step-by-step explanation of the proposed algorithm

and a discussion of the output of the implementation

of our method and a conclusion.

2 SEMANTIC WEB MINING

The idea behind the semantic web is to make the

web as intelligent as possible. Therefore, the

Semantic Web is about two things: first it is about

common formats for interchange of data, where on

the original Web we had only interchange of

documents. Second, it is about language for

recording how the data relates to real world objects.

Therefore, the Semantic Web provides a common

framework that allows data to be shared and reused

across applications, enterprises, and community

boundaries. It is based on the (RDF) Resource

Description Framework, which integrates a variety

189

M. Aoun B. and Khair M. (2007).

MINING THE WEB FOR LEARNING THE ONTOLOGY.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 189-192

DOI: 10.5220/0001348101890192

 SciTePress

of applications using XML for syntax and URIs

(Uniform Resource Identifier) for naming. At the

heart of all semantic web applications is the use of

ontologies, which describe entities and relationships

among entities. The concept of metadata has evolved

over the years starting from data dictionaries to

database schemas and now to ontologies.

Data mining aims at finding patterns and subtle

relationships in data and discovering rules that allow

the prediction of future results by the use of

automatic or semi-automatic processes. It is an

information extraction activity, whose goal is to

discover hidden facts contained in databases, using a

combination of machine learning, statistical analysis,

modelling techniques and database technology.

Mining the data on the web, however, is one of the

major challenges faced by the data management and

mining community, as well as those working on web

information management and machine learning. The

characteristic feature of Web Mining is the use of

Data Mining techniques to elaborate on content,

structure, and usage of Web resources.

In the Semantic Web, content and structure are

strongly inter-wined. Therefore the distinction

between structure and content mining vanishes. The

mining algorithms can be transformed in order to

deal with RDF or ontology-based data. Mining the

usage can be enhanced further, if the semantics are

contained explicitly in the pages by referring to

concepts of ontologies.

3 RELATED WORK

We will firstly review the formal model of

association rule as was introduced by Agrawal

(Agrawal et Al., 93). Formally association rules

mining can be stated as follows:

• Let I= {i

, i

, … i

} be a set of items

• Let D, be a set of transactions, where each

transaction T is a set of items satisfying T

⊆ I

• Each transaction is assigned an identifier, called

TID

• Let X be a set of items, a transaction T is said to

contain X if and only if X

⊆ T.

• An association rule is an implication of the form

⇒ Y.

While association rules provide means to

discover many interesting associations, they fail to

discover others, no less interesting associations that

are also hidden in the data. While this may not be

very dangerous in classical mining procedure this

seems to be a serious problem in semantic web

mining since this will form the basis of the ontology

that will form the semantic web. However maximal

association rules are not designed to replace regular

association rules, but rather to allow the discovery of

the concepts, which will be included in the ontology

and the relations that bind them together. For this

reason, we propose in this paper enhancements to

the algorithm proposed above. These enhancements

will allow the discovery of new association rules to

complement them (Amihood et Al., 05). Maximal

associations was proposed to allow the discovery of

associations pertaining to items that most often do

not appear alone, but rather together with closely

related items, and hence associations relevant only

to these items tend to obtain low confidence in the

classical algorithms, for example Apriori. In a

maximal association rule we are interested in

capturing the notion that whenever X appears alone

then Y also appears, with some confidence

(Amihood et Al., 05) and this is why it is crucial for

text/web mining for learning the ontology.

In addition, some redundant, unwanted or even

false strong association rules are likely to be

generated because the correlation of attributes is

ignored (Yong Xu et Al. 05). So the Chi-Squared

test should be introduced to association rules mining

since it could remove irrelevant itemsets and rules

that have high support but no dependency.

4 ENHANCED LEARNING

ALGORITHM: EN-APRIORI

The main learning algorithm that has been adopted

in our paper is the one proposed in (Maedche et Al.,

99)(Berendett et Al, 06). This learning algorithm is

effective up to a certain level, and since it is a

text/web mining approach then the techniques from

text mining and web mining have been combined to

achieve the learning of the ontology.

We will stress again that the learning of the

ontology step is basically the most important step,

since its results will allow the discovery of the

concepts, which will be included in the ontology and

the relations that bind them together. For this reason,

we propose in this paper enhancements to the

algorithm proposed above. These enhancements will

allow the discovery of new association rules that

have been missed by the original learning algorithm

and in addition it allows the pruning of some faulty

rules that appeared to be valid strong association

rules. Our approach is based on the idea of

introducing two new algorithms and integrating

ICSOFT 2007 - International Conference on Software and Data Technologies

190

them into the original algorithm; these two

algorithms are the “Maximal Association Rule”

algorithm and the “Chi-squared test” algorithm.

En_Apriori is the enhanced version of Apriori

adapted for text/Web mining with one principal goal

in mind: enhancing the ontology learning phase in

order to bring refinement to the overall process of

building the semantic web. After having applied

several text processing techniques over the desired

website, a set of semantically related entities is

discovered. Following the Apriori based approach;

these entities are used to generate the transaction

database which will be processed by the Apriori

algorithm in order to discover the association rules

that respect the minimum support and confidence

thresholds specified by the analyst.

4.1 En_Apriori Algorithm in Detail

After having generated the rules by using the Apriori

algorithm, we proceed by running the maximal

association rules algorithm (MAR). The first step of

the MAR algorithm is the generation of the “M-

frequent itemsets”; we proceed from there by

comparing the M-frequent itemsets with the frequent

itemsets generated by Apriori in order to remove the

common itemsets which will allow us to avoid the

generation of redundant rules and thus reduce the

computation time needed. The refined M-frequent

itemsets will then be processed in order to generate

the M-association rules that comply with both the

support and confidence thresholds specified.

After having generated the rules by means of

Apriori and MAR, we proceed by testing them with

the Chi-squared test, in order to evaluate the

correctness of the discovered rules. The Chi-squared

test will provide a way to measure the dependency

between any two entities pertaining to one

association rule. The purpose of this test is to

provide the analyst with a way to evaluate the rules

discovered before filling then into the ontology. The

Chi-squared test starts by calculating the Chi-

squared value of each association rule; this will

generate two sets of rules: the first set contains the

rules that have a chi-squared value higher than the

cut-off value and the second set contains the rules

that have a chi-squared value lower than the cut-off

value. We are more interested in the second set of

rules; these rules are presented to the analyst for

revision, if he finds that some of these rules are

relevant to the area of study and therefore should be

present in the ontology, then these rules will be

joined back with the first set of rules to constitute

together the set of refined association rules,

otherwise they will be dropped.

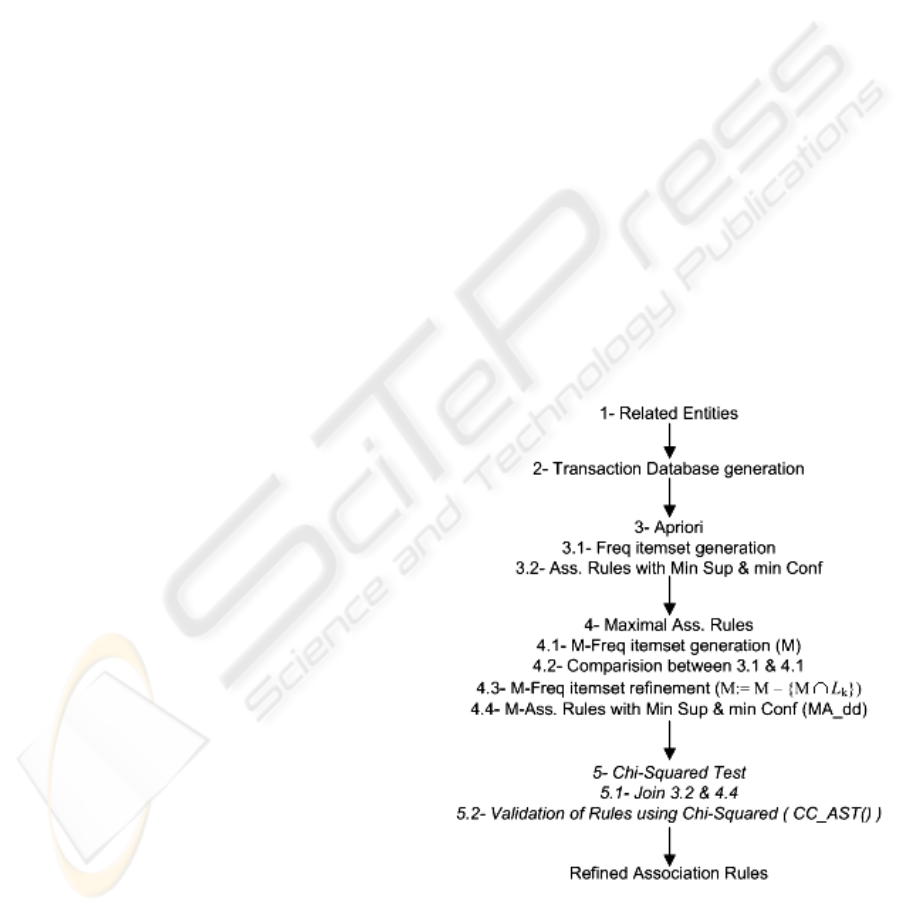

The algorithm in Figure 1 starts by running the

Apriori algorithm in order to generate the frequent

itemsets. Once these itemsets have been generated,

the function M-frequent-sets is called, it will

generate the sets of Maximal frequent itemsets;

afterwards we proceed by removing the common

itemsets, generated in both Apriori and maximal

associations, from the M-frequent sets discovered

and call the function MA_gen() to generate the

maximal association rules from the remaining M-

frequent itemsets. When association rules and

maximal association rules have been generated, we

test them using the chi-squared test: First, all rules

are tested by means of chi-squared and loaded in a

temporary array “Tmp”. Second, we load the rules

that failed in the Chi-squared test in another

temporary array called “NCC”. We proceed from

there by removing the set of rules NCC from Tmp in

order to keep the valid rules aside; we then present

to the analyst the suspicious rules “NCC” for

revision. The rules revised and accepted by the

analyst will be put in a temporary array, NCC’,

which will be joined in the next step with Tmp to

form the set of trusted association rules which will

be used for the ontology learning.

Figure 1: The main steps of the Apriori algorithm.

MINING THE WEB FOR LEARNING THE ONTOLOGY

191

4.2 Main Steps of the EN_Apriori

Algorithm

Let us proceed by giving some definitions of the

functions and variables introduced and used in the

algorithm in figure 1.

• MA_gen(): is the function that calls the MAR

procedure, this function takes as input the M-

frequent itemsets and outputs a set of rules that

meets the support and confidence thresholds

specified by the analyst.

• MA_dd: is the container that will hold the set of

M-association rules discovered by MA_gen().

• M: is the set of M-frequent itemsets

• CC_Test(): is the procedure that tests the

dependency between two entities of a given

association rule

• CC_AST(): is the function that calls the

CC_Test() procedure and then re-sorts the

itemsets according to the analyst’s decisions.

• Tmp, NCC, NCC’: are temporary arrays used to

perform various computations.

5 EXPERIMENTATION

In order to simulate our idea, an unstructured text

has been chosen. After analyzing this text,

semantically related pairs of words emerge along

with their frequencies of occurrence and weight. To

build our transaction database, we need to annotate

each entity first; the entities will be annotated in the

following form: “Entity 1 Æ I1”, “Entity 2 Æ I2”,

etc. Each sentence in the text is considered to be a

transaction “Ti”; we proceed by filling our

transaction database. After comparing the number of

rules discovered by both Apriori and En_Apriori, we

can clearly see that En_Apriori brings refinement to

the process of “learning the ontology”.

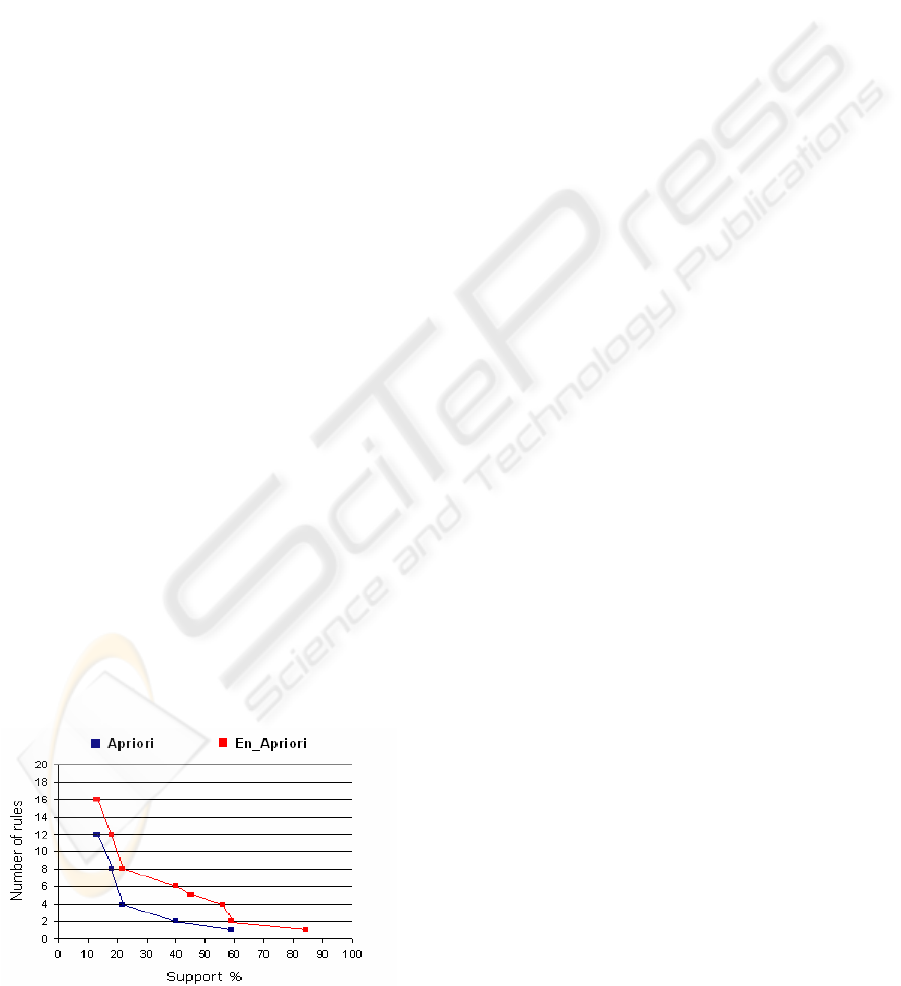

Figure 2: Number of rules for the different support.

Figure 2 shows the number of rules that are

discovered using Apriori and En_Apriori at various

support thresholds.

6 CONCLUSION

The main objective of our research is to obtain a set

of rules that is complete and minimal as much as

possible. For this purpose, we enhanced the Apriori

algorithm by introducing the maximal association

rules that may find some association rules missed by

the Apriori algorithm and we proceeded by

introducing the Chi-Square test to validate the

obtained itemset. Further refinements and

experimentations are still needed for the proposed

algorithm and for our future work we intend to

compare the obtained association rules with already

agreed standard rules to validate the results.

REFERENCES

Agrawal A., Srikant R., 1993. Fast algorithms for mining

association rules in large databases. In Proc. Of the

Intel. Conf. on Very Large databases.

Agrawal A., Tomasz Imielinski, Arun Swami, 1993.

Mining Association rules between sets of items in

large databases. In Proc. Of ACM SIGMOD

Conference on Management of Data, Wahington D.C.,

pp. 207-216.

Amihood Amir, Yonatn Auman, Ronen Feldman, Moshe

Fresko, 2005. Maximal association Rules: A tool for

mining Associations in text, Journal of Intelligent

information systems, 25:3, 333-345.

Bettina Berendt, Andreas Hotho, Gerd Stumme, 2006.

Semantic web mining-state of the art and future

directions, Journal of Web Semantics.

Maedche, A., Staab, S., 1999. Discovering Conceptual

Relations from Text, Institute AIFB, Karlsruhe

University Germany.

Yong Xu, Sen-Xin Zhou, Jin-Hua Gong. 2005. Mining

Association Rules With New Measure Criteria. In

Proceedings of the Fourth International Conference

on Machine Learning and Cybernetic.

ICSOFT 2007 - International Conference on Software and Data Technologies

192
