XMODEL-BASED TESTING OF XSLT APPLICATIONS

Antonia Bertolino, Jinghua Gao, Eda Marchetti and Andrea Polini

Istituto di Scienza e Tecnologie della Informazione “Alessandro Faedo”

Consiglio Nazionale delle Ricerche

Via Moruzzi, 1 – 56124 Pisa, Italy

Keywords:

Automatic Tests Generation, Category Partition, XSLT Testing.

Abstract:

Model-based testing is nowadays the emerging paradigm for software testing in many domains. In the Web

arena XML Schema is becoming the technology of reference to describe data structure and applications input

domains. The proposed tool (TAXI - Testing by Automatically generated XML Instances) exploits such a

model to automatically derive correct XML instances applying the well-known Category-partition method-

ology. In this paper we introduce an improvement of TAXI to test XSLT Stylesheets. Indeed, with XSLT

Stylesheets increasingly getting larger and more complex, their correctness becomes a crucial factor for soft-

ware quality and hence we believe that they need careful validation. Two different case studies illustrate the

approach to the validation of XML to XML and XML to XHTML transformations.

1 INTRODUCTION

Generally speaking a model is a schematic representa-

tion of an idea or information including all the charac-

teristics and properties useful for a speciﬁc purpose in

a precise context. Considering in particular the test-

ing phase, models are necessary and extremely im-

portant. However the weakest point of models is that

many times models exist only in the human minds or

rely on domain knowledge of people involved in the

diverse activities.

Model based testing is nowadays one of the

widespread techniques adopted for validating and ver-

ifying applications properties. Even if one of the main

arguments against model-based testing is the effort

necessary for constructing or maintaining the mod-

els and/or annotating them properly for making easier

the testing phase. Many industrial realities relies on

this technique for guiding, managing and executing

the testing phase.

In the context of web applications a funda-

mental step for the widespread adoption of mod-

els has been the adoption of standard formats and

open data speciﬁcations, and most notably the re-

cent introduction of the eXtensible Markup Lan-

guage (XML) (W3CXML, 1996). The XML Schema

(W3CXMLSchema, 1998) has then spread up as the

notation for formally describing what constitutes an

agreed valid XML document within a certain applica-

tion domain.

Thus XML Schemas represent explicit and for-

mal models of data in which all the type constraints

and possible data combinations are represented. From

this descends naturally the possibility of introducing a

Model Based Testing over XML, i.e., readapting com-

monly adopted black-box testing techniques (for in-

stance partition testing approaches (Bertolino et al.,

2005)), by exploiting the XML Schema characteris-

tics. Translated in terms of testing an XML Schema

means having a clear representation of the input (out-

put) domain which make easier the construction of

test values and the partitioning of them.

Usually the identiﬁcation of the proper input par-

titions strongly depends on the skill of the tester and

the background knowledge s/he has about the values

domain. In XModel-Based Testing the XML Schema

provides an automatic subdivision of the input do-

main into subdomains, according to the basic princi-

ple of partition testing. (la Riva et al., 2006). From

the diverse subdomains identiﬁed, the application of

partition testing amounts to the systematic derivation

of a set of XML instances. Systematic generation of

282

Bertolino A., Gao J., Marchetti E. and Polini A. (2007).

XMODEL-BASED TESTING OF XSLT APPLICATIONS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Web Interfaces and Applications, pages 282-288

DOI: 10.5220/0001284202820288

 SciTePress

XML instances, differently from a random based ap-

proach, clearly has important consequences on the ef-

fectiveness of the generated test suite permitting to

derive meaningful statistics on the kind of instances

generated, and then on the covered features.

In this perspective, a proof-of-concept tool, called

TAXI (Testing by Automatically generated XML In-

stances) for the systematic generation of XML in-

stances (Bertolino et al., 2006) according to the XML-

based Partition Testing (XPT) method has been previ-

ously developed. It takes in input an XML Schema

and automatically generates a set of XML instances,

by implementing several criteria and heuristics, so

that it can be used as test data for the black box test-

ing of a component, whose expected input conforms

to the taken schema.

The contribution of this paper is exploit the poten-

tial of the tool TAXI for testing the XSLT Transforma-

tion tool. If from one said there are explicit models of

the data domain, i.e. XML Schemas, correspondingly

there is the more increasing needs of mechanisms for

transforming one format into another. Technologies

developed for such purpose require the deﬁnition of

documents called Stylesheets. These deﬁne how data

described within a speciﬁc input document should be

transformed and formatted into the target document.

With reference to the context of Web applications cer-

tainly the most successful speciﬁcation for such pur-

pose is that of the eXtensible Stylesheet Language

Transformation (XSLT) (W3CXSLT, 1999).

However writing down explicitly the rules that

allow speciﬁc transformations sometimes is a quite

complex work especially when the transformation

output should adhere to precise XML format, such

as Schemas. In such cases the possibility of making

errors in the stylesheet could be considerable and in

parallel the difﬁculty in identifying them could have

a hight increase. As a consequence, due to the impor-

tance and the criticality of these documents, the ne-

cessity of methods for automatically testing the cor-

rectness of the stylesheets and quickly identifying

their source of errors arise.

This paper wants to face exactly this last need, and

provides, by means of TAXI, a testing framework for

automatically and systematically generate test cases

for verifying the XSLT Stylesheets correctness. We

therefore assume that the the input and the output of

the XSLT Stylesheets are and have to be, respectively,

conform to given XML Schemas. Thus we use TAXI,

for automatically generate the set of test cases to be

run with the tested XSLT Stylesheet, and with and a

XML Validatior for automatically check the correct-

ness of the transformations.

In the rest of the paper we present an overview of

the related works (Sec. 2) and a brief description of

the TAXI tool (Sec. 3). Then we describe the appli-

cation use of TAXI for testing the XSLT Transforma-

tion Processor (Sec. 4) and the application of the in-

tegrated testing framework to some case studies (Sec.

5). Conclusions are brieﬂy drawn in (Sec. 6).

2 RELATED WORKS

Nowaday XSLT is used widely in web, document

composition, electronic and print publishing applica-

tions. Increasingly, in some cases, XSLT Stylesheet

becomes the core of document creation and process-

ing pipelines. XSLT Stylesheets are getting larger

and more complex, and containing the information of

business logic. The correctness of XSLT Stylesheets

then becomes an extremely important factor that can

affect the software quality.

There are a lot of tools that already exist for

XSLT testing. Most of them do unit testing to

XSLT Stylesheets. Such as UTF-X (Radajewski and

Daniel, 2006), which is an extension to the JUnit

Java unit testing framework and provides function-

ality for unit testing XSLT stylesheets and strongly

supports the test-ﬁrst-design principle; tennison-tests

(tennison, 2006), which allows user to write unit-tests

in XML, and exercising XSLT from Ant; and Al-

ster (Alster, 2006), which is an XSLT unit testing

framework, allows the creation and “execution” of

XSLT Stylesheets containing specially marked “test

templates”.

The main weakness of these tools is in the selec-

tion of test cases, which is mainly based on manual

setting. Since XSLT becomes more and more com-

plex, the costs of test cases creation is rising rapidly.

3 TAXI

In this section we brieﬂy describe the XPT methodol-

ogy. For space limitations, we assume a basic knowl-

edge of XML and XML Schema, and in the text we

will refer to the elements of XML Schema using this

format

The XPT methodology is largely inspired to the

well-known Category Partition (CP) technique (Os-

trand and Balcer, 1988), which provides a stepwise in-

tuitive approach to identify the relevant input param-

eters and environment conditions and combine their

signiﬁcant values into an effective test suite. While

the original CP technique relied on a speciﬁcation ex-

pressed in natural or semiformal language, the XML

Schema today provides an accurate representation of

XMODEL-BASED TESTING OF XSLT APPLICATIONS

283

the input domain and lends itself quite naturally to the

automated application of CP.

The XPT methodology consists of four different

components (see Fig. 1):

• XML Schema Analyzer (XSA), which prepro-

cesses the XML Schema applying some ini-

tial transformations (see details below), and suc-

cessively manages the ﬁnal instance generation

phase.

• Test Strategy Selector (TSS), which implements

diverse test strategies useful for selecting the el-

ements of the XML Schema to be used for in-

stance generation. This allows the distribution of

ﬁnal instances covering the most critical parts of

a Schema.

• Values Storage (VS), which is in charge of stor-

ing the values used for instances generation and

managing a common database;

• User Interface (UI), which implements and con-

trols the interaction between the user and the tool.

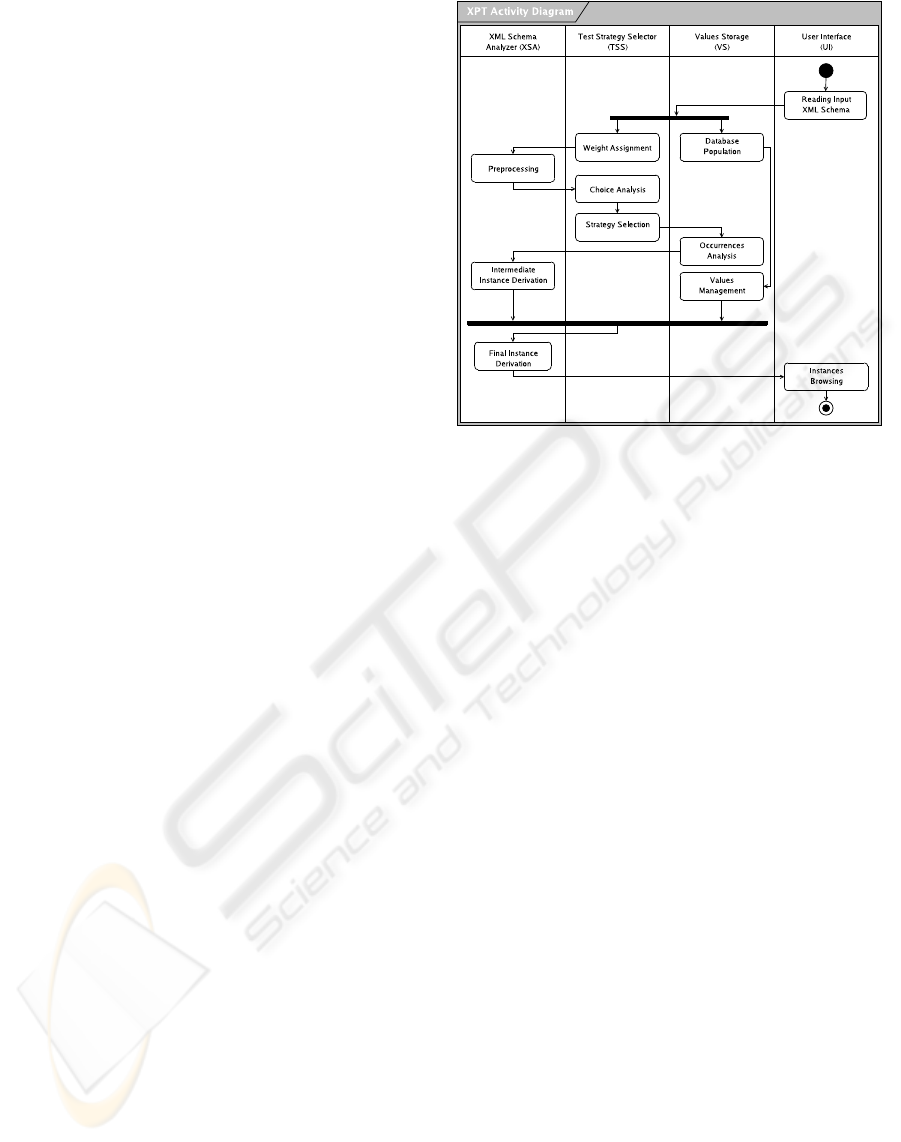

These four components work in agreement, ac-

cording to the scheme shown in Figure 1. Following

this schema, in the rest of this section we brieﬂy de-

scribe the main processing steps of TAXI.

Input XML Schema. The UI ﬁrst reads the in-

put XML Schema and then starts two further activi-

ties that proceed in parallel: Weight Assignment and

Database Population in charge of the TSS and VS

components, respectively.

Weight Assignment. The idea underneath the former

is that the children of the same

choice

might not have

the same importance with regard to instances deriva-

tion, and therefore the most important ones from the

tester’s point of view should be privileged. TAXI ex-

plicitly requires the user to annotate each child of a

choice

element with a value (called the weight), be-

longing to the [0,1] interval, representing its relative

“importance” with respect to the other children of the

same

choice

(clearly the sum of the weights associ-

ated to all the children of the same

choice

element

must be equal to 1). The default assignment is that all

children have the same weight.

Database Population. It provides the tester with the

possibility of memorizing set of interesting values for

each of the element considered in the XML Schema.

In particular the activity provides three different op-

tions: i) specify the source (for instance a URL) from

which the data can be downloaded or the paths to the

ﬁles containing speciﬁc values; ii) leave the user with

the possibility of manually inserting the useful val-

ues; iii) recover the values directly from the Schema

in those cases a list is provided (for instance by use of

the

enumeration

restriction).

Figure 1: XPT main activities.

Preprocessing. The XPT methodology proceeds then

with a Preprocessing step in which the other XML

Schema constructs different from

choice

, like

all

simpleType

ComplexType

and so on, and the shared

elements, like

group

attributeGroup

ref

, and

type

, are analyzed and manipulated. Considering,

for instance, the

all

elements, one of the possible

sequences of their children elements is randomly cho-

sen and used for generating instances; considering the

group

elements, their body is copied in each element

which refers to them.

Choice Analysis. In case of several

choice

s within

one schema, as many subschemas as the number

of the possible combinations of the children of the

choice

nodes are produced. Once this operation is

completed, the set of the partial subtree weights is

normalized so that the sum of the subtree weights over

the entire set of substructure is equal to 1.

Strategy Selection. The subtree weights are then

used in the Strategy Selection activity. Speciﬁcally

three different test strategies are implemented:

• Applying TAXI with a ﬁxed number of instances,

that could be in practice the case in which a ﬁnite

set of test cases must be derived.

• Applying TAXI with a ﬁxed functional coverage,

when a certain percentage of functional test cov-

erage (e.g. 80%) is established as an exit criterion

for instances generation (and then consequently

for testing).

• Applying TAXI with a ﬁxed functional coverage

and number of instances: the above mentioned

strategies are combined. XPT ﬁrst selects the

proper substructures useful for reaching a certain

WEBIST 2007 - International Conference on Web Information Systems and Technologies

284

percentage of functional coverage and then con-

siders the subtree weights of these selected sub-

schemas and normalizes them so that their sum is

still equal to 1.

Occurrences Analysis. The XPT methodology pro-

ceeds with the activity called Occurrences Analysis,

pertaining to the VS components, which analyzes the

occurrences declared for each element in the sub-

schema and, applying a boundary condition strategy,

derives the border values (minOccurrences and max-

Occurrences) to be considered for the ﬁnal instances

generation.

Intermediate Instance Derivation. The XSA com-

ponents then constructs a set of intermediate in-

stances structures, each one derived by the combina-

tions of the border elements occurrences. These are

roughly modiﬁed tree representations of the various

sub-schemas in which special tags and instructions

are introduced to make the ﬁnal instance derivation

easier.

Value Management. The latter step is done in par-

allel with the Value Management activity. Accord-

ing to the number of occurrences, established for each

element during the Intermediate Instance Derivation

phase, the VS component randomly retrieves from the

database to require the number of values. If the stored

values are not sufﬁcient, the Value Management activ-

ity interacts with the user, asking either to insert the

proper values or to start a random generation. Dur-

ing this activity, predeﬁned values available in the

Schema and various constraints (for instance

facets

)

are also considered.

Final Instance Derivation. According to the test

strategy selected and using the values provided by the

Value Management step, the Final Instance Deriva-

tion phase produces and stores the ﬁnal set of in-

stances, which then corresponds to the ﬁnal test suite,

in a suitable directory.

Test Instances Packaging and Browsing. This is the

last activity of the XPT methodology. It allows the

browsing and visualization of the generated instances

by user.

4 APPLYING XMODEL-BASED

TESTING

This section describes how XML Model based testing

can be applied to the veriﬁcation of Stylesheets deﬁn-

ing transformations over XML instances into another.

Speciﬁcally we focus on the XSLT Tranformation

Processors which are the interpreters of the language

that, taken in input the starting XML ﬁle, read the

stylesheet deﬁned using XSLT and apply the rules to

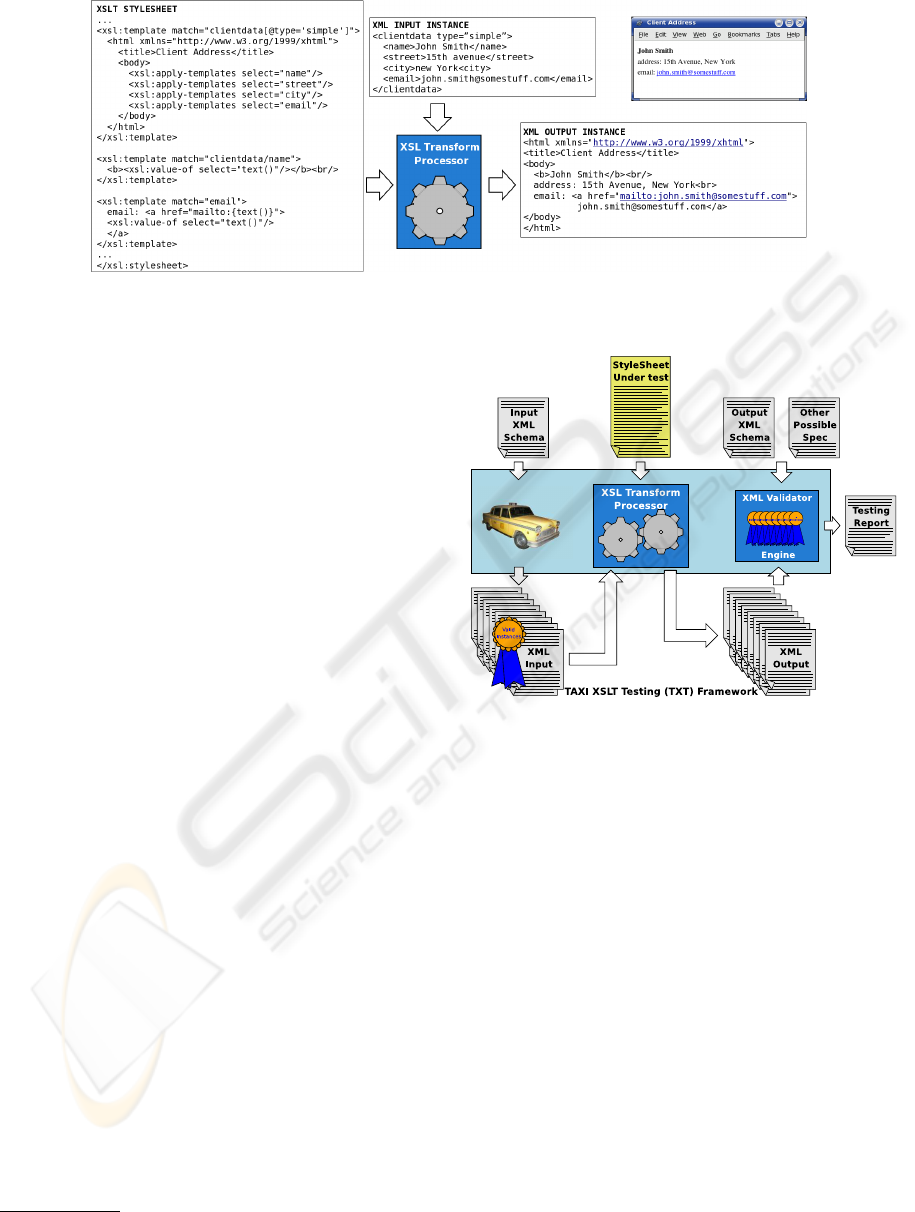

generate the target document. Figure 2 shows the pro-

cess of transforming one XML instance into another.

Many stylesheets have been deﬁned by developer

just for deriving HTML documents retrieving data

stored into XML documents.

Nevertheless this is not the case with other appli-

cation tools that use XML data formats to interoper-

ate. In such cases the document must strictly adhere

to an agreed format (XML Schema) and any mini-

mal divergence from the speciﬁed schema can affect

interoperability. The basic assumption in this con-

text is that the input and the output instances that are

shown in Figure 2 have to conform to the given XML

Schemas. Our insight is that the XModel-Based Test-

ing approach can be helpful here providing an effec-

tive way to test a deﬁned transformation.

Figure 3 provides an overview of how model

based testing can be applied in this setting to ver-

ify the correctness of a stylesheet. The basic idea

is to use the TAXI tool, which is introduced in Sec-

tion 3, to derive a testing framework (called “TAXI

XSLT Testing” - TXT) that permits, in a largely auto-

matic way, to verify the correctness of a transforma-

tion stylesheet.

First steps of the resulting process is the automatic

and systematic generation of a large number of in-

stances, derived by TAXI guaranteeing the confor-

mance to the XML Schema. In fact TAXI derives

instances with many different characteristics that per-

mits to test the speciﬁed transformation in many dif-

ferent contexts. Next step of the process foresees than

the transformation of each single instance into a target

document. At this point the assumption that the target

instances must conform to an XML Schema gives us a

model of the oracle that can be used to check the cor-

rectness of the instances generated by the stylesheet

transformation.

The XML based check carried on in the described

framework provides a necessary condition just of syn-

tactical nature for the correctness of the stylesheet.

This means that the stylesheet produces an instance

that will be judged correctly with respect to the XML

schema but however it could be different from the

intentions of developer. Nevertheless having a com-

pletely automatic testing process that use already de-

veloped models (such as XML Schema) largely aug-

ment the veriﬁcation power of stylesheet transforma-

tions. The veriﬁcation power of the main process

shown in Figure 3 could be easily augmented if the

ﬁnal check can use other mechanisms not only based

on the XML Schema conformance check. For in-

stance the developer could develop a speciﬁcation us-

ing a rule based language (e.g. Schematron (Schema-

XMODEL-BASED TESTING OF XSLT APPLICATIONS

285

Figure 2: An example of tranformation using an XSLT stylesheet.

tron, 2006)) that permit to specify more content re-

lated checks. At the same time in some cases the ﬁ-

nal check could be conducted not based on the XML

Schema but using a validator developed by someone

else. Next section will provide two different exam-

ples using different kind of check for the XML output

instances.

5 CASE STUDY

In this section we will show two case studies. One

case study is to test the XML to XML transforma-

tion. In this case both of these XML ﬁles must be

conformed to the speciﬁc reference XML schemas.

Another one is to test an XSLT stylesheet that trans-

forms from an XML ﬁle to an XHTML. The XML ﬁle

must conform to an XML schema, and the XHTML

must be well-formed.

5.1 Xml to Xml Transformation Testing

The ﬁrst case study considers a customer manage-

ment system requirement, which is the transformation

from XML into another XML using XSLT stylesheet.

The customer management system has two versions.

In old version, the data of customers are stored as

the structure that deﬁned by the XML schema (Fig

4 source XML schema

). The customer data are de-

ﬁned as the attribute of the element

customer

But in the new version of the management sys-

tem, the structure of customer information is changed

into the schema, which is shown in Fig 4 (target XML

schema). In the new structure

customer

has only one

attribute, which is

CustomerID

, other data are stored

as it’s child elements.

For space limitation we do not show the source

schemas, instead we create simpliﬁed versions of them

Figure 3: The XSLT Model-based testing framework.

An XSLT Stylesheet is created to transform all

customer records from the old structure to the new

one, which is shown in Fig 4 (XSLT stylesheet). Since

the XML schema deﬁnes only the structure of the ﬁle

the XML instances from the schema can have differ-

ent values, and structures. And that XSLT stylesheet

must transform all possible XML instances that can

be generated from the input XML schema properly.

That is why we use TAXI to test XSLT template, and

ensuring the correctness of the transformation.

Using TAXI to test the XML to XML transfor-

mation, all of the source XML schema, target XML

schema and XSLT stylesheet are required taking as

input. Then choosing “XSLT Testing” from the TAXI

interface. The testing is done on-the-ﬂy and auto-

matically. When an XML instance derived from the

source XML schema, TAXI then transforms it accord-

ing to the XSLT immediately. And the transformed

XML ﬁle (we call it target ﬁle) will be validated by

the target XML schema automatically. After that the

result of validation will be recorded into the test report

WEBIST 2007 - International Conference on Web Information Systems and Technologies

286

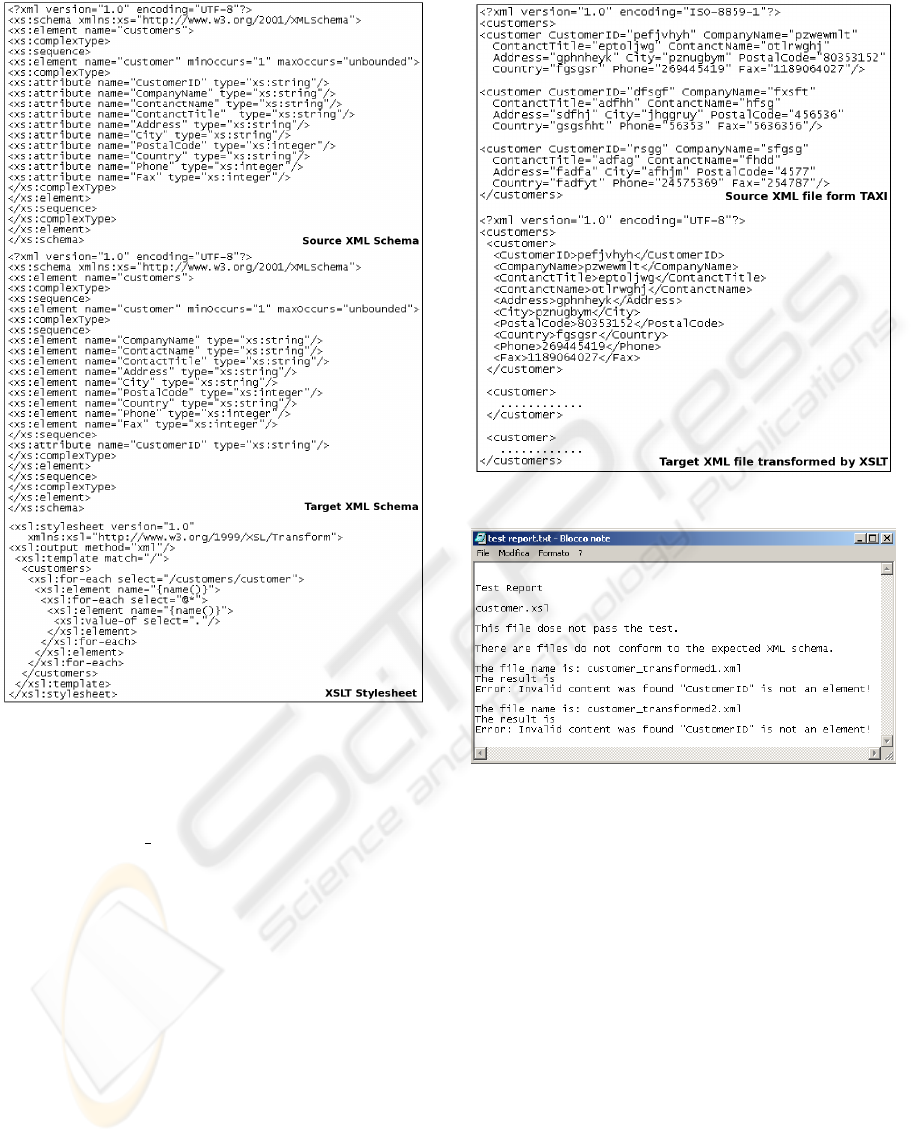

Figure 4: Case study1 - Input ﬁles.

ﬁle. Testing will not stop until the XML generation is

complete or user stop this process. User can ﬁnd the

test report, source XML ﬁles and the target XML ﬁles

in the folder TAXI

instances on disk C.

In the ﬁrst case study, there are two XML in-

stances that generated from the source XML schema,

and two target XML ﬁles, which transformed by

XSLT stylesheet. Due to space limitations, in Fig 5

only one source XML ﬁle and one target ﬁle are pre-

sented.

The test report that is shown in Fig 6 gives the

outcome of the testing. The result is “testing failed”.

Errors in the test report are derived from XML val-

idator, which point out the invalid places in the target

XML ﬁles. According the test report, we can easily to

discover that the fault is leading by the transformation

CustomerID

. XSLT should keep it as attribute, but

transform it as child element. So the target XML ﬁles

are not conform to the target XML schema. Accord-

ing to the analyse of the test report, the bug in XSLT

can be revealed easily.

Figure 5: Case study1 - Source and target XML ﬁles.

Figure 6: Case study1 - Test report.

5.2 Xml to Xhtml Transformation

Testing

In many domains the main application of XSLT

stylesheets is transforming XML to XHTML. The

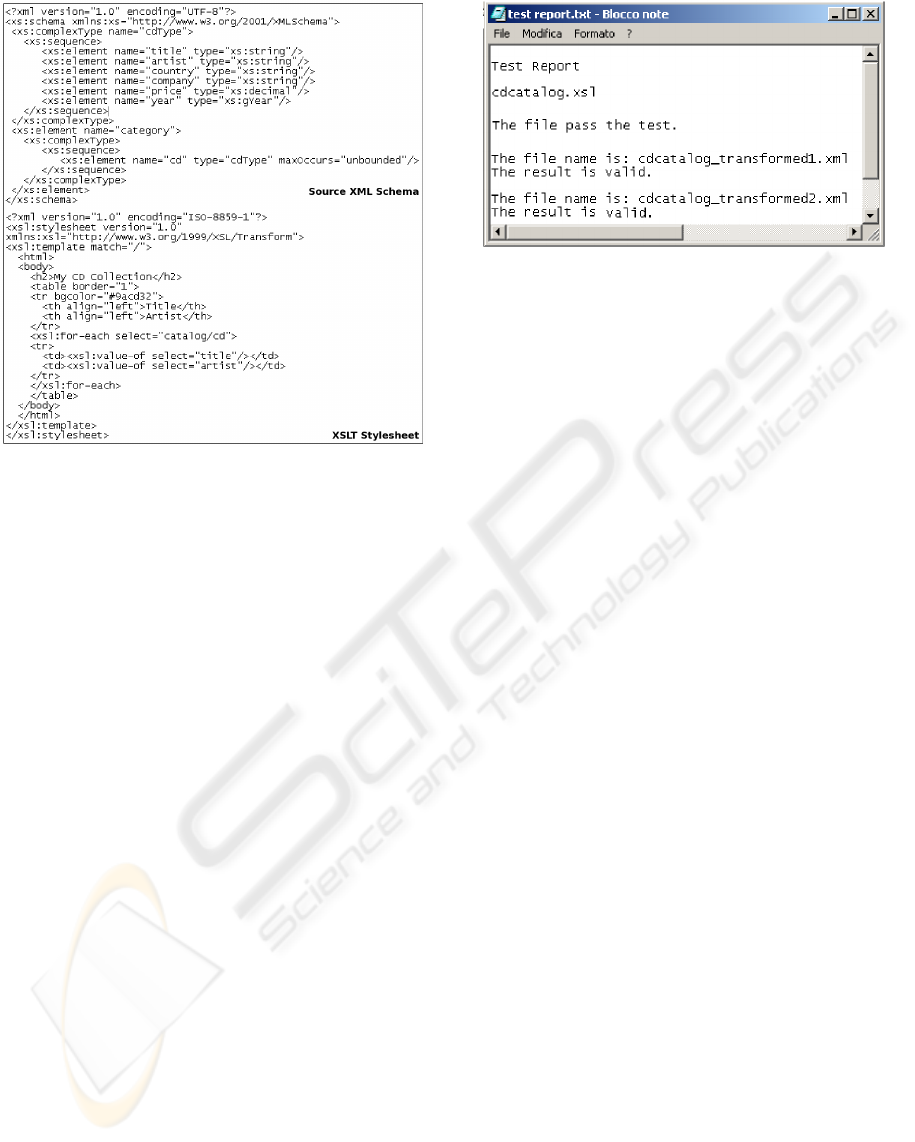

source XML schema is shown in Fig 7 (source XML

schema), which deﬁnes the data structure of CD cate-

gory. The information is shown by XML form, which

is very difﬁcult to be understood by people who is not

an expert of XML. The motivation of transformation

is giving those data a nice outlook and showing them

in the clear and neat form. The XSLT Stylesheet is

shown in Fig 7 (XSLT stylesheet).

Currently the testing of the transformation be-

tween XML and XHTML is different with the trans-

formation between XML and XML. The target XML

schema of XML to XHMTL is optional. If it is pro-

vided by user, the XHTML will validated by that

XMODEL-BASED TESTING OF XSLT APPLICATIONS

287

Figure 7: Case study2 - Input ﬁles.

schema. Otherwise, like in the case study, the tar-

get schema is omitted, the validation will use only the

speciﬁcation of XHTML to check if the XHTML is

well-formed. However that gives more ﬂexibility to

the testing.

The test report is shown in Fig 8, all transformed

XHTML ﬁles are pass the validation, so the XSLT

stylesheet pass the testing.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we presented an integrated testing envi-

ronment useful for validating the correctness of XSLT

Transformation processes. For this, according to the

emerging Model-based testing paradigm, we exploit

the TAXI tool, which uses the information provided

by the XML Schema for automatically deriving test

cases, which are here XML instances. TAXI has been

now integrated with an XML Validator, which veri-

ﬁes the correctness of the transformation against the

target XML Schema.

Of course the performance of the proposed test-

ing environment strictly relies on the use of XML

Schemas both for the source and the target XML ﬁles

involved in the transformation. These structures in-

crease considerably the interoperabiliy and efﬁciency

of the Web applications based on XML. Therefore our

claim is that the XML Schemas, considered as “mod-

els” of the input/output domain, can also be used for

automatic testing, and in our view these will repre-

Figure 8: Case study2 - Test report.

sent an interesting new ﬁeld in the model based test-

ing community. For this we introduced the concept of

XModel-Based testing, and showed how this applies

quite naturally to the validation of XSLT transforma-

tions.

REFERENCES

Alster (2006). Alster-XSLT Unit Testing Framework.

http://alster.sourceforge.net/.

Bertolino, A., Gao, J., Marchetti, E., and Polini, A. (2005).

Partition testing from xml schema. Technical report,

ISTI-CNR. Technical Report n. ISTI-2005-TR-45.

Bertolino, A., Gao, J., Marchetti, E., and Polini, A. (2006).

Systematic generation of xml instances to test com-

plex software applications. In Rapid Integration

in Software Engineering, (RISE 2006). to appear in

LNCS. Geneve, Switzerland.

la Riva, C. D., Garca-Fanjul, J., and Tuya, J. (2006). A

partition-based approach for xpath testing. Tahiti,

French Polynesia. IARIA, IEEE Computer Society.

Ostrand, T. and Balcer, M. (1988). The category-partition

method for specifying and generating functional tests.

Communications of ACM, 31(6).

Radajewski, J. and Daniel, A. (2006). Utf-x: Unit testing

framework - xslt. http://utf-x.sourceforge.net/.

Schematron (2006). Schematron.

http://www.schematron.com/.

tennison (2006). tennison. http://tennison-

tests.sourceforge.net/index.html.

W3CXML (1996). W3C XML speciﬁcation.

http://www.w3.org/XML/.

W3CXMLSchema (1998). W3C XMLSchema speciﬁca-

tion. http://www.w3.org/XML/Schema.

W3CXSLT (1999). XSL Transformations (XSLT).

http://www.w3.org/TR/xslt.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

288
