DYNAMIC FACIAL EXPRESSION UNDERSTANDING BASED ON
TEMPORAL MODELLING OF TRANSFERABLE BELIEF MODEL
Zakia Hammal
Laboratory of Images and Signals
46, Avenue Felix Viallet, Grenoble, France
K
eywords:
facial expression classification, dynamic modelling, transferable belief model, facial feature behavior.
Abstract:
In the present contribution a novel approach for dynamic facial expressions classification is presented and
discussed. The presented approach is based on the use of the Transferable Belief Model applied to static facial
expression classification studied in previous developments. The system is able to recognize pure facial expres-
sions, i.e., Joy, Surprise, Disgust and Neutral as well as their mixtures. Additionally, this approach is able to
deal with all facial feature configurations that does not correspond to any of the cited expression, i.e., Unknown
expressions. The major improvement of this former work consists in the introduction of the temporal evolution
of the facial feature behavior. Initially, the temporal information is introduced to improve the robustness of
the frame-by-frame classification by the correction of errors due to the automatic segmentation process. In
addition since a facial expression is the result of a dynamic and progressive combination of facial features
behavior, which is not always synchronous, a frame-by-frame classification is not sufficient. To overcome this
constraint, we propose the introduction of the temporal information inside the TBM fusion framework. The
recognition is accomplished by combining all facial feature behaviors between the beginning and the end of an
expression sequence independently to their chronological order. Then the final decision is taken on the whole
sequence and consequently, the recognition becomes more robust and accurate. Experimental results on the
Hammal
Caplier database demonstrate the improvement on the frame-by-frame classification and the ability
to recognize entire facial expression sequences.
1 INTRODUCTION
Developing automatic and accurate facial expression
recognition systems is a challenging issue due to their
applications in many fields like medicine, security or
human-machine interaction. In computer vision, sig-
nificant amount of research on facial expression clas-
sification have led to many systems based on differ-
ent approaches. They can be divided into three cate-
gories: optical flow analysis from facial actions (Ya-
coob and Davis, 1996), (Essa and Pentland, 1997),
model based techniques (Zhang et al., 1998), and fi-
nally, feature based methods (Pantic and Rothkrantz,
2000), (Tian et al., 2001). In our opinion, these ap-
proaches present two limitations. A first limitation is
that these methods perform a classification of the ex-
amined expression into one of the basic emotion cat-
egories proposed by Ekman and Friesen (Ekman and
Friesen, 1978). However, ”binary” and ”pure” facial
expressions are rarely found, i.e., generally speaking,
people show mixtures of facial expressions. A second
limitation is related to the recognition, which is only
based on static information without considering the
temporal behaviors. Indeed, Bassili (Bassili, 1978)
shows that facial expressions can be characterized us-
ing some points defined on the permanent facial fea-
tures and that the temporal evolution of these points
yields more accurate results than from single static
images. In this work we propose a synergetic combi-
nation of techniques, which are intended to overcome
some of the limitations of the existing approaches,
e.g., in our previous works (Hammal et al., 2005a)
we have proposed a system based on the Transferable
Belief Model that overcomes the first limitation. This
fusion framework allows to recognize mixtures of ex-
pression as well as an Unknown state which corre-
sponds to all the facial features configurations which
do not belong to the set of studied expressions (Joy,
Surprise, Disgust and Neutral).
To overcome the second limitation Zhang et al (Zhang
and Qiang, 2005) propose a system which takes into
account the temporal information but it does not ex-
93
Hammal Z. (2006).
DYNAMIC FACIAL EXPRESSION UNDERSTANDING BASED ON TEMPORAL MODELLING OF TRANSFERABLE BELIEF MODEL.
In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 93-100
DOI: 10.5220/0001377600930100
Copyright
c
 SciTePress

plicitly fuse the dynamic facial features behavior.
They only takes into account the information pro-
vided by the last frame in the classification process.
In this work we present an extension of our previ-
ous development with the introduction of the tempo-
ral information. This paper is articulated as follows.
In section 2 and 3, we present a brief description of
our previous system as well as the Transferable Belief
Model. In section 4 we propose a model of tempo-
ral analysis incorporated into the Transferable Belief
Model. In section 5 this model is used to overcome
errors due to the automatic facial feature segmenta-
tion process and consequently to improve the frame-
by-frame facial expression classification. Section 6
presents the fusion of all the facial feature behaviors
in order to obtain a dynamic recognition of facial ex-
pressions sequences. Finally, in section 7 we present
experimental results on facial expression sequences
with a detailed description of the facial features be-
haviors.
2 PREVIOUS WORK
In this section, we describe how a video sequence of
face images is analyzed for the recognition of facial
expressions (see (Hammal et al., 2005a) for a com-
plete description). In order to recognize the four ex-
pressions Joy, Surprise, Disgust, Neutral and addi-
tionally, the Unknown expressions. First, the con-
tours of facial features are automatically extracted in
every frame using the algorithms described in (Ham-
mal et al., 2006) (see Figure.1.left). Then, based on
the segmentation results, five characteristic distances
(D1, D2, D3, D4 and D5) are defined and estimated
as shown in Figure.1.right

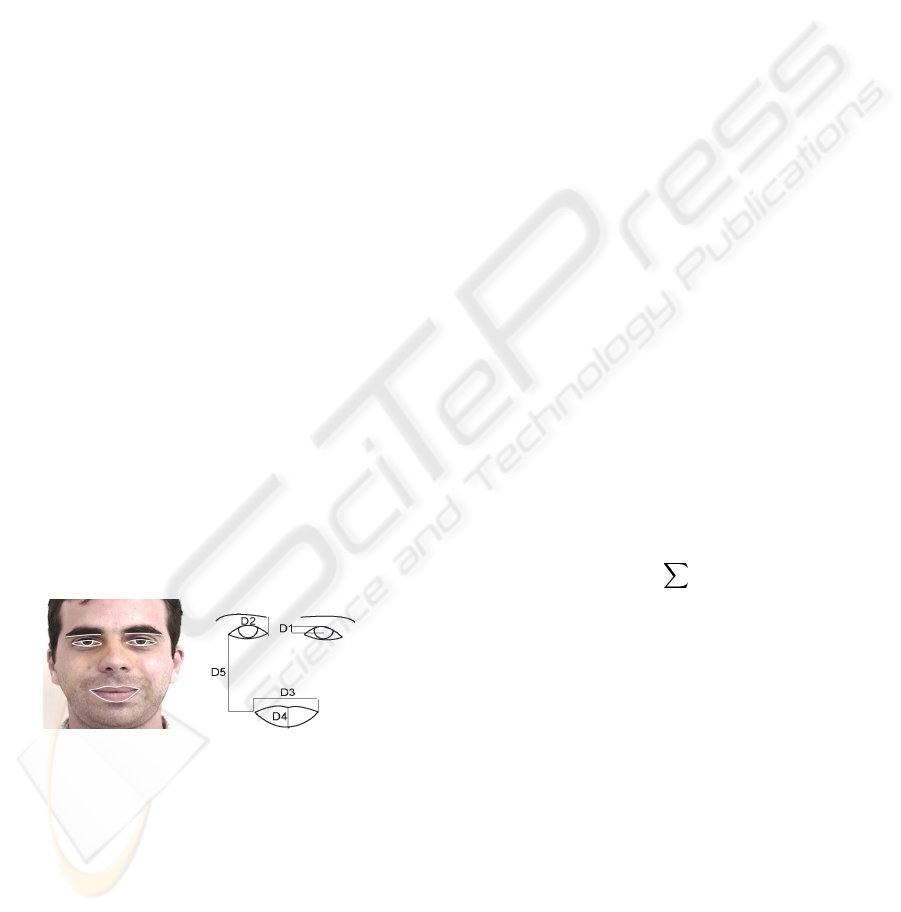

Figure 1: left: Facial features segmentation; right: facial
skeleton and characteristic distances.
Finally, five symbolic states are associated with the
distances, which are: 1) S if the current distance is
roughly equal to its corresponding value in the Neu-
tral expression, 2) C
+
(resp.C
−
) if the current dis-
tance is significantly higher (resp. lower) than its cor-
responding value in the Neutral expression, 3) SC
+
(resp. SC
−
) if the current distance is neither suffi-
ciently higher (resp. lower) to be in C
+
(resp. C
−
)
and neither sufficiently stable to be in S,4)SC
+
and
5) SC
−
, which correspond to a doubt states respec-
tively. The numerical/symbolic conversion was car-
ried out using a model for each distance. Finally a
fusion process, based on Transferable Belief Model
(Smets, 1998) has been used for the classification of
facial expressions based on static information. The
suitability of this model for facial expression classifi-
cation has been proved in comparison with two clas-
sical classifiers (HMM’s and Bayesian model) (Ham-
mal et al., 2005b). As mentioned before, the major
improvement on this former work consists in the in-
troduction of the temporal information in order to take
into account the evolution of the facial features behav-
ior during a facial expression sequence.
3 TRANSFERABLE BELIEF
MODEL AND MODELLING
PROCESS
Originally introduced by Dempster and Shafer and re-
visited by Smets (Smets, 1998), the Transferable Be-
lief Model (TBM) can be seen as a generalization of
the probability theory. It requires the definition of a
set Ω={E
1
,E
2
, ..., E
N
} of N exclusive and ex-
haustive assumptions. We also consider the power set
2
Ω
that denotes the set of all subsets of Ω. To each
element A of 2
Ω
is associated an elementary piece
of evidence m(A) which indicates all the confidence
that one can have in this proposal. The function m is
defined as:
m :2
Ω
→ [0, 1]
A → m(A),
A⊆2
Ω
m(A)=1 (1)
In our application, the assumptions E
i
cor-
respond to the four studied facial expressions:
Joy (E
1
), Surprise (E
2
), Disgust (E
3
) and
Neutral (E
4
); 2
Ω
corresponds to single expres-
sions or combinations of expressions, that is,
2
Ω
= {E
1
,E
2
,E
3
, ..., E
1
E
2
,E
2
E
3
, ...}, and A is
one of its elements.
Modelling process. The facial expression classifica-
tion is based on the TBM fusion process of all the
characteristic distances states. The modelling process
aims at computing the state of every distance Di and
at associating it a piece of evidence. Let’s define the
basic belief assignment (BBA) m for each Di as:
m :2
Ω

→ [0, 1]
B → m
D
i
(B) (2)
VISAPP 2006 - IMAGE UNDERSTANDING
94

With 2
Ω

= {C
+
,C
−
,S,SC
+
,SC
−
}. This gives
a set of pieces of evidence for all the characteristic
distances. Then a set of rules (defined in table 3) is
applied to combine the pieces of evidence of all dis-
tances states in order to obtain the pieces of evidence
of each facial expression.
4 CONDITIONAL PIECES OF
EVIDENCE AND PREDICTED
BBA
Based on automatic facial feature segmentation,
the static classification results show that some miss
classifications are due to wrong distances states
estimation caused by segmentation errors. The
segmentation leads to two type of errors: motion
intensity: the induced distance value is much higher
than its real value; motion direction: the distance
evolution is in the opposite of its real evolution (C
−
instead of C
+
). To solve the motion intensity errors,
a smoothing process is applied on the values of
the characteristic distances states between each two
consecutive frames. The smoothing prevents casual
jumps corresponding to a higher distance variation
than the mean plus/minus the standard deviation
of the corresponding distance variation (see Figure
2). These values have been learned after a manual
segmentation results obtained on Hammal
Caplier
database
1
. Figure 2 presents a smoothing results
of the values of two characteristic distances states
(D5 and D1) during a Joy and Surprise sequences.
The second segmentation errors correspond to the
0 20 40 60 80 100 120
−0.25
−0.2
−0.15
−0.1
−0.05
0
0.05
0.1
Frame
Distance value
Joy//D5
corrected curve
initial curve
0 20 40 60 80 100 120
−0.08
−0.06
−0.04
−0.02
0
0.02
0.04
0.06
0.08
0.1
0.12
Surprise//D1
Frame
Distance value
corrected curve
initial curve

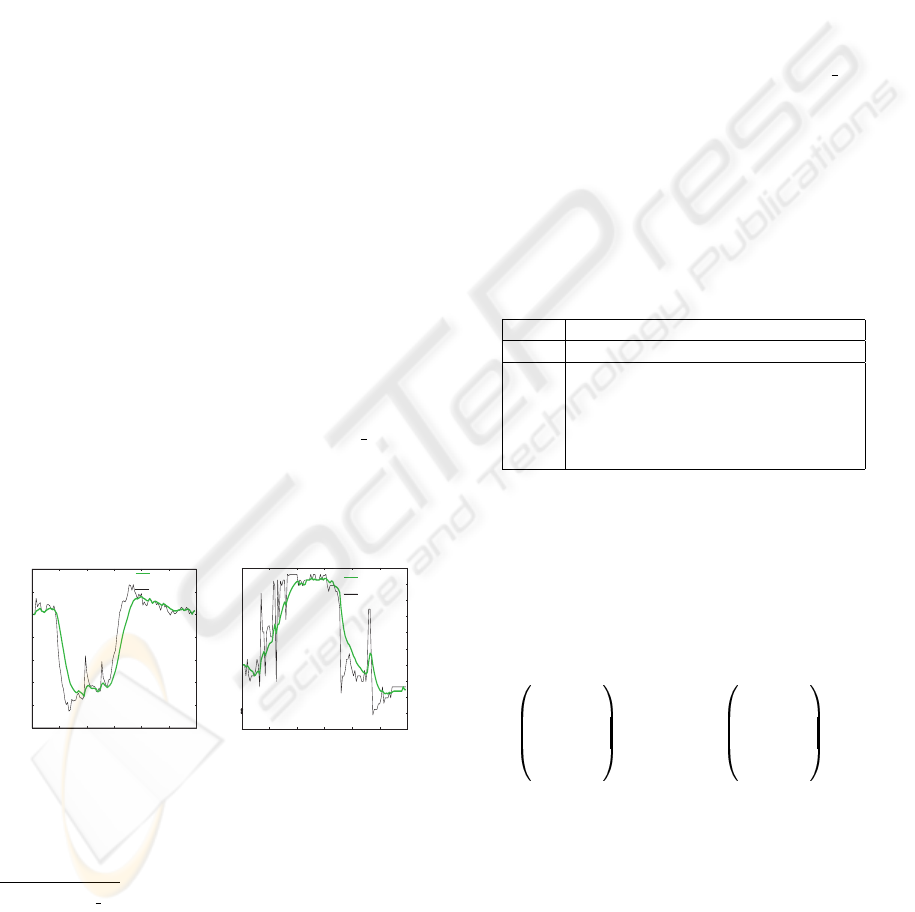

Figure 2: Effect of the smoothing process on the distances
states variation of D5 and D1.
motion direction of the characteristic distances.
1
Hammal Caplier database is used for our experiments
(19 subjects and 4 expressions Joy, Surprise, Disgust and
Neutral) (ham, ). 11 subjects are used for the training and 8
subjects for the test. Each video recording starts with neu-
tral state, reaches the expression and comes back to the neu-
tral state. The sequences have been acquired during 5 sec-
onds at 25 images/second.
Having no mean to automatically recognize this
kind of errors at the segmentation level, a higher
information level has to be used to correct them.
For this, a temporal constraint on the basic belief
assignment of each characteristic distances states
is introduced based on conditional pieces of evidence.
Conditional pieces of evidence. Based on the basic
belief assignment of the characteristic distances states
obtained at each time, the pieces of evidence corre-
sponding to the transitions from each state k at time
t−1 (previous frame) to each one of the other possible
states r at time t (current frame) are computed on the
results of a manual segmentation of Hammal
Caplier
training database (ham, ) where each expression is ex-
pressed with different speed evolution (for example
we have slow Joy as well as quick Joy). This com-
putation leads to the definition of a transition matrix
M
trans
whose elements correspond to the conditional
pieces of evidence noted m(r/k) (see table 1).
Table 1: Transition Matrix; the elements are the conditional
pieces of evidence for S and C
+
(similarly for C
−
,SC
+
and SC
−
).
t
t − 1 SC
+
...
S m(s/s) m(c
+
/s) ...
C
+
m(s/c
+
) m(c
+
/c
+
) ...
C
−
m(s/c
−
) m(c
+
/c
−
) ...
SC
+
m(s/sc
+
) m(c
+
/sc
+
) ...
SC
−
m(s/sc
−
) m(c
+
/sc
−
) ...
In the scope of our application we have a set of
five states Ω

= {C
+
,C
−
,S,SC
+
,SC
−
}. The asso-
ciated set of conditional pieces of evidence is reported
in Table 1 and corresponds to the elements of the tran-
sition matrix. The conditional pieces of evidence as-
sociated with the distances states are computed as:
m(S)
m(C
+
)
m(C
−
)
m(SC
+
)
m(SC
−
)
t
= M
trans
∗
m(S)
m(C
+
)
m(C
−
)
m(SC
+
)
m(SC
−
)
t−1
(3)
M
t
= M
trans
∗ M
t−1
(4)
The transition matrix is learned on our training
database. Once defined, it prevents motion direction
errors (see section 4) resulting of segmentation er-
rors. However, in real expression sequences subjects
tend to remain longer in the same singleton state
than in doubt states. This leads to overweighted
transitions for the diagonal elements of M
trans
(for
example m(C
+
/C
+
) is more than 90%). To avoid
this prediction bias, a discounting is applied to the
DYNAMIC FACIAL EXPRESSION UNDERSTANDING BASED ON TEMPORAL MODELLING OF
TRANSFERABLE BELIEF MODEL
95

transition matrix. This allows to remove incorrect
transitions while preventing the overweighting of
other transitions. This process avoids the definition
of a specific evolution model and as a consequence
allows to handle with free facial features motion.
Discounting. The discounting consists in defining a
parameter α ∈ [0, 1] which allows to compute the new
pieces of evidence of each state A
i
as:
m

(A
i
)=αm(A
i
) (5)
m

(A
i
∪ A
i
)=1− α(1 − m(A
i
∪ A
i
)) (6)
In the scope of our application it consists in dis-
counting the diagonal pieces of evidence of the transi-
tion matrix M
trans
and to redistribute the subtracted
value only on the doubt states. The other transition
states do not change. For example for the first row of
M
trans
the discounting consists in computing:
m

(S/S)=αm(S/S)
m

(S/SC
+
)=1− α(1 − m(S/SC
+
))
m

(S/SC
−
)=1− α(1 − m(S/SC
−
))
Predicted basic belief assignment. The predicted
(pred) basic belief assignment at each time t is com-
puted by the combination of the transition matrix and
the basic belief assignment computed (comp) at time
t − 1 in the following way:
M
pred,t
= M
trans
M
comp,t−1
(7)
Where M
pred,t
= {m(C
+
), m(C
−
), m(S),
m(SC
+
), m(SC
−
)}
t
is the predicted basic belief as-
signment of the characteristic distances states at time
t, M
trans
the transition matrix and M
comp,t−1
=
{m(C
+
), m(C
−
), m(S), m(SC
+
), m(SC
−
)}
t−1
the computed basic belief assignment at time t − 1.
Table 2: Confusion Matrix: combination between the pieces
of evidence of the predicted and of the estimated states.
Comp
Pred SC
+
C
−
SC
+
SC
−
S Sφ φ S S
C
+
φC
+
φC
+
φ
C
−
φφ C
−
φC
−
SC
+
SC
+
φSC
+
S
SC
−
Sφ C
−
SSC
−
Table 3: Theoretical table of D
i
states for each expression.
D
1
D
2
D
3
D
4
D
5
JoyE
1
C
−
S/C
−
C
+
C
+
C
−
SurpriseE
2
C
+
C
+
C
−
C
+
C
+
DisgustE
3
C
−
C
−
S/C
−
C
+
S/C
+
NeutralE
4
SS SSS
5 COMBINATION OF THE
COMPUTED AND PREDICTED
PIECES OF EVIDENCE
At each time t, the dynamic correction of the pieces
of evidence associated with each characteristic dis-
tance state combines two processes: computation of
the BBA of the characteristic distances states at time
t and their temporal prediction based on the previ-
ous frame at time t − 1 using the transition matrix.
This combination (comb) allows to overcome the seg-
mentation errors corresponding to motion direction as
described in section 4 and, as a consequence, to im-
prove the classification results. The new basic belief
assignment M
comb,t
is defined by the combination of
the predicted M
pred,t
and the computed M
comp,t
ba-
sic belief assignments of the characteristic distances
states. The combination is based on the conjunctive
combination (orthogonal sum) as:
M
comb,t
(A)=M
pred,t
(B) ⊗ M
comp,t
(C)
=
B∩C=A
M
pred,t
(B).M
comp,t
(C) (8)
where A, B and C are characteristic distances
states.
Then at each time t the confusion matrix, described
in Table 2, is applied to define the news pieces of evi-
dence of all the states using the conjunctive combina-
tion between the predicted and the computed pieces
of evidence. For example for C
+
the combination is
made as:
m
pred,comp
(C
+
)=m
pred
(C
+
)m
comp
(C
+
)+
m
pred
(C
+
)m
comp
(SC
+
)+m
pred
(SC
+
)m
comp
(C
+
)
The combination leads sometimes to a conflict,
noted φ, between the predicted and the computed
pieces of evidence (m
pred,comp
(φ) =0). This is
mainly due to the fact that the prediction follows a
(learned) model that can fail in an atypical case of
facial feature behavior. So in this case, the computed
results are chosen to form the basic belief assignment
associated with the distances states at time t (ie. we
choose the results obtained from the segmentation
process). This choice allows to handle better free
facial features deformations.
VISAPP 2006 - IMAGE UNDERSTANDING
96

Table 4: Rules table for the chosen states inside an increasing window ∆
t
(/ : not used).
∆t
C
+
∆t
C
−
∆t
SC
+
∆t
SC
−
PL
∆t
(C
+
) − PL
∆t
(C
−
) PL
∆t
(SC
+
) − PL
∆t
(SC
−
)
C
−
0 > 0 / / / /
> 0 > 0 / / < 0 /
C
+
> 0 0 / / / /
> 0 > 0 / / > 0 /
SC
+
0 0 0 > 0 / /
0 0 > 0 > 0 / > 0
SC
−
0 0 > 0 > 0 / /
0 0 > 0 > 0 / < 0
Facial expressions classification. We combine the
new basic belief assignment of all the characteristic
distances states to classify the facial expressions. Ta-
ble 3 describes a specific combination of the char-
acteristic distances states for each of the studied fa-
cial expression. It has been defined by human ex-
pertise (Hammal et al., 2005a) but also corresponds
to the MPEG-4 norm for facial expressions descrip-
tion. These rules are then used for the classifica-
tion process. The piece of evidence of each facial
expression corresponds to the combination (orthog-
onal sum) of the pieces of evidence of the associ-
ated distances states (Hammal et al., 2005a). Con-
flicts can appear in case of incoherent sources. In the
scope of our work, it corresponds to all the configu-
rations of distances states which do not appear in Ta-
ble 3. The added expression Unknown E
5
represents
all these conflict states. Figure 3 presents an exam-
/Neutral
No expressive face2
123
0
0.2
0.4
0.6
0.8
PE
Expressive face15
123
/Neutral
Unknown
PE
0
0.2
0.4
0.6
0.8
Expressive face17
123
/ Neutral
/ Joy/Neutral
Unknown
PE
Expressive face25
123
0
0.2
0.4
0.6
0.8
/Joy
PE
0
0.2
0.4

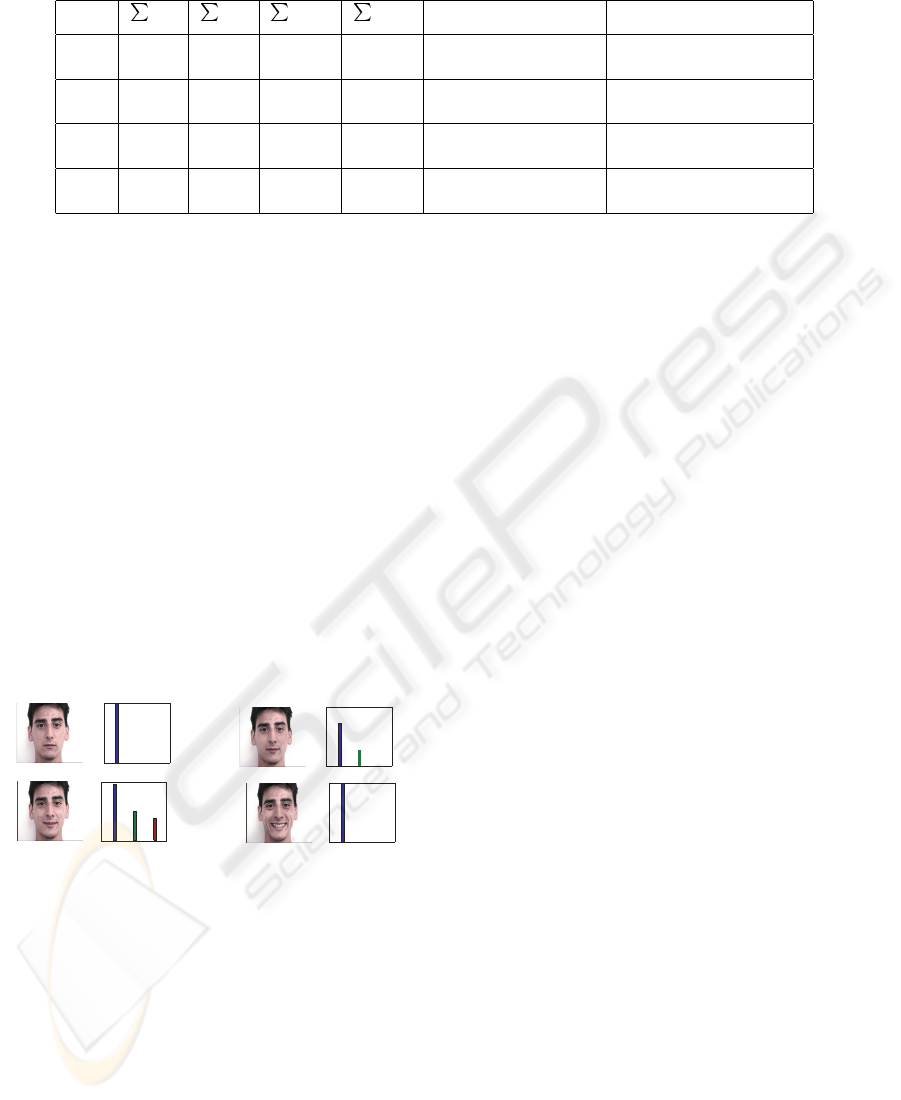

Figure 3: Results of the frame-by-frame classification be-
fore the distances correction. In each frame, left: current
frame; right: all the facial expressions with a not null piece
of evidence.
ple of the frame-by-frame classification results on a
Joy sequence. We can see the sensitivity of the pro-
posed method to the evolution of the facial features
behaviors under different intensities. We give selected
frames to show our results. In each frame we have
two plots: the current image on the left and the corre-
sponding expressions and their pieces of evidence on
the right. The first frame corresponds to the second
frame of the sequence. It is recognized as Neutral ex-
pression at 100%. The second frame corresponds to a
transition state when the subject is neither in the Neu-
tral state, neither in the studied expression. The sys-
tem classifies it as 77% Neutral and 23% Unknown.
In the third frame the system starts to recognize the
expression. Finally the last frame corresponds to the
apex of the Joy expression.
6 DYNAMIC RECOGNITION OF
FACIAL EXPRESSION
SEQUENCES
Facial expression is the result of a set of dynamic
and asynchronous facial features deformations. Each
facial expression is characterized by a beginning an
apex (it corresponds to the maximum of intensity
reached by the facial expression associated with
a particular distances states configuration) and an
end. Contrary to the frame-by-frame classification
described in the previous section, here we present a
method to recognize a sequence of facial expressions
between each pair of beginning and end. In each
expression sequence, the beginning is detected as the
first frame where all the characteristic distances are
not any more in the stable state S; the end is detected
as the first frame where all the states distances have
come back to the stable state S. In the scope of our
work the apex is not identified. We propose two
methods for facial expression sequence recognition:
the first one combines the frame-by-frame classi-
fication results inside a temporal window between
the beginning and the end; the second one is based
on the analysis of the dynamic evolution of all the
characteristic distances inside a increasing temporal
window between each pair of beginning and end.
Dynamic classification based on the expressions
evolution. In the first method the dynamic informa-
tion is introduced as a temporal integration of the clas-
sification results on each frame between the beginning
and the end. For each expression E
i
we take into ac-
count the number of times it appears and the corre-
DYNAMIC FACIAL EXPRESSION UNDERSTANDING BASED ON TEMPORAL MODELLING OF
TRANSFERABLE BELIEF MODEL
97

sponding piece of evidence m
k
. Then the final weight
Sum(E
i
) associated with each E
i
is computed as:
Sum(E
i
)=Nbf ∗
k=end
k=beginning
(m
k
(E
i
)) (9)
Nbf =(end − beginning) −
k=end
k=beginning
(m
k
(E
i
)=0)
(10)
with E
i
∈{Joy (E
1
), Surprise (E
2
), Disgust (E
3
),
Neutral (E
4
), Unknown (E
5
)}. The chosen expres-
sion is the one with the maximum value of Sum(E
i
).
However based on the results of the frame-by-frame
classification (which takes into account at each time
only the current distances states) this method cannot
handle with asynchronous facial features behaviors.
To overcome this limitation, we introduce a second
method based on the combination of all the char-
acteristic distances states inside a facial expression
sequence.
Dynamic classification based on the characteristic
distances evolution. A facial expression is the result
of progressive deformations of a set of facial features
which can appear at different time and without any
defined appearance order (asynchronously). The pro-
posed method allows to deal with all these considera-
tions. It is based on the dynamic analysis of the char-
acteristic distances states during the studied expres-
sion. Once the beginning of the expression detected,
the analysis of the distances states is made inside an
increasing temporal window. The size of the window
increases progressively between the beginning and the
end which allows at each time to take into account the
whole set of previous information to class the current
expression sequence.
At each time t, inside the current increasing win-
dow, and for all the characteristic distances, the most
plausible states are selected for the expression se-
quence classification from the beginning until cur-
rent time t. The states selection is made follow-
ing several steps. First the sum of the occurring
states and their plausibility are computed inside the
increasing window (∆t). Then for all the distances
states {C
+
,C
−
,SC
+
,SC
−
} we compute the num-
ber of times they appear

∆t
state and their plausibility
PL
∆t
(state)=

(∆t,state∩states=φ)
m(states).
For example for C
+
:
∆t
C
+
=
∆t
(state)==(C
+
)
PL
∆t
(C
+
)=
∆t
m(C
+
)+m(SC
+
)
Secondly, based on these values the basic belief as-
signment of the characteristic distances states is de-
fined. The study of the whole set of the distances
states configuration under the studied expressions on
the training database allows us to define the rules table
described in Table.4. The rows correspond to the rules
associated with each distance state and the columns to
the required conditions obtained inside the increasing
window. For example the two first rows correspond
to the rules associated with C
−
:
• The number of occurrence of C
−
in the increasing
window is different to zero and the number of oc-
currence of C
+
is equal to zero.
• The plausibility of C
−
is higher than the one of
C
+
.
The rules table is defined according to three rules:
• If only one singleton state appear inside the in-
creasing window, this one is chosen to be the state
of the studied characteristic distance,
• If two singleton states appear, the most plausible
state between them is chosen,
• If only doubt states appear, the most plausible one
between them is chosen.
The piece of evidence of each chosen state corre-
sponds to its maximum value inside the current in-
creasing window. Finally at each time t (between the
beginning and the end of the expression sequence) ,
once the basic belief assignment of all the character-
istic distances is computed, the classification is then
carried out based on the rules table (Table 3) as de-
scribed in section 5.
7 EXPERIMENTAL RESULTS
In this section we present the results of the proposed
methods for facial expressions classification and fa-
cial features behaviors analysis. First we present the
results of facial features behaviors analysis in each
frame of the facial expressions sequences. Then, we
compare the results of the proposed frame-by-frame
classification with the results obtained on our previ-
ous works without the use of the transition matrix (i.e
static information). Finally we present results of tem-
poral classification of facial expressions sequences.
All the experiments have been realized on our test
database (ham, ).
7.1 Facial Features Behavior
Analysis
Since the proposed approach deals with the face ex-
pression evolution as well as the description of the
VISAPP 2006 - IMAGE UNDERSTANDING
98

Expressive face 44
1 2 3
0
0.2
0.4
0.6
0.8
1
/Joy
PE
Temporal Classification
/Joy (100%)
Distances states
Dist States and PE
D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1D1
>SC
D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2D2
>S
D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3D3
>C+
D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4D4
>C+
D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5D5
>C
C SC SSC+C+SC SSC+C+
Features states
Slackened eyebrows 100%
Open mouth 100%
Mouth corners pulled up 100%
Frame/Frame

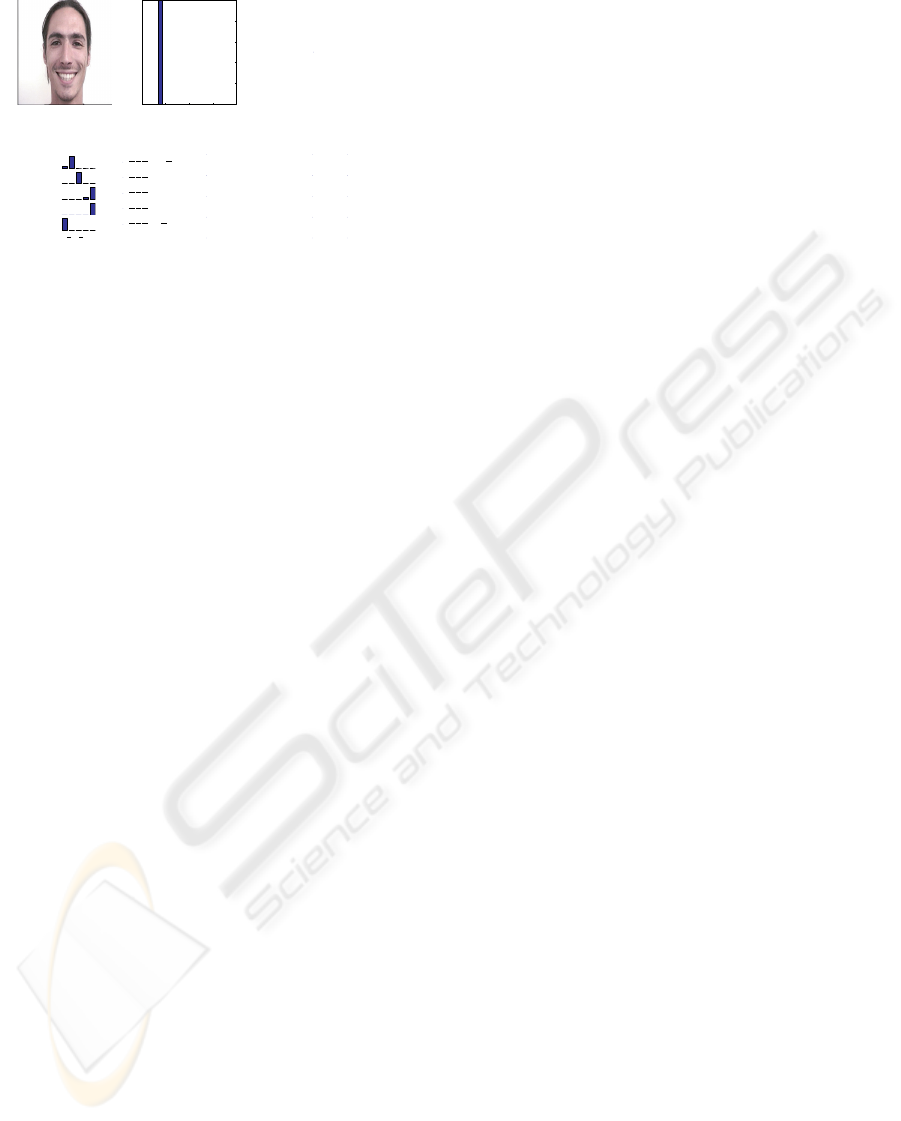

Figure 4: Classification results and facial features behav-
iors analysis on frame 44 being part of a Joy sequence.
permanent facial features behavior (eyes, eyebrows
and lips), one of the main goals is to be able to han-
dle the Unknown expressions corresponding to all the
facial deformations which do not match to any of the
studied expressions (in this case even a human ob-
server cannot decide between one of them). Hence in
this case the analysis of the individual facial features
behaviors is particularly informative because it pro-
vides a description of these deformations. This analy-
sis is based on the study of the eyes, the mouth and the
eyebrows state. Then the states of the characteristic
distances are recovered. Each characteristic distance
state is translated into behavior of the corresponding
facial features associated with its piece of evidence
(see Figure 4). To provide the most accurate possible
information, only the facial feature behaviors whose
state is singleton (i.e S, C
+
or C
−
) are analysed. The
doubt states are not used. The set of recognized facial
features deformations rules are:
Eyes analysis: Slackened eyes (D
1
== S), Open eyes
(D
1
== C
+
), Eyes slightly closed (D
1
== C
−
),
Eyebrows analysis: Slackened eyebrows (D
2
== S),
Raised inner eyebrows (D
2
== C
+
), Lowered inner eye-
brows (D
2
== C
−
),
Mouth analysis: Closed mouth (D
4
== S), Open mouth
(D
4
== C
+
), Mouth corners pulled downwards (D
5
==
C
+
), Mouth corners pulled up (D
5
== C
−
).
Figure 4 presents an example of the information dis-
played during the analysis of a facial expression se-
quence and of the corresponding facial features be-
haviors. This example shows the results on the frame
44 from one Smile sequence composed of 120 frames.
It corresponds to the apex of the expression. The in-
terface is divided into five different regions: on top
left, the current frame to be analysed; on top mid-
dle the result of the TBM classification on this frame
(here this is a Joy expression with a piece of evidence
equal to 100%); on top right, the results of the tem-
poral classification which corresponds to the classifi-
cation of the sequence since the beginning until the
current frame (here Joy sequence); on bottom left,
the current states of the characteristic distances and
their pieces of evidence; on bottom right, the results
of the analysis of the facial features behaviors with
their pieces of evidence.
7.2 Frame-by-Frame Classification
The aim of this section is to discuss the improvement
of the frame-by-frame classification induced by the
introduction of the smoothing as well as the tempo-
ral information (conditional pieces of evidence). The
analysis of the frame-by-frame classification on the
facial expression sequences shows that the mean im-
provement of the results according to our previous
works are 6.9%. However, the most interesting re-
sults are observed on the sensitivity of the method to
transitory states when the facial feature behavior does
not correspond to neither the Neutral state nor one
apex expression. Indeed in the studied sequences the
subject begins at neutral state, then reaches the apex
of the studied expression and finally comes back to
the neutral state. Before and after the apex, the sub-
ject exhibits some transitory facial expressions. In
these cases, even a human observer cannot classify
them or hesitates between different expressions. Our
system exhibits a similar behavior as can be seen in
Figure3 where top right frame and bottom left frame
correspond to transitory states between the Neutral
and Joy expression. However this temporal combi-
nation is only based on the information contained in
the previous frame. This is not sufficient to recognize
the asynchronous temporal behavior of the facial fea-
tures during a facial expression sequence. This can
be overcome by a dynamic recognition of the facial
expression sequences.
7.3 Classification in Video Sequence

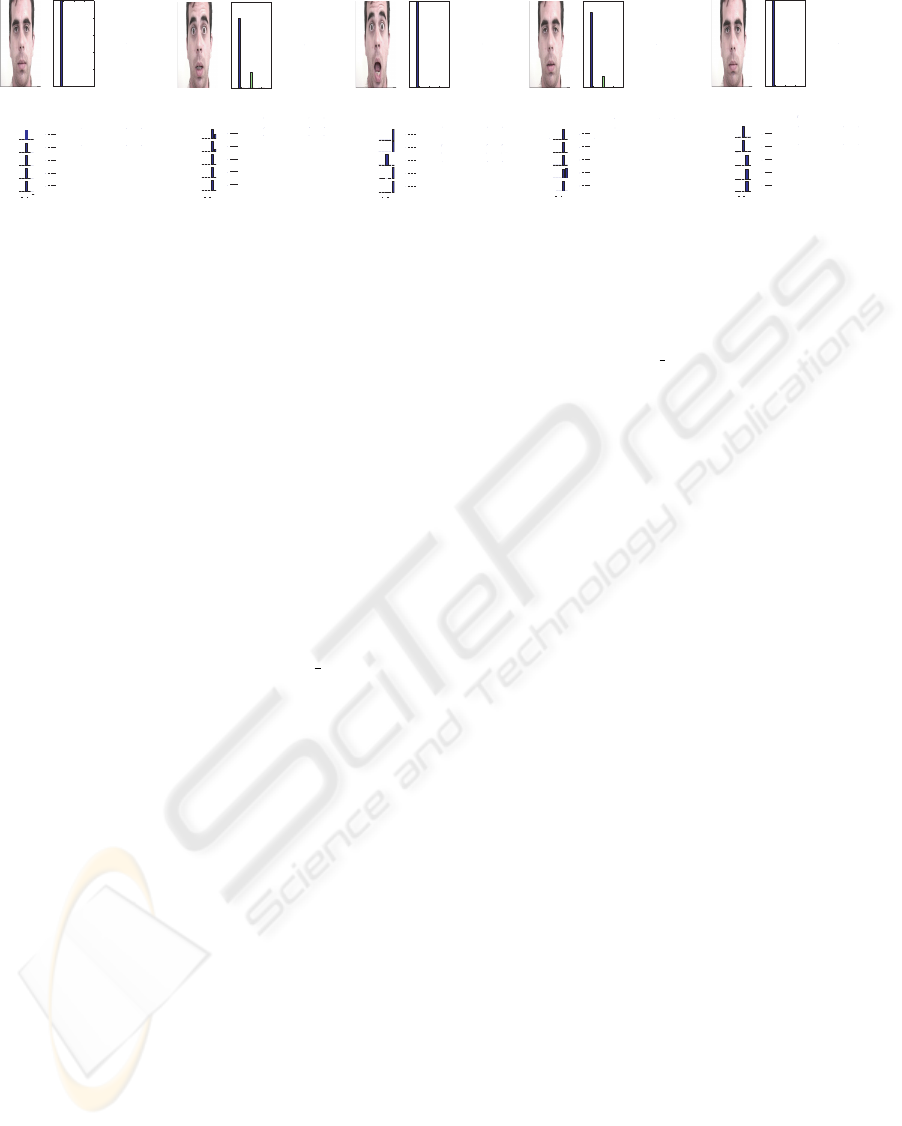

Figure 5 presents an example of a dynamic classi-
fication (based on the characteristic distances evolu-
tion) on a Surprise sequence. The original sequence
has 120 frames where the subject evolves from Neu-
tral, reaches Surprise and comes back to Neutral.We
give selected frames to convey our results in Figure 5
which shows the evolution over time of the facial fea-
tures behaviors and of the facial expressions.
In the first frame the subject is in the Neutral state. At
this time the system cannot give any temporal classi-
fication results. In the second frame we can observe
the sensitivity of the system to recover the behavior
of the facial features. Based on the states of the char-
acteristic distances, the frame-by-frame classification
confidence is 80% that it corresponds to a Surprise
expression and 20%, to a doubt between Surprise and
DYNAMIC FACIAL EXPRESSION UNDERSTANDING BASED ON TEMPORAL MODELLING OF
TRANSFERABLE BELIEF MODEL
99

Mouth corners pulled downwards
No expressive face1
123
0
0.2
0.4
0.6
0.8
1
/Neutral
PE
Temporal Classification
Distances states
Dist States and PE
D1
>S
D2
>S
D3
>S
D4
>S
D5
>S
CSC
SSC+C+
Features states
Slackened eyes 100%
Slackened eyebrows100%
Closed mouth 100%
Expressive face13
123
0
0.2
0.4
0.6
0.8
1
/Surprise
/Surprise/Neutral
PE
Temporal Classification
Surprise (80.819%)
Distances states
Dist States and PE
D1
D2
D3
D4
D5
C
SC
SSC+C+
Features states
>C+
>C+
>SC+
>SC+
>SC+
Open eyes 31.1732%
Raised inner brows 20.8497%
Distances states
States and PE
C SC SSC+C+
Features states
Expressive face26
0
0.2
0.4
0.6
0.8
1
/Surprise
PE
Temporal Classification
Surprise (100%
)
Dist
D1
D2
D3
D4
D5
>C+
>C+
>S
>C+
>C+
Open eyes 100%
Raised inner brows 100%
Open mouth 100%
100%
Distances states
Dist States and PE
D1
D2
D3
D4
D5
C SC SSC+C+
Features states
Distances states
Dist States and PE
D1
D2
D3
D4
D5
C SC SSC+C+
Features states
Expressive face65
0
0.2
0.4
0.6
0.8
1
/Surprise
/Surprise/Neutral
PE
Temporal Classification
Surprise (100% )
>SC+
>SC+
>SC+
>C+
>SC+
Open mouth 52.3624%
Expressive face76
123
0
0.2
0.4
0.6
0.8
1
/Neutral
PE
Temporal Classification
Surprise (100%
)
>S
>S
>SC+
>SC+
>SC+
Slacked eyes 100%
Slacked eyebrows 100%
?
Frame/Frame
Frame/Frame
Frame/Frame
Frame/Frame Frame/Frame
Figure 5: Examples of results obtained on a Surprise sequence by the dynamic classification.
Neutral. The temporal classification corresponds to
the result of the classification of all the frames from
the beginning until the current frame 13. At this time,
the temporal classification confidence is 81% that it
corresponds to a Surprise sequence. The third frame
corresponds to the apex. The frame-by-frame results
as well as the temporal classification reach a confi-
dence level of 100% on the recognition of a Surprise
expression. The last two frames give the classifica-
tion results when the subject comes back to the Neu-
tral state. We can observe the evolution of facial fea-
tures behaviors coming back to slackened states and
the frame-by-frame classification which gives a Neu-
tral state. However it has to be noticed that the tempo-
ral classification does not change and gives the clas-
sification over the whole sequence. The same analy-
sis on the remaining part of the Hammal
Caplier test
database shows that the proposed approach is able to
model the evolution of the expression magnitude at
each step of the expression sequences. The obtained
mean classification rates on the test database are 70%,
however this result is based on few test examples (8
subjects). We are currently testing our method on a
larger database (The Japanese Female Facial Expres-
sion (JAFFE) Database).
8 CONCLUSION
The presented approach extends the state-of-the-art of
automatic facial expression classification by includ-
ing the temporal information for dynamic expression
sequence classification. We focus our attention not
only on the nature of the facial features deformation
but also on their temporal behavior during a facial
expression sequence. Our dynamic facial expression
modelling is based on the TBM. Compared to other
existing methods, the main advantage of our approach
lies in its ability to deal with imprecise data, to model
the Unknown expressions and finally to deal with
asynchronous facial feature behaviors for the analy-
sis of facial expression sequences.
REFERENCES
http://www.lis.inpg.fr/pages perso/hammal/index.htm.
Bassili, J. (1978). Facial motion in the perception of faces
and of emotional expression. Experimental Psychol-
ogy - Human Perception and Performance, 4(3):373–
379.
Ekman, P. and Friesen, W. (1978). Facial action coding
system. Consulting Psychologist Press, 18(11):881–
905.
Essa, I. and Pentland, A. (1997). Coding, analysis, inter-
pretation, and recognition of facial expressions. IEEE
Trans. PAMI, 19(7):757–763.
Hammal, Z., Caplier, A., and Rombaut, M. (2005a). A fu-
sion process based on belief theory for classification
of facial basic emotions. ISIF. Philadelphia, USA.
Hammal, Z., Couvreur, L., Caplier, A., and Rombaut, M.
(2005b). Facial expressions recognition based on the
belief theory: Comparison with diferent classifiers.
ICIAP05, pages 743–752.
Hammal, Z., Eveno, N., Caplier, A., and Coulon, P. (2006).
Parametric models for facial features segmentation.
Signal processing, 86(2):399–413.
Pantic, M. and Rothkrantz, L. (2000). Expert system for
automatic analysis of facial expressions. Image and
Vision Computing Journal, 18(11):881–905.
Smets, P. (1998). The Transferable Belief Model for Quan-
tified Belief Representation, volume 1. Handbook of
Dfeasible Reasoning and Uncertaintly Management
System, Kluwer.
Tian, Y., Kanade, T., and Cohn, G. (2001). Recognizing ac-
tion units for facial expression analysis. IEEE Trans.
PAMI, 23(2):97–115.
Yacoob, Y. and Davis, L. (1996). Recognizing human facial
expressions from long image sequences using optical
flow. IEEE Trans. PAMI, 18:636–642.
Zhang, Y. and Qiang, J. (2005). Active and dynamic in-
formation fusion for facial expression understanding
from image sequences. IEEE Trans. PAMI, 27(5).
Zhang, Z., Lyons, L., Schuster, M., and Akamatsu, S.
(1998). Comparison between geometry-based and ga-
bor wavelets-based facial expression recognition us-
ing multi-layer perceptron. AFGR, pages 454–459.
VISAPP 2006 - IMAGE UNDERSTANDING
100
