CORRELATING EVENTS FOR

MONITORING BUSINESS PROCESSES

Josef Schiefer

IBM Watson Research Center, 19 Skyline Drive, Hawthorne, NY, 10606, US

Carolyn McGregor

Centre for Advanced Systems Engineering, University of Western Sydney,

Locked Bag 1797, Penrith South DC, NSW, 1797, Australia

Keywords: Event Stream Processing, Event Correlation, Business Process Monitoring

Abstract: With the increasing demand for real-time information on critical performance indicators of business

processes, the capturing, transformation and correlation of real-world events with minimal latency are a

prerequisite for improving the speed and effectiveness of an organization's business operations. Events often

include key business information about their relationship to other events that can be utilized to collect

relevant event data for the calculation of business performance indicators. In this paper we introduce an

approach for correlating events of business processes that uses correlation sessions to represent correlation

knowledge. Correlation sessions facilitate the processing of data across multiple events and thereby enable a

calculating of business metrics in near real-time. The benefit over existing approaches is that it is tailored to

instrument business processes and business applications that may operate in a heterogeneous software

environment. We propose a Java-based, container-managed environment which provides a distributed,

scalable, near-real time processing of events and which includes a correlation service that effectively

manages correlation sessions. We also show a complete example that illustrates how correlation sessions

can be utilized for computing the cycle time of business processes.

1 INTRODUCTION

Operational business systems, such as enterprise

resource planning systems or workflow management

systems (WFMSs) are able to report business

process state changes, such as the execution of

business operations or the completion of customer

requests, which can be utilized for monitoring and

analysis purposes. Today’s e-business platforms

suffer from inappropriate management of these

events. The symptoms of exceptional business

situations are frequently detected by many managed

applications simultaneously causing them to

generate events. Event correlation in the business

domain is a technique for collecting and isolating

related data from events so as to condense many

events each with little information into a few

meaningful business metrics. By automatically

correlating events and calculating business metrics

from the correlated event data, business managers

and staff members can monitor these metrics and

quickly respond to exceptional business situations.

Many business processes are executed in a

distributed environment where a large number of

events are generated and processed in different

locations by various operational systems. When

every state change of a business process generates a

new event and an organization creates thousands of

process instances daily, a very large number of

events must be handled. For instance, an order

process with thousands of process instances can

result in potentially millions of state change events.

Therefore, a scalable solution for processing and

correlating a very large number of process events is

required.

Figure 1 shows the process for continuously

integrating events from various source systems. The

processing steps are not equivalent to the traditional

320

Schiefer J. and McGregor C. (2004).

CORRELATING EVENTS FOR MONITORING BUSINESS PROCESSES.

In Proceedings of the Sixth International Conference on Enterpr ise Information Systems, pages 320-327

DOI: 10.5220/0002618403200327

 SciTePress

ETL (Extraction, Transformation, Loading) because

the underlying assumptions for the data processing

and the latency requirements are different.

Traditional ETL tools often operate during a batch

window and do not affect or disrupt active user

sessions. If data is to be integrated continuously, a

permanent stream of data must be integrated into the

data warehouse environment while users are using it.

Figure 1 shows three stages for continuous event

data integration: 1) Receive/Extraction, 2) Event

Processing, and 3) Evaluation. A separate loading

stage is not included because event data is usually

not buffered and prepared for bulk loading. We

extend the traditional data integration process with

an evaluation stage that allows the system to respond

to conditions or irregularities in the integrated event

data. An evaluation of continuously calculated

business metrics can be very valuable to the business

because it promotes intelligent responses to business

operations and proactive notification mechanisms in

near real-time.

Dependent on the external interface capabilities

of the source systems, events are transmitted either

by push (e.g. messaging) or pull mechanisms (e.g.

J2EE connector, web-services). For the processing

of events, the following two challenges have to be

addressed in combination:

Online processing. Events are processed as

soon as they stream into the system. Therefore,

continuous data streams require light-weight data

processing of the events that were raised in the

source system and propagated in near real-time to

the data warehouse environment. The processing can

include any type of data transformation, data

cleansing, calculation or evaluation of business

metrics, and storing the metrics in a database table.

Since the data has to be integrated with minimal

delay, an architecture is needed that facilitates

streamlining and accelerates the data processing by

moving data between the different processing steps

without any intermediate file or database storage.

Event correlation. Many business metrics

require a set of related events for its calculation. The

related events often stream into the system at

different points in time. To deliver metrics with

minimal delay to business users, a mechanism to

continuously gather related event data is needed that

allows metric calculation as soon as sufficient event

data is available. A simple event correlation example

is the calculation of business activity processing

times where event pairs of when an activity started

and finished have to be collected. As soon as a

business activity completes, the processing time can

be calculated. This example requires a mechanism

for holding event data for a certain time interval.

Business process event correlation is challenging

because:

− Business process events can occur in various

source systems producing events in different

formats that must be captured with minimal

latency and minimal operational system impact.

− Late arriving events due to network failures or

downtimes of operational systems within

heterogeneous and distributed software

environments can be common situations that

have to be considered for the event correlation.

− Only relevant event data for applications and

users must be unified, transformed, and cleansed

before they are correlated. In many situations,

only a small set of selected event attributes are

needed for the correlation.

− Correlated events can occur at different points in

time requiring the temporary storage of

correlated event data that is transparent for

applications.

− Correlated business process events can be

analyzed and processed by multiple components

to calculate business metrics or to discover

irregularities in the business process.

McGregor and Schiefer (2003) introduce a

Solution Management Web Service (SMWS)

architecture that supports near real-time integration

of event data to provide involved parties and

decision makers with comprehensive information

about the status and performance of business

processes independent from the type of systems that

are used to execute the business process.

This paper, further defines the EPC processing

by defining an approach for correlating events that

overcomes the challenges detailed above. This

approach can be summarized as follows: We

propose a correlation session to gather correlated

event data that exists temporarily and have a

lifecycle. Before correlating events, event data often

has to be unified, transformed, cleaned or

condensed. Correlation sessions reduce the overall

amount of event data and condense large correlated

data sets that are only partially used for the

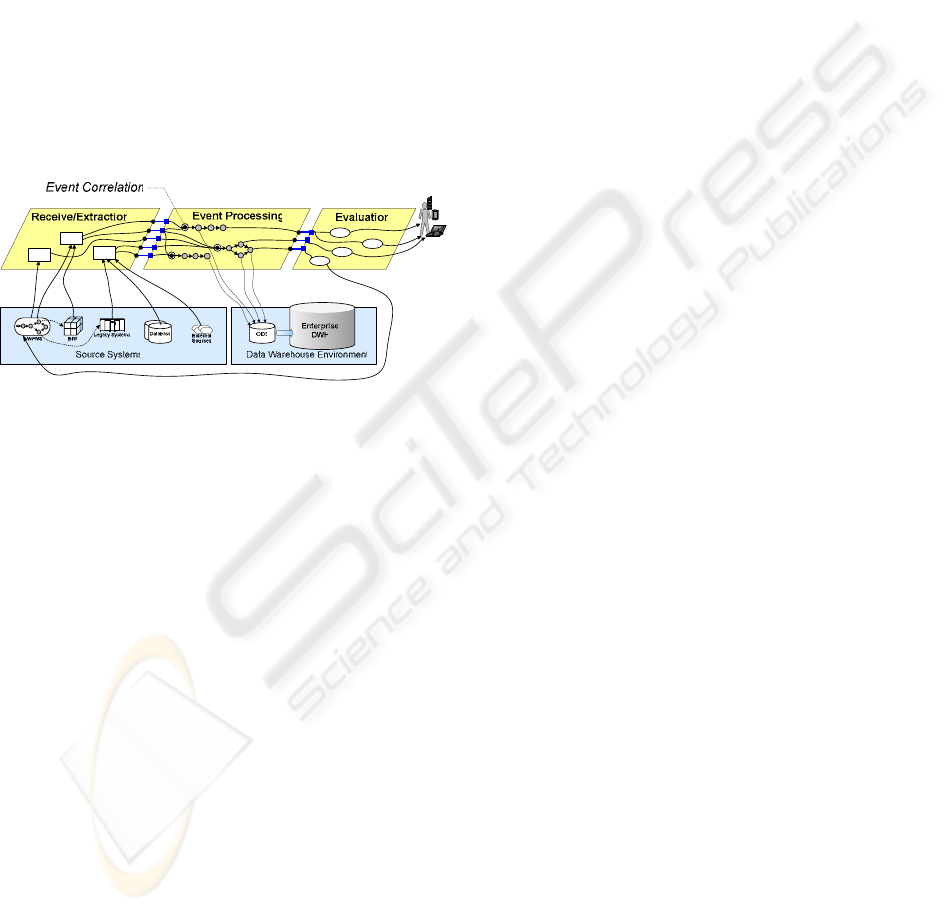

Figure 1: Continuous Event Data Integration

CORRELATING EVENTS FOR MONITORING BUSINESS PROCESSES

321

processing, reducing the resources required for

holding correlated data in memory or on disk. We

use a container-managed environment that

automatically manages correlation sessions which

enables scalability and significantly decreases the

effort for developers to utilize correlation sessions.

The remainder of this paper is organized as

follows. In section 2, we give an overview of

approaches for event correlation developed in the

research community and the industry so far and

discuss our contribution. In section 3, we introduce

and define correlation sessions. In section 4, we

present an architecture for a container-based

environment which allows to integrate and correlate

events from various sources and which

automatically manages the lifecycle of correlation

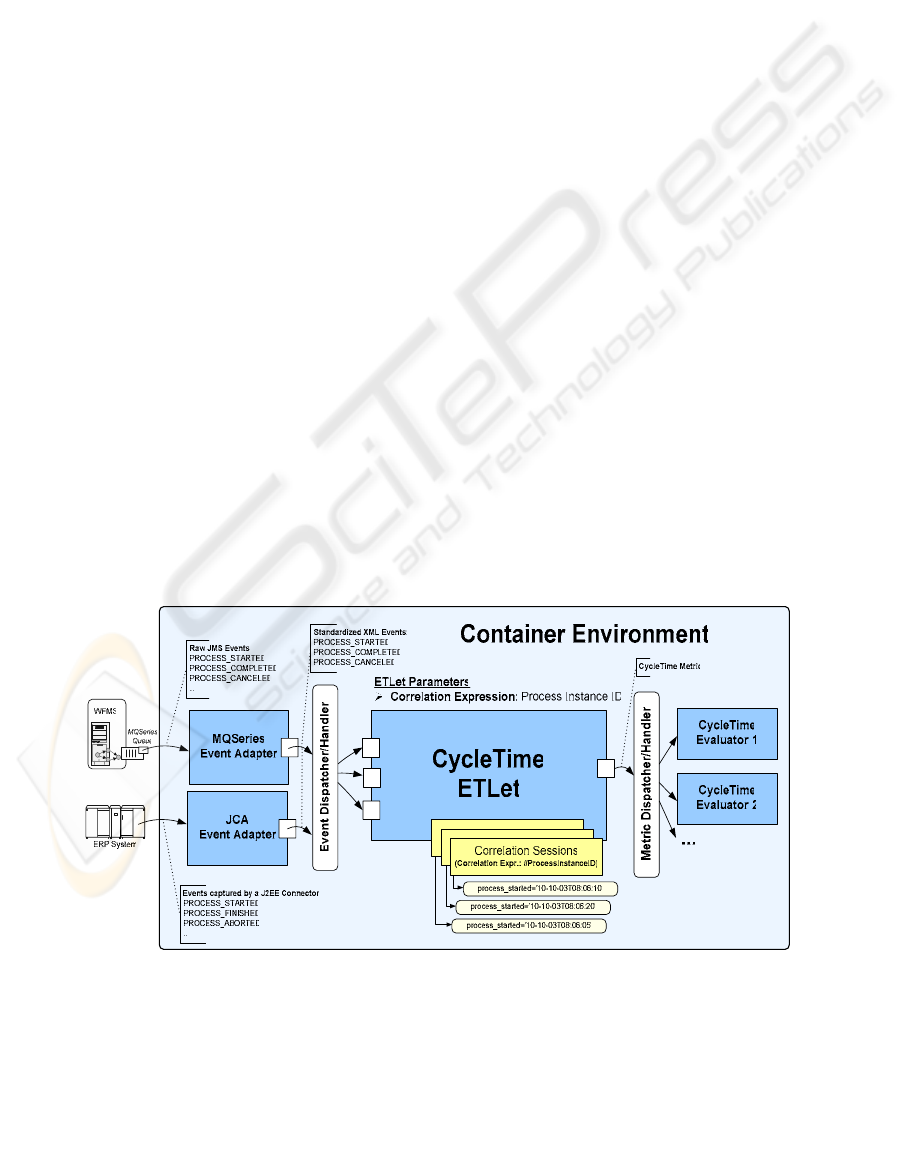

sessions. Section 5 shows an example of an

application that utilizes correlation sessions for

continuously calculating the cycle time of business

processes. Finally, section 6 concludes the paper.

2 THE ROLE OF CORRELATION

FOR EVENT MANAGEMENT

The emergence of e-business has forced many

organizations to improve operational efficiency,

turning their attention toward real-time business

activity monitoring (BAM) solutions. These

initiatives require enterprise data to be captured and

analyzed in real-time from a wide variety of

business applications, operational data stores and

data warehouses. While traditional data integration

approaches, built on top of core ETL (extraction,

transformation, loading) solutions are well suited for

building historical data warehouses for strategic

decision support initiatives, they do not go far

enough toward handling the challenge of

continuously integrating data with minimal latency

and implementing a closed loop for business

processes. Traditional solutions are optimized for

batch-oriented data integration and make the

assumption that large data sets can be extracted from

various source systems in order to transform and

integrate them into a data warehouse environment.

The correlation of data for these scenarios is a minor

problem since the data integration tools are always

able to access the entire data sets.

However, when it comes to continuous data

integration, where events are propagated and

processed continuously from various source

systems, event data has to be correlated in order to

be able to generate business metrics. One single

event includes very little information about the

business process and is therefore too detailed for

monitoring purposes. What is needed is more

granular business information in the form of

representative business metrics that are derived from

a set of raw events. In order to be able to transform

raw events into valuable business metrics a

correlation mechanism is needed that enables the

capture of required event data for calculating a

single business metric. The events of business

processes often have inherent dependencies that

have to be considered during the event processing.

For example, an order process might include

processing steps whose processing times are of

interest to the business. By correlating the events

that indicate when process activities started and

completed, a calculation of the processing times

becomes very straightforward.

Detecting and handling exceptional events also

plays a central role in network management

(Feldkuhn and Erickson, 1989)0. Alarms indicate

exceptional states or behaviors, for example,

component failures, congestion, errors, or intrusion

attempts. Often, a single problem will be manifested

through a large number of alarms. These alarms

must be correlated to pinpoint their causes so that

problems can be addressed effectively. Many

existing approaches for correlating events have been

developed from network management. Event

correlation tools help to condense many events,

which individually hold little information, to a few

meaningful composite events.

Rule-based analysis is a traditional approach to

event correlation with rules in the “conclusion if

condition” form which are used to match incoming

events often via an inference engine. Based on the

results of each test, and the combination of events in

the system, the rule-processing engine analyzes data

until it reaches a final state (Wu et al., 1989).

Another group of approaches incorporate an

explicit representation of the structure and function

of the system being diagnosed, providing

information about dependencies of components in

the network (Katzela and Schwartz, 1995) or about

cause-effect relationships between network events.

The fault discovery process explores the network

model to verify correlation between events.

NetFACT (Houck et al., 1995) uses an object-

oriented model to describe the connectivity,

dependency and containment relationships among

network elements. Events are correlated based on

these relationships. Nygate (1995) models the cause-

effect relationships among events with correlation

tree skeletons that are used for the correlation.

InCharge (Yemini et al., 1996) represents the

causal relationships among events with a causality

graph using a codebook approach to quickly

correlate events to their root causes. The code-book

approach uses a network model to derive a code – a

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

322

set of possible symptom observations for every

problem that may occur in the network – performed

in advance, eliminating the runtime computational

complexity involved in model traversals and is

therefore more scalable than rule-based systems.

The Streams project (Babu and Widom, 2001)

attempts to provide complete DBMS functionality

along with support for continuous queries over

streaming data. Thereby, continuous data streams

are queried by using SQL like statements to select,

group and process data stream elements. While this

approach can be used for a wide range of continuous

queries, the processing of data has to be specified in

a SELECT statement limiting developers to

implement user-defined functions for the event

processing because it is limited to the functionality

provided in SQL.

In spite of intensive research in the past years for

correlating events in the network management

domain, there are to our knowledge no existing

approaches addressing the issues for correlating

business process events. In this paper, we propose a

container-based architecture to integrate business

process events in near real-time. We introduce the

concept of correlation sessions for collecting related

event data, and show how a container environment

can be used to effectively manage their lifecycle.

3 CORRELATING EVENTS WITH

SESSIONS

The “instant” of an event is relative to the time

granularity that is needed or desired. Thus, certain

activities that are of short duration relative to the

time granularity are represented as a single event.

An activity spanning some significant period of time

is represented by the interval between two or more

events. For example, an order review might have a

“begin-review” and “end-review” event-pair.

Similarly, a workitem in a workitem list could be

represented by the three events “enter-worklist”

“start-processing” “end-processing”.

For purposes of maintaining information about

an action, events can also capture attributes about

the context when the event occurred. Event

attributes are items such as the agents, resources,

and data associated with an event, the tangible result

of an action (e.g., the result of an approval decision),

or any other information that gives character to the

specific occurrence of that type of event.

Elements of an event context can be used to

define a relationship with other events. This

relationship can be expressed by a correlation

expression that is used to create a container for a set

of correlated event data. We label the container for

holding this set of correlated event data as

correlation session. In other words, a correlation

session is a container with a set of data items that

exists for each relationship between events.

Therefore, we define a correlation session CS as

a triple of the form (O, X, A) where O defines the

owner, X the correlation expression and A the

correlating event attributes for the session. For a

given event stream a correlation session is created

for each unique set of event attributes A = { A

, …

} that is extracted by a correlation expression X

during the event arrival. X is an expression that

selects attributes from incoming events and uses

these attributes as key for the correlation sessions. A

correlation session is a container for a set of data

items D = {D

, …, D

} which can originate from

event attributes or from other sources. Every

correlation session has an owner O which is a

component that is allowed to utilize the session. This

component can be called in multiple threads in

parallel and each thread can read or updated the

correlation session.

Figure 2 shows an event stream with events that

include an attribute A

. Let’s assume that we use the

attribute A

for correlating the events. In this case,

we will create a separate correlation session for each

different value of the attribute A

. For instance, in

Figure 2 Session 3 is correlated with all events that

have an attribute A

with the value 4.

Figure 2: Correlation Sessions

The data items of correlation sessions can

include entire events, extracted event attributes, or

also external data items that are required for the

event processing. For instance, for the calculation of

metrics about a business process, sessions can be

utilized to store event data of a business process

instances that are uniquely identified by a process

instance IDs. For each process instance ID, a

separated correlation session can be created during

the event processing to gather runtime data about the

business process instance. The data items in the

correlation sessions might include event attributes or

also external data that is needed for calculating a

business metric. In section 5, we will show an

Session 1 (E

= 1)

Session 2 (E

= 2)

Session 3 (E

= 4)

Event

Stream

...

Data Items for

Session 2 (D)

Correlation Expression X = A

Component (O)

Utilizes the Correlation Sessions

for the Event Processing

CORRELATING EVENTS FOR MONITORING BUSINESS PROCESSES

323

example with correlation sessions for computing the

cycle time of a business process.

4 MANAGING CORRELATION

SESSIONS WITH A CONTAINER

In this section, we discuss a container-based

approach for managing the lifecycle of correlation

sessions. The usage of a container decreases the

need for programming and programmer training by

creating standardized, reusable modular components

and by enabling the container to handle many

aspects of programming automatically. In J2EE

environments, the container takes responsibility for

system-level services (such as threading, resource

management, transactions, security, persistence, and

so on). This arrangement leaves the component

developer with the simplified task of developing

business functionality. It also allows the

implementation details of the system services to be

reconfigured without changing the component code,

making components useful in a wide range of

contexts. Similar to traditional J2EE containers, we

use a customized container for the event processing.

In our approach, we extend this concept by adding

container services, which are useful for developers

that write programs that process events. A container

service is responsible for the monitoring of the data

extracts and ensures that resources, workload and

time-constraints are optimized. Also, the

management of correlation sessions is implemented

as a container service that can be utilized for event

data integration solutions. Developers are able to

specify configuration information for correlation

sessions (e.g. correlation expressions, lifetime of

session data, parameters for the persistence of

session data) in a deployment descriptor and the

container will use and try to optimize these settings.

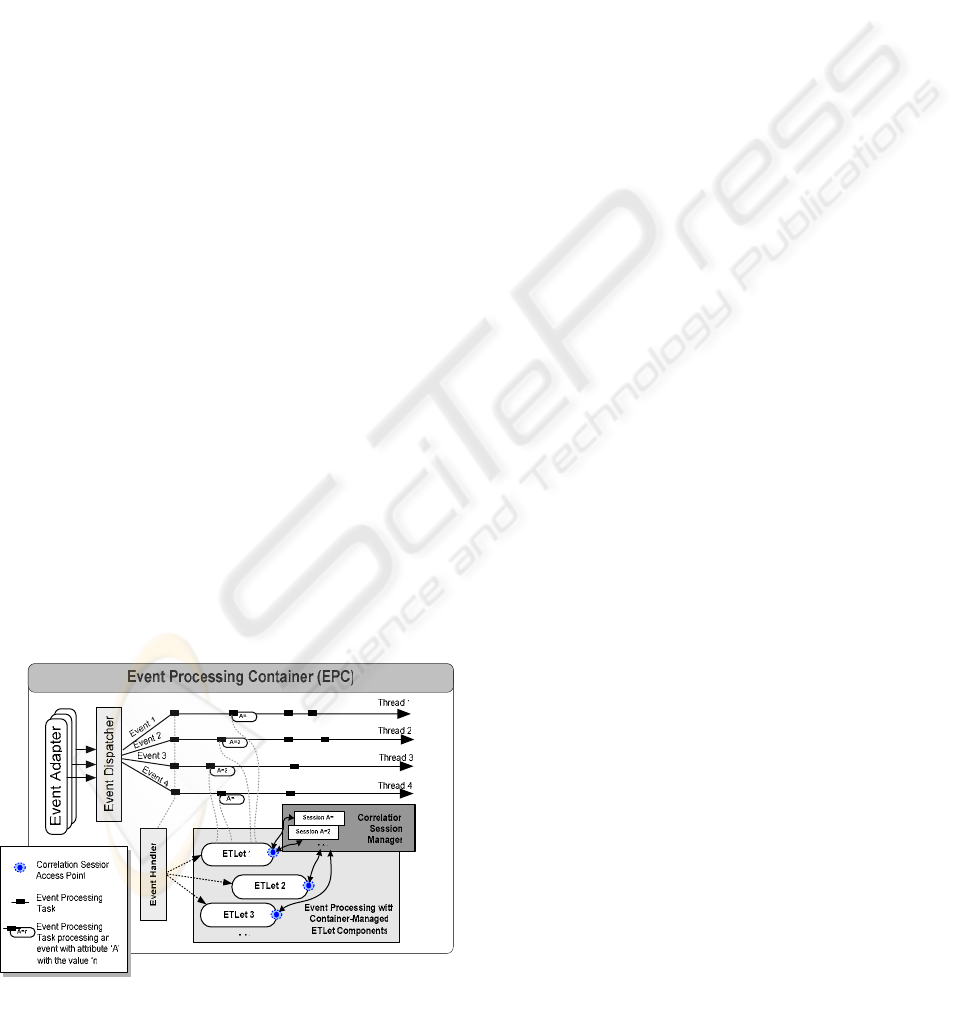

Figure 3 shows the internal components of an

Event Processing Container (EPC). The components

shown with round boxes (event adapters and

ETLets) are user-defined components that are

managed by the container and have to be

implemented by developers. Event adapters are used

to receive event data from various source systems,

and they unify the data in a standard XML format.

ETLet components use the extracted XML event

data as input and perform the processing tasks, such

as the calculation of business metrics and storing

them in a database.

The container uses the Correlation Session

Manager (CSM) to manage the lifecycle of

correlation sessions. The CSM uses access points to

ETLet components in order to assign the appropriate

session during the event processing in runtime.

Similar to a J2EE web container, where user

sessions are used to maintain state information in the

course of performing a user task by returning the

correct user session instance in web components

(e.g. servlets or JSPs), the CSM returns the correct

correlation sessions to ETLet components. The CSM

uses correlation expressions in XPath defined in a

deployment descriptor in order to determine events

that should be correlated. The tasks of the CSM can

be summarized as follows:

Construction and Initialization. The CSM

creates and initializes a new correlation session for

every set of related events. A correlation expression

in XPath is used for associating events and to

determine whether a new correlation session should

be created, or whether an existing correlation session

should be reused.

Correlation Sessions Access. After correlation

sessions have been created, the CSM uses access

points to give ETLet components access to the

sessions. In our current implementation, we expose a

method called getSession() in the base class of

ETLet components that determines in runtime the

correct correlation session during the event

processing.

Session Data Persistence. The CSM supports

the following modes to make the correlation sessions

persistent: 1) memory mode – correlation sessions

are only kept in memory, 2) file mode – correlation

sessions are stored in the file system, 3) database

mode – correlation sessions are stored in a database,

and 4) replication mode – correlation sessions are

replicated among multiple containers in a server

farm. The persistence mode is configurable in a

deployment descriptor and the container

automatically takes care of storing and retrieving

session data.

Isolation for Session Access. During the event

processing, ETLet components can read and write to

a correlation session. In order to prevent side effects

Figure 3: Container-Managed Correlation Sessions

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

324

of concurrently executing events that use the same

correlation session, the CSM ensures appropriate

isolation independent of which persistency mode

was chosen. The current implementation supports

two isolation levels: 1) serialized (default) and 2)

read uncommitted. Some solutions require

concurrent, long-running event data processing

where the isolation can significantly decrease the

throughput of events due to the serialization of the

session data access. A read uncommitted isolation

level, allows ETLet components to take

responsibility for handling session data access

concurrency issues.

Destruction. The CSM also takes care of the

destruction of correlation sessions either: 1) during

the event processing in ETLets by calling the

method getSession().invalidate(), or 2) by specifying

a timeout parameter in the deployment descriptor

and the CSM will automatically remove the session

after a timeout.

5 EVENT PROCESSING

EXAMPLE

In this section, we show a simple example of an

application for calculating the cycle time of business

processes with correlation sessions. Figure 4 shows

a container environment that receives business

process events from two sources. The first source is

a WFMS that notifies the container with messages

about state changes of workflows. The second event

source is an ERP system that uses a J2EE connector

for transmitting business process events. The event

adapter components are used to unify the event

formats from the two event sources and to dispatch

standardized XML events. The container delivers the

dispatched events to the CycleTime ETLet which

calculates the cycle times with the support of

correlation sessions. Finally, the ETLet dispatches

the cycle time metrics which allows evaluator

components to evaluate the metric and generate an

intelligent response (e.g. sending out notifications to

business people or triggering business operations) in

near real-time.

The ETLet in our example calculates the cycle

times by processing the

PROCESS_STARTED,

PROCESS_COMPLETED and PROCESS_CANCELED

business process events. Figure 5 shows two

examples for these events. The ETLet

implementation shown in Figure 6 has a method

called processEvent() that does the processing of the

previously mentioned events. The processEvent()

method calculates the cycle time by extracting the

timestamp information from the events and

determining the time differences. The timestamp of

the PROCESS_STARTED event is stored in a

correlation session in order to be retrieved at a later

point in time. In other words, the correlation

sessions in this example capture all

PROCESS_STARTED timestamps of currently

running process instances.

When the PROCESS_COMPLETED or

PROCESS_CANCELED event is received, the cycle

time of a process instance is calculated. The

calculated metric is also published which allows

other managed components of the container to

receive this metric (e.g. components that evaluate

the metric). Since the data items in the correlation

session aren’t needed for other upcoming events, it

is finally destroyed by calling the method

getSession().invalidate().

Figure 4: Example - Processing Events for Calculating Cycle Times

CORRELATING EVENTS FOR MONITORING BUSINESS PROCESSES

325

<event>

<event-ID>PROCESS_STARTED</event-ID>

<time-created>2003-01-25T02:33:00</time-created>

<event-source>

<source-ID>MQSeries WF</source-ID>

</event-source>

<business-process-event>

<process-ID>Order Process</process-ID>

<process-instance-ID>221</process-instance-ID>

</business-process-event>

</event>

<event>

<event-ID>PROCESS_COMPLETED</event-ID>

<time-created>2003-01-27T05:03:00</time-created>

<event-source>

<source-ID>MQSeries WF</source-ID>

</event-source>

<business-process-event>

<process-ID>Order Process</process-ID>

<process-instance-ID>221</process-instance-ID>

</business-process-event>

</event>

Figure 5: PROCESS_STARTED and PROCESS_COMPLETED Events

Figure 6: ETLet Example.

Figure 7 shows the sections in the deployment

descriptor for the CycleTime ETLet. The ETLet

section carries information about the ETLet name,

the implementation class, the triggering events, the

published metrics, and the correlation sessions.

The correlation session configuration includes the

XPath expression “//process-instance-ID” which is

used by the container to extract data that is used

for the correlation of incoming events (see also

Figure 5 which shows the events that are the XPath

expression applied to). The extracted correlation

data is used by the container to create and associate

correlation sessions. With the correlation

expression shown in Figure 7, a new correlation

session is created for each new process instance.

Furthermore, the configuration for correlation

section includes parameters about the isolation

level, the session timeout (in minutes), and the

persistent storage for the session data. In this

example, the persistent storage for session data is

crucial since processes can have a long cycle time

and the container might loose the session data due

to machine crashes or restarts.

The container uses the information shown in

Figure 7 for instantiating and initializing the

CycleTime ETLet component. Please note that the

deployment descriptor includes other parameters

that are not shown in the figure (e.g. database

configuration for the error tables, global

parameters, control flow for the event processing,

etc.).

public class CycleTimeETLet extends ETLet {

// Event processing for the events PROCESS_STARTED and PROCESS_COMPLETED

public void processEvent(WorkflowEvent event, MetricPublisher metricPublisher) {

if(event.getEventID().equals(“PROCESS_STARTED”)) {

getSession().put(“ProcessStarted”,event.getTimestamp());

}

if(event.getEventID().equals(“PROCESS_COMPLETED”) ||

event.getEventID().equals(“PROCESS_CANCELED”)) {

Date started = (Date)getSession().get(“ProcessStarted”);

Date done = event.getTimestamp();

// Calculate the cycle time in seconds

long cycleTime = (done.getTime() - started.getTime())/1000;

// Store the cycle time in the database

... store cycle time in database

// Publish the cycle time metric

metricPublisher.publish(“CycleTime”, new Long(cycleTime), null);

// Cleanup

getSession().invalidate();

}

// Handles immediately exceptions

public boolean failed(WorkflowEvent event, Exception exception) {

// Container will automatically store events and exceptions in an error table

return false;

}

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

326

Figure 7: Deployment Descriptor Example.

6 CONCLUSION

In large organizations, huge amounts of data can

be generated and consumed by business processes.

Business managers need up-to-date information to

make timely and sound business decisions. This

paper described a container-based approach for

correlating event data with the aim of providing

continuous, near real-time data integration for data

warehouse environments. We introduced the

concept of managed correlation sessions to capture

related event data and to facilitate its data

management. Correlation sessions provide direct

access to correlated event data and leave the

component developer with the simplified task of

developing business functionality. Our container-

based approach for managing correlation sessions

allows a reconfiguration without changing the

component code, making components useful in a

wide range of contexts.

REFERENCES

Babu, S. and Widom, J., Continuous queries over data

streams, ACM SIGMOD Record, 30(3):109–120,

Sept. 2001.

Feldkuhn, L. and Erickson, J., Event Management as a

Common Functional Area of Open Systems

Management, in Proc. IFIP Symposium on

Integrated Network Management, North Holland,

1989.

Houck, K., Calo, S., Finkel, A., Towards a practical

alarm correlation system, IEEE/IFIP Symposium

on Integrated Network Management, 1995.

Katzela, I. and Schwartz, M., Schemes for fault

identification in communication networks, IEEE

Transactions on Networking, 1995.

McGregor, C. and Schiefer, J., A Framework for

Analyzing and Measuring Business Performance

with Web Services, Proceedings of the 2003 IEEE

Conference on E-Commerce, CEC'03, Newport

Beach, CA, 2003.

Nygate, Y.A., Event correlation using rule and object

base techniques, IEEE/IFIP Symposium on

Integrated Network Management, 1995.

Wu, P., Bhatnagar, R., Epshtein, L., Bhandaru, M., Shi,

Z., Alarm correlation engine (ACE), In Proceedings

of the IEEE/IFIP 1998 Network Operations and

Management Symposium (NOMS), New Orleans,

1998.

Yemini, S. A., Sliger, S., Eyal, M., Yemini, Y., Ohsie,

D., High Speed and Robust Event Correlation,

IEEE Communications Magazine 34, No. 5, 82–90,

1996.

...

<ETLet>

<name>CycleTimeETLet</name>

<impl-class>CycleTimeETLet</impl-class>

<ETLet-triggers>

<event-trigger event-id="PROCESS_STARTED"/>

<event-trigger event-id="PROCESS_COMPLETED"/>

<event-trigger event-id="PROCESS_CANCELED"/>

</ETLet-triggers>

<published-metrics>

<metric-name>CycleTime</metric-name>

</published-metrics>

<correlation-session-config>

<correlation-expression>//process-instance-ID</correlation-expression>

<isolation-level>serialized</isolation-level>

<session-timeout>43200</session-timeout>

<persistent-store>

<persistent-store-database>

<jdbc-connection-string>jdbc:db2:csmdb</jdbc-connection-string>

<database-driver>COM.ibm.db2.jdbc.app.DB2Driver</database-driver>

<user>dbuser</user>

<password>dbpassword</password>

</persistent-store-database>

</persistent-store>

</correlation-session-config>

</ETLet>

...

CORRELATING EVENTS FOR MONITORING BUSINESS PROCESSES

327
