TRAINING NETWORK MANAGERS TO RECOGNISE

INTRUSION ATTACKS

Colin Pattinson, Kemal Hajdarevic

School of Computing, Leeds Metropolitan University, Leeds, UK

Keywords: Training network managers, denial of service attack, simulation

Abstract: One of the major challenges facing the e-Business community, and the broader telecommunications network

world, is the threat of electronic attack. Of the sub-categories of such attacks, the denial of service attack, in

which the intruder’s objective is to prevent legitimate users from accessing some or all of an organisation’s

computing resource, regularly creates headlines in the popular press. Whilst significant research effort is

being expended on the development of automated tools to recognise such attacks, for many businesses

(particularly the small business sector) network management (including security and intrusion detection) is

the responsibility of an individual employee (the “network manager”), among whose responsibilities is the

observation and monitoring of network behaviour, and who will be expected to monitor data, detect the

signs of intrusion, and take action, ideally before the attack has taken effect. Traditionally, this skill has

developed through a hands-on process, learning “normal” behaviour, using this knowledge to detect

anomalies, undertaking further investigation to determine more details of the cause. This will involve

interaction with the “live” network, and the first experience of an attack will be when it actually occurs.

This is counter to good training practice, in which a trainee will have had experience of “problem

situations” in a controlled environment, and will have the opportunity to develop their responses, review

actions and repeat the activity, so that when the situation occurs “for real”, responses are semi-automatic.

This paper describes a simulation-based training tool in which student network managers experience the

symptoms and effects of a denial of service attack and practice their responses in a controlled environment,

with the aim of preparing them more effectively for the time they meet such an attack in reality.

1 INTRODUCTION

Reports of attacks on computer networks, aimed at

disrupting the service provided to users of those

networks, and the consequential effects on business

and consumer confidence are commonplace in the

popular press. These attacks vary in their method,

purpose and effectiveness, but one of the most

frequently launched attacks – probably because it is

also one of the most effective and easy to bring

about – is denial of service (DOS).

DOS has many flavours and variants, but the

common factor is that one or more nodes within a

network are subjected to some form of traffic which

requires the use of resources to handle it, for

example by directing an excessive volume of a

particular request message, to which the host is

obliged to respond. Resources (processing time and

buffer space) allocated to this task are resources

which cannot be allocated elsewhere, and, in

extremis, there are insufficient resources left to meet

the service requirements of legitimate users. The

result is that those users are denied service, so the

attack has succeeded.

The (human) network manager is the member of

staff with responsibility for maintaining the service

levels of the network, and it therefore appropriate to

consider how such an individual might be assisted in

identifying that an attack is underway, and the ways

in which the effects can be mitigated, if not

prevented. Consider first the identification phase, a

problem of this nature will be noticed because it

presents variations from the “normal” behaviour of

the system. In the best case, this will be early

enough to allow defences to be deployed against the

attacker. In the worst case, the anomaly will be some

form of failure. Clearly therefore, early detection of

anomalies is an important factor. Whilst the

development of automated anomaly detectors is a

fertile research area (see below), in many smaller

269

Pattinson C. and Hajdarevic K. (2004).

TRAINING NETWORK MANAGERS TO RECOGNISE INTRUSION ATTACKS.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 269-274

DOI: 10.5220/0001386202690274

 SciTePress

organisations the network manager will carry out

this task manually, using the current generation of

network monitoring tools. In essence, the network

manager will be expected to learn through

observation the “normal” signs of operation, and

also to spot any variation from “normality” in

sufficient time to react effectively. The most popular

network monitoring tools make use of the Simple

Network Management Protocol (SNMP) in one of its

variants, and monitoring in this situation is a case of

observing trends in the various counters and related

data, with anomalies being revealed as changes in

those trends.

This is a skill which develops over time and with

experience, but unfortunately, the most common

experience is that the onset of a real attack is the first

practical experience many network managers have,

they “learn through doing” in a very direct fashion.

We argue that it is desirable to have a more

structured approach to learning, and we borrow from

the “flight simulator” style of training to propose a

means by which novice network managers can

practice their skills in a controlled environment. We

have developed such a training tool, described in

detail elsewhere, this paper describes how we have

incorporated the effects of a DOS attack into that

tool, to give a student network manager the

opportunity to recognise these symptoms and to

practice their response to the attack.

Our network management simulator tool uses a

combination of synthetically varied SNMP

Management Information Base (MIB-2) objects and

external “messages from other systems and users”

(themselves produced according to a pre-set script),

to create the effect of different network scenarios.

The details of the simulation process has been

described elsewhere

(Pattinson, 2000), where we

also make it clear that we use an existing SNMP-

capable network management platform to collect

and display data from our simulated SNMP data set.

In the case described in this paper, we show how

these input stimuli are manipulated to create the

impression of a DOS attack.

The structure of this paper is as follows: we state the

need to detect and respond to DOS attacks, including

a review of current work in automated detection

systems; we then present the results of our analysis

of the symptoms of such attacks, with particular

reference to the effect on observed SNMP data; we

then describe how these symptoms are represented

in our simulation system, together with the other

related symptoms; we conclude with an analysis of

the effectiveness of our approach and a description

of further work.

2 EARLY ATTACK DETECTION

Early detection of attacks or other anomalies which

could harm a network in some way is the subject of

much current research.

An automated system which is able to recognise and

prevent attacks or other anomalies, and work with

already standardized mechanisms for network

management, is preferable to those systems and

projects whose goal is to design new hardware

equipment such as D-WARD (UCLA, 2002). Some

research groups, such as MINDS, (University of

Minnesota, 2003) use more than one mechanism to

gather data about network behaviour such as

sniffers, syslog, tcpdump or net-flow (capturing

packet headers) while this offers better

understanding of what is really going on in each

packet, it makes the overall system more complex –

data has to be gathered and processed from different

sources. Dokas et al (2001) report work on the

detection of anomalies by setting threshold values

and treating an overstepping of this threshold as an

event worthy of further investigation. The major

concern with these automated systems is that of

reliability – in this context meaning identifying (and

not responding to) false alarms, while remaining

sufficiently alert to detect genuine problems early

enough to mount a defence. Typically, this leads to

the MINDS approach of gathering more, and

different, data, but for our work we are interested in

the situation where the (human) Network Manager

relies on manual interpretation of data, and on

SNMP MIB-2 data alone.

Our research has used only MIB-2 instances to

discover anomalies in the behaviour of network

protocols and resources. The reason for this is that

MIB-2 is a standardised database already installed

on many pieces of network equipment. If all network

devices (routers, switches, PCs etc.) are MIB-2

capable it might be possible to detect an attack or

other anomaly in its early development stages,

allowing enough time to prevent any serious damage

to the attacked systems. Many attacks come from

outside a secured network and are delivered through

network gateways.

Clearly, the collection of counters in MIB-2 (located

at various points across the network) will show the

impact of any attempt to overload a device within

the network. Although this impact will be most

obvious at the node being attacked (as we show

below), there will also be (probably lesser) impacts

on the near neighbour nodes, and particularly on the

gateway router devices. In view of the possible

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

270

failure of the “attacked” node, we must also pay

attention to the way in which neighbouring nodes

represent the developing attack, and include those in

our simulation.

We wished to develop a simulation in which

changes in behaviour of specific MIB-2 instances

could allow a network manager to practice their

interpretation skills and detect the onset of an attack.

We begin this process by presenting an analysis of

the effects of a DOS attack on a small network of the

type common to the environment in which our

trainees are likely to work. We then present a

structured simulation and show, through a number of

screen shots, what a trainee user will experience

when presented with this simulation.

3 SIMULATING AN ATTACK THE

TCP/SYN EXAMPLE

The TCP/SYN attack (CERT 1999) is a well-known

variant of DOS, in which an attacker launches a

series of TCP/SYN packets (connection

establishment requests) at a target. These packets

typically each have a different (spoofed) source IP

address, which is unreachable from the target. The

“rules” of TCP connection establishment require the

target to issue a SYN-ACK packet in response, and

to allocate resources (buffer and table space etc.) for

the “new” connection. Whilst this is sufficient to tie

up resource at the target, and is therefore a DOS

attack in its own right, a consequence of attempting

to send a packet to an unreachable IP address is that

the next hop (router) will return an ICMP

“Destination unreachable” message to the sender, so

further consuming buffer space. Any existing

(legitimate) connections to or from the target will

experience a gradual reduction in their throughput,

and may, as the attack develops, timeout. New

legitimate attempts to connect are likely to fail via

timeout before completion.

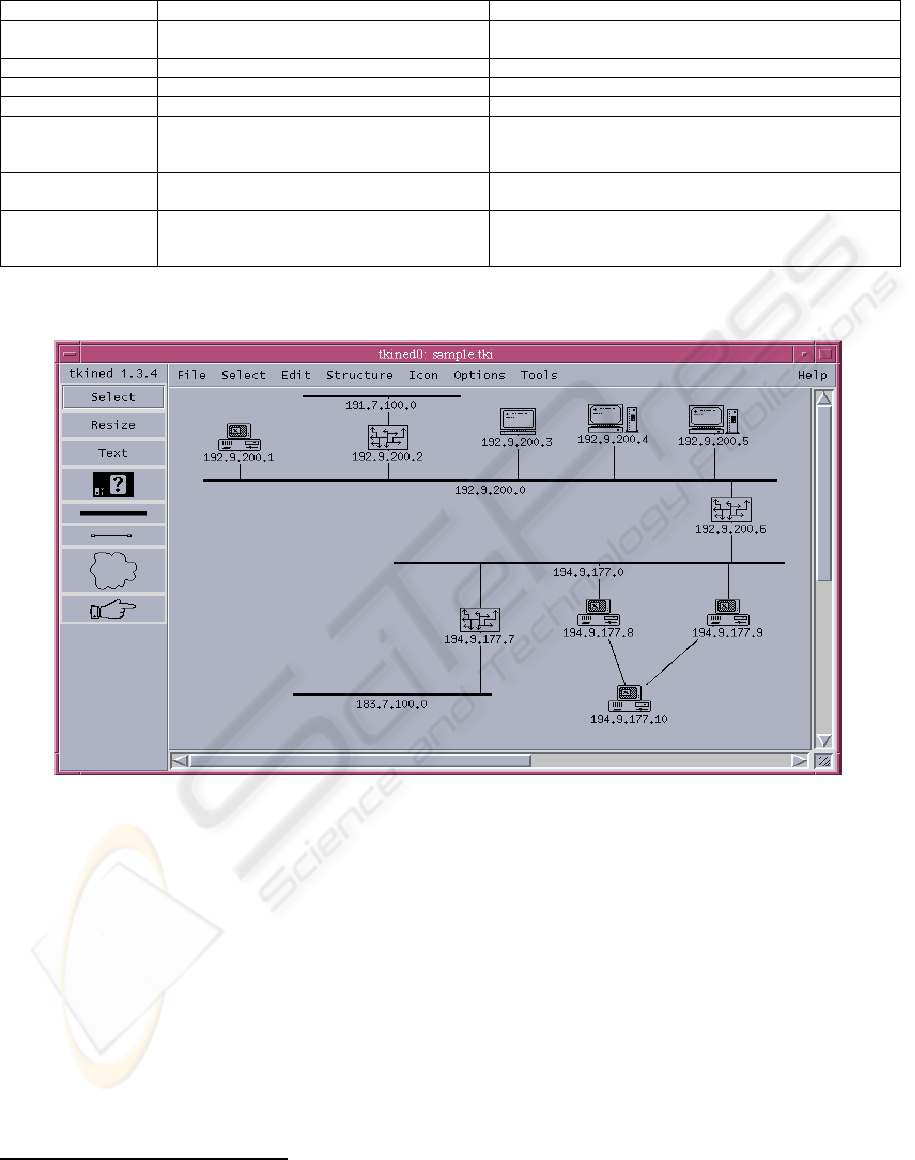

Therefore, in order to represent the effect of such an

attack on node 1 of our simulated network

(presented at figure 1), we need to vary the MIB-2

objects representing the behaviour of node 1 in the

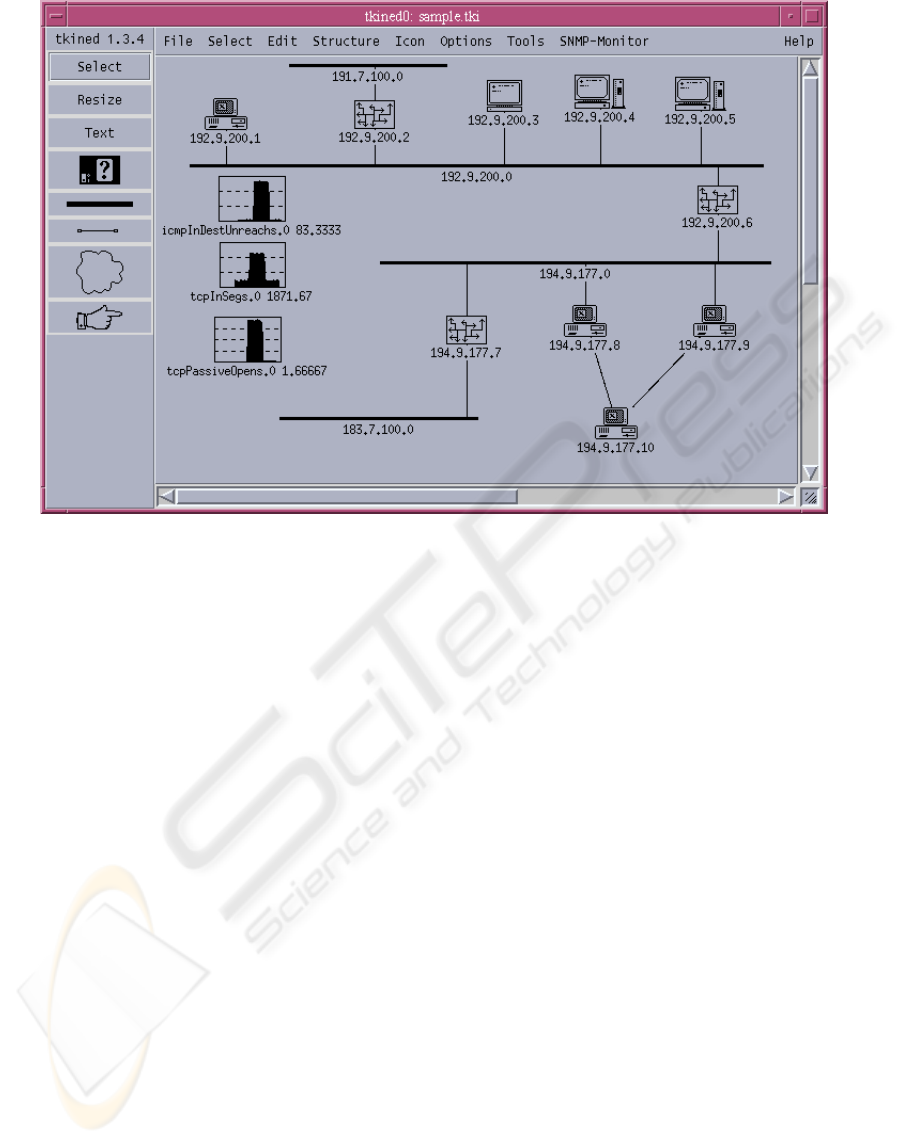

manner shown in table 1. Figure 2 shows how this

behaviour might be traced during operation.

4 THE EFFECTS ON OTHER

HOSTS WITHIN THE

NETWORK

As noted above, other users and systems will also be

affected by a DOS attack, in this case, the major

impact will be on those users who are, or would

wish to be, connected to the attacked node. We

represent this by reducing their “traffic flow” during

the onset of the attack, and by terminating some

“connections” as the effects of the attack worsen.

The simulation also allows us to generate “pop-up”

messages on the trainee’s console reporting (or

complaining of) connection loss / slowdown. Other

affected activities are those devices which share a

connection (bandwidth resource) with the attacked

node. In this case, this is particularly relevant to

other nodes sharing the router node X. They too

should experience a slow-down in connection speed,

with the occasional connection loss due to time out.

This gives rise to simulated “complaints” (via pop-

ups) about the service being offered.

Finally, the router which detects that the SYN/ACK

frames generated by the target cannot be forwarded

will inform the target (via ICMP) that the destination

is unreachable. In our simulation, this means that

this router should be seen to produce a large number

of these ICMP messages.

By arranging that these symptoms develop over

time, we create the representation of a developing

attack, and the trainee’s task is then to establish, as

soon as possible, the nature and impact of the attack,

and to specify remedial action to recover from it.

From this starting point, a number of possible

activities are possible: we can use the system as it

stands, allowing trainee users to carry out a set of

training activities (limited only by our creation of

different scenarios); we can record the users’

activities and review those records to determine

situations where other actions might have been more

appropriate, the ability to replay the same scenario

means that this can then be easily done; we can use

data mining techniques to determine whether

patterns of use emerge which might give us insights

into the way in which users react to these situations,

offering the opportunity to develop new network

management tools to assist by automating the

beneficial reactions. Work on the latter is already

underway, as described by Donelan et al (2004).

TRAINING NETWORK MANAGERS TO RECOGNISE INTRUSION ATTACKS

271

Table 1: Variation to MIB objects representing a simulated DOS attack

MIB-2 object Change Comment

tcpInSegs Increase at “attack rate” + Each attack is a tcp segment, others may still also be

transmitting data

tcpOutSegs Do. Each SYN should generate a SYN/ACK response

tcpPassiveOpens Increase at “attack rate” Each attack is a connect request event

tcpCurrEstab Do. Number of “established” connections counter

tcpConnTab entries increasing number of connections in state

SYN_RCVD with non-recognised remote IP

address

Connection table shows state of current connections

tcpAttemptFails Increase at “attack rate” after onset of attack After some time the “attack” connections will time out.

(Stevens 1997)

icmpInDestUnreachs Do. The router to which the SYN/ACKs are sent will be unable

to find an outgoing route for these frames, and will inform

the sender.

Figure 1: The simulated DOS attack will be mounted on node 192.9.200.1 (upper left), and will arrive from the internet

through router 192.9.200.2.

∗

Note we use the tkined network editor (tkined, 2000) to present this information, but with MIB data taken

from a simulation rather than a “real” network – the work discussed here is our simulation technique.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

272

Figure 2: Graphs monitoring the delta values of different MIB counters on node 192.9.200.1 show the surge of a DOS

attack against lower “normal” background traffic.

5 RESULTS AND CONCLUSIONS

We are aware that our model represents a form of

attack which is now somewhat “dated”, and that

newer forms of attack present different symptoms.

However, we believe that the basic premise of our

work does indicate the need to develop tools of this

form in order to meet the needs of the large number

of network administrators who may not have access

to large, complex and automated network detection

systems, but who are still expected to take

responsibility for the integrity of their network

provision.

Whilst our system does not address the problem of

prevention of DOS attacks, we believe that we are

able to present our trainees with a valid experience

of the kinds of network behaviour they may

experience in managing a network which is

subjected to such an attack. We also believe that a

system such as this is a valuable addition to the

learning experience of novice network managers.

We wish to continue development to present further

simulated network attacks, and to expand and

increase the size and variety of network types

involved. One particular area of interest is in the

incorporation of simulated mobile devices with the

simulated network. We are also recording the users’

responses, we then plan to study these responses to

gain greater insight into how network managers

react to fault situations, which may in turn allow us

to influence the development of tools to assist

managers in their task.

REFERENCES

P. Dokas, L. Ertoz, V. Kumar, A. Lazarevic, J. Srivastava,

Pang-Ning Tan, (2001) Data Mining for Network

Intrusion Detection. Decision Sciences Journal, 32,

Number 4 Fall 2001, Decision Sciences Institute

http://www.decisionsciences.org/index.html

H. Donelan, C. Pattinson, D. Palmer-Brown (2004), The

analysis of user behaviour of a network management

training tool using a neural network. International

Conference on Education and Information Systems:

Technologies and Applications (EISTA 2004),

Orlando, USA, July 21-25 2004.

C. Pattinson (2000) A simulated network management

information base Journal of Network and

ComputerApplications 23 April 2000 pp. 93 – 107

W.R. Stevens (1997) TCP/IP Illustrated Volume 1.

Addison Wesley Longman, Reading, MA.

The Carnegie Mellon University CERT Coordination

Center, (1999) 1999– UDP DoS.

http://www.cert.org/incident_notes/IN-99-07.html

[Accessed 12 October 2003]

TRAINING NETWORK MANAGERS TO RECOGNISE INTRUSION ATTACKS

273

Tkined (2000) is the network management interface

provided by scotty

http://wwwhome.cs.utwente.nl/~schoenw/scotty

[Accessed 12 February 2004]

UCLA, 2002 D-WARD Project, UCLA, Computer

Science Department. http://lasr.cs.ucla.edu/dward/

[Accessed 12 October 2003]

University of Minnesota Dept. of Computer Science &

Engineering, 2003 Minnesota Intrusion Detection

System

http://www.cs.umn.edu/research/minds/MINDS.htm

[Accessed 12 February 2004]

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

274
